Focus on producing VFD、Servo and various Motor Drivers
Annual sales quantity 900,000+ units
Power range:0.4kw~2000kw,Voltage range:110v~10000v
Service distribution network covers the world
Place of Origin: | Shanghai, China |
---|---|
Brand Name: | ZONCN |
Certification: | CE |
Model Number: | NZ200T-37GY-4-24V |
Document: | NZ200T parameter list.pdf |
Minimum Order Quantity: | 1 unit |
Packaging Details: | Carton Packing |
Delivery Time: | 7-30 work days |
Payment Terms: | T/T,Western Union,Paypal |
Supply Ability: | 100000 units per month |
Application: | Air Compressors | Power: | 45KW Vfd |
---|---|---|---|
Voltage: | 380V Input And Output | Input: | 3phase 50/60Hz |
Output: | 3phase 0-320Hz | Display: | LED Display |
Brake Unit: | Optional | DC Braking: | Yes |
Certificates: | CE | Compressor Controller Dimensions: | 4.3/7/10 Inches |
Highlight: | 24V Vsd Specific Inverter,37KW Vsd Specific Inverter,Vsd Specific Inverter With LED Display |
The terminals of the NZ200 series vfd inverter are simple, easy to connect and easy to operate.

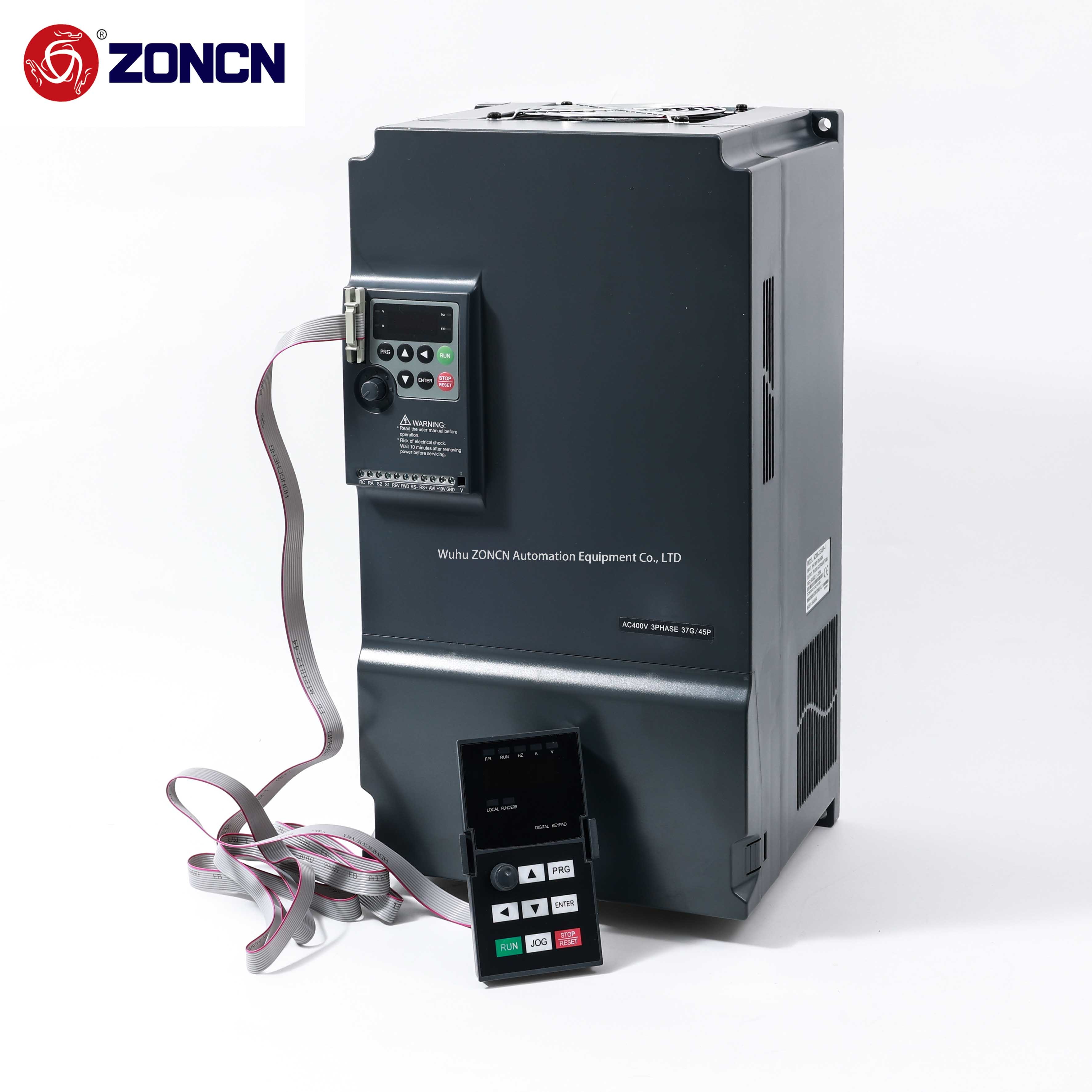

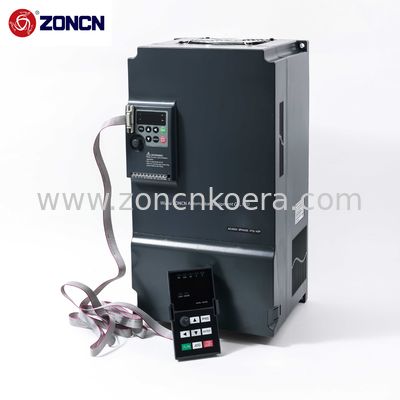

The NZ200 series drives support an external keyboard, which can be remotely controlled by the user.
*NZ200 series vfd inverter support external keyboard, please contact customer service to purchase separately.
Type | Input voltage | Rated output power(KW) | Rated input current(A) | Rated output current (A) | Motor power ( KW) |
NZ200T-0R4G-2 |
AC 220V |
0.4 | 5.4 | 2.5 | 0.4 |
NZ200T-0R75G-2 | 0.75 | 7.2 | 5.0 | 0.75 | |
NZ200T-1R5G-2 | 1.5 | 10.0 | 7.0 | 1.5 | |
NZ200T-2R2G-2 | 2.2 | 16 | 11 | 2.2 | |
NZ200T-3R7G-2 | 3.7 | 24 | 16.5 | 3.7 | |
NZ200T-0R4G-4 |
AC 380V |
0.4 | 3.4 | 1.2 | 0.4 |
NZ200T-0R75G-4 | 0.75 | 3.8 | 2.5 | 0.75 | |
NZ200T-1R5G-4 | 1.5 | 5.0 | 3.7 | 1.5 | |
NZ200T-2R2G-4 | 2.2 | 5.8 | 5.0 | 2.2 | |
NZ200T-3R7G/5R5P-4 | 3.7/5.5 | 10/15 | 9/13 | 3.7/5.5 | |
NZ200T-5R5G/7R5P-4 | 5.5/7.5 | 15/20 | 13/27 | 5.5/7.5 | |
NZ200T-7R5G/11P-4 | 7.5/11 | 20/26 | 17/25 | 7.5/11 | |
NZ200T-11G/15P-4 | 11/15 | 26/35 | 25/32 | 11/15 | |
NZ200T-15G/18.5P-4 | 15/18.5 | 35/38 | 32/37 | 15/18.5 | |
NZ200T-18.5G/22P-4 | 18.5/22 | 38/46 | 37/45 | 18.5/22 | |
NZ200T-22G/30P-4 | 22/30 | 46/62 | 45/60 | 22/30 | |
NZ200T-30G/37P-4 | 30/37 | 62/76 | 60/75 | 30/37 | |
NZ200T-37G/45P-4 | 37/45 | 76/90 | 75/90 | 37/45 | |
NZ200T-45G/55P-4 | 45/55 | 90/105 | 90/110 | 45/55 | |
NZ200T-55G-4 | 55 | 105 | 110 | 55 | |
NZ200T-75P-4 | 75 | 140 | 150 | 75 | |
NZ200T-75G/90P-4 | 75/90 | 140/160 | 150/176 | 75/90 | |
NZ200T-90G/110P-4 | 90/110 | 160/210 | 176/210 | 90/110 | |
NZ200T-110G/132P-4 | 110/132 | 210/240 | 210/253 | 110/132 | |
NZ200T-132G/160P-4 | 132/160 | 240/290 | 253/300 | 132/160 | |
NZ200T-160G/185P-4 | 160/185 | 290/330 | 300/340 | 160/185 | |
NZ200T-185G/200P-4 | 185/200 | 330/370 | 340/380 | 185/200 | |
NZ200T-200G/220P-4 | 200/220 | 370/410 | 380/420 | 200/220 | |
NZ200T-220G/250P-4 | 220/250 | 410/460 | 420/470 | 220/250 | |
NZ200T-250G/280P-4 | 250/280 | 460/500 | 470/520 | 250/280 | |
NZ200T-280G/315P-4 | 280/315 | 500/580 | 520/600 | 280/315 | |
NZ200T-315G/350P-4 | 315/350 | 580/620 | 600/640 | 315/350 | |
NZ200T-350G/400P-4 | 350/400 | 620/670 | 640/690 | 350/400 | |
NZ200T-400G/450P-4 | 400/450 | 670/790 | 690/790 | 400/450 |
The frequency inverter of NZ200T series can be well used in various compressors,
and we have mature relevant experience.
ZONCN NZ200T series inverter, the excellent choice of air compressor industry!
As an important equipment for industrial production, air compressors have high requirements for operation stability and precise regulation. ZONCN NZ200T series inverter is specially designed for the air compressor industry and has become the trusted choice of many enterprises.
Widely adapted, deeply integrated into the field of air compressor
No matter what size, what type of air compressor, ZONCN NZ200T series inverter can be perfectly adapted to it. With its deep technical heritage and in-depth study of the air compressor industry, it has been widely used in all kinds of air compressor equipment, from large industrial grade air compressors to small commercial air compressors, can play an excellent performance, providing a solid guarantee for the efficient operation of air compressors.
Debugging is simple, easy to use
No need for professional and complex training, even the first contact operators, can quickly get started. ZONCN NZ200T series inverter has a simple and intuitive operation interface, user-friendly menu design makes the parameter Settings at a glance. Simple and efficient commissioning process, greatly save installation and commissioning time, reduce labor costs, so that you can quickly start the stable operation of air compressor.
Low failure rate, lasting stable operation
We know the importance of stability for the operation of air compressors. ZONCN NZ200T series inverter adopts high-quality components and advanced manufacturing technology, and passes stringent quality testing to ensure product reliability from the source. Its excellent anti-interference ability and stable performance greatly reduce the incidence of failure during operation, reduce the loss caused by downtime and maintenance for you, ensure that the air compressor continues to work efficiently, and escort your production.
Choosing ZONCN NZ200T series inverter is to choose the guarantee of stable and efficient operation of air compressor, and open a new chapter of energy saving and efficiency of air compressor industry!
Q1:What is your MOQ?
A: 1 pc
Q2:What's your terms of payment?
A:T/T 100% before delivery.
Q3:What's your delivery time?
A:Generally within ten days after receiving full payment.
Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
