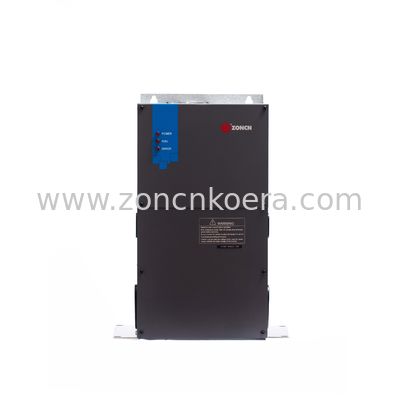

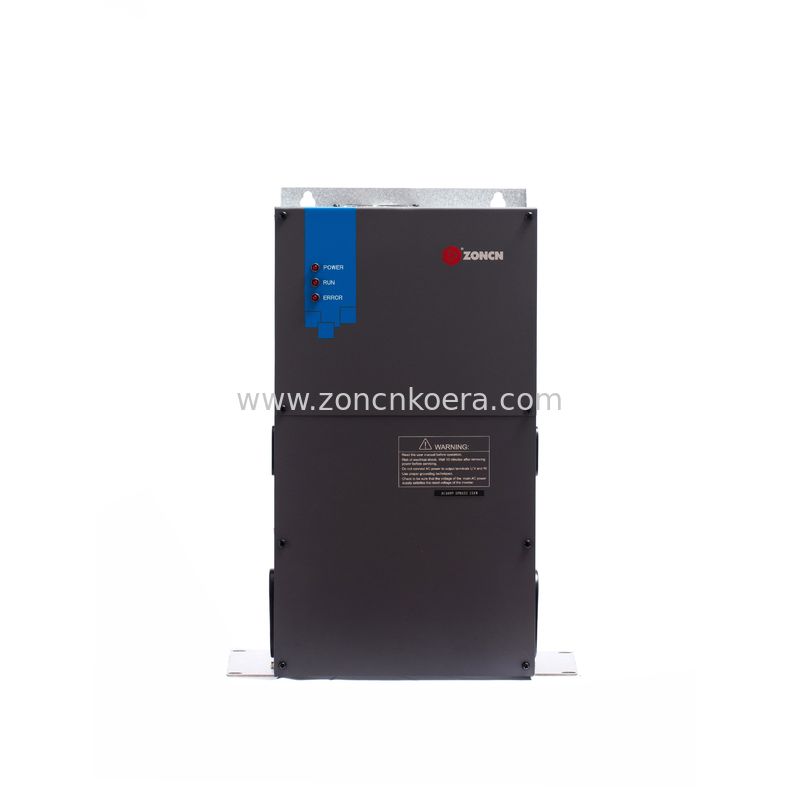

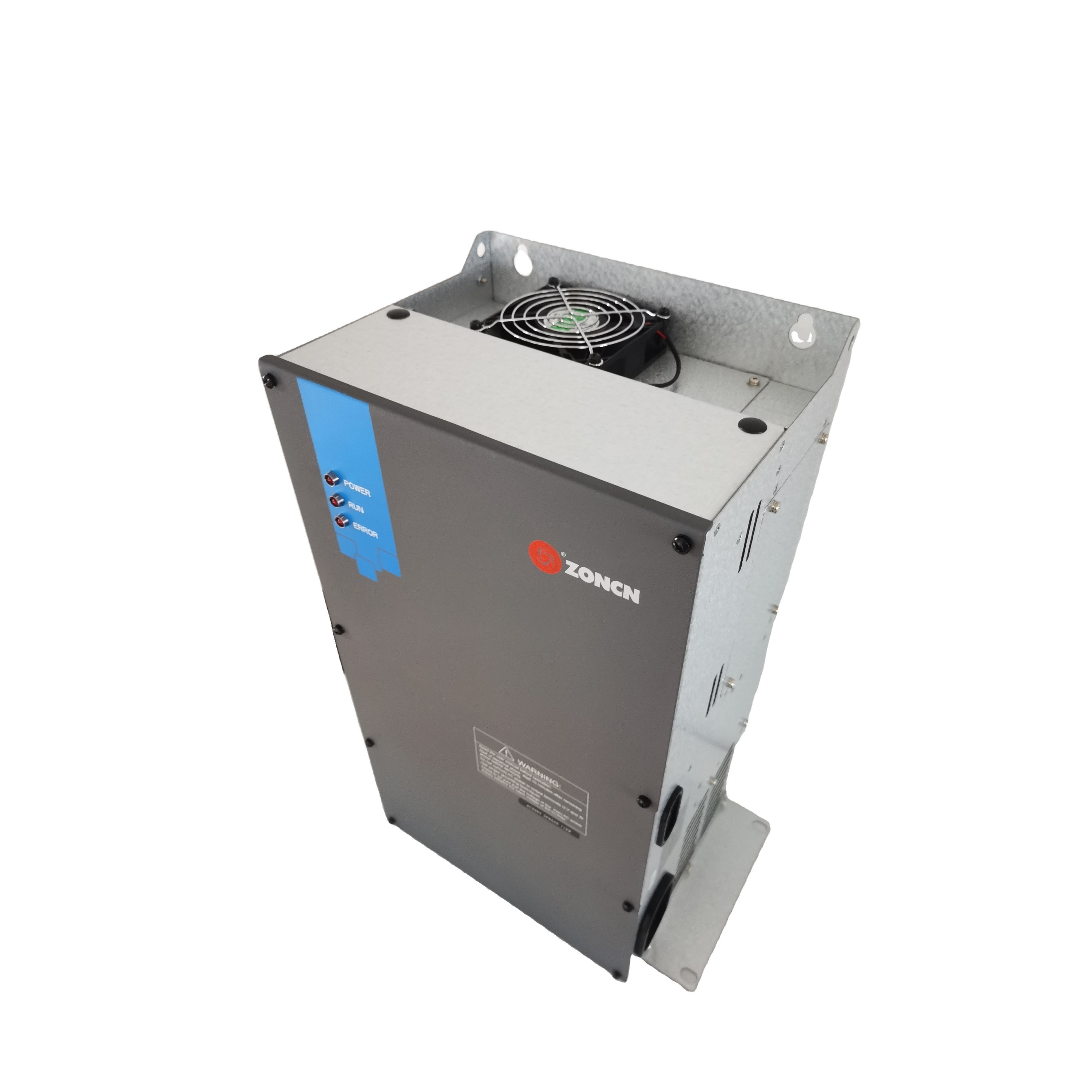

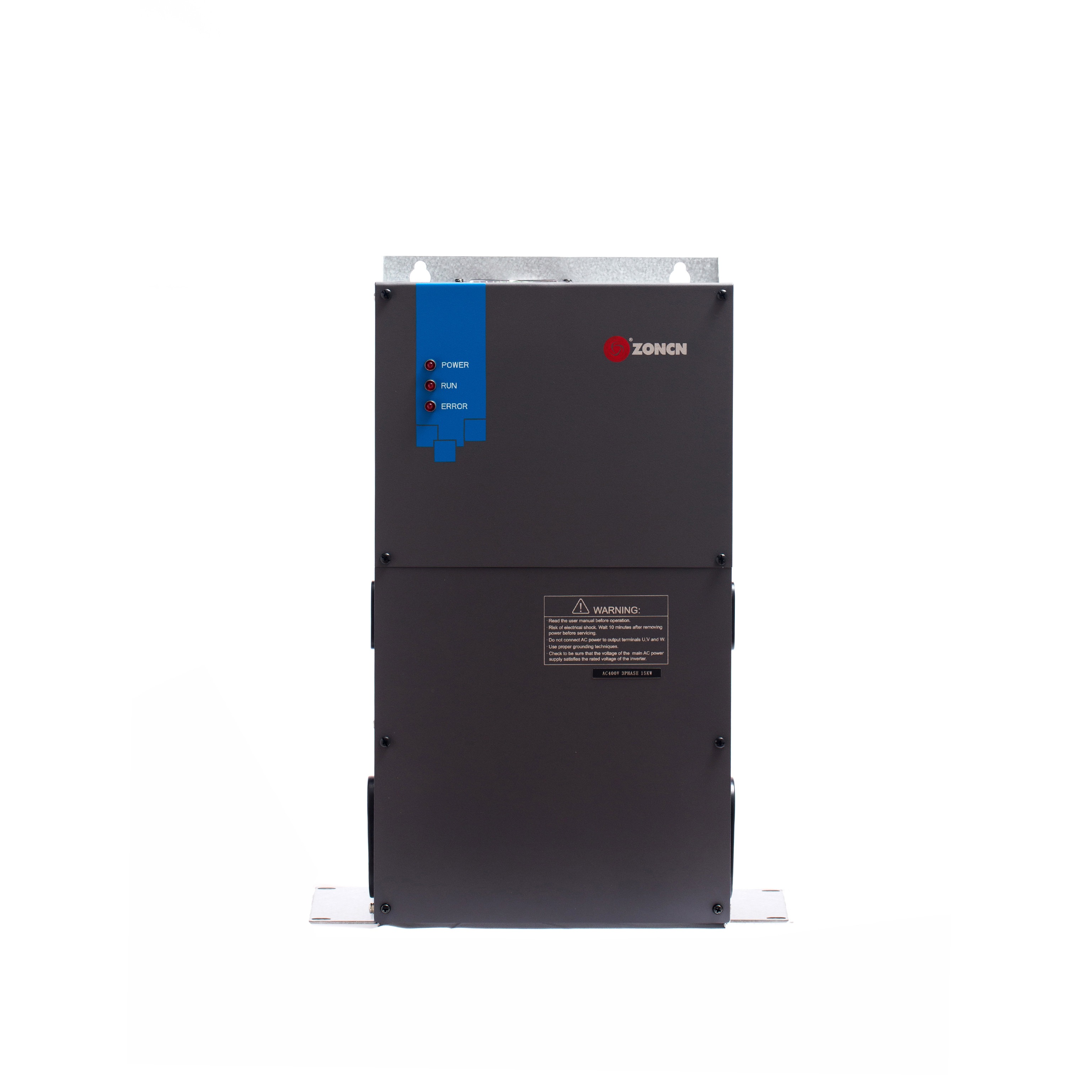

ZONCN Inverter DP500 SP500 Series 7.5kw 11kw 15kw VFD VSD For Air Compressor

ZONCN Inverter DP500 SP500 Series 7.5kw 11kw 15kw VFD VSD For Air Compressor
ZONCN Inverter DP500 SP500 Series 7.5kw 11kw 15kw VFD VSD For Air Compressor ZONCN Inverter DP500 SP500 Series 7.5kw 11kw 15kw VFD VSD For Air Compressor ZONCN Inverter DP500 SP500 Series 7.5kw 11kw 15kw VFD VSD For Air Compressor ZONCN Inverter DP500 SP500 Series 7.5kw 11kw 15kw VFD VSD For Air Compressor ZONCN Inverter DP500 SP500 Series 7.5kw 11kw 15kw VFD VSD For Air Compressor ZONCN Inverter DP500 SP500 Series 7.5kw 11kw 15kw VFD VSD For Air Compressor
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: DP500-15KY-4
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: Frequency Inverter Brand: ZONCN
Series: DP500 Input: 380v 3phase
Output: 380v 3phase Power: 15kw
Output Current: 32A Frequency Range: 0.1-600HZ
Highlight:

15kw Air Compressor Inverter

,

7.5kw Air Compressor Inverter

,

11kw Air Compressor Inverter

ZONCN DP500 Series variable frequency inverter

Air compressor integrator



Inverter Specification



Item Inverter Specification
Basic control functions Control mode Open loop vector control, V / F control
Maximum frequency Open loop vector control:0～600Hz,
V / F control: 0～600Hz
Carrier frequency 0.5kHz～15kHz,The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution Digital setting:0.01Hz
Analog setting: maximum frequency x 0.025%
Startup torque 0.5 Hz/150%
Speed range 1:100
Speed stability accuracy ± 0.2%
Torque control accuracy ±10%
Overload capacity 60s for 150% of the rated current, 3s for 180% of the rated current.
Torque boost Fixed boost
Customized boost 0.1%–30.0%
V/F curve Straight-line V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp
S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.0–6500.0s
Communication methods RS485
JOG control JOG frequency range: 0.00Hz–50.00 Hz
JOG acceleration/deceleration time: 0.0–6500.0s
Built-in PID It realizes process-controlled closed loop control system easily.
Auto voltage It can keep constant output voltage automatically when the mains voltage changes.
regulation (AVR)
Frequency source Digital setting
Input and output interfaces Analog Input 1 pressure sensor: 4 ~ 20mA input; 2 temperature sensor: PT100
Digital input 2 normal digital input;1 PTC protection circuit (compatible with normal digital inputs); 1 Remote start/stop input
Digital Output 4 relays output normally open (built in 2 220VAC voltage)
LED diode display Standard 3 LED display
protection Motor overheat protection (PTC), the power-to-ground short-circuit protection, inverter over-current, overload, over voltage, under voltage, overheat, output phase loss, communication fault, current detection fault, EEPROM read-write fault and so on.
Environment Installation location Indoor, free from direct sunlight, dust, corrosive gas,combustible gas, oil smoke, vapor, drip or salt.
Altitude Lower than 1000 m
Ambient temperature -10°C ～+40°C (Downshift if the ambient temperature is between 40°C and 50°C)
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9 m/s2 (0.6 g)
Storage temperature -20°C～60°C





Inverter outline dimension and install dimension



A. Cabinet installation

ZONCN Inverter DP500 SP500 Series 7.5kw 11kw 15kw VFD VSD For Air Compressor 0

ZONCN Inverter DP500 SP500 Series 7.5kw 11kw 15kw VFD VSD For Air Compressor 1





Company Introduction

ZONCN Inverter DP500 SP500 Series 7.5kw 11kw 15kw VFD VSD For Air Compressor 2

ZONCN Inverter DP500 SP500 Series 7.5kw 11kw 15kw VFD VSD For Air Compressor 3



ZONCN is Top 5 VFD inverter manufacturer in China with 19 years of experience. Our annual production capacity for inverter is about 1 Million pcs. ZONCN has 6 mains series of VFDs: NZ100, NZ200, Z2000, Z8000, T9000, H5000 (IP65/54), etc. Our factory has passed ISO9001 quality control system and all our inverters have CE certification. Our headquarters is in Shanghai, with total factory area 100,000 ㎡+.





We can produce the inverters for voltages from 110V to 1140V; power range covers 0.4kW to 2000Kw. Our inverters are widely used in textile, print, CNC machine, food package, injection machine, fan, pump, air compressor, water treatment, industrial washing machine and many industrial applications. What's more, ZONCN is the leading Top1 brand which used in air compressor industry.
