380v 3 Phase Industry Specific Inverter VFD 7.5kw 11kw 15kw 18kw

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	CE
Model Number:	SP600-0011KY-4

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	Inverters	Brand:	ZONCN
Control Mode:	Vector Control	Input Voltage:	380V-480v
Output Frequency:	0 - 320Hz	Power:	15HP
Protection:	Overload, Overvoltage, Undervoltage, Overcurrent, Short Circuit	Protection Level:	IP20
Application:	Screw Air Compressor
Highlight:	3 Phase Industry Specific Inverter , Industry Specific Inverter 18kw , vector vfd drive 15kw

380v 3 Phase VFD 7.5kw 11kw 15kw 18kw ZONCN Inverter Variable Frequency Drive 50hz 60hz

ZONCN Inverter SP600 Series variable frequency drive

Air compressor integrator

Inverter Specification

Item			Inverter Specification
Basic control functions	Control mode		Open loop vector control, V / F control
	Maximum frequency		Open loop vector control:0～600Hz, V / F control: 0～3200Hz
	Carrier frequency		0.5kHz～15kHz , The carrier frequency is automatically adjusted based on the load features.
	Input frequency resolution		Digital setting:0.01Hz Analog setting: maximum frequency x 0.025%
	Startup torque		0.5 Hz/150%
	Speed range		1:100
	Speed stability accuracy		± 0.2%
	Torque control accuracy		±10%
	Overload capacity		60s for 150% of the rated current, 3s for 180% of the rated current.
	Torque boost		Fixed boost Customized boost 0.1%–30.0%
	V/F curve		Straight-line V/F curve Multi-point V/F curve N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
	V/F separation		Two types: complete separation; half separation
	Ramp mode		Straight-line ramp S-curve ramp Four groups of acceleration/deceleration time with the range of 0.0–6500.0s
	Communication methods		RS485
	JOG control		JOG frequency range: 0.00Hz–50.00 Hz JOG acceleration/deceleration time: 0.0–6500.0s
	Built-in PID		It realizes process-controlled closed loop control system easily.
	Auto voltage regulation (AVR)		It can keep constant output voltage automatically when the mains voltage changes.
	Frequency source		Digital setting
Input and output interfaces	Analog Input		1 pressure sensor: 4 ~ 20mA input 2 temperature sensor: PT100
	Digital input		2 normal digital input 1 PTC protection circuit (compatible with normal digital inputs)
	Digital Output		2 relays output normally open (built in 220VAC voltage)
	LED diode display		Standard 3 LED display
protection	Motor overheat protection (PTC), the power-to-ground short-circuit protection, inverter over-current, overload, over voltage, under voltage, overheat, output phase loss, communication fault, current detection fault, EEPROM read-write fault and so on.
Fan	DP500: Fan inverter: 380V 15-55kW Master Motor built-in fan inverter 380V 1.5kW; 380V 75-160kW Master motor built-in fan inverter 380V 2.2kW
Environment	Installation location	Indoor, free from direct sunlight, dust, corrosive gas,combustible gas, oil smoke, vapor, drip or salt.
	Altitude	Lower than 1000 m
	Ambient temperature	-10°C ～+40°C (Downshift if the ambient temperature is between 40°C and 50°C)
	Humidity	Less than 95%RH, without condensing
	Vibration	Less than 5.9 m/s2 (0.6 g)
	Storage temperature	-20°C～60°C

Inverter outline dimension and install dimension

380v 3 Phase Industry Specific Inverter VFD 7.5kw 11kw 15kw 18kw 0

Inverter Model	W	H	H1	D	A	B	Ød
SP600T-5R5KY-4	118	238	274	154	80	260	5.5
SP600T-7R5KY-4
SP600T-011KY-4	145	293	335	172	100	320	7
SP600T-015KY-4
SP600T-018KY-4	168	338	380	172	100	365	7
SP600T-022KY-4
SP600T-030KY-4	217	400	--	216	202	385	7
SP600T-037KY-4

HMI outline dimension and install dimension

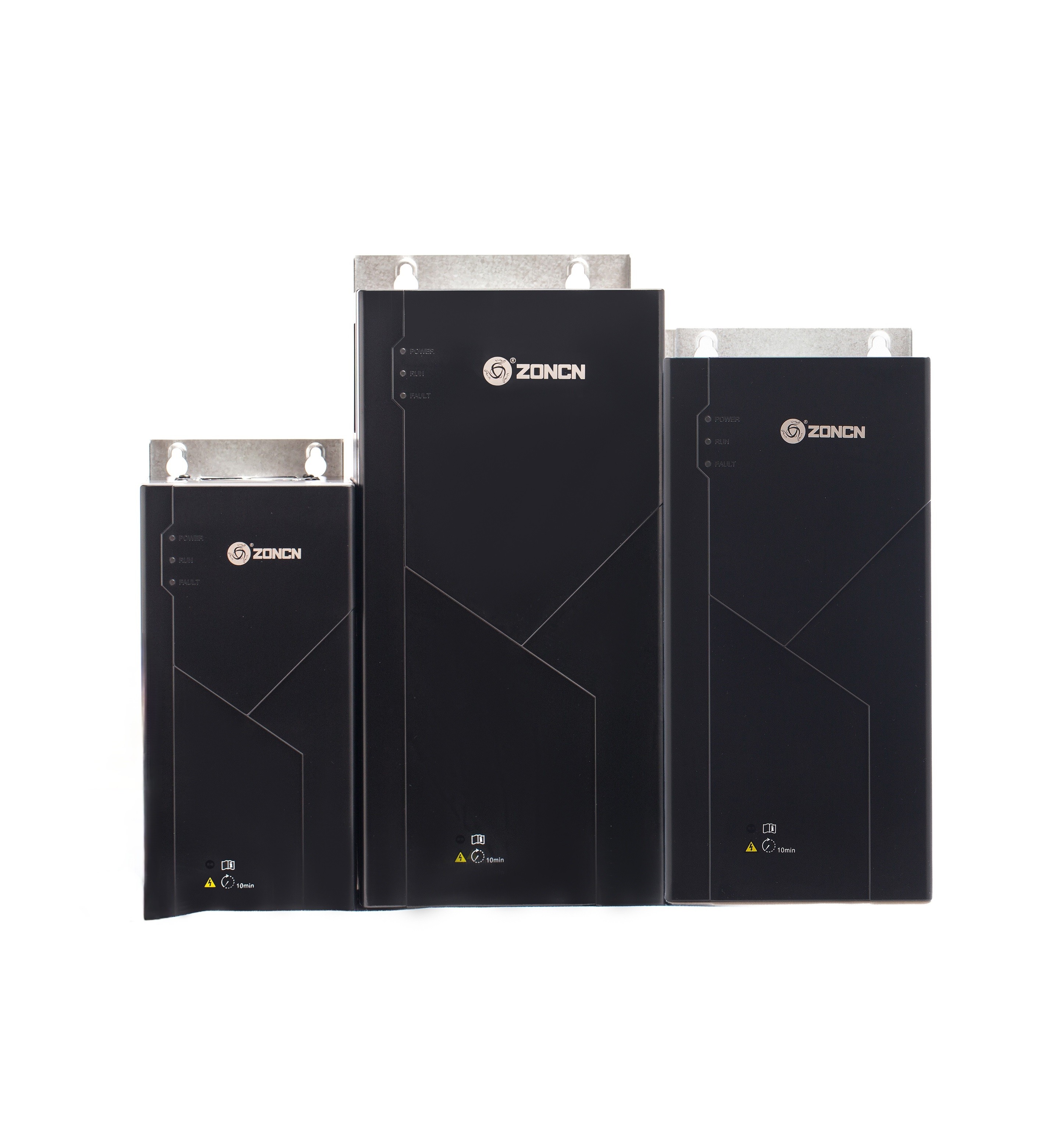

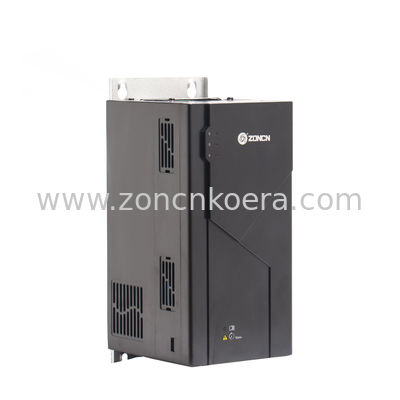

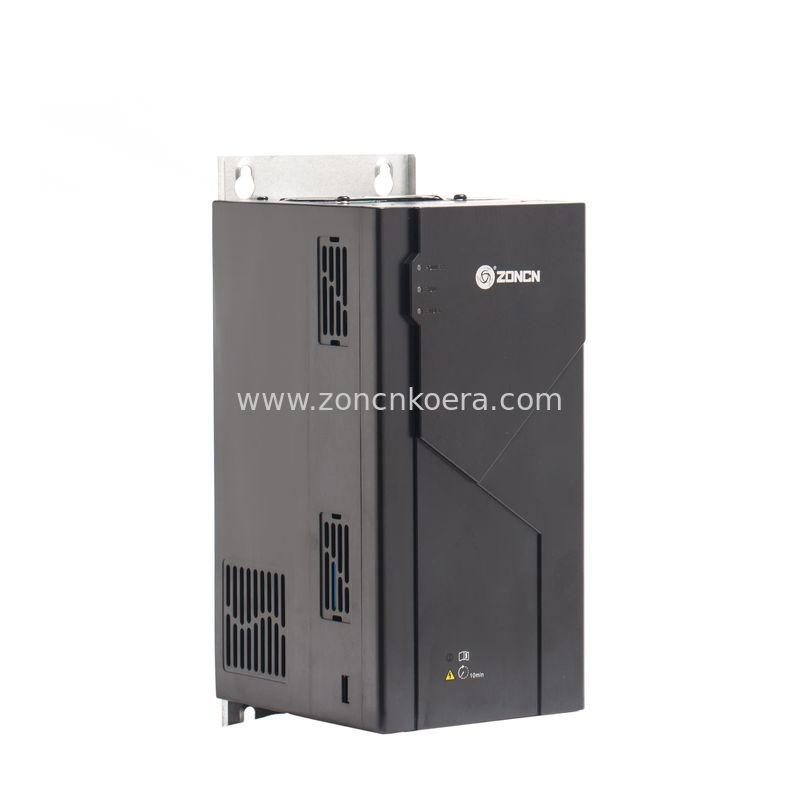

Inverter Product Picture

Company Introduction

380v 3 Phase Industry Specific Inverter VFD 7.5kw 11kw 15kw 18kw 3

Wuhu ZONCN is one of the leading manufacturers in China specializing in the production of inverters and servo products. With 19 years of experience, we have established ourselves as a reliable and trusted brand in the inverter industry. Our company operates 4 factories with our headquarters located in Shanghai, covering a total factory area of over 100,000 square meters. With such extensive manufacturing capabilities, our annual inverter production capacity reaches approximately 900,000 units.

We offer a diverse range of inverter/VFDs (Variable Frequency Drives) that cater to various applications. Our main inverter series include NZ100, NZ200, Z2000, Z8000, T9000, and H5000 (IP65/54). These inverters have undergone rigorous quality control measures and have obtained ISO9001 certification. Additionally, all our VFD inverters are CE certified, ensuring their compliance with international standards.

Our VFD inverters are designed to operate within a voltage range of 110V to 1140V, with power options ranging from 0.4kW to 1000kW. This versatility allows our inverters to be widely used across industries such as textile, printing, CNC machines, food packaging, injection molding machines, fans, pumps, air compressors, water treatment systems, industrial washing machines, and many more.

ZONCN Development History

Exhibition

380v 3 Phase Industry Specific Inverter VFD 7.5kw 11kw 15kw 18kw 5

FAQ

Q1. What is your inverter's MOQ?

A: 1 unit.

Q2. What is the input voltage of the inverter you can do?
A: 1PH/3H AC 220V+/-15%; 3PH AC 380V/440V/480V/690V

Q3. What is the inverter's power range you can do ?
A: From 0.4 kw to 2000 kw.

Q4. What is your terms of payment?
A: T/T 100% in advance.

Q5. What is your delivery time?
A: Generally within 15 days after receiving full payment.

Q6. What is your inverter's warranty time?
A. 18 months
