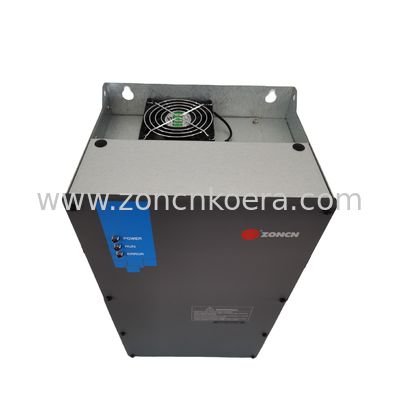

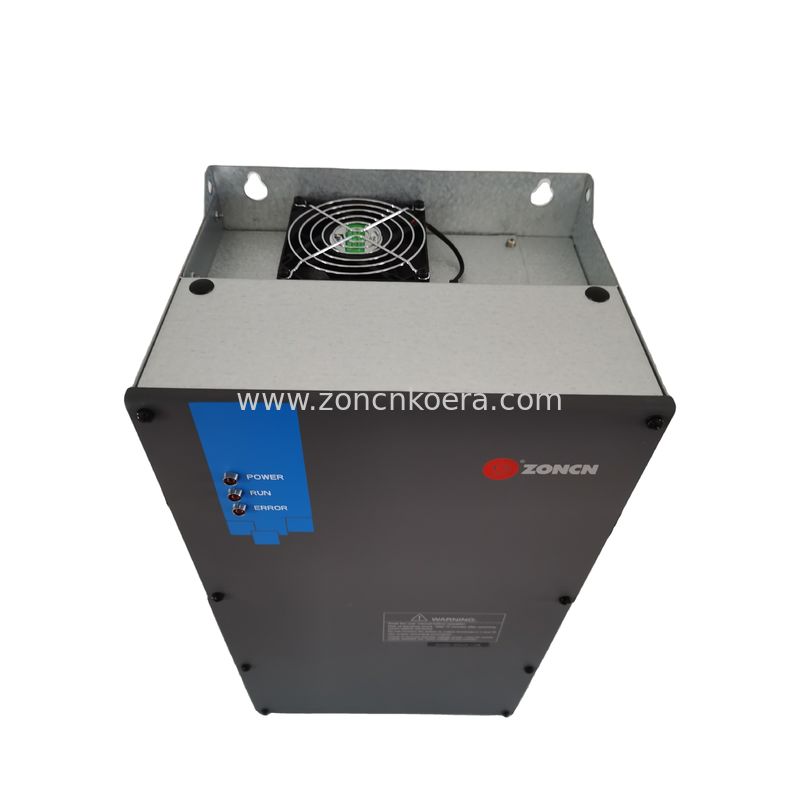

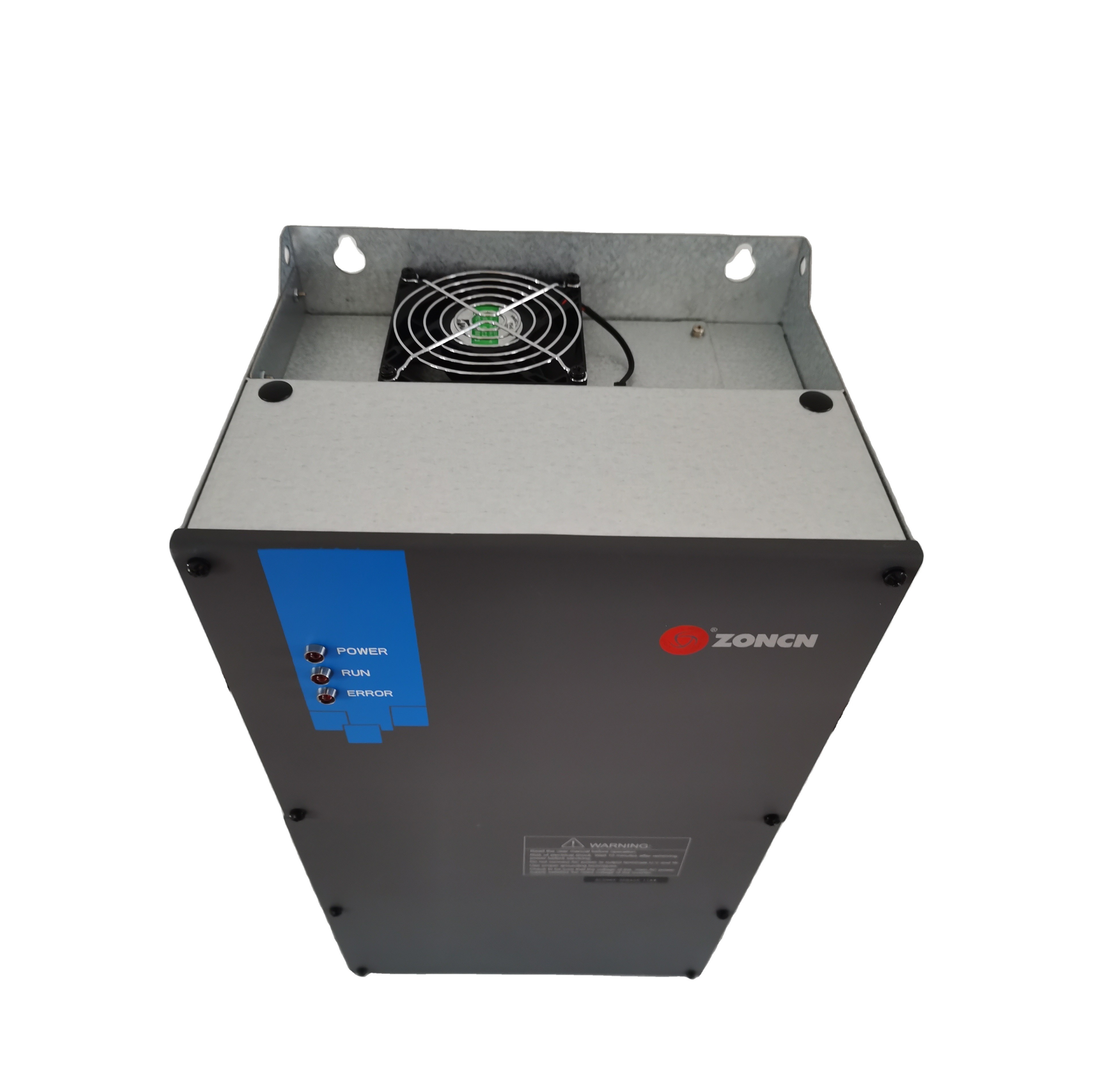

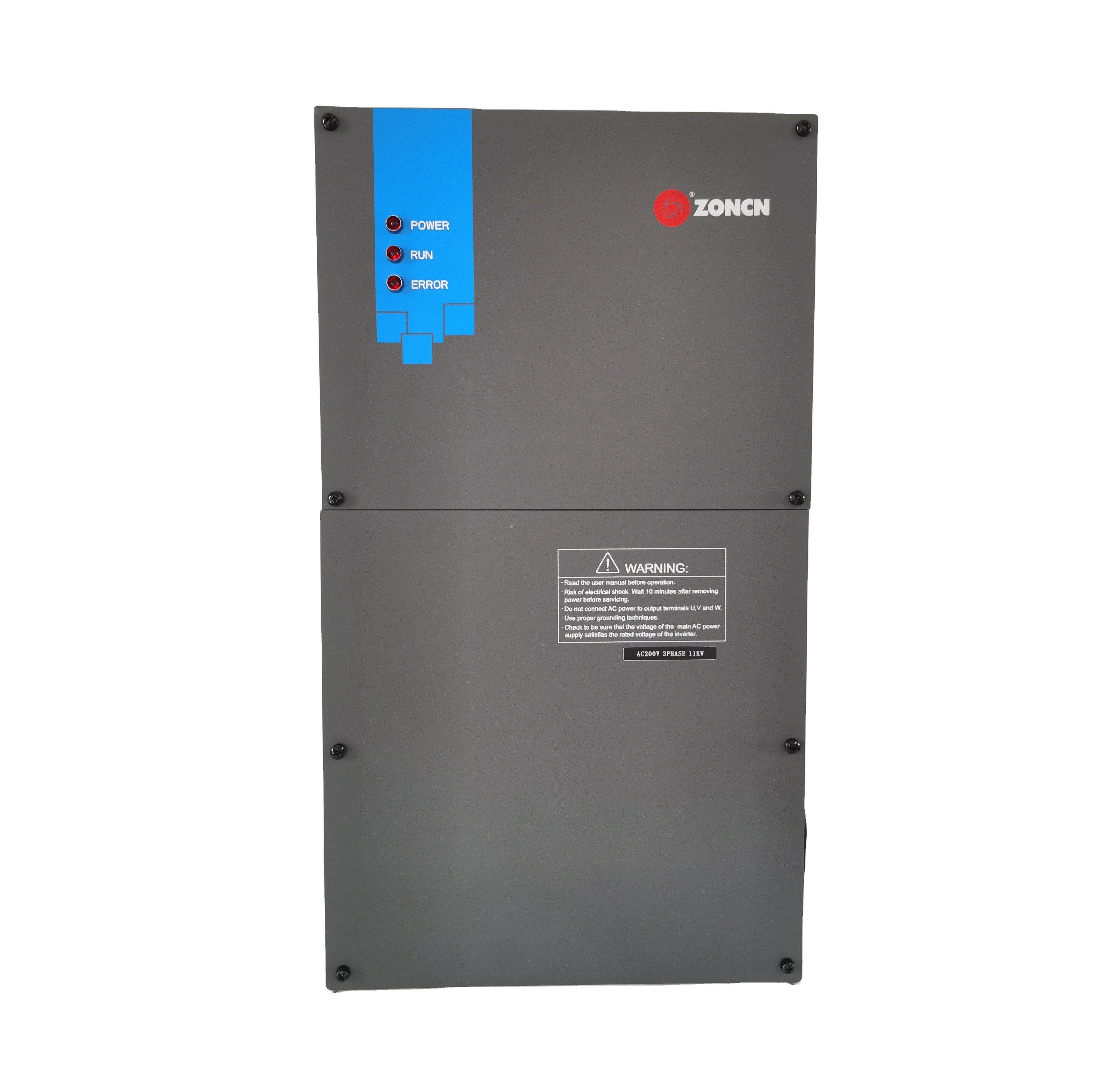

220v 3 Phase Inverter 11kw Variable Speed Drive VSD For Air Compressor

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	KC; CE
Model Number:	DP500T-11KY

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	AC Inverter	Brand:	ZONCN
Series:	DP500	Motor Type:	PM
Input:	220v 3phase	Output:	220v 3phase
Power:	11kw	Warranty:	18 Months
Application:	Air Compressor	Frequency:	50Hz/60Hz
Highlight:	220v 3 Phase Inverter , 11kw Variable Speed Drive , Air Compressor Inverter

ZONCN DP500 Series variable frequency inverter

Air compressor integrator

Inverter Description

DP500 series inverter highly integrated control method of air compressor and ac drive technology, with colorful big HMI, easy to wiring and operation; Use the plug-in connector and proof malfunction plug design for the control circuit terminal; It is highly integration; Built-in 220V AC power supply, Provide 24V DC external output; With kinds of warning function: such as input/output phase loss warning, phase sequence error, motor high temperature warning( PT100 and PTC detection), AC drive overload warning, over current warning, over voltage warning and under voltage ect .

Inverter Specification

Item		Inverter Specification
Basic control functions	Control mode	Open loop vector control, V / F control
	Maximum frequency	Open loop vector control:0～600Hz,
	Maximum frequency	V / F control: 0～600Hz
	Carrier frequency	0.5kHz～15kHz,The carrier frequency is automatically adjusted based on the load features.
	Input frequency resolution	Digital setting:0.01Hz
	Input frequency resolution	Analog setting: maximum frequency x 0.025%
	Startup torque	0.5 Hz/150%
	Speed range	1:100
	Speed stability accuracy	± 0.2%
	Speed stability accuracy	± 0.2%
	Torque control accuracy	±10%
	Overload capacity	60s for 150% of the rated current, 3s for 180% of the rated current.
	Torque boost	Fixed boost
	Torque boost	Customized boost 0.1%–30.0%
	V/F curve	Straight-line V/F curve
		Multi-point V/F curve
		N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
	V/F separation	Two types: complete separation; half separation
	Ramp mode	Straight-line ramp
		S-curve ramp
		Four groups of acceleration/deceleration time with the range of 0.0–6500.0s
	Communication methods	RS485
	JOG control	JOG frequency range: 0.00Hz–50.00 Hz
	JOG control	JOG acceleration/deceleration time: 0.0–6500.0s
	Built-in PID	It realizes process-controlled closed loop control system easily.
	Auto voltage	It can keep constant output voltage automatically when the mains voltage changes.
	regulation (AVR)
	Frequency source	Digital setting
Input and output interfaces	Analog Input	1 pressure sensor: 4 ~ 20mA input; 2 temperature sensor: PT100
	Digital input	2 normal digital input;1 PTC protection circuit (compatible with normal digital inputs); 1 Remote start/stop input
	Digital Output	4 relays output normally open (built in 2 220VAC voltage)
	LED diode display	Standard 3 LED display
protection	Motor overheat protection (PTC), the power-to-ground short-circuit protection, inverter over-current, overload, over voltage, under voltage, overheat, output phase loss, communication fault, current detection fault, EEPROM read-write fault and so on.
Environment	Installation location	Indoor, free from direct sunlight, dust, corrosive gas,combustible gas, oil smoke, vapor, drip or salt.
	Altitude	Lower than 1000 m
	Ambient temperature	-10°C ～+40°C (Downshift if the ambient temperature is between 40°C and 50°C)
	Humidity	Less than 95%RH, without condensing
	Vibration	Less than 5.9 m/s2 (0.6 g)
	Storage temperature	-20°C～60°C

Inverter outline dimension and install dimension

A. Cabinet installation

220v 3 Phase Inverter 11kw Variable Speed Drive VSD For Air Compressor 0

220v 3 Phase Inverter 11kw Variable Speed Drive VSD For Air Compressor 1

Company Introduction

220v 3 Phase Inverter 11kw Variable Speed Drive VSD For Air Compressor 2

ZONCN is Top 5 VFD inverter manufacturer in China with 19 years of experience. We have 4 factories with headquarters in Shanghai, total factory area 100,000 ㎡+, annual production capacity for inverter is about 1 Million pcs. ZONCN has 6 mains series of VFDs: NZ100, NZ200, Z2000, Z8000, T9000, H5000 (IP65/54), etc. Our factory has passed ISO9001 quality control system and all our inverters have CE certification.

The inverter's voltage ranges are from 110V to 1140V; power range covers 0.4kW to 2000Kw. Our inverters are widely used in textile, print, CNC machine, food package, injection machine, fan, pump, air compressor, water treatment, industrial washing machine and many industrial applications. What's more, ZONCN is the leading Top1 brand which used in air compressor industry.

ZONCN has more than 80 dealers in China and abroad. Now our inverters have been exported to more than 50 countries in Asia, Europe, Africa and America. ZONCN will always dedicate in the field of VFD drive inverters and warmly welcome you to be our partner.
