380v 3 Phase Vfd Variable Frequency Drive For Air Compressor

380v 3 Phase Vfd Variable Frequency Drive For Air Compressor

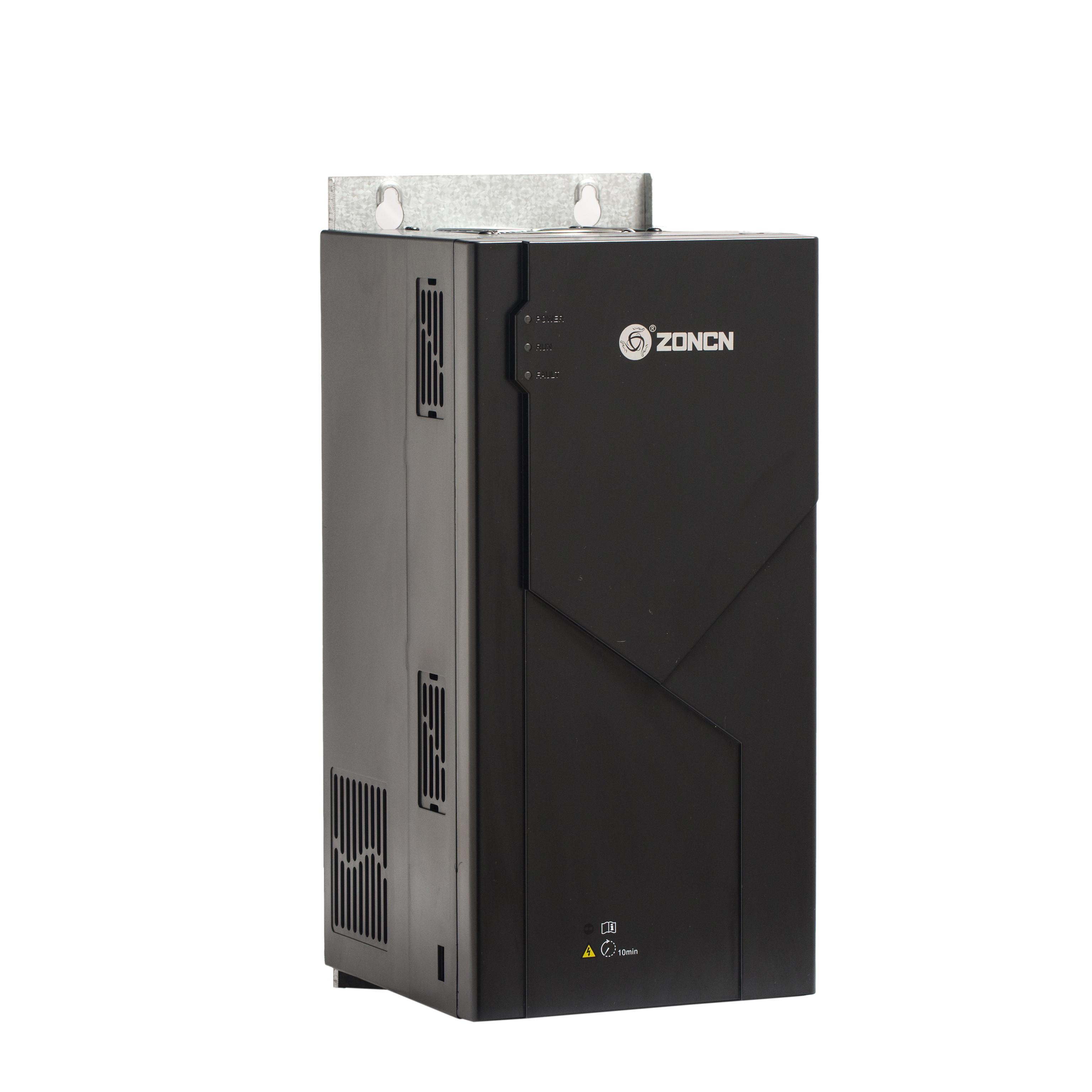

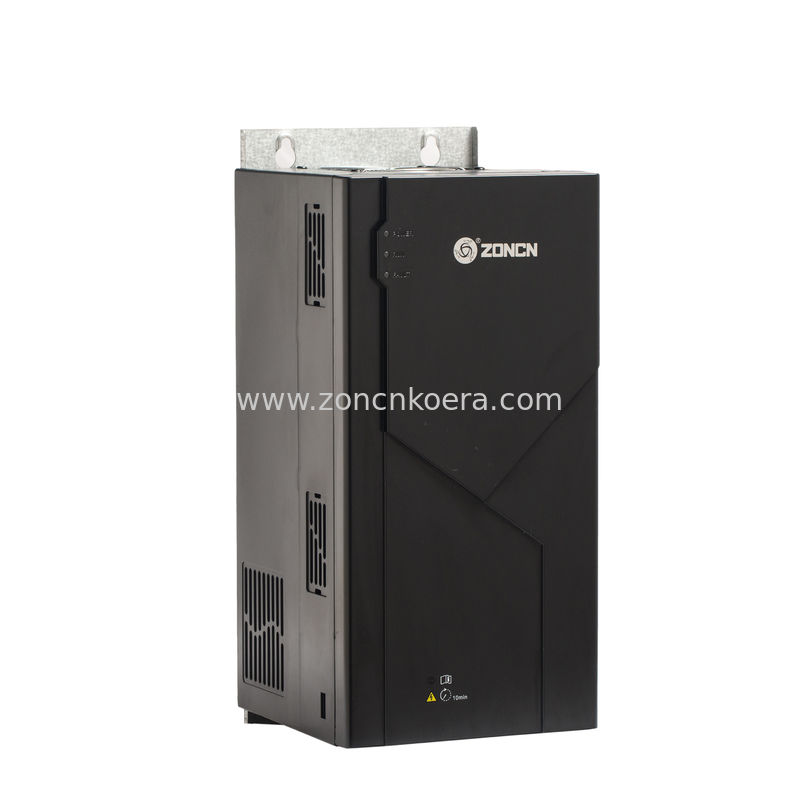

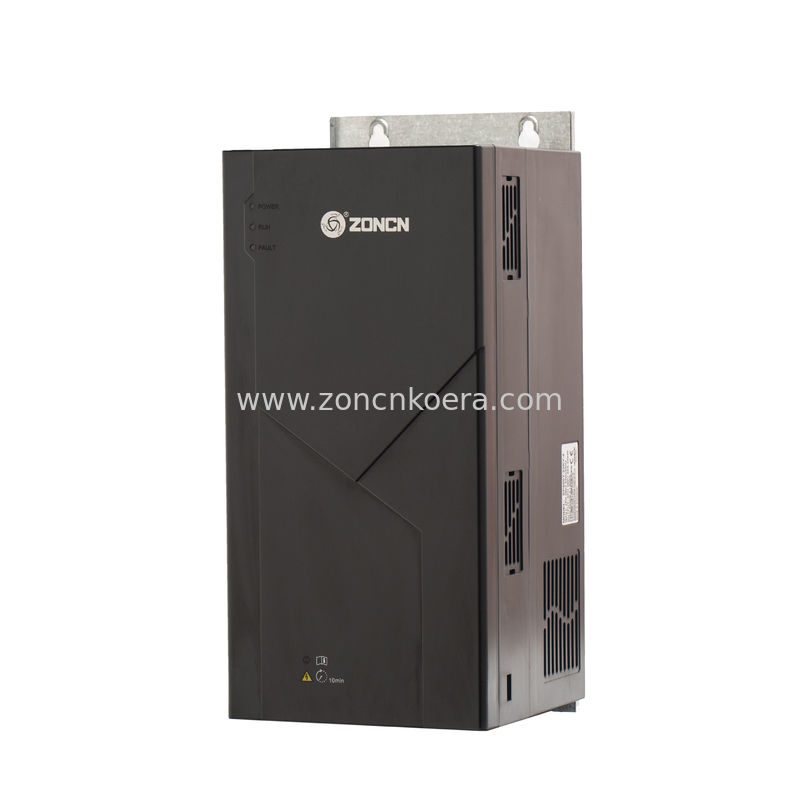

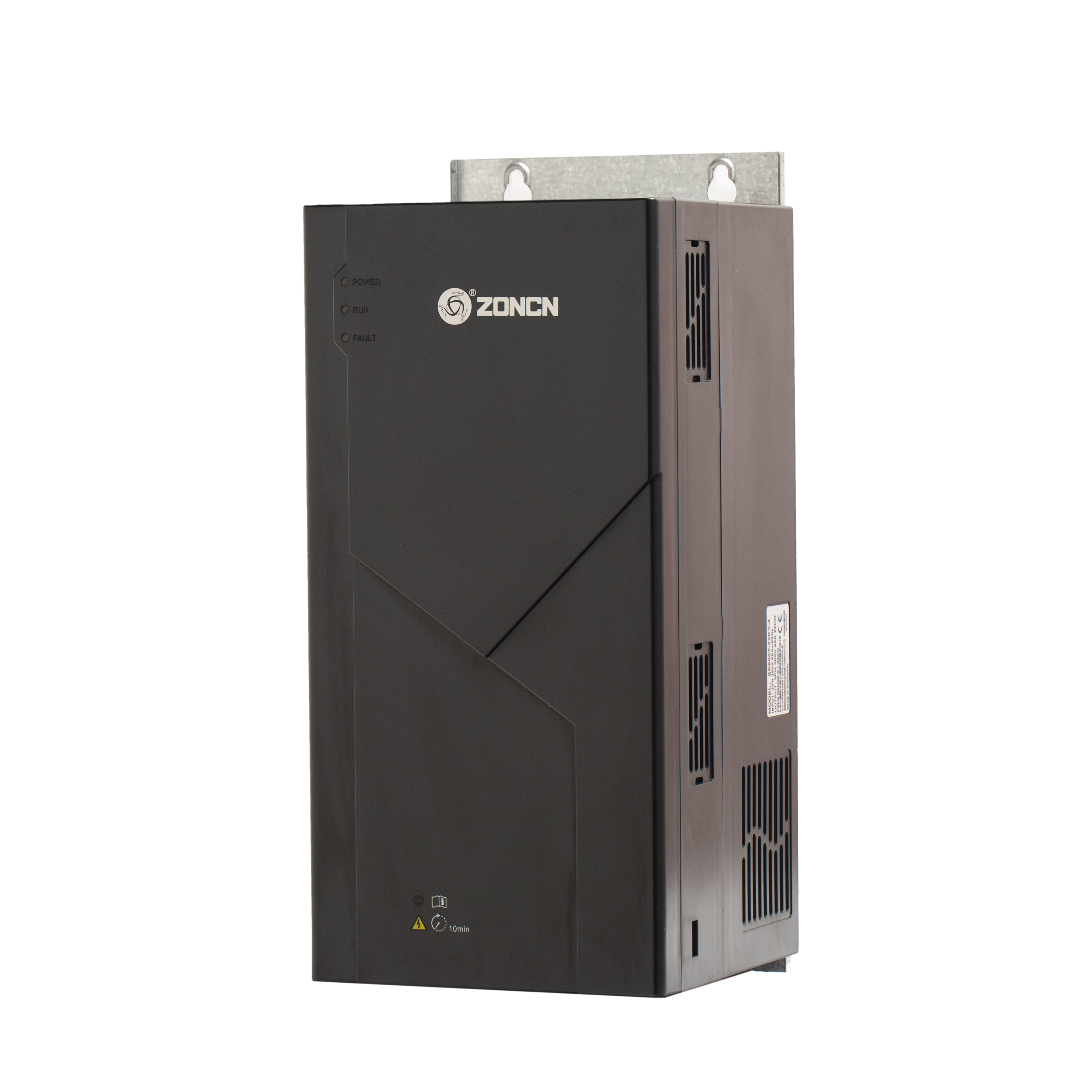

380v 3 Phase Vfd Variable Frequency Drive For Air Compressor 380v 3 Phase Vfd Variable Frequency Drive For Air Compressor 380v 3 Phase Vfd Variable Frequency Drive For Air Compressor 380v 3 Phase Vfd Variable Frequency Drive For Air Compressor 380v 3 Phase Vfd Variable Frequency Drive For Air Compressor 380v 3 Phase Vfd Variable Frequency Drive For Air Compressor
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: SP600T-015KY-4
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: AC Drive Brand: ZONCN
Input Voltage: 380V+/-15% Output Frequency: 0 - 320Hz
Power: 15kw Warranty: 18 Months
Application: Air Compressor Motor Type: PM
Output Frequency: 50Hz/60Hz Control Mode: V/F, Sensorless Vector Control
Highlight:

3 Phase Vfd Variable Frequency Drive

,

380v Vfd Variable Frequency Drive

ZONCN SP600 Series variable frequency drive

Air compressor integrator



Product description

SP600 series air compressor integrator using plastic and sheet metal structure, support for floor and wall mounted, ease to install; Easy to operate wiring for test ,use the plug-in connector and proof malfunction plug design for the control circuit terminal; It is highly integration: built-in DC reactors to reduce the external interference, improve the power factor; built-in 220V AC power supply, AC drive anti-over current fuses; Provide 24V DC external output; And built-in detection and protection circuit of integrated PT100 and PTC. It uses special software, connect with HMI, internet without testing, support for one-key start.​

Specification

Item Specification
Basic control functions Control mode Open loop vector control, V / F control
Maximum frequency

Open loop vector control:0～600Hz,

V / F control: 0～3200Hz
Carrier frequency 0.5kHz～15kHz , The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution

Digital setting:0.01Hz

Analog setting: maximum frequency x 0.025%
Startup torque 0.5 Hz/150%
Speed range 1:100
Speed stability accuracy

± 0.2%


Torque control accuracy ±10%
Overload capacity 60s for 150% of the rated current, 3s for 180% of the rated current.
Torque boost

Fixed boost

Customized boost 0.1%–30.0%

V/F curve



Straight-line V/F curve

Multi-point V/F curve

N-power V/F curve (1.2-power, 1.4-power, 1.6-power,

1.8-power, square)
V/F separation Two types: complete separation; half separation

Ramp mode



Straight-line ramp

S-curve ramp

Four groups of acceleration/deceleration time with the range of 0.0–6500.0s
Communication methods RS485

JOG control



JOG frequency range: 0.00Hz–50.00 Hz

JOG acceleration/deceleration time: 0.0–6500.0s
Built-in PID It realizes process-controlled closed loop control system easily.
Auto voltage
regulation (AVR)		 It can keep constant output voltage automatically when the mains voltage changes.
Frequency source Digital setting
Input and output interfaces Analog Input

1 pressure sensor: 4 ~ 20mA input

2 temperature sensor: PT100
Digital input

2 normal digital input

1 PTC protection circuit (compatible with normal digital inputs)
Digital Output 2 relays output normally open (built in 220VAC voltage)
LED diode display Standard 3 LED display
protection Motor overheat protection (PTC), the power-to-ground short-circuit protection, inverter over-current, overload, over voltage, under voltage, overheat, output phase loss, communication fault, current detection fault, EEPROM read-write fault and so on.
Fan

DP500: Fan inverter: 380V 15-55kW Master Motor built-in fan inverter 380V 1.5kW;

380V 75-160kW Master motor built-in fan inverter 380V 2.2kW
Environment Installation location Indoor, free from direct sunlight, dust, corrosive gas,combustible gas, oil smoke, vapor, drip or salt.
Altitude Lower than 1000 m
Ambient temperature -10°C ～+40°C (Downshift if the ambient temperature is between 40°C and 50°C)
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9 m/s2 (0.6 g)
Storage temperature -20°C～60°C



Inverter outline dimension and install dimension

380v 3 Phase Vfd Variable Frequency Drive For Air Compressor 0

Model W H H1 D A B Ød
SP600T-5R5KY-4 118 238 274 154 80 260 5.5
SP600T-7R5KY-4
SP600T-011KY-4 145 293 335 172 100 320 7
SP600T-015KY-4
SP600T-018KY-4 168 338 380 172 100 365 7
SP600T-022KY-4
SP600T-030KY-4 217 400 -- 216 202 385 7
SP600T-037KY-4
SP600T-045KY-4 300 440 470 275 210 455 9
SP600T-055KY-4
SP600T-075KY-4 338 436 470 240 270 455 9



HM outline dimension and install dimension

380v 3 Phase Vfd Variable Frequency Drive For Air Compressor 1

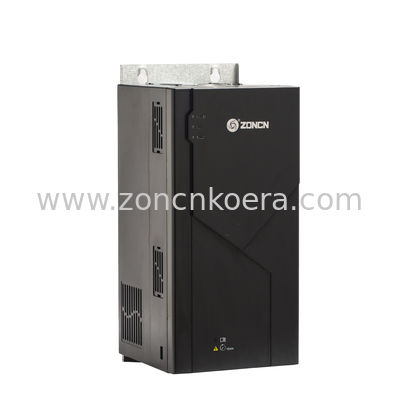

Product picture

380v 3 Phase Vfd Variable Frequency Drive For Air Compressor 2

Company Introduction

380v 3 Phase Vfd Variable Frequency Drive For Air Compressor 3

Wuhu Zoncn Automation Equipment Co., Ltd is one of a leading manufacturer focus on producing inverter and servo products in China with 19 years of experience. We have 4 factories with headquarters in Shanghai, total factory area 100,000 ㎡+, annual production capacity is about 900,000 pcs. ZONCN has 6 mains series of VFDs: NZ100, NZ200, Z2000, Z8000, T9000, H5000 (IP65/54), etc. Our factory has passed ISO9001 quality control system and all the products have CE certification.





The voltage ranges are from 110V to 1140V; power range covers 0.4kW to 1000Kw. Our products are widely used in textile, print, CNC machine, food package, injection machine, fan, pump, air compressor, water treatment, industrial washing machine and many industrial applications.

ZONCN has more than 80 dealers in china and abroad. Now our products are exported to more than 50 countries in Asia, Europe, Africa and America. ZONCN will always dedicate in the field of electrical drive and warmly welcome you to be our partner.
