380v VFD 18.5kw 22kw Variable Speed Drive VSD For Screw Air Compressor From ZONCN Factory

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	KC; CE
Model Number:	SP600T-22KY-4

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	Variable Speed Drive	Brand:	ZONCN
Series:	SP600T	Input Voltage:	380V+/-15%
Power:	7.5kw	Application:	Screw Air Compressor
Motor Type:	PMSM	Warranty:	18 Months
Highlight:	Screw Air Compressor VFD , 18.5kw VFD , 22kw VFD

380v VFD 18.5kw 22kw Variable Speed Drive VSD For Screw Air Compressor From ZONCN Factory

About ZONCN

Wuhu ZONCN Automation Equipment Co., Ltd. is located in Wuhu city, Anhui province, which is the 4^th factory of Shanghai Zhongchen Electronic Technology Co., Ltd. It is the production base of small power frequency inverters, and also the office address of international trade department. We are an industrial equipment manufacturer focusing on the R&D, production, sales and service of VFD drives and Servo products.

The Voltage ranges are 110V/220V/380V/480V/660V/1140V, power range is from 0.4KW to 2000KW, which are widely used in various industries.

We wholeheartedly serve for our customers and strive to improve the level of equipment automation and meet the requirements of energy saving and environmental protection. Company has more than 80 offices at home and abroad. Now our products are exported to more than 40 countries, for example, Spain, Italy, Russia, Turkey, Egypt, India, Brazil, Canada, Japan, etc. And we have established and improved the global sales and service system gradually.

Our company keeps innovating technology constantly to provide better service. The professional technical team from our branch offices, after-sales service centers in various places, will be the guarantee to provide users with solutions, technical training and service support.

SP600T Inverter Specification

380v VFD 18.5kw 22kw Variable Speed Drive VSD For Screw Air Compressor From ZONCN Factory 0

Inverter Model	W	H	H1	D	A	B	Ød
SP600T-5R5KY-4	118	238	274	154	80	260	5.5
SP600T-7R5KY-4
SP600T-011KY-4	145	293	335	172	100	320	7
SP600T-015KY-4
SP600T-018KY-4	168	338	380	172	100	365	7
SP600T-022KY-4
SP600T-030KY-4	217	400	--	216	202	385	7
SP600T-037KY-4
SP600T-045KY-4	300	440	470	275	210	455	9
SP600T-055KY-4
SP600T-075KY-4	338	436	470	240	270	455	9
SP600T-090KY-4	275	590	630	310	200	612	9
SP600T-110KY-4
SP600T-132KY-4	300	610	650	310	200	633	9
SP600T-160KY-4	400	675	715	310	320	695	11

Item			Inverter Specification
Basic control functions	Control mode		Open loop vector control, V / F control
	Maximum frequency		Open loop vector control:0～600Hz, V / F control: 0～3200Hz
	Carrier frequency		0.5kHz～15kHz , The carrier frequency is automatically adjusted based on the load features.
	Input frequency resolution		Digital setting:0.01Hz Analog setting: maximum frequency x 0.025%
	Startup torque		0.5 Hz/150%
	Speed range		1:100
	Speed stability accuracy		± 0.2%
	Torque control accuracy		±10%
	Overload capacity		60s for 150% of the rated current, 3s for 180% of the rated current.
	Torque boost		Fixed boost Customized boost 0.1%–30.0%
	V/F curve		Straight-line V/F curve Multi-point V/F curve N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
	V/F separation		Two types: complete separation; half separation
	Ramp mode		Straight-line ramp S-curve ramp Four groups of acceleration/deceleration time with the range of 0.0–6500.0s
	Communication methods		RS485
	JOG control		JOG frequency range: 0.00Hz–50.00 Hz JOG acceleration/deceleration time: 0.0–6500.0s
	Built-in PID		It realizes process-controlled closed loop control system easily.
	Auto voltage regulation (AVR)		It can keep constant output voltage automatically when the mains voltage changes.
	Frequency source		Digital setting
Input and output interfaces	Analog Input		1 pressure sensor: 4 ~ 20mA input 2 temperature sensor: PT100
	Digital input		2 normal digital input 1 PTC protection circuit (compatible with normal digital inputs)
	Digital Output		2 relays output normally open (built in 220VAC voltage)
	LED diode display		Standard 3 LED display
protection	Motor overheat protection (PTC), the power-to-ground short-circuit protection, inverter over-current, overload, over voltage, under voltage, overheat, output phase loss, communication fault, current detection fault, EEPROM read-write fault and so on.
Fan	DP500: Fan inverter: 380V 15-55kW Master Motor built-in fan inverter 380V 1.5kW; 380V 75-160kW Master motor built-in fan inverter 380V 2.2kW
Environment	Installation location	Indoor, free from direct sunlight, dust, corrosive gas,combustible gas, oil smoke, vapor, drip or salt.
	Altitude	Lower than 1000 m
	Ambient temperature	-10°C ～+40°C (Downshift if the ambient temperature is between 40°C and 50°C)
	Humidity	Less than 95%RH, without condensing
	Vibration	Less than 5.9 m/s2 (0.6 g)
	Storage temperature	-20°C～60°C

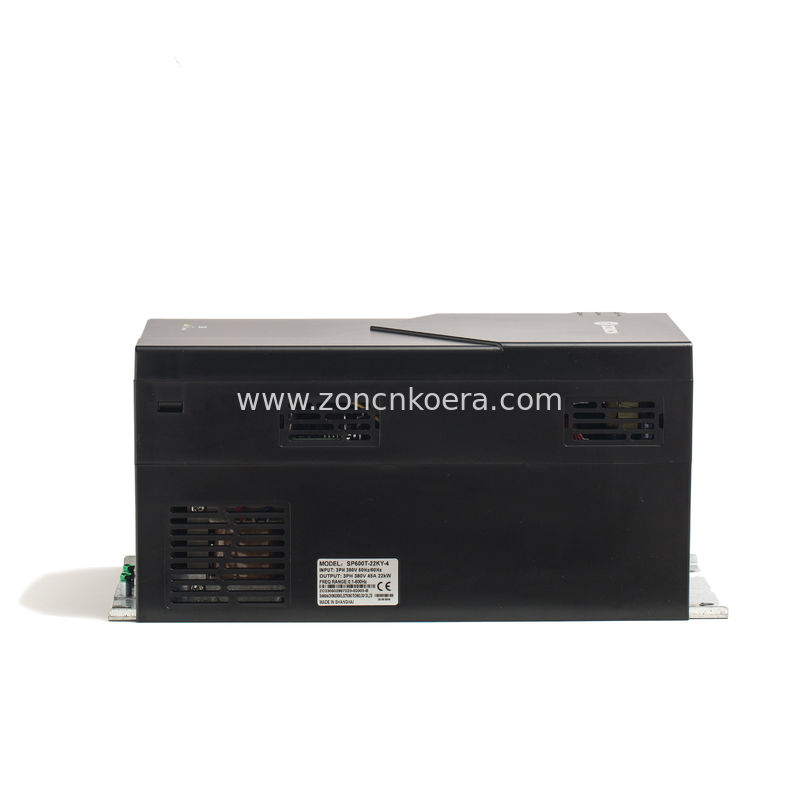

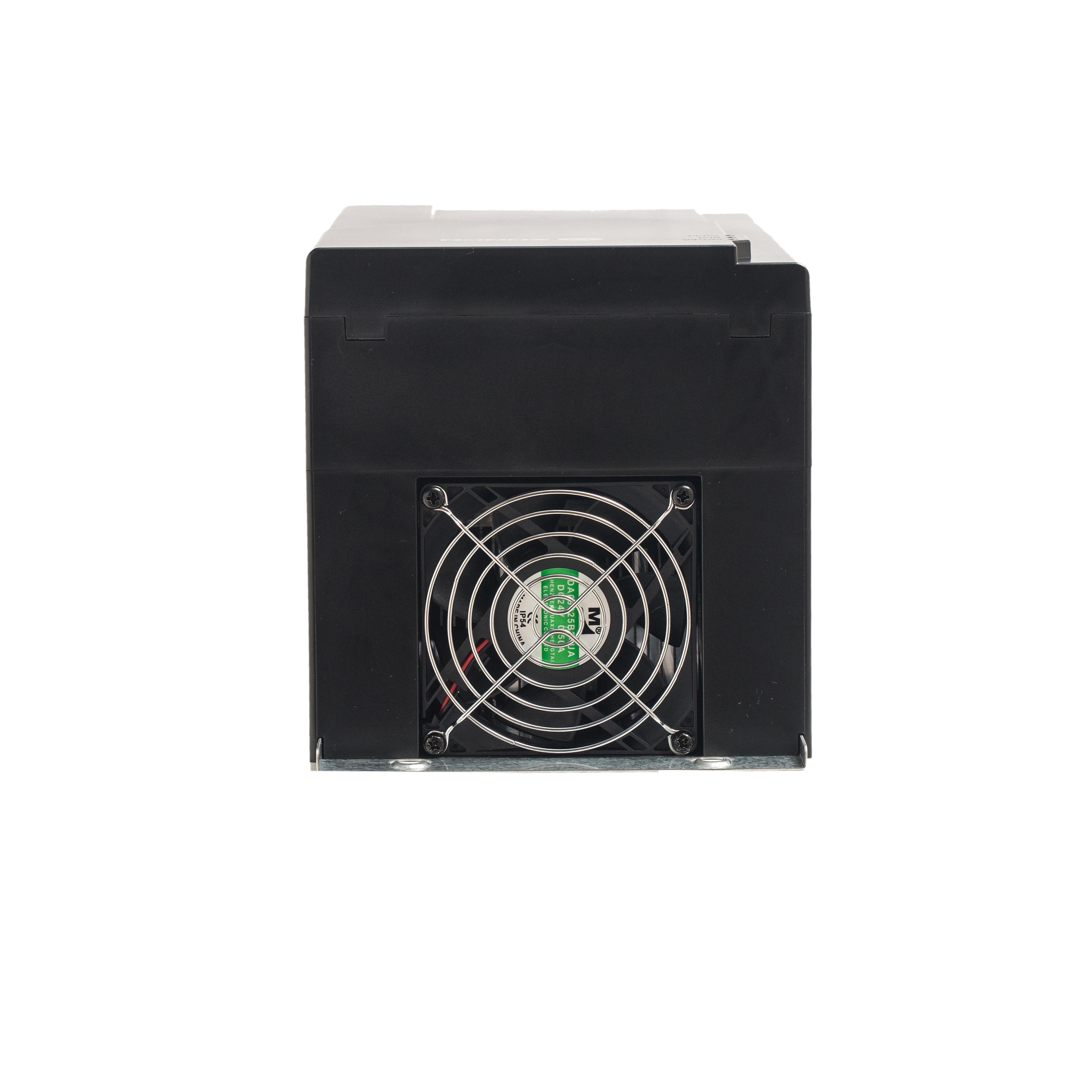

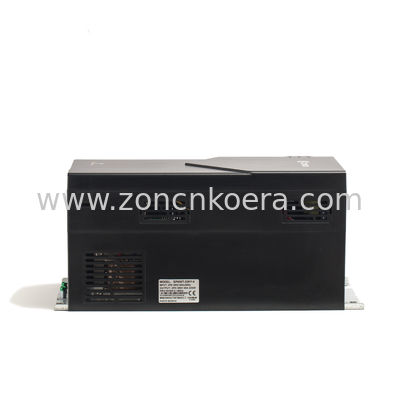

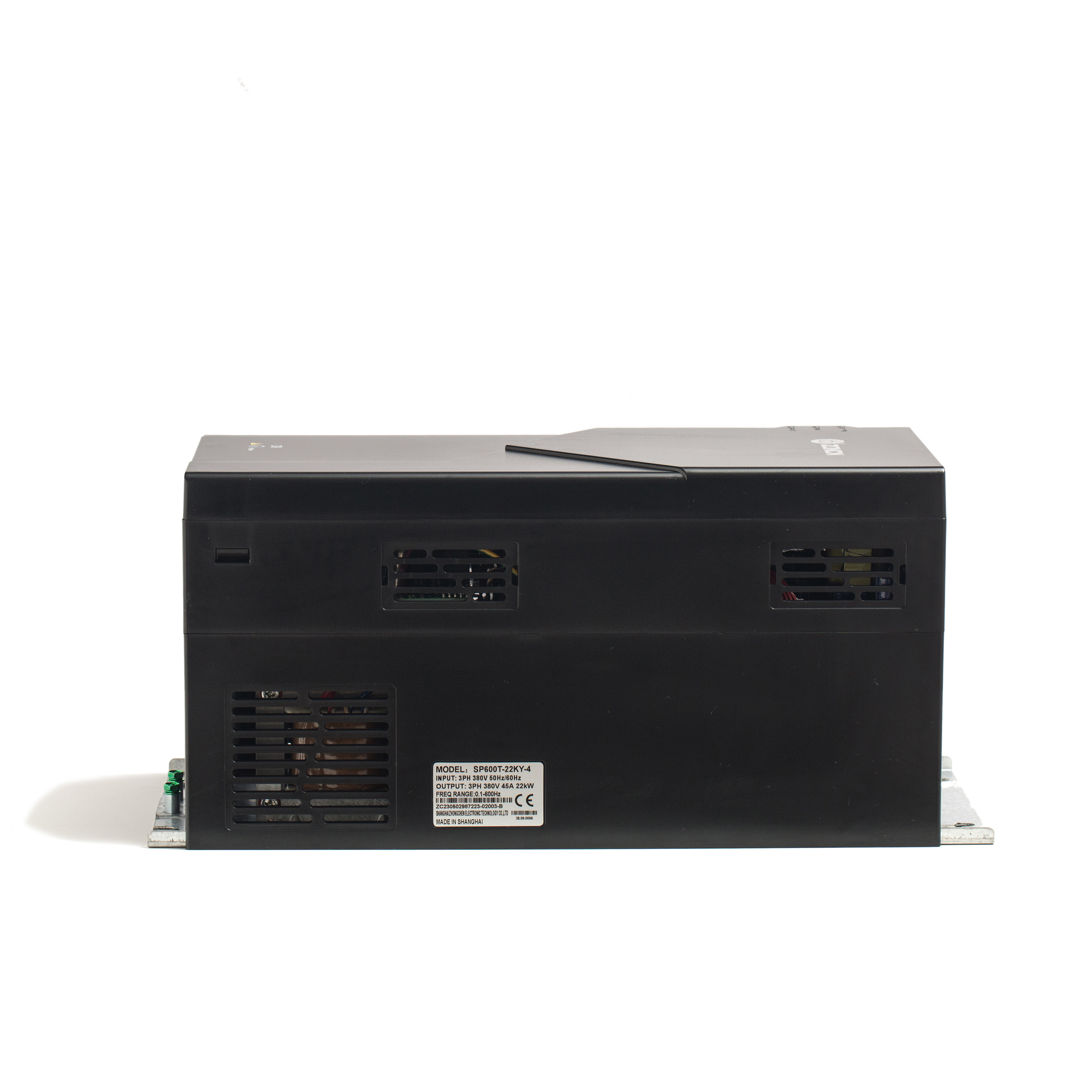

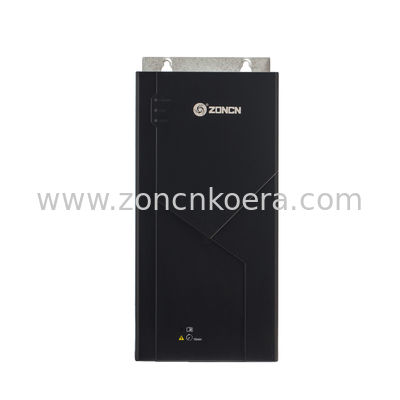

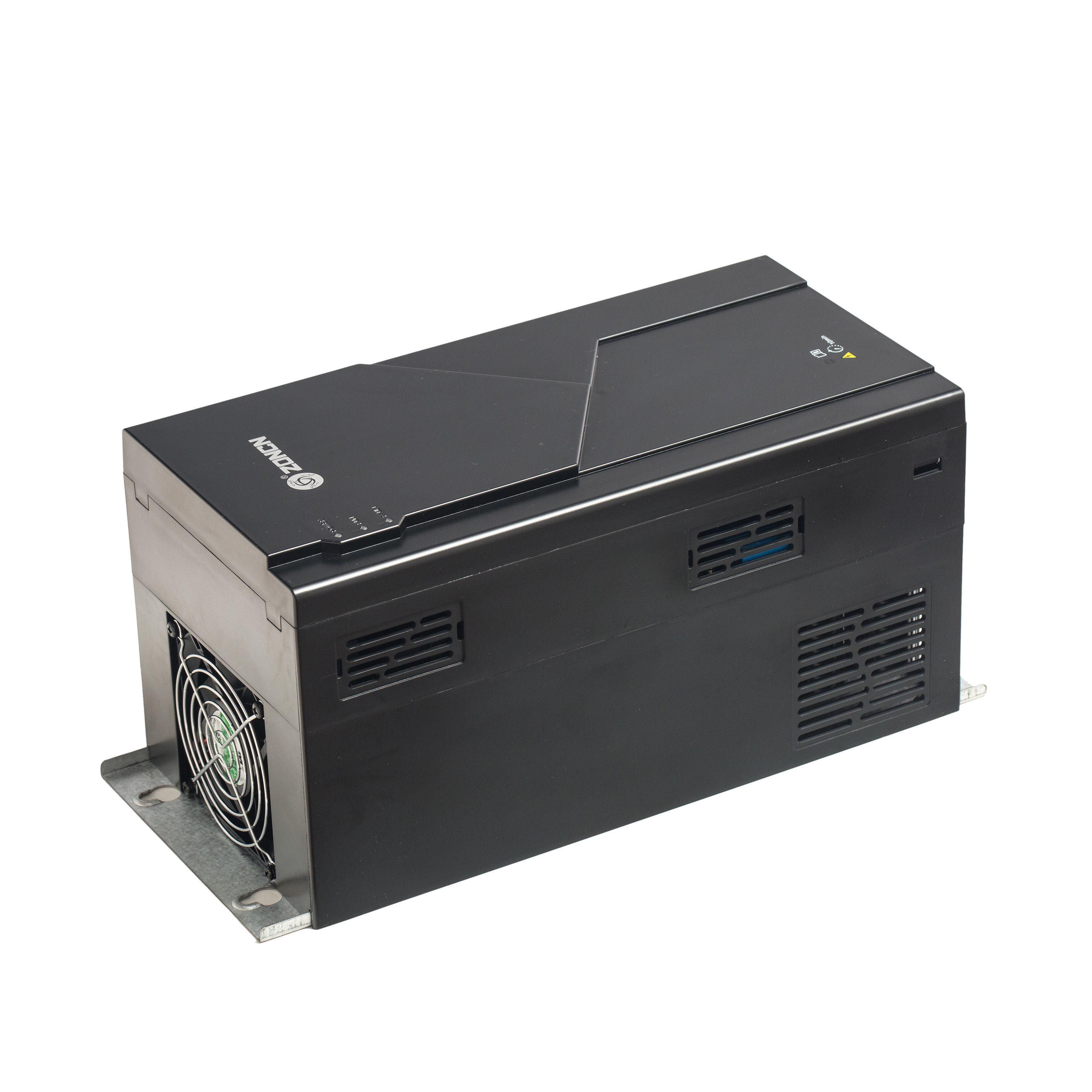

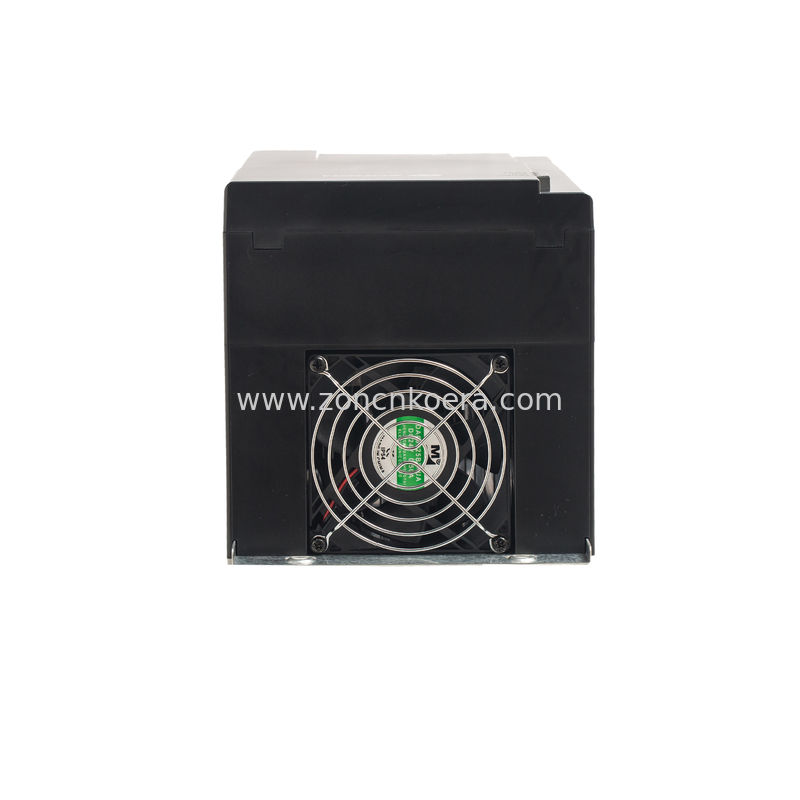

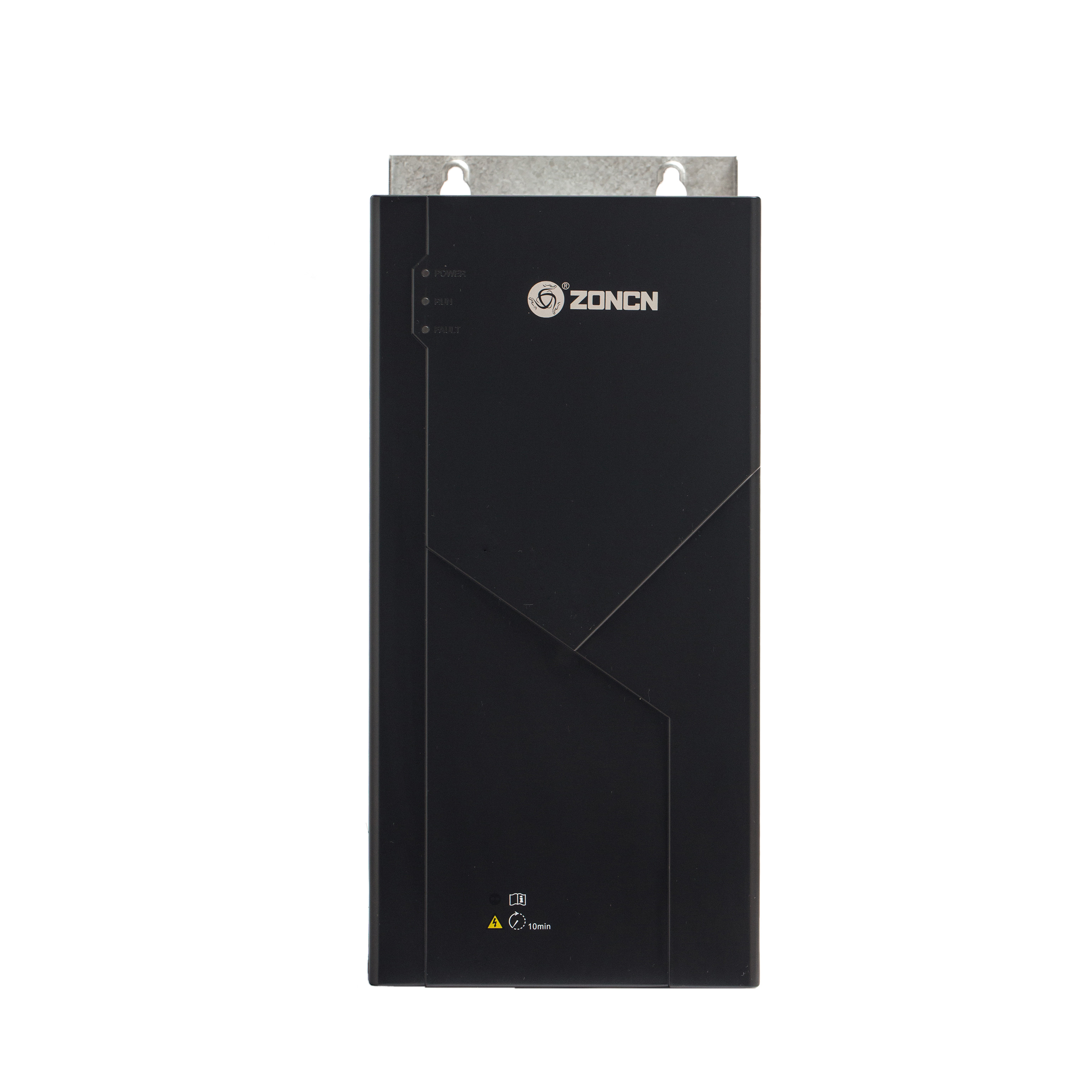

Inverter picture
