ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor

ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor
ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: SP600T-7R5KY-4
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: AC Drive Brand: ZONCN
Input Voltage: 380V+/-15% Output Frequency: 0 - 320Hz
Power: 7.5kw Warranty: 18 Months
Application: Air Compressor Motor Type: PM
Output Frequency: 50Hz/60Hz Control Mode: V/F, Sensorless Vector Control
Highlight:

Screw Air Compressor Variable Frequency Inverter

,

11kw Variable Frequency Inverter

,

15kw Variable Frequency Inverter

ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor



SP600T Inverter Description

SP600T series is ZONCN's special VFD inverter which designed for air compressor, it is easy to install, easy to operate and wiring. It uses special software, connect with HMI(controller), internet without testing, support for one-key start. ​





SP600T Inverter Specification

Item Inverter Specification
Basic control functions Control mode Open loop vector control, V / F control
Maximum frequency

Open loop vector control:0～600Hz,

V / F control: 0～3200Hz
Carrier frequency 0.5kHz～15kHz , The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution

Digital setting:0.01Hz

Analog setting: maximum frequency x 0.025%
Startup torque 0.5 Hz/150%
Speed range 1:100
Speed stability accuracy

± 0.2%


Torque control accuracy ±10%
Overload capacity 60s for 150% of the rated current, 3s for 180% of the rated current.
Torque boost

Fixed boost

Customized boost 0.1%–30.0%

V/F curve



Straight-line V/F curve

Multi-point V/F curve

N-power V/F curve (1.2-power, 1.4-power, 1.6-power,

1.8-power, square)
V/F separation Two types: complete separation; half separation

Ramp mode



Straight-line ramp

S-curve ramp

Four groups of acceleration/deceleration time with the range of 0.0–6500.0s
Communication methods RS485

JOG control



JOG frequency range: 0.00Hz–50.00 Hz

JOG acceleration/deceleration time: 0.0–6500.0s
Built-in PID It realizes process-controlled closed loop control system easily.
Auto voltage
regulation (AVR)		 It can keep constant output voltage automatically when the mains voltage changes.
Frequency source Digital setting
Input and output interfaces Analog Input

1 pressure sensor: 4 ~ 20mA input

2 temperature sensor: PT100
Digital input

2 normal digital input

1 PTC protection circuit (compatible with normal digital inputs)
Digital Output 2 relays output normally open (built in 220VAC voltage)
LED diode display Standard 3 LED display
protection Motor overheat protection (PTC), the power-to-ground short-circuit protection, inverter over-current, overload, over voltage, under voltage, overheat, output phase loss, communication fault, current detection fault, EEPROM read-write fault and so on.
Fan

DP500: Fan inverter: 380V 15-55kW Master Motor built-in fan inverter 380V 1.5kW;

380V 75-160kW Master motor built-in fan inverter 380V 2.2kW
Environment Installation location Indoor, free from direct sunlight, dust, corrosive gas,combustible gas, oil smoke, vapor, drip or salt.
Altitude Lower than 1000 m
Ambient temperature -10°C ～+40°C (Downshift if the ambient temperature is between 40°C and 50°C)
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9 m/s2 (0.6 g)
Storage temperature -20°C～60°C

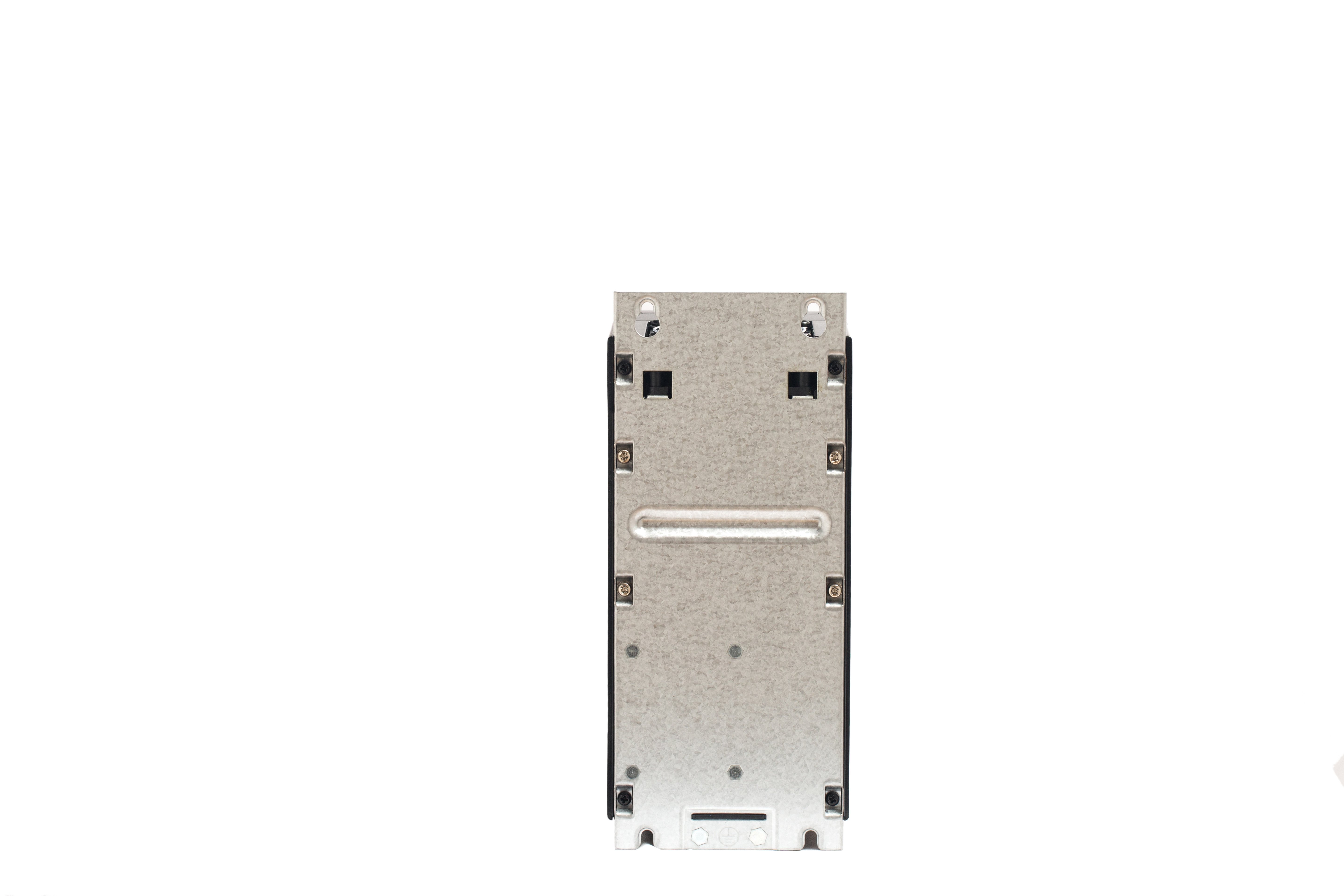

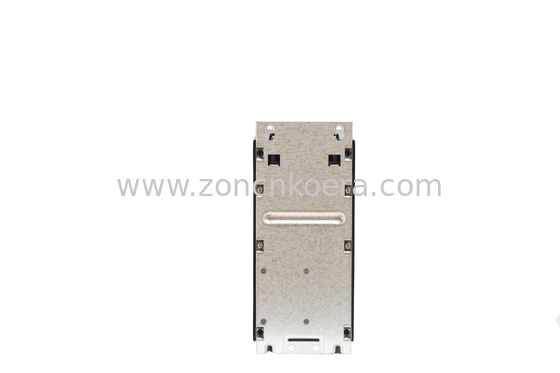

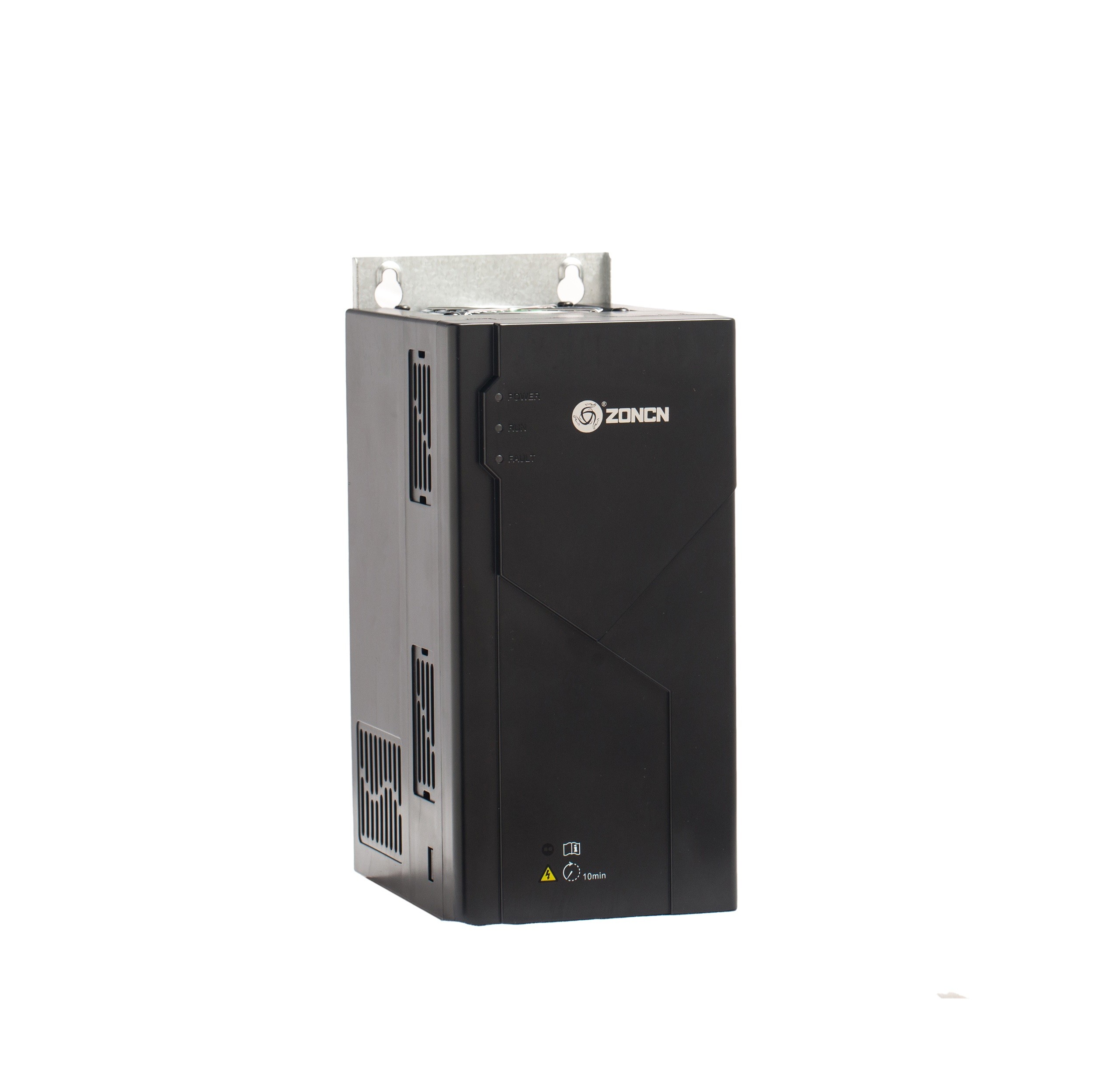

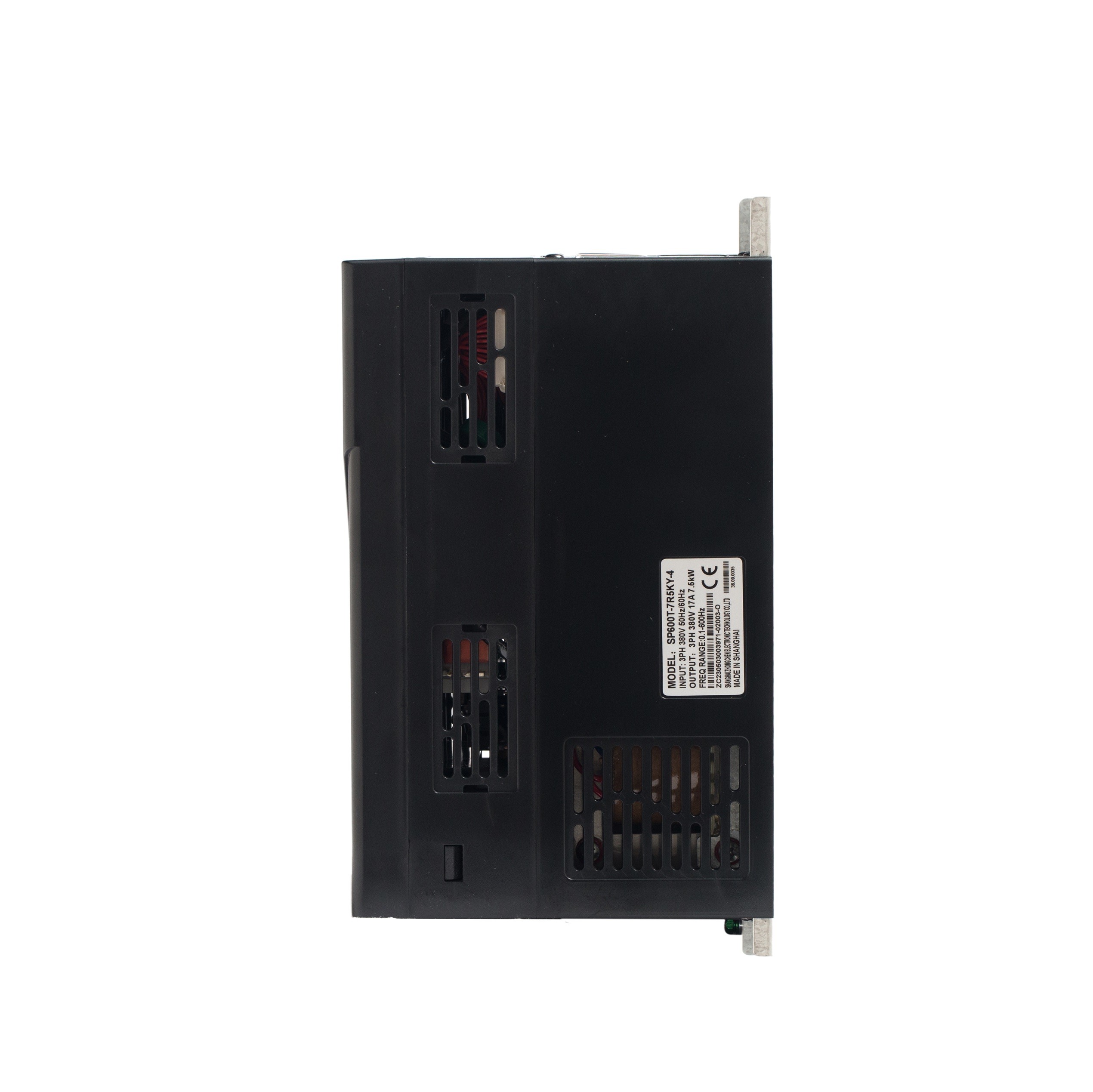

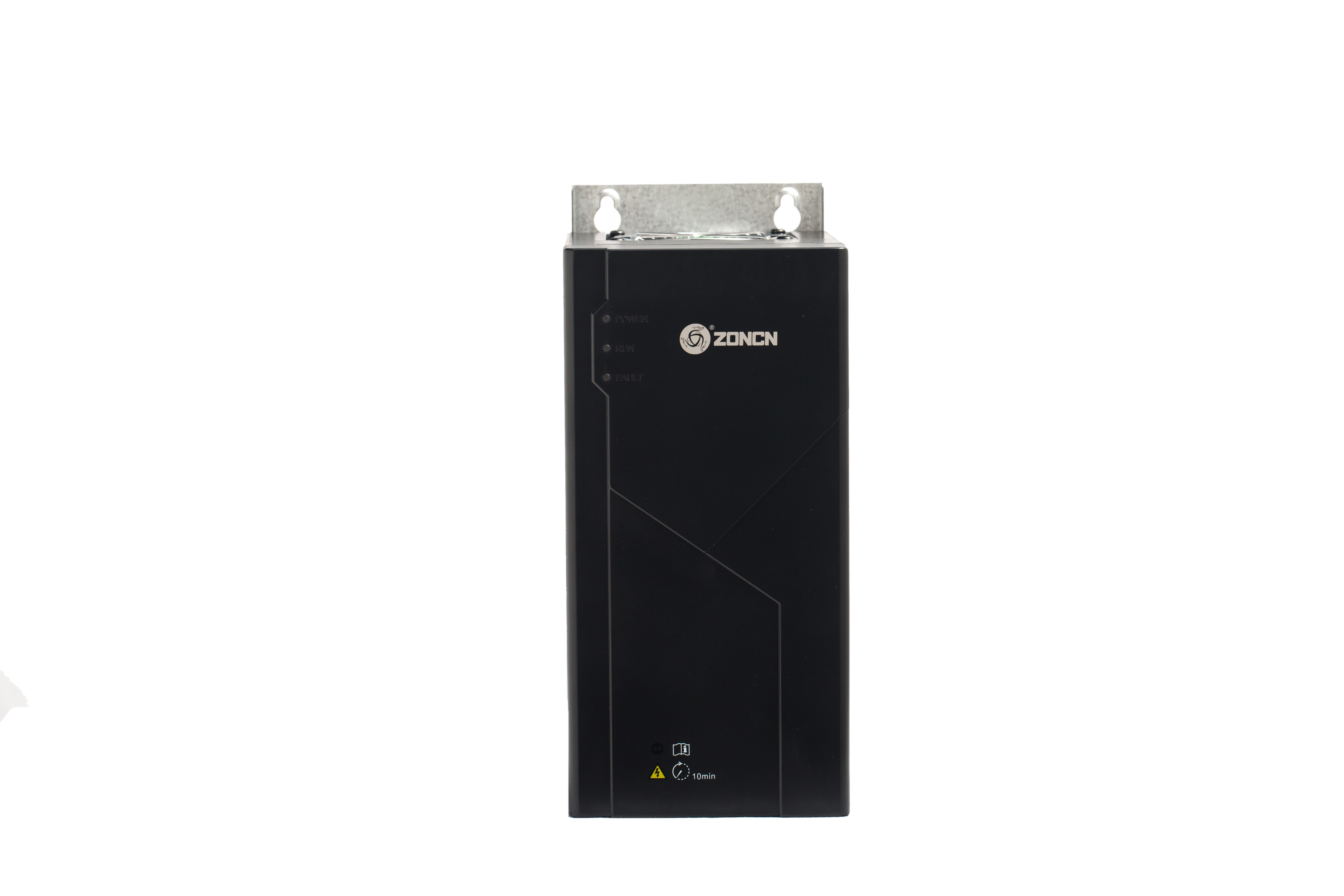

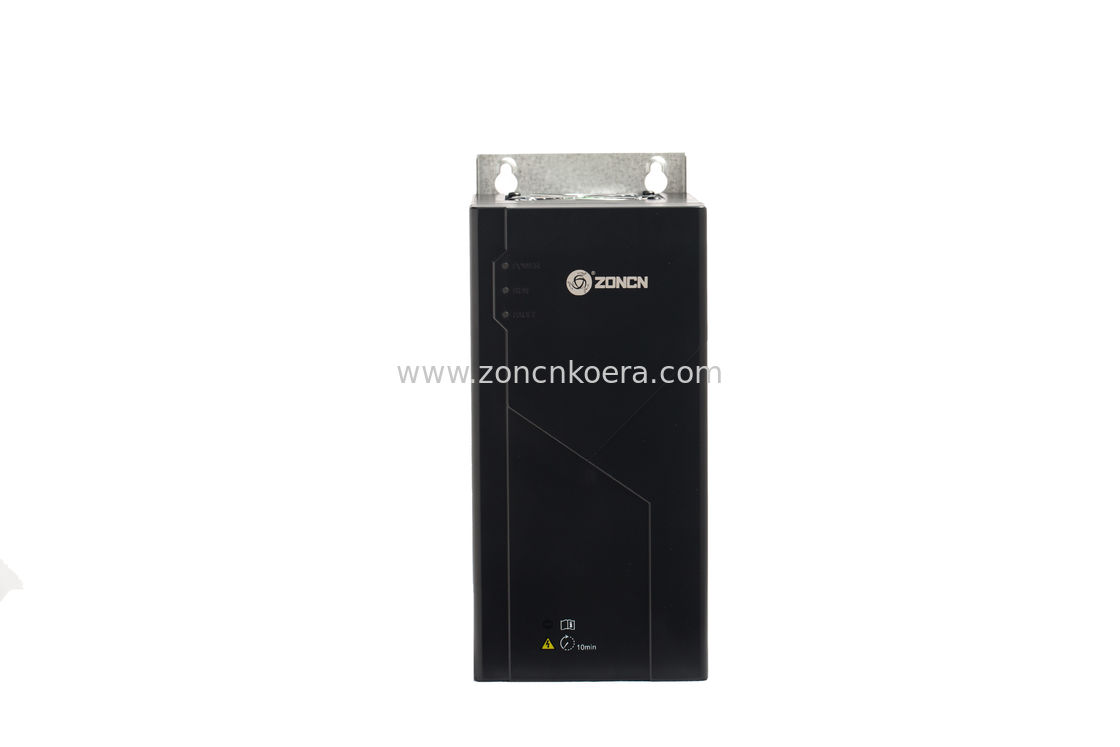

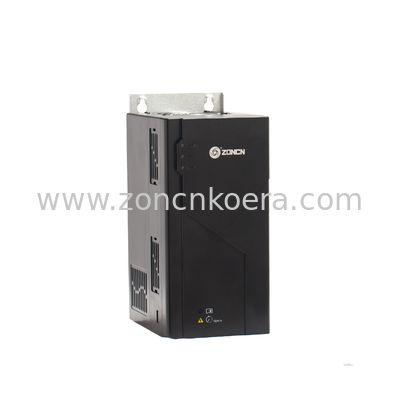

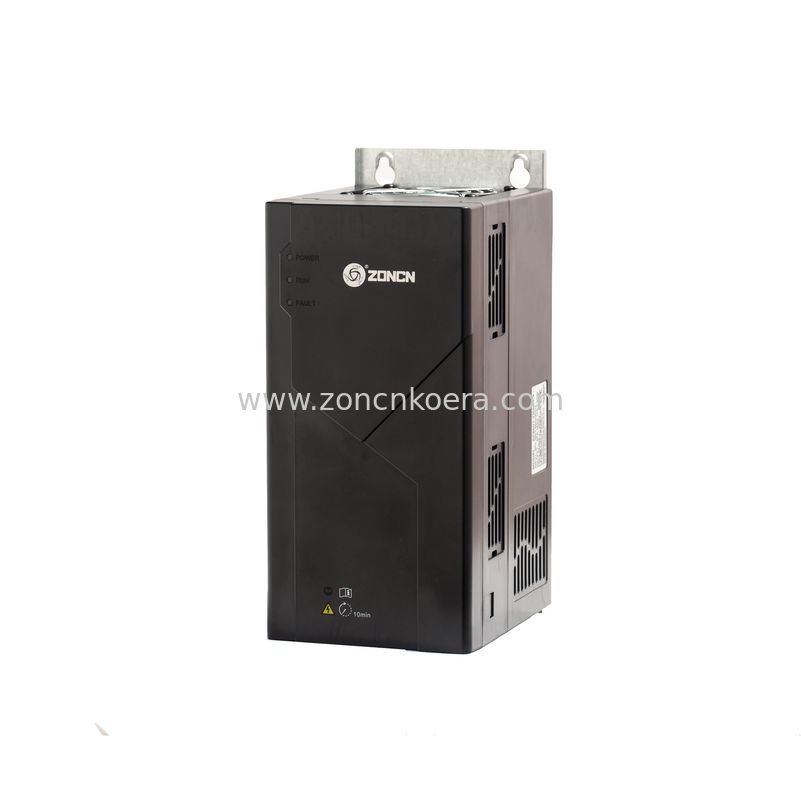

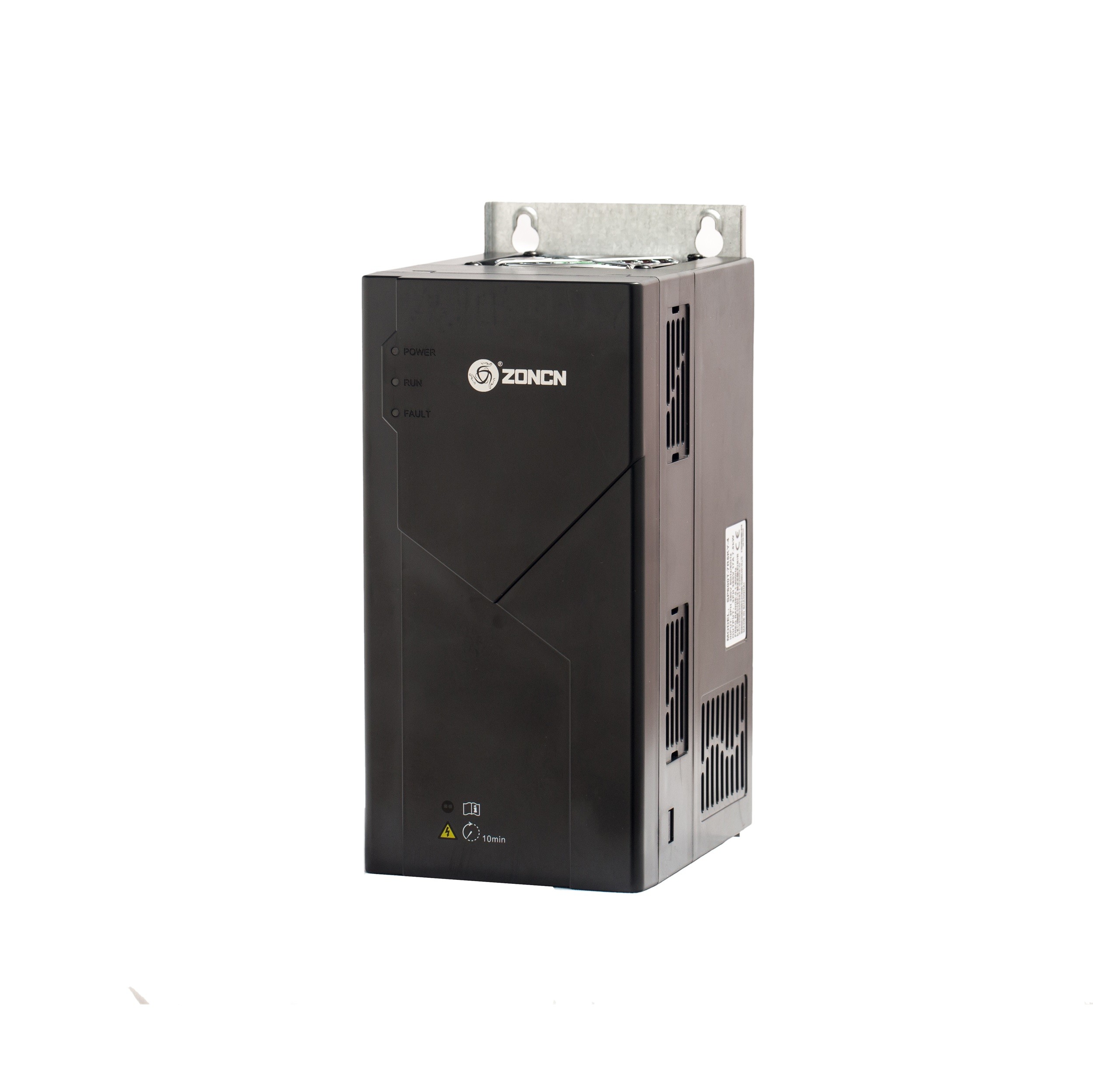

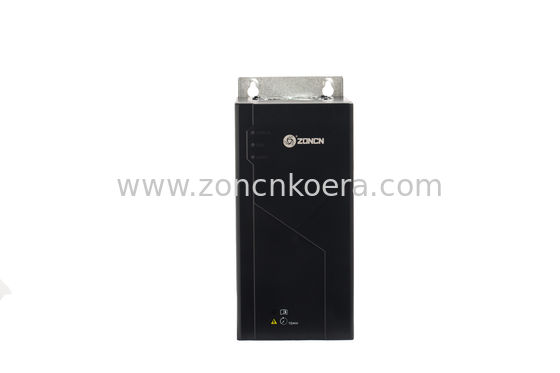

Product picture

ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor 0

Company Introduction

ZONCN 7.5kw 11kw 15kw Variable Frequency Inverter VFD VSD For Screw Air Compressor 1

ZONCN is one of a leading VFD inverter manufacturer focus on producing VFD inverters and servo in China with 19 years of experience. Our headquarters is located in Shanghai, our factory is both in Shanghai and Wuhu city, total factory area 100,000 ㎡+, annual production capacity is about 1 Million pcs. Our factory has passed ISO9001 quality control system and all our VFD inverters have CE certification.





We can produce for the voltage ranges are from 110V to 1140V; power range covers 0.4kW to 2000Kw. Our VFD inverters are widely used in textile, packaging and printing, CNC machine, injection and extruder machine, fan, pump, air compressor, water treatment, industrial washing machine and many industrial applications.



Now our VFD inverters are exported to more than 50 countries in Asia, Europe, Africa and America. ZONCN will always warmly welcome you to visit our factory for business cooperation.
