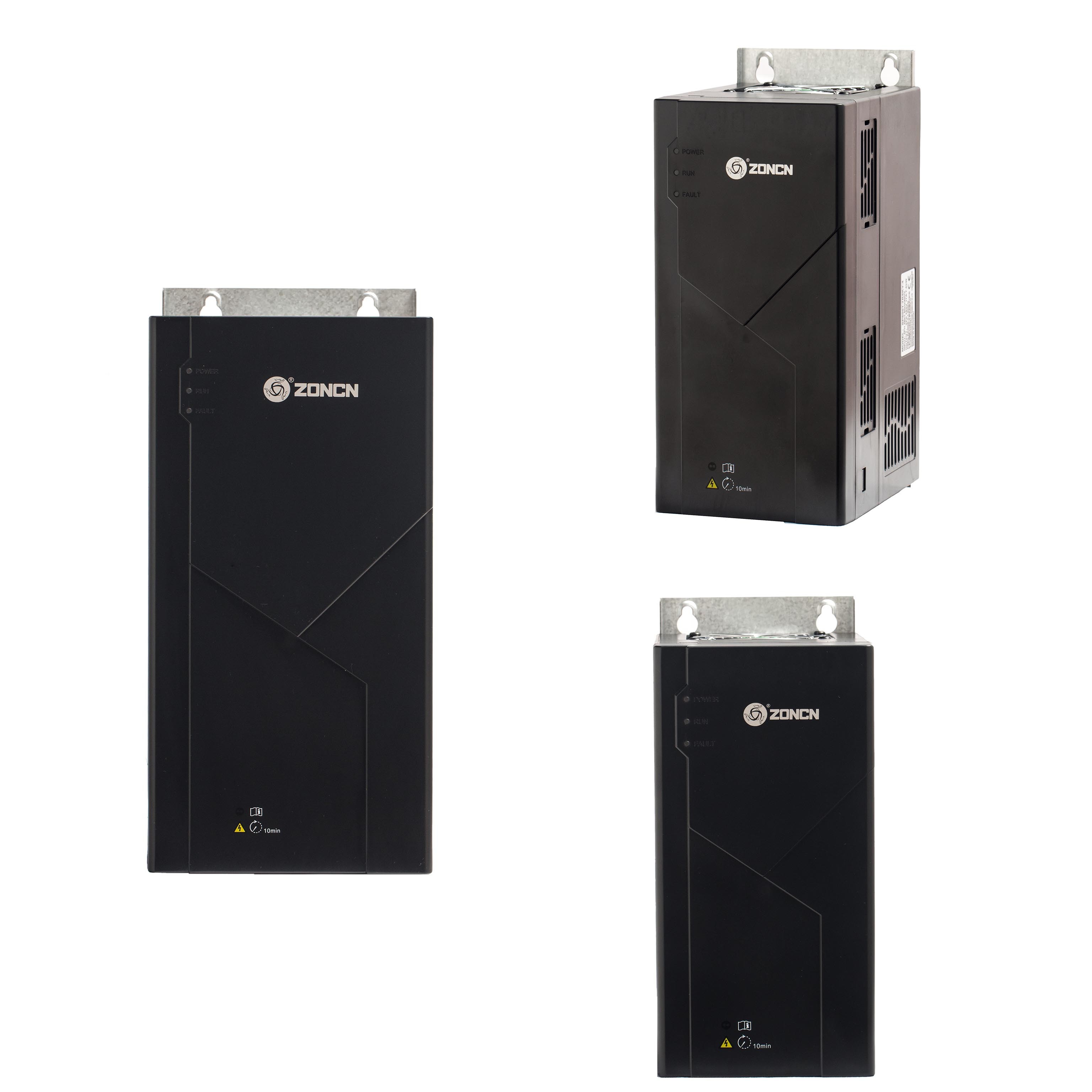

SP600T-11KY-4 11kW Vfd Air Compressors Integrator 380V Ac Inverters

SP600T-11KY-4 11kW Vfd Air Compressors Integrator 380V Ac Inverters
SP600T-11KY-4 11kW Vfd Air Compressors Integrator 380V Ac Inverters SP600T-11KY-4 11kW Vfd Air Compressors Integrator 380V Ac Inverters SP600T-11KY-4 11kW Vfd Air Compressors Integrator 380V Ac Inverters SP600T-11KY-4 11kW Vfd Air Compressors Integrator 380V Ac Inverters SP600T-11KY-4 11kW Vfd Air Compressors Integrator 380V Ac Inverters SP600T-11KY-4 11kW Vfd Air Compressors Integrator 380V Ac Inverters
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN Vfd
Certification: CE
Model Number: SP600T-11KY-4
Minimum Order Quantity: 1 unit
Packaging Details: Carton Packing
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units per month
Get Best Price Contact Now
Material: Metal Voltage: 400v±15%
Warranty: 18 Months Rated Power: 11kW Vfd
Communication Methods: RS485 Built-in PID: It Realizes Process-controlled Closed Loop Control System Easily
Speed Stability Accuracy: ±0.2% Altitude: Lower Than 1000m
Humidness: Less Than 95%RH, Without Condensing Vibration: Less Than 5.9 M/s2 (0.6g)
Highlight:

SP600T-11KY-4 Air Compressors Integrator

,

380V Ac Inverters Air Compressors Integrator

,

11kW Vfd Air Compressors Integrator

SP600T-11KY-4​ Air Compressor Integrator Vfd

Product introduction:

・Highly integrated air compressor control process and variable frequency drive technology.

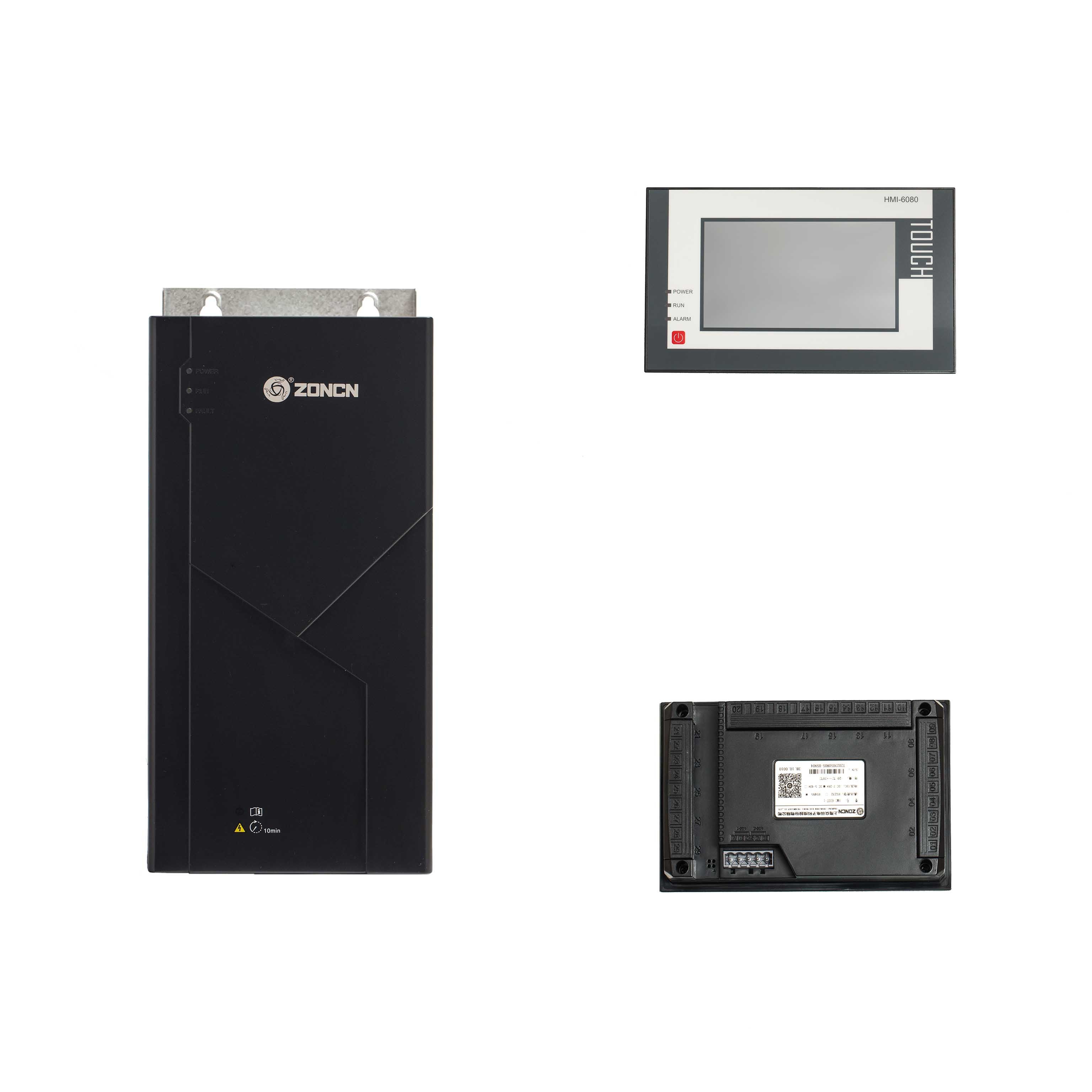

・Equipped with color touch screen display, the product debugging is simple and the operation is easy.
・The control circuit terminal plug-in connector terminals, and mistake proofing plug design.
・High product integration, built-in 220V AC power supply, providing 24V DC external output.
・The product has a high performance of intelligence and is equipped with a comprehensive alarm function: such as input and output phase missing alarm, phase sequence error alarm, motor and head high temperature alarm (PT100 and PTC detection),inverter overload alarm, overcurrent alarm, overvoltage, undervoltage and so on.





Product specification:

Item Specification
Basic control function Control mode Open loop vector control, V/F control
Upper limit frequency

Open loop vector control:0～600Hz,V / F control:

0～3200Hz
Carrier frequency setting

0.5kHz ～ 15kHz , the carrier frequency is

automatically adjusted based on the load features.
Input frequency resolution

Digital setting:0.01Hz

Analog setting: maximum frequency * 0.025%
Starting torque 0.5Hz/150%
Speed range 1:100

Speed stability

accuracy

 ±0.2%

Torque control

accuracy

 ±10%
Overload capacity

60s for 150% of the rated current, 3s for 180% of the

rated current.
Torque boost

Fixed boost

Customized boost 0.1%~30.0%
V/F curve Three ways: linear, multi-point, N power type V/F curve
V/F separation Two types: complete separation; half separation
Ramp mode

Straight-line ramp

S-curve ramp

Four groups of acceleration/deceleration time with the

range of 0.0–6500.0s

Communication

methods

 RS485
JOG control

JOG frequency range: 0.00–50.00 Hz

JOG acceleration/deceleration time: 0.0–6500s
Built-in PID

It realizes process-controlled closed loop control

system easily
Automatic Voltage Regulation (AVR) When the grid voltage changes, it can automatically keep the output voltage constant
Frequency source Digital setting
Input/output interface Analog input

1 pressure sensor: 4 ~ 20mA input

2 temperature sensor: PT100
Digital input

2 digital input

1 PTC circuit protection (compatible with normal digital input)
Digital output 1 normally open relay output (built in 220VAC voltage)
LED diode display 3 LED displays are standard
Protection Motor overheating protection (PTC), the power-to-ground short-circuit protection, inverter over-current, overload, over voltage, under voltage, over temperature, output phase, communication fault, fault current detection, EEPROM write failure and so on.
Environment Place of use Indoor, free from direct sunlight, dust, corrosive gas, combustible gas, oil , smoke, vapor, drip or salt.
Altitude Lower than 1000m
Ambient temperature

-10°C ～40°C (Downshift if the ambient temperature is

between 40°C and 50°C)
Humidness Less than 95%RH, without condensing
Vibration Less than 5.9 m/s2 (0.6g)
Storage temperature -20~+60 °C





Product outline and size drawing:

SP600T-11KY-4 11kW Vfd Air Compressors Integrator 380V Ac Inverters 0

Model W H H1 D A B Φd
SP600T-3R7KY-2 118 238 274 154 80 260 5.5
SP600T-5R5KY-4
SP600T-7R5KY-4
SP600T-5R5KY-2 145 293 335 172 100 320 7
SP600T-7R5KY-2
SP600T-11KY-4
SP600T-15KY-4
SP600T-11KY-2 168 338 380 172 100 365 7
SP600T-18KY-4
SP600T-22KY-4
SP600T-15KY-2 217 400 -- 216 202 385 7
SP600T-18KY-2
SP600T-30KY-4
SP600T-37KY-4



SP600T-11KY-4 11kW Vfd Air Compressors Integrator 380V Ac Inverters 1

Model W H H1 D A B Φd
SP600T-22KY-2 300 440 470 275 210 455 9
SP600T-30KY-2
SP600T-45KY-4
SP600T-55KY-4
SP600T-37KY-2 338 455 485 240 270 470 9
SP600T-75KY-4
SP600T-45KY-2 275 590 630 310 200 612 9
SP600T-55KY-2
SP600T-90KY-4
SP600T-110KY-4
SP600T-132KY-4 300 610 650 310 200 633 9
SP600T-75KY-2 400 675 715 310 320 695 11
SP600T-160KY-4

Terminal definition:

Terminal symbol Terminal function description
R/S/T Three-phase AC input terminal
U1/V1/W1 Host three-phase AC output terminal
U2/V2/W2 Fan three-phase AC output terminal
PE Ground terminal



Wiring diagram:

SP600T-11KY-4 11kW Vfd Air Compressors Integrator 380V Ac Inverters 2

Note:
1) PT2+,PT- is the PT100 terminal of the motor, please short connect when not connected, otherwise it will report the motor overheating fault.
2)S3 is the PTC terminal of the motor. If it is not connected, please short-circuit it with COM or set P4.02 to 0, otherwise it will also report the motor overheating fault.





FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.



Q3:What's your delivery time?
A:Generally within ten days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
