Vfd Motor Drive Industry Specific Inverter For Machine Tool

37kW Industry Specific Inverter Frequency Drives For Machine Tool Vfd Motor Drive

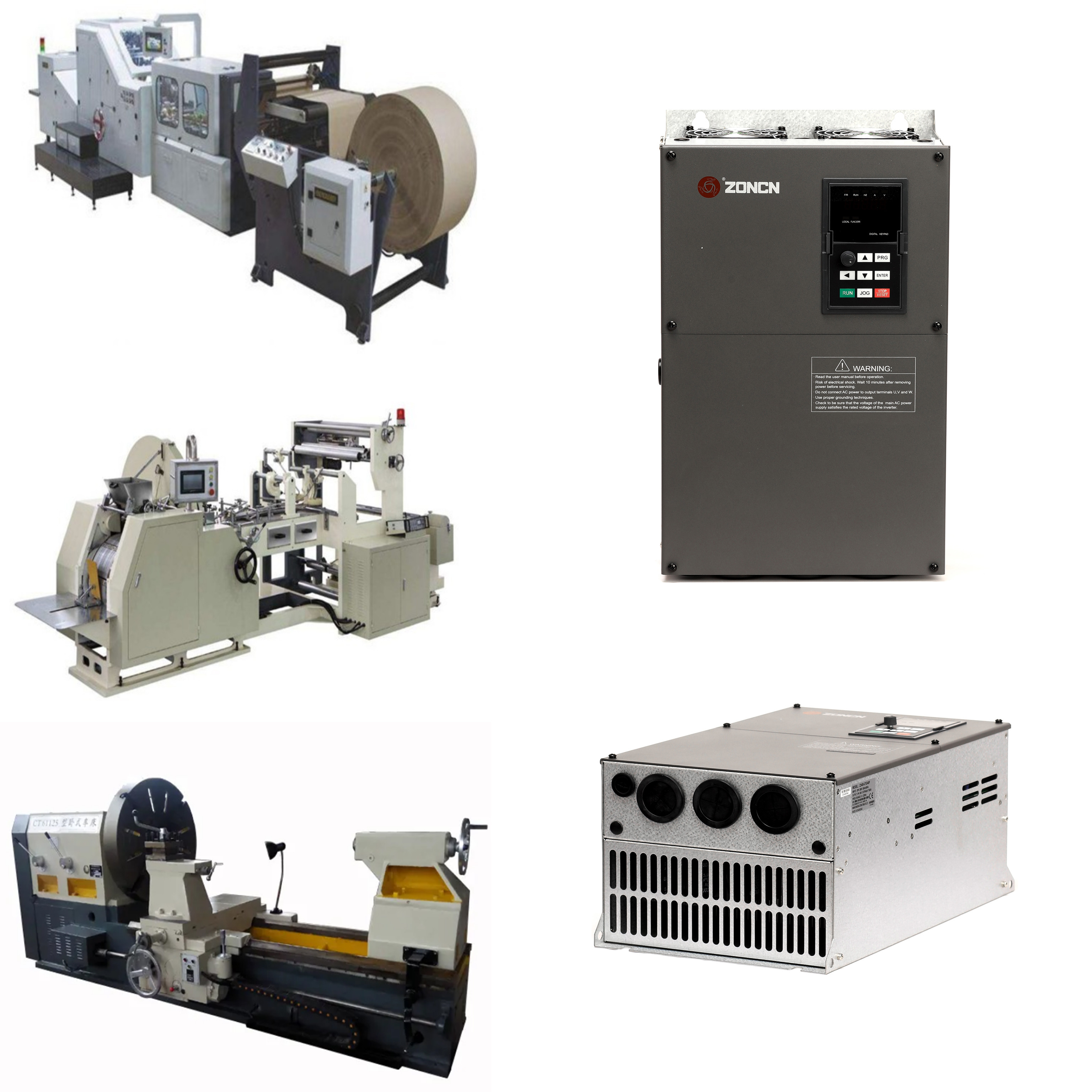

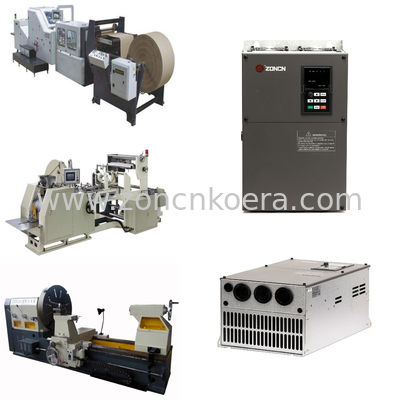

ZONCN Frequency Inverter For Machine Tool



Basic product introduction:

· Senseless flux vector control(VC)V/F(Voltage/Frequency)control

· The overload capacity allows for 60 seconds at 150% of the rated current and 3 seconds at 180% of the rated current.

· Ten auxiliary frequency sources are available.

· It enables precise adjustment of the auxiliary frequency and frequency synthesis.

· Supports PM motor (Z2000T series)

· Optional inclusion of built-in EMC filter;

· Power range: 110V/220V/380V/415V/440V/480V, ranging from 0.4kW to 450kW.







Technical Specification:

Item	Z2000 series
Control Mode	Sensorless flux vector control(SFVC) Voltage/Frequency (V/F) Control
Maximum frequency	Vector control:0-320Hz V/F control:0-3200Hz
Carrier frequency	1kHz~16kHz The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution	Digital setting:0.01Hz Analog setting: Maximum frequency 0.025%
Start torque	G: Type:0.5Hz/150%(SVC) P: Type:0.5Hz/100%
Speed range	1:100(SVC)
Speed stability accuracy	±0.5%(SVC)
Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost	Auto-boost ; Customized boost:0.1%~30.0%
VF curve	Line V/F curve；Multi-point V/F curve；N-power V/F curve
VF separation	2 types: complete separation；half separation
Ramp Mode	Straight-line ramp；S-curve ramp；Four groups of acceleration/deceleration time:0~6500.0s
Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage changes
Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
Torque limit and control	It can keep constant output voltage automatically when the mains voltage changes
Onboard PID	It realizes process-controlled closed loop control system easily
JOG control	JOG frequency range: 0.00–50.00 Hz JOG acceleration/deceleration time: 0.0–6500.0s
DC braking	DC braking frequency:0.00Hz to maximum frequency Braking time:0.0-100.0s Braking action current value:0.0%-100.0%
Instantaneous blackout doesn’t stop	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Timing control	Timing range:0.0Min~6500.0Min
Communication	RS485 / Ethecat(optional)
Run command channel	Given by the panel,control terminals,serial communication port,can be switched by many ways
Frequency source	10 kinds of frequency source, given by digital analog voltage, analog current, pulse, serial port. It can be switched by many ways
Auxiliary frequency source	10 kinds of frequency source, can easily realize micro adjustment, frequency Synthesizer
Input terminals	6 digital input terminals, one of which supports up to100 kHz high-speed pulse input (optional). 2 analog input terminal, one of which only supports0-10 V voltage input and the other supports 0-10V voltage input or 4-20 mA current input.
Output terminals	1 digital output terminal 1 relay output terminal 1 analog output terminal: that supports 0-20 mA current output or 0-10v voltage output
Multiple protection modes	Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.





Model specification:





Product configuration Z2000:

Close loop vector control	No
Built-in braking unit	Yes,below 37kw (include 37kw). Optional for more than 45KW
VF+Vector control	Yes
High speed pulse output	Yes
Movable digital keypad	Yes
AI	2
AO	1
DI	6
DO	Standard 1,optional 2
Relay output	Standard 1,over 30kw optional 2
DC braking	Yes
Collector	1
24V power supply	Below 30kw optional,30kw and above support
EMC filter	Optional
0.1S acceleration/deceleration	Yes
Simple PLC	Yes
All kinds of protection	Support
PID	Yes
DC choke	30kw—220kw optional,250kw and above all have
DC bus +,- terminals	Yes
STO function	No
Communication	RS485
Certificate	KC+CE
Warranty	18 months







Product wiring diagram:





Product case:

The Z2000 series inverter not only boasts exceptional quality but also offers the benefits of effortless installation and convenient setup. Firstly, this inverter utilizes cutting-edge design and manufacturing processes to ensure top-notch quality and dependability of the product. Its precise components and premium materials enable it to operate reliably in diverse working environments, minimizing failure rates and prolonging its lifespan.

Secondly, the installation process of the Z2000 series inverter is straightforward and swift. The product provides explicit installation instructions and diagrams, enabling users to effortlessly complete the installation work. Additionally, this inverter series offers flexible installation options, accommodating various installation requirements, whether it's wall-mounted or cabinet-mounted.

Regarding setup, the Z2000 series inverter offers a user-friendly interface and an easily comprehensible operation guide, enabling users to swiftly become familiar with and proficient in its operation. Furthermore, this inverter series is equipped with intelligent automated commissioning capabilities, automatically adjusting based on user-defined parameters, streamlining the setup process, and enhancing efficiency.

In summary, the Z2000 series inverter stands out with its exceptional quality, effortless installation, and convenient setup, making it the preferred choice for users. It not only meets diverse application requirements but also significantly enhances equipment performance and stability. Whether in industrial production or commercial applications, the Z2000 series inverter delivers convenience and reliability to users.





FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.



Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
