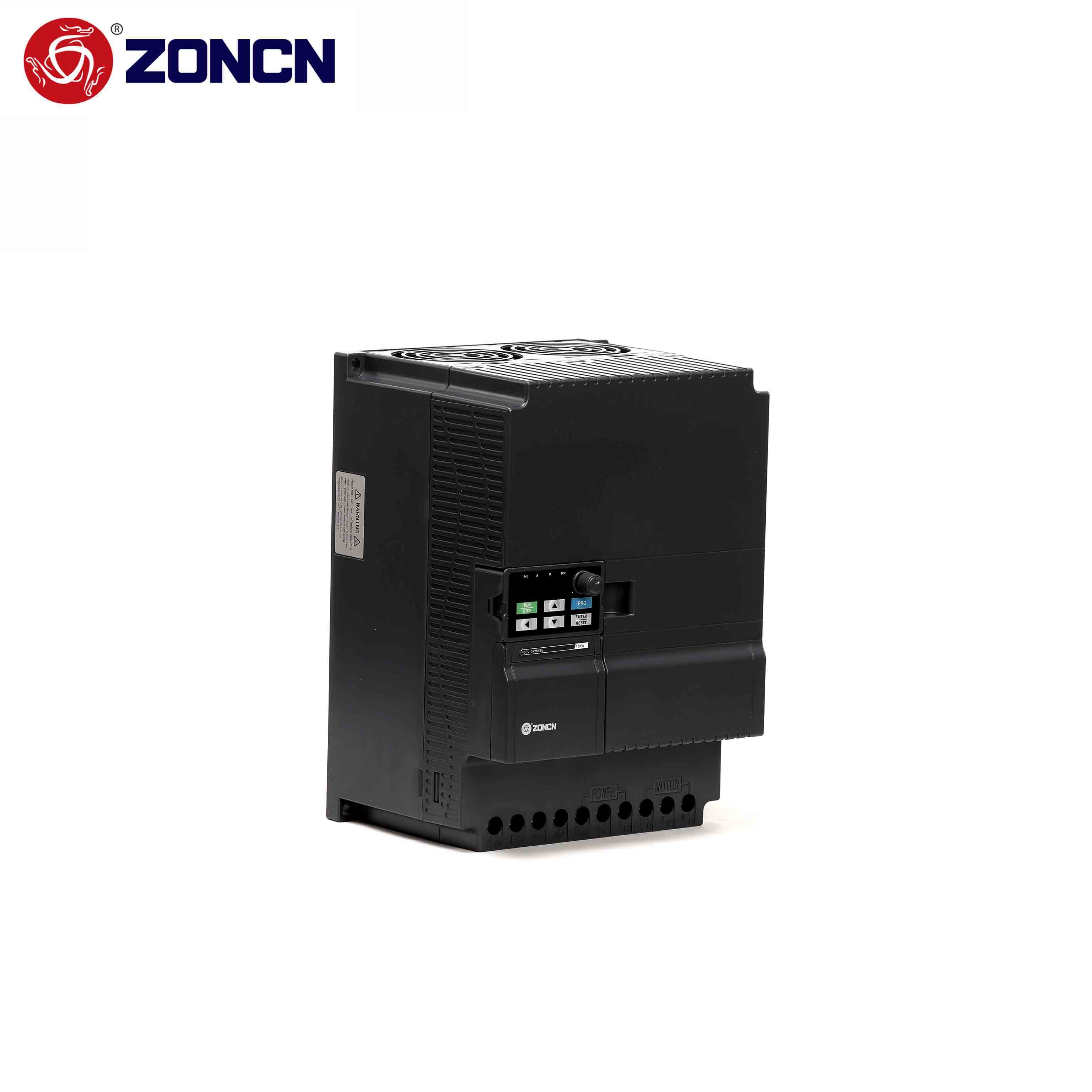

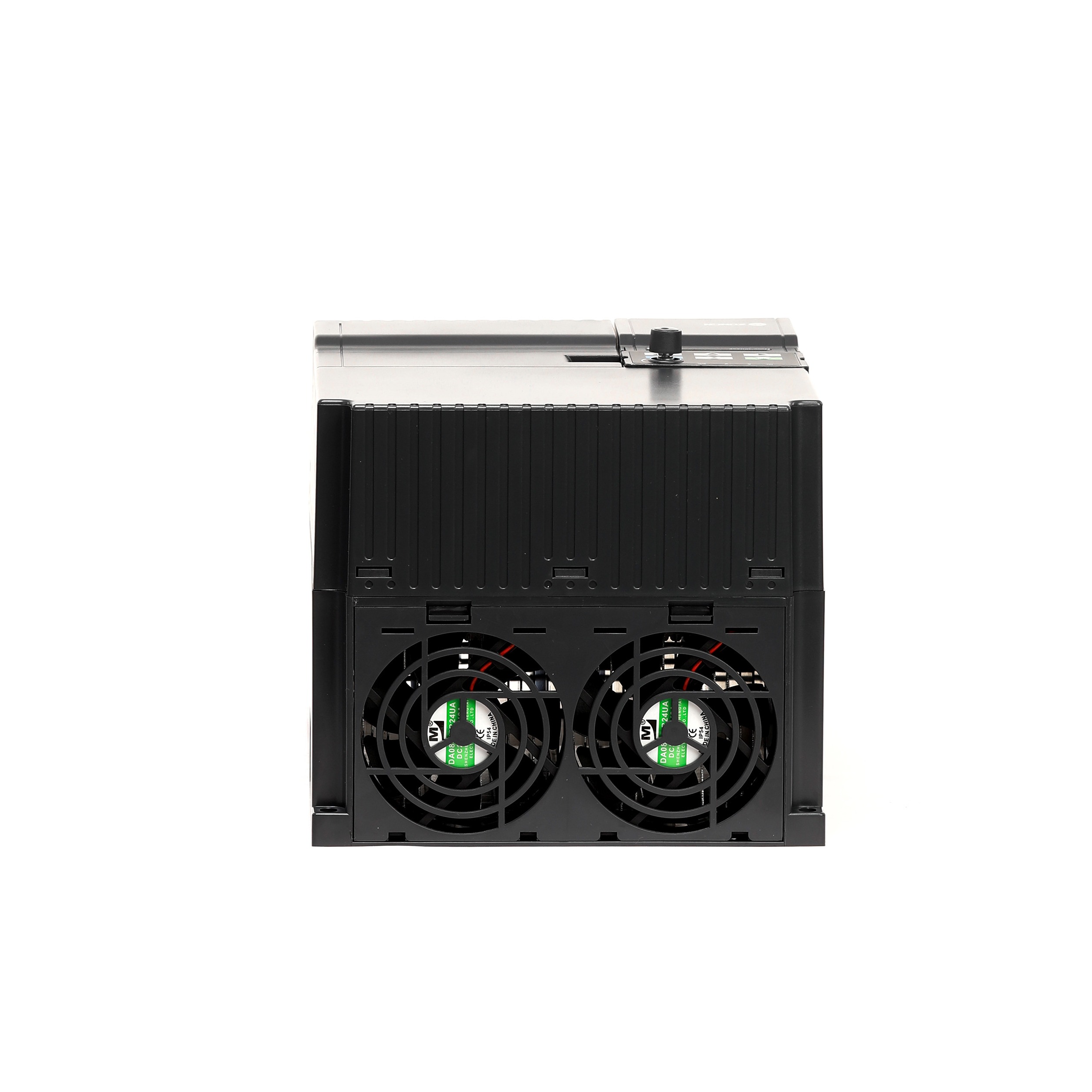

ZONCN Z2000 Ac Variable Frequency Drive 15KW / 22KW 3 Phase

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	ZONCN
Certification:	Eu CE certification
Model Number:	Z2400-15G/18.5P ； Z2400-22G/30P

Minimum Order Quantity:	1 unit
Packaging Details:	Carton packing；
Delivery Time:	7-30 work days
Payment Terms:	T/T, Western Union，Paypal
Supply Ability:	100000 units a month

Get Best Price Contact Now

Power:	15KW / 22KW	Voltage:	380V±15%；
Phase:	3 Phase	PM Motor:	Support ， Z2000T Series
External Keyboard:	Support	Quotation Method:	FOB
Highlight:	ZONCN Z2000 Ac Variable Frequency Drive , Ac Variable Frequency Drive 15KW , ac motor inverter 3 Phase

ZONCN Z2000 Series Woodworking Engraving Industry Specific Inverter 15KW 22KW

ZONCN Frequency Inverter For Engraving Machine

Basic product introduction:

· Senseless flux vector control(VC)V/F(Voltage/Frequency)control

· The overload capacity allows for 60 seconds at 150% of the rated current and 3 seconds at 180% of the rated current.

· Ten auxiliary frequency sources are available.

· It enables precise adjustment of the auxiliary frequency and frequency synthesis.

· Supports PM motor (Z2000T series)

· Optional inclusion of built-in EMC filter;

· Power range: 110V/220V/380V/415V/440V/480V, ranging from 0.4kW to 450kW.

Technical Specification:

Item	Z2000 series
Control Mode	Sensorless flux vector control(SFVC) Voltage/Frequency (V/F) Control
Maximum frequency	Vector control:0-320Hz V/F control:0-3200Hz
Carrier frequency	1kHz~16kHz The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution	Digital setting:0.01Hz Analog setting: Maximum frequency 0.025%
Start torque	G: Type:0.5Hz/150%(SVC) P: Type:0.5Hz/100%
Speed range	1:100(SVC)
Speed stability accuracy	±0.5%(SVC)
Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost	Auto-boost ; Customized boost:0.1%~30.0%
VF curve	Line V/F curve；Multi-point V/F curve；N-power V/F curve
VF separation	2 types: complete separation；half separation
Ramp Mode	Straight-line ramp；S-curve ramp；Four groups of acceleration/deceleration time:0~6500.0s
Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage changes
Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
Torque limit and control	It can keep constant output voltage automatically when the mains voltage changes
Onboard PID	It realizes process-controlled closed loop control system easily
JOG control	JOG frequency range: 0.00–50.00 Hz JOG acceleration/deceleration time: 0.0–6500.0s
DC braking	DC braking frequency:0.00Hz to maximum frequency Braking time:0.0-100.0s Braking action current value:0.0%-100.0%
Instantaneous blackout doesn’t stop	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Timing control	Timing range:0.0Min~6500.0Min
Communication	RS485 / Ethecat(optional)
Run command channel	Given by the panel,control terminals,serial communication port,can be switched by many ways
Frequency source	10 kinds of frequency source, given by digital analog voltage, analog current, pulse, serial port. It can be switched by many ways
Auxiliary frequency source	10 kinds of frequency source, can easily realize micro adjustment, frequency Synthesizer
Input terminals	6 digital input terminals, one of which supports up to100 kHz high-speed pulse input (optional). 2 analog input terminal, one of which only supports0-10 V voltage input and the other supports 0-10V voltage input or 4-20 mA current input.
Output terminals	1 digital output terminal 1 relay output terminal 1 analog output terminal: that supports 0-20 mA current output or 0-10v voltage output
Multiple protection modes	Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.

Product configuration Z2000:

Close loop vector control	No
Built-in braking unit	Yes,below 37kw (include 37kw). Optional for more than 45KW
VF+Vector control	Yes
High speed pulse output	Yes
Movable digital keypad	Yes
AI	2
AO	1
DI	6
DO	Standard 1,optional 2
Relay output	Standard 1,over 30kw optional 2
DC braking	Yes
Collector	1
24V power supply	Below 30kw optional,30kw and above support
EMC filter	Optional
0.1S acceleration/deceleration	Yes
Simple PLC	Yes
All kinds of protection	Support
PID	Yes
DC choke	30kw—220kw optional,250kw and above all have
DC bus +,- terminals	Yes
STO function	No
Communication	RS485
Certificate	KC+CE
Warranty	18 months

Product wiring diagram:

ZONCN Z2000 Ac Variable Frequency Drive 15KW / 22KW 3 Phase 0

Product Specifications:

ZONCN Z2000 Ac Variable Frequency Drive 15KW / 22KW 3 Phase 1

Application:

ZONCN Z2000 Ac Variable Frequency Drive 15KW / 22KW 3 Phase 2

ZONCN Z2000 series is an excellent product with a wide range of applications in the field of woodworking engraving. With its excellent performance and characteristics, this series of products has become one of the first choices of the woodworking engraving industry.

First of all, the ZONCN Z2000 series products are characterized by high precision and high speed. Precise cutting and engraving is very important in the woodworking engraving process, and the ZONCN Z2000 series products provide precise motion control and high cutting speed to ensure the detail and quality of the engraving work.

Secondly, the ZONCN Z2000 series products have stability and reliability. In the process of woodworking engraving, stable operation is crucial, and ZONCN Z2000 series products can maintain stable operation to avoid vibration or shake to affect the engraving effect. In addition, the product family has reliable performance and can maintain efficient operation during long periods of operation.

In addition, the ZONCN Z2000 series products also have the characteristics of intelligence and easy operation. Through the intelligent control system, users can easily set parameters and operate, to achieve automatic woodworking engraving process. This greatly improves the work efficiency and production efficiency.

In general, ZONCN Z2000 series products have a wide range of application prospects in the field of woodworking engraving. Its advantages of high precision, high speed, stability and reliability make it an indispensable tool in the woodworking engraving industry. Whether in the field of furniture manufacturing, art carving or architectural decoration, ZONCN Z2000 series products can play an important role in helping woodworking carvers to achieve beautiful works and efficient production.

FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
