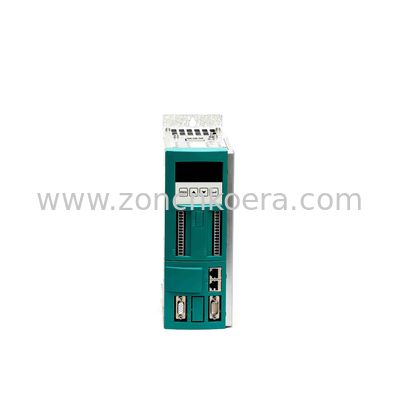

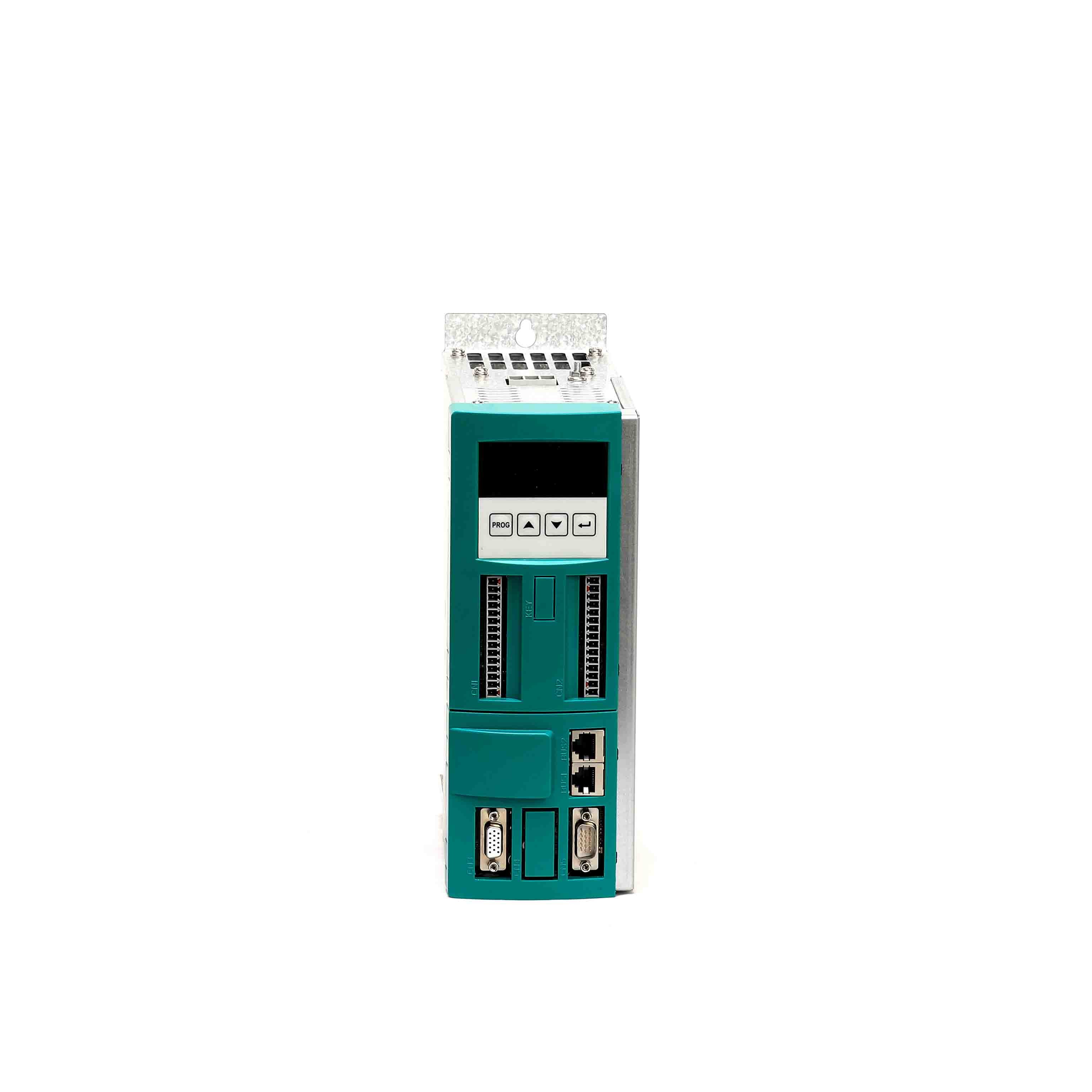

T8400D-7R5G/11P 7.5KW Variable Frequency Drive Vfd Inverter For CNC Spindle Orientation

T8400D-7R5G/11P 7.5KW Variable Frequency Drive Vfd Inverter For CNC Spindle Orientation
T8400D-7R5G/11P 7.5KW Variable Frequency Drive Vfd Inverter For CNC Spindle Orientation T8400D-7R5G/11P 7.5KW Variable Frequency Drive Vfd Inverter For CNC Spindle Orientation T8400D-7R5G/11P 7.5KW Variable Frequency Drive Vfd Inverter For CNC Spindle Orientation
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: CE
Model Number: T8400D-7R5G/11P
Minimum Order Quantity: 1 unit
Packaging Details: Carton Packing
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units per month
Get Best Price Contact Now
VFD Series: T8000 Series Spindle Orientation: Support
Maximum Frequency: Vector Control：0～1000Hz V/F Control：0～1500Hz Power: 7.5kw
Input: 380v Output: 380v
Highlight:

7.5KW Variable Frequency Drive Vfd Inverter

,

Variable Frequency Drive Vfd Inverter CNC

T8400D-7R5G/11P 7.5KW Vfd Industry Specific Inverter For CNC Spindle Orientation

High Performance Spindle Servo Driver Inverter



Product introduction:

The ZONCN T8000D Series Inverter is a state-of-the-art device designed for various industrial applications. It boasts several advantages that make it a reliable choice for precision control in high-accuracy environments, such as CNC lathes.

One of the key highlights of the T8000D Series is its support for closed-loop vector control. This advanced control technique ensures accurate and stable motor performance, allowing for precise speed and torque control. With closed-loop vector control, users can expect enhanced motor efficiency and reduced energy consumption.



Another notable feature of the T8000D Series is its compatibility with multiple encoders. This flexibility enables the inverter to support various encoder types, providing users with more options for motor feedback and position control. Additionally, the inverter supports the installation of various PG cards, further expanding its functionality and customization possibilities.



The T8000D Series is compatible with different types of motors, including standard asynchronous motors, spindle asynchronous motors, permanent magnet synchronous motors, and spindle synchronous motors. This versatility makes it suitable for a wide range of applications, allowing users to adapt the inverter to their specific motor requirements.



Furthermore, the T8000D Series excels in its spindle positioning functionality. This feature enables precise positioning control of the spindle, ensuring accurate machining operations in CNC lathes and similar high-precision applications.



In conclusion, the ZONCN T8000D Series Inverter is a highly capable device that supports closed-loop vector control, multiple encoder support, and various PG card installations. Its compatibility with different motor types, coupled with its spindle positioning functionality, makes it an ideal choice for high-precision applications like CNC lathes.





Product specification :

Item

T8000D series



Maximum frequency

Vector control:0～1000Hz

V/F control:0～1500Hz



Carrier frequency

0.8kHz～16kHz

The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution

Digital setting:0.01Hz

Analog setting: Maximum frequency x 0.025%



Control Mode

Sensorless flux vector control (SVC)

Close-loop vector control (FVC)

Voltage/Frequency (V/F) control
Start torque G type:0.5Hz/150%(SVC)；0Hz/180%(FVC)
Speed range 1:100(SVC) 1:1000(FVC)
Speed stability accuracy ±0.5%(SVC) ±0.02%(FVC)
Torque control accuracy ±5%(FVC)
Overload capacity

G type:60s for 150% of the rated current,

3s for 180% of the rated current.
Torque boost

Auto-boost;

Customized boost: 0.1%~30.0%



V/F Curve

Straight-line V/F curve

Multi-point V/F curve

N-power V/F curve (1.2-power, 1.4-power, 1.6-power,

1.8-power, square)



Ramp Mode

Straight-line ramp.

Four groups of acceleration/deceleration time with the range of 0.00`6500.0s
DC braking

DC braking frequency:0.00Hz~Maximum frequency

Braking time:0.0s~36.0s

Braking action current value:0.0%~100.0%
Auto voltage regulation (AVR) It can keep constant output voltage automatically when the mains voltage changes
Rapid current limit It helps to avoid frequent over current faults of the AC drive.
Support for kinds of PG cards Differential input PG card; Rotating transformer PG card.
Power dip ride through The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time
Overvoltage/overcurrent stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
Torque limit and control It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be implemented in the FVC mode.
Onboard multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of X terminal states
Support motor type Asynchronous motor, spindle asynchronous motor, Permanent Magnet Synchronous Motor, Spindle Synchronous Motor





Selecton guide:

Model No. Rated output power (kW) Rated input current(A) Rated output current (A) Motor Power(kW)
T8400D-3R7G/5R5P 3.7/5.5 10.0/15.0 9.0/13.0 3.7/5.5
T8400D-5R5G/7R5P 5.5/7.5 15.0/20.0 13.0/17.0 5.5/7.5
T8400D-7R5G/11P 7.5/11 20.0/26.0 17.0/25.0 7.5/11
T8400D-11G/15P 11/15 26.0/35.0 25.0/32.0 11/15
T8400D-15G/18R5P 15/18.5 35.0/38.0 32.0/37.0 15/18.5
T8400D-18R5G/22P 18.5/22 38.0/46.0 37.0/45.0 18.5/22
T8400D-22G/30P 22/30 46.0/62.0 45.0/60.0 22/30
T8400D-30G/37P 30/37 62.0/76.0 60.0/75.0 30/37
T8400D-37G/45P 37/45 76.0/90.0 75.0/90.0 37/45




FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.



Q3:What's your delivery time?
A:Generally within ten days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
