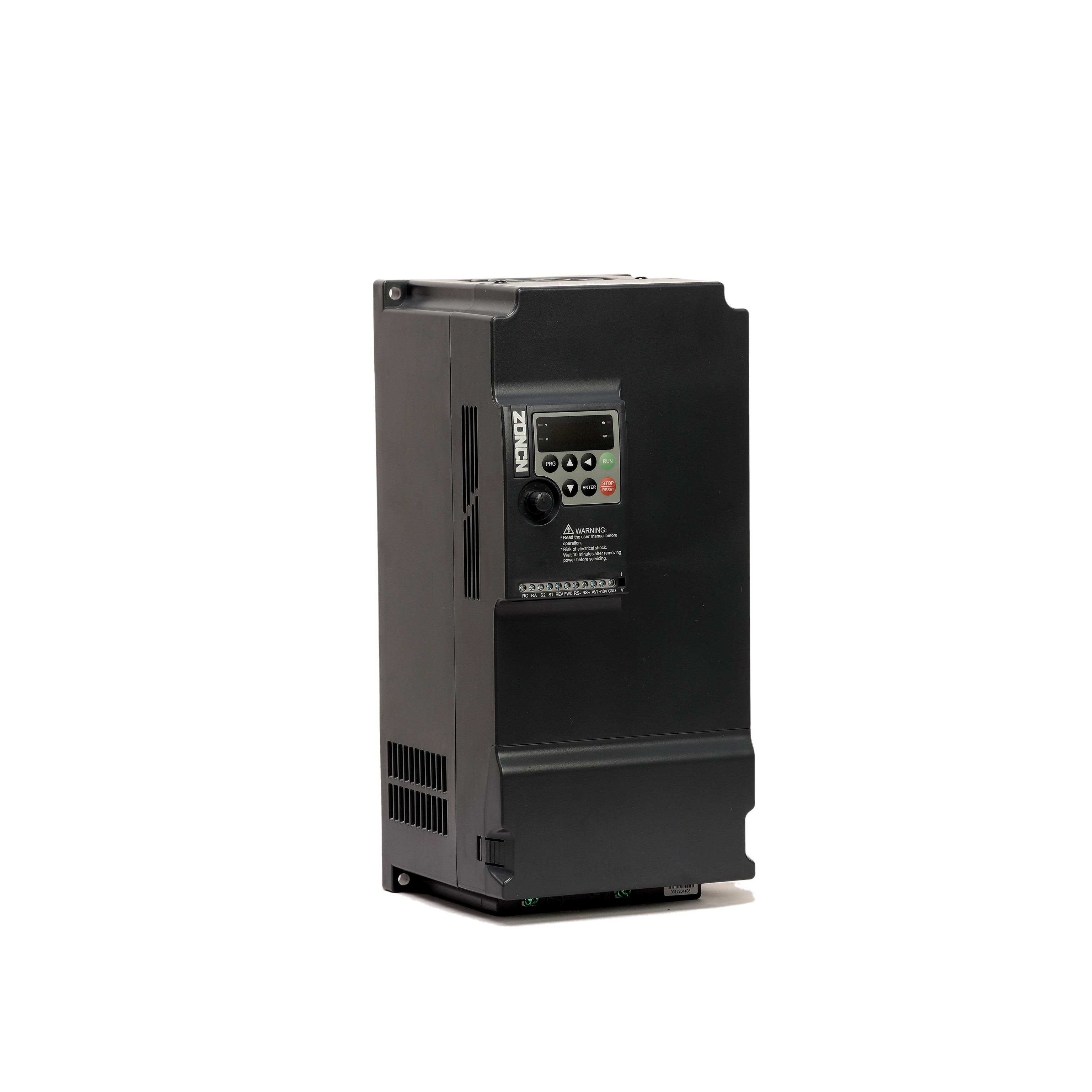

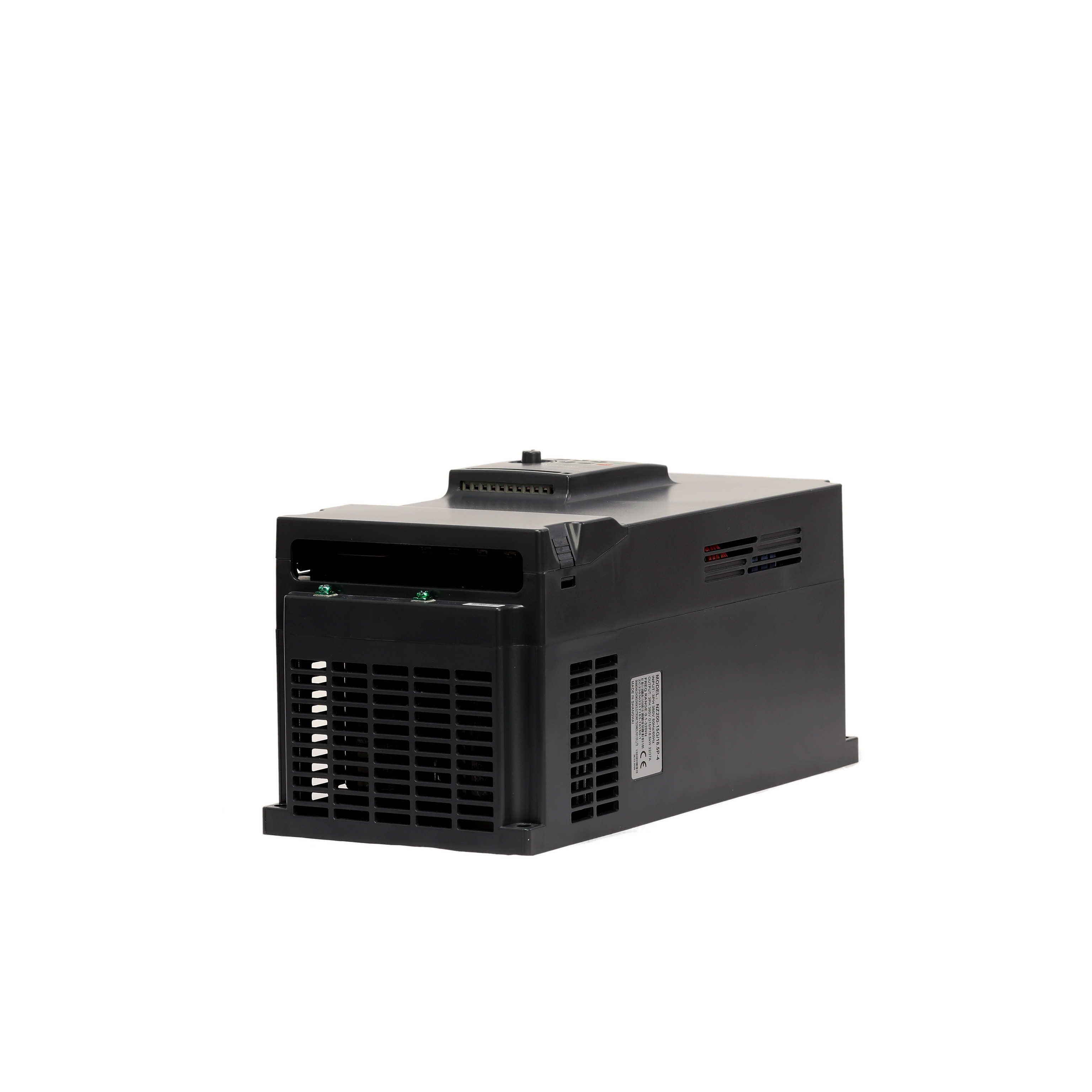

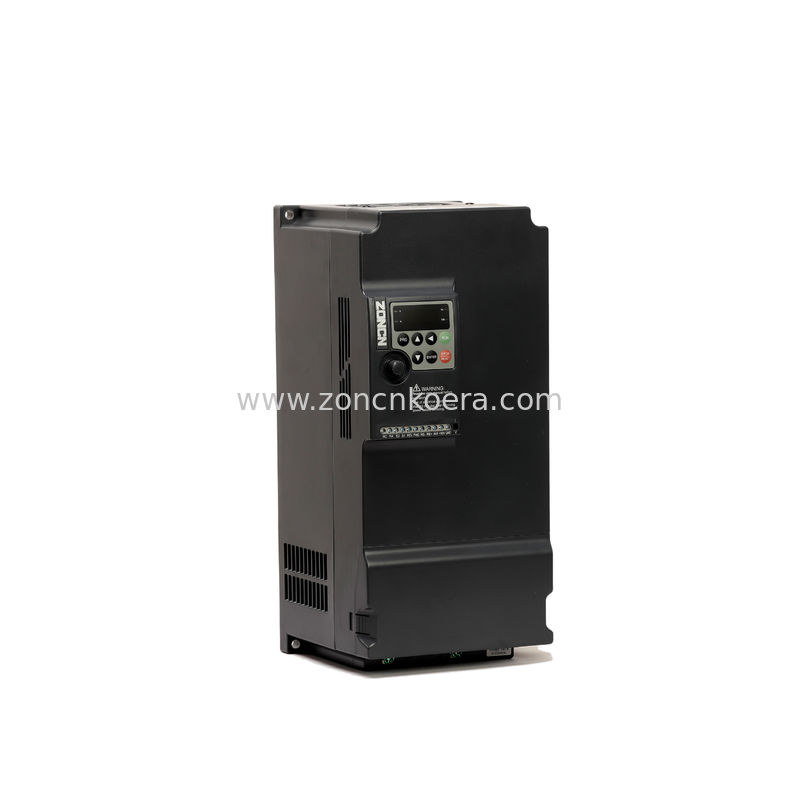

ZONCN 240v Single Phase Vfd for air compressors CE certification

NZ200T-22GY-4-24V AC drives frequency inverter for air compressors

Product Introduction:

Here is a list-style introduction of the NZ200T series variable frequency drives, highlighting their advantages:

1,Suitable for permanent magnet synchronous motors, providing efficient motor control and energy savings.
2,Simple terminal design, allowing for easy and quick wiring and installation.
3,Specifically designed for compressor applications, meeting the unique requirements of compressors.
4,Can be paired with a controller for enhanced control and regulation.
5,Easy and straightforward debugging, featuring a user-friendly interface that reduces debugging time and costs.
6,Equipped with various protection functions, including overload protection, overcurrent protection, overvoltage protection, undervoltage protection, and overheat protection, ensuring the safe operation of equipment and motors.


The NZ200T series variable frequency drives offer these advantages, making them an ideal choice for controlling permanent magnet synchronous motors, especially in compressor applications. They provide reliable performance, simple terminal design, easy debugging, and a range of protection features.

Product model specification:

Type	Input voltage	Rated output power(KW)	Rated input current(A)	Rated output current (A)	Motor power ( KW)
NZ200T-0R4G-2	AC 220V	0.4	5.4	2.5	0.4
NZ200T-0R75G-2		0.75	7.2	5.0	0.75
NZ200T-1R5G-2		1.5	10.0	7.0	1.5
NZ200T-2R2G-2		2.2	16	11	2.2
NZ200T-3R7G-2		3.7	24	16.5	3.7
NZ200T-0R4G-4	AC 380V	0.4	3.4	1.2	0.4
NZ200T-0R75G-4		0.75	3.8	2.5	0.75
NZ200T-1R5G-4		1.5	5.0	3.7	1.5
NZ200T-2R2G-4		2.2	5.8	5.0	2.2
NZ200T-3R7G/5R5P-4		3.7/5.5	10/15	9/13	3.7/5.5
NZ200T-5R5G/7R5P-4		5.5/7.5	15/20	13/27	5.5/7.5
NZ200T-7R5G/11P-4		7.5/11	20/26	17/25	7.5/11
NZ200T-11G/15P-4		11/15	26/35	25/32	11/15
NZ200T-15G/18.5P-4		15/18.5	35/38	32/37	15/18.5
NZ200T-18.5G/22P-4		18.5/22	38/46	37/45	18.5/22
NZ200T-22G/30P-4		22/30	46/62	45/60	22/30
NZ200T-30G/37P-4		30/37	62/76	60/75	30/37
NZ200T-37G/45P-4		37/45	76/90	75/90	37/45
NZ200T-45G/55P-4		45/55	90/105	90/110	45/55
NZ200T-55G-4		55	105	110	55
NZ200T-75P-4		75	140	150	75
NZ200T-75G/90P-4		75/90	140/160	150/176	75/90
NZ200T-90G/110P-4		90/110	160/210	176/210	90/110
NZ200T-110G/132P-4		110/132	210/240	210/253	110/132
NZ200T-132G/160P-4		132/160	240/290	253/300	132/160
NZ200T-160G/185P-4		160/185	290/330	300/340	160/185
NZ200T-185G/200P-4		185/200	330/370	340/380	185/200
NZ200T-200G/220P-4		200/220	370/410	380/420	200/220
NZ200T-220G/250P-4		220/250	410/460	420/470	220/250
NZ200T-250G/280P-4		250/280	460/500	470/520	250/280
NZ200T-280G/315P-4		280/315	500/580	520/600	280/315
NZ200T-315G/350P-4		315/350	580/620	600/640	315/350
NZ200T-350G/400P-4		350/400	620/670	640/690	350/400
NZ200T-400G/450P-4		400/450	670/790	690/790	400/450





Product circuit diagram:



FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within ten days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
