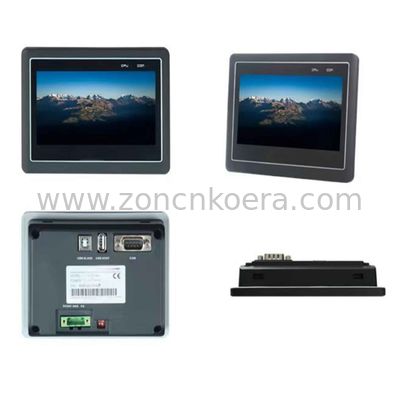

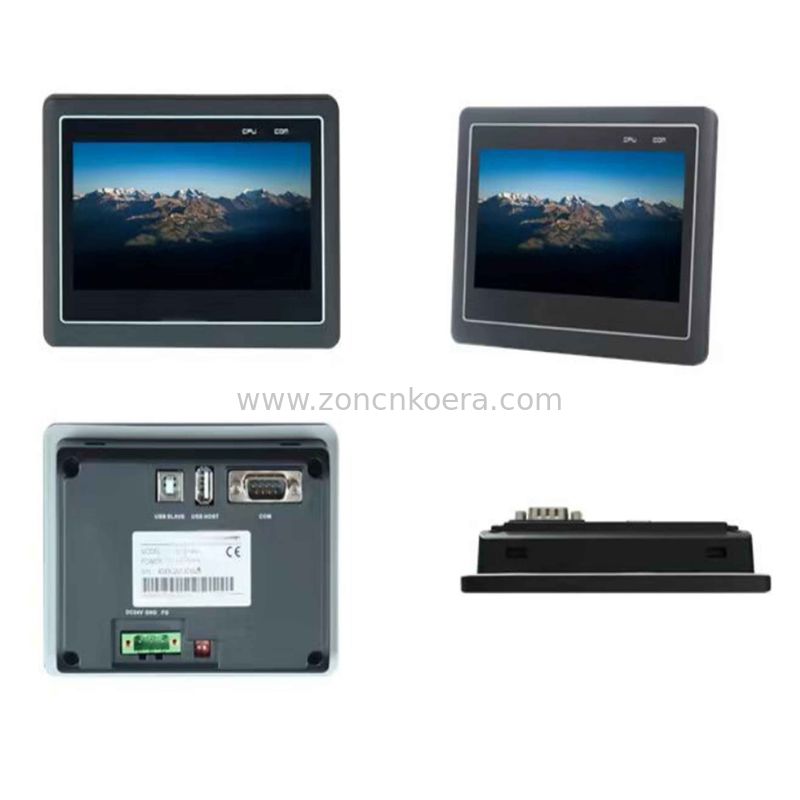

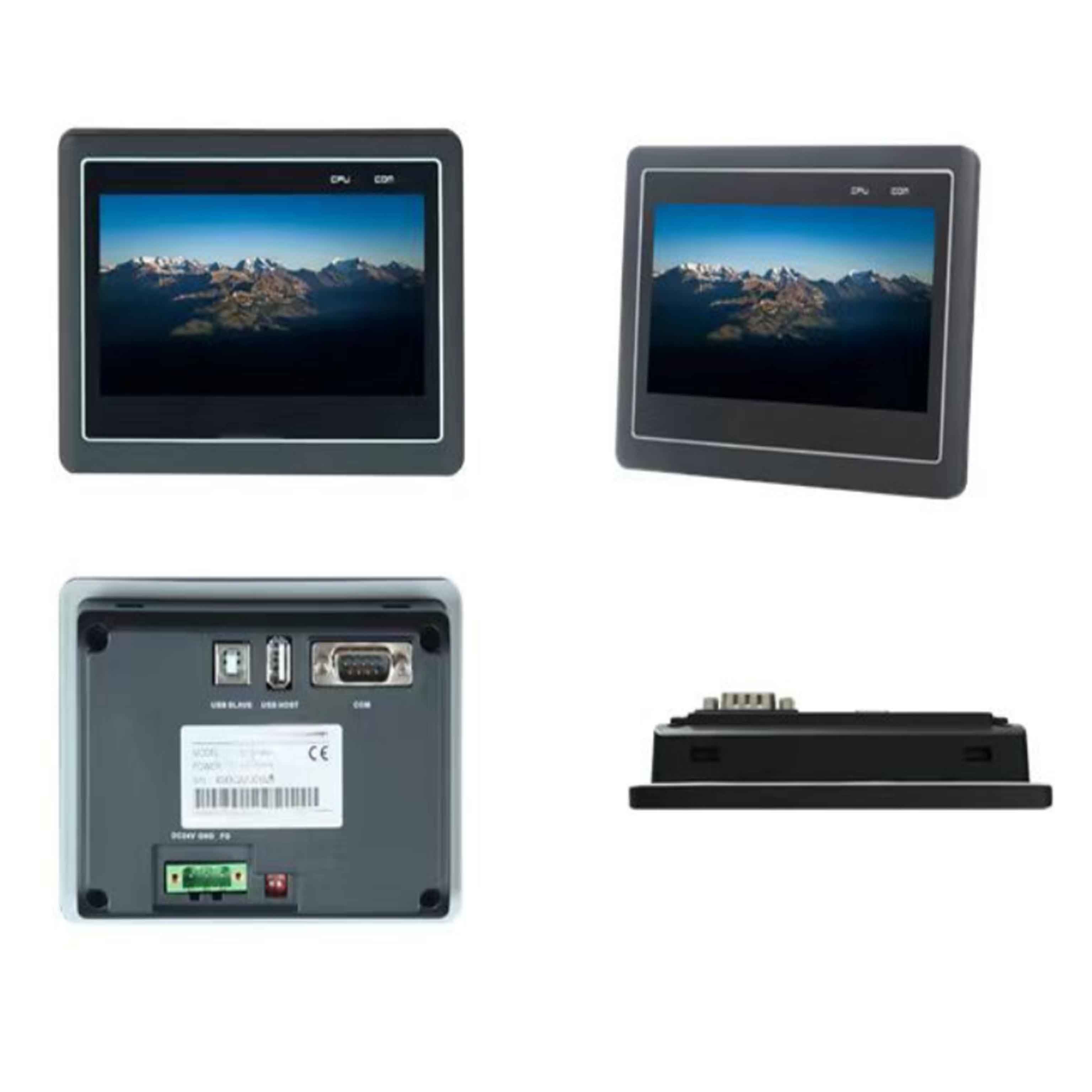

4.3 Inches HMI Touch Screen Display Build In RTC Plastic enclosure

Basic Information

Get Best Price Contact Now

Display:	4.3”16:9 TFT LCD	Resolution(WxH):	480×272
Colors:	24-bit	Brightness:	360 Cd/m²
Backlight:	LED	Touch Panel:	4 Wires Resistive Touch Screen(Surface Hardness 4H)
CPU:	600MHz ARM Cortex-A8	Memory:	128M Flash + 128M DDR3
Highlight:	4.3 Inches HMI Touch Screen , HMI Touch Screen RTC , Hmi Touch Display RTC

HMI Touch Screen 4.3 Inches Build-In RTC Human-Machine Interface

Plastic enclosure, low cost, high reliability.
The main board is treated with a special coating (three anti-paint) to adapt to harsh environment.
High resolution, high brightness, LED backlight, more energy saving and environmental protection.
The USB host port supports U disk to storage and download data.
2-way serial port, more powerful expansion function.
New configuration software, rich library, powerful features.

Hardware Parameter	Display	4.3” 16:9 TFT LCD
	Resolution(WxH)	480×272
	Colors	24-bit
	Brightness	360 cd/m²
	Backlight	LED
	LCD Life	50000 hours
	Touch Panel	4 wires resistive touch screen(Surface hardness 4H)
	CPU	600MHz ARM Cortex-A8
	Memory	128M Flash + 128M DDR3
	RTC	Built in
	Ethernet	None
	USB Port	USB Slave 2.0 Port1,USB Host 2.0 Port1
	Download Project	USB Slave Port/U-disk
	COM Port	COM1: RS232/RS485/RS422, COM3: RS232
	LCD viewing angle (T/B/L/R)	50'/70'/70'/70'
Electrical Specifications	Power Consumption	< 5W
	Input Power	DC24V, Working range DC 9V~28V
	Power Protection	Protected from thunderstrike and surging
	Power Down Allowed	< 5mS
	CE & RoHS	Complied with EN61000-6-2:2005, EN61000-6-4:2007, ROHS, Surge Immunity:±1KV, EFT:±2KV, ESD:4KV, Air:8KV
Environmental Specifications	Operating Temperature	0~50C
	Storage Temperature	-20~60C
	Anti-UV	Not suitable to work in strong ultraviolet light (such as direct sunlight)
	Operating Humidity	10~90%RH(no condensate)
	Vibration Endurance	10~25Hz (X,Y,Z direction 2G/30 minutes)
	Cooling	Natural air cooling
Mechanical Index	Degree of Protection	Front IP65 (with NEMA panel, Back IP20)
	Enclosure	ABS
	Panel Cutout	120mm×93mm
	Dimension	129.3mm×103.9mm×32mm
	Weight	About 430g

4.3 Inches HMI Touch Screen Display Build In RTC Plastic enclosure 0

The company was founded in 2006.
Headquartered in Shanghai, China, there are branches in Maanshan, Anhui and Wuhu, Anhui, among which Wuhu Company is responsible for international trade business. A total of four large plants are expected to come on stream by mid-2024.
The registered capital is $20 million.
There are about 1000 employees.
The annual output of inverter is more than 900,000 units.
All products through the EU CE certification.
In addition to the development of inverter, the company also focuses on the development of HMI, PLC, servo system, medium voltage inverter, high voltage inverter, a variety of special industries of professional inverter, the company has a strong strength in the field of inverter in China.
The company was listed on the main board of the Shanghai Stock Exchange in 2023. Stock code 603275.

1,What is your MOQ?
1 PC.

2,What is terms of payment?
T/T 100% before delivery.

3,What is your delivery time?
Fast delivery is our advantage. Usually within ten days.

4,How can we do OEM/ODM?
We do OEM for more than 40 brands. If your order reaches a certain quantity, we can do it for you.
