800*480 HMI Touch Screen HMI Touch Panel 7 Inches high brightness

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	ZONCN
Certification:	CE
Model Number:	VC3070C

Minimum Order Quantity:	1 unit
Packaging Details:	Cartoon Packing
Delivery Time:	7-30 work days
Payment Terms:	T/T, Western Union，PayPal
Supply Ability:	100000 units per months

Get Best Price Contact Now

Display:	7''16:9 TFT LCD Screen	Resolution Ration:	800*480
CPU:	ARM 600Mhz	Ethernet:	No
RTC:	Real-time Clock Built-in	LCD Life:	50000h
Highlight:	800*480 HMI Touch Screen , HMI Touch Screen High Brightness , HMI Touch Panel 7 Inches

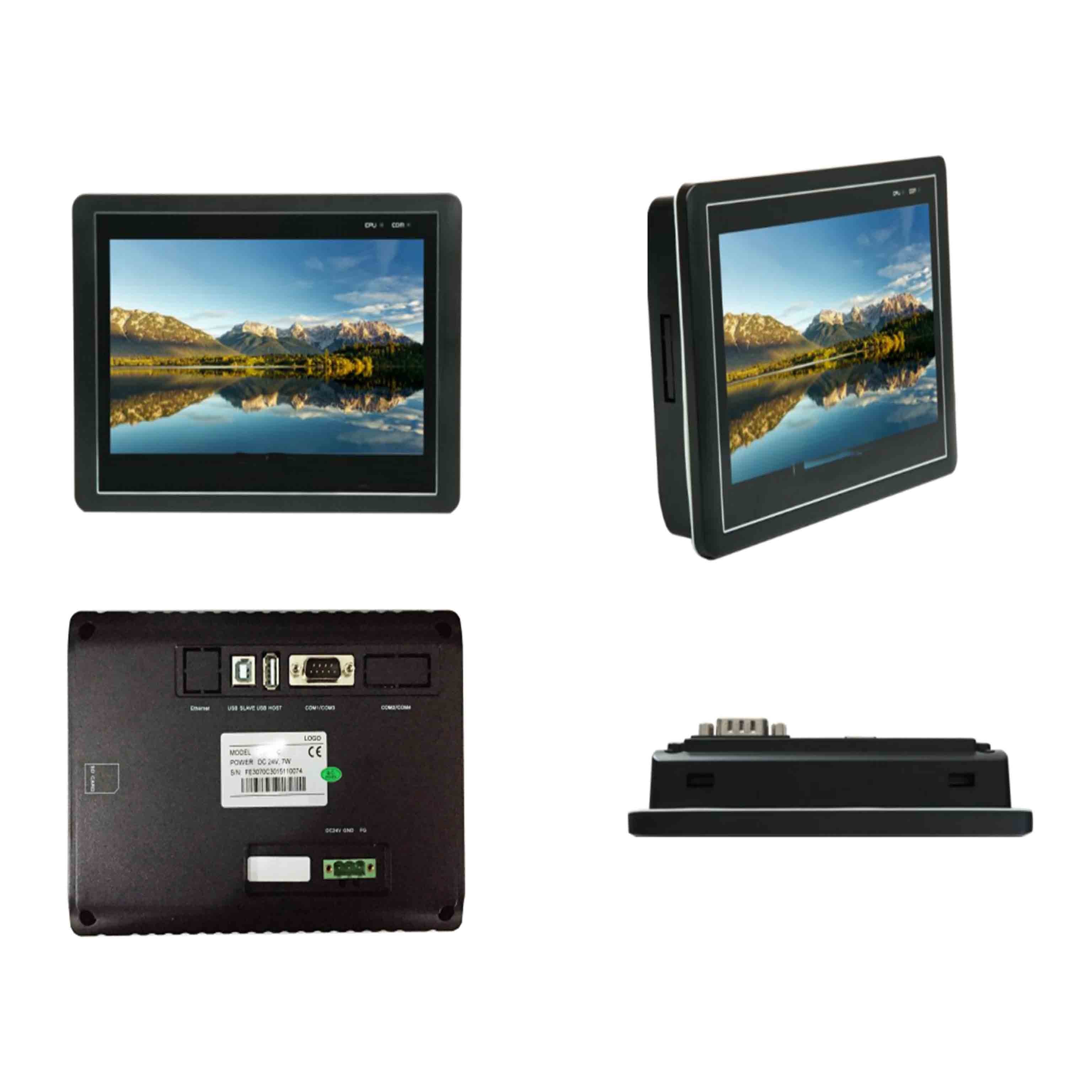

HMI Human Touch Screen 7 Inches VC3070C LCD Display

Products Overview:

Plastic shell, low cost, high reliability and high.
Resolution, high brightness, LED backlight, more energy saving and environmental protection.
The main USB port supports data storage and download on a USB flash drive.
2 serial ports, more powerful expansion capability.
New configuration software, rich library, powerful functions.

Products Specifications:

Display	7” 16:9 TFT LCD Screen
LCD Viewing Angle (T/B/L/R)	50'/70'/70'/70'
Resolution	800*480
Backlight	LED
Brightness	250 cd/㎡
Half Brightness Life Time	50000 hours
Touch Screen	4-line Industrial Resistive HMI
CPU	2-core1G Cortex-A7
Memory	128MB Flash + 128MB DDR3
RTC	RTC Built-in
PROFINET	-
USB port	1 USB Slave 2.0 Port,1 USB Host 2.0 Port
Program Download method	USB Slave/U-disc
Serial Communication Ports	COM1:RS232/RS485/RS422 COM2:RS485 COM3:RS232
Rated Power	< 10W
Rated Voltage	DC24V,working range DC 9V~28V
Power Protection	With lightning surge protection
Power Loss	< 5mS
CE & RoHS	Comply with EN61000-6-2:2005, EN61000-6-4:2007 standards Comply with RoHS. Lightening surg±1KV,group pulse±2KV. Electrostatic contact 4KV, air discharge:8KV
Working Temperature	0-50℃
Storage Temperature	-20-60℃
UV-Proof	Do not work in strong ultraviolet environment (such as direct sunlight).
Ambient humidity	10~90%RH (non-condensate)
Anti-vibration	10~25Hz (X,Y,Z direction 2G/30 minutes)
Cooling Way	Natural Cooling
Protection Grade	The front panel complies with IP65 (installed with flat panel cabinet), and the rear shell of the fuselage complies with IP20
Mechanic Structure	Engineering Plastics
Hole Dimension	190mm×136mm
Machine Size	204mm×145mm×34mm(Tolerance±0.5mm)
Machine Weight	476g

Dimension drawings:

800*480 HMI Touch Screen HMI Touch Panel 7 Inches high brightness 0

About ZONCN:

The company was founded in 2006.
Headquartered in Shanghai, China, there are branches in Maanshan, Anhui and Wuhu, Anhui, among which Wuhu Company is responsible for international trade business. A total of four large plants are expected to come on stream by mid-2024.
The registered capital is $20 million.
There are about 1000 employees.
The annual output of inverter is more than 900,000 units.
All products through the EU CE certification.
In addition to the development of inverter, the company also focuses on the development of HMI, PLC, servo system, medium voltage inverter, high voltage inverter, a variety of special industries of professional inverter, the company has a strong strength in the field of inverter in China.
The company was listed on the main board of the Shanghai Stock Exchange in 2023. Stock code 603275.

FAQ:

1,What is your MOQ?
1 PC.

2,What is terms of payment?
T/T 100% before delivery.

3,What is your delivery time?
Fast delivery is our advantage. Usually within ten days.

4,How can we do OEM/ODM?
We do OEM for more than 40 brands. If your order reaches a certain quantity, we can do it for you.
