VFD Variable Frequency Drive 380V 11kW 15HP 3 Phase AC Inverter With Built-in EMC Filter For Motor Speed Control

Basic Information

Place of Origin:	Shanghai,China
Brand Name:	ZONCN vfd inverter
Certification:	CE
Model Number:	T200 series vfd inverter 11KW

Minimum Order Quantity:	1 unit
Packaging Details:	Carton
Delivery Time:	7-30 work days
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	100000 per month

Get Best Price Contact Now

Power:	11KW 380V VFD	Material:	Plastic And Metal
Ethercat Function:	Optional	Drive Mode:	Alternating Current Drive
Voltage Level:	380v±15%	Protection Function:	Phase Loss Protection, Overcurrent Protection, Etc.

11KW 380V Single Phase Inverter VSD VFD

Product Introduction:

VFD Variable Frequency Drive 380V 11kW 15HP 3 Phase AC Inverter With Built-in EMC Filter For Motor Speed Control 0

- Economically affordable; Micro compact design;

- Easy to use and install: DIN rail installation(below 3.7kW), keyboard cable with RJ45,STO function (support 380V below 15kW), built-in EMC filter, 24VDCpower supply, PlD adjustment;

- V/F control, open-loop vector control, closed-loop vector control mode;

- Supporting multiple expansion cards: EtherCAT, Profibus-DP, ProfiNet,ModbusTCP, CAN open, Digital l/O, PG card;

- External keyboard parameter copying function;

- All power supports an integrated braking unit;

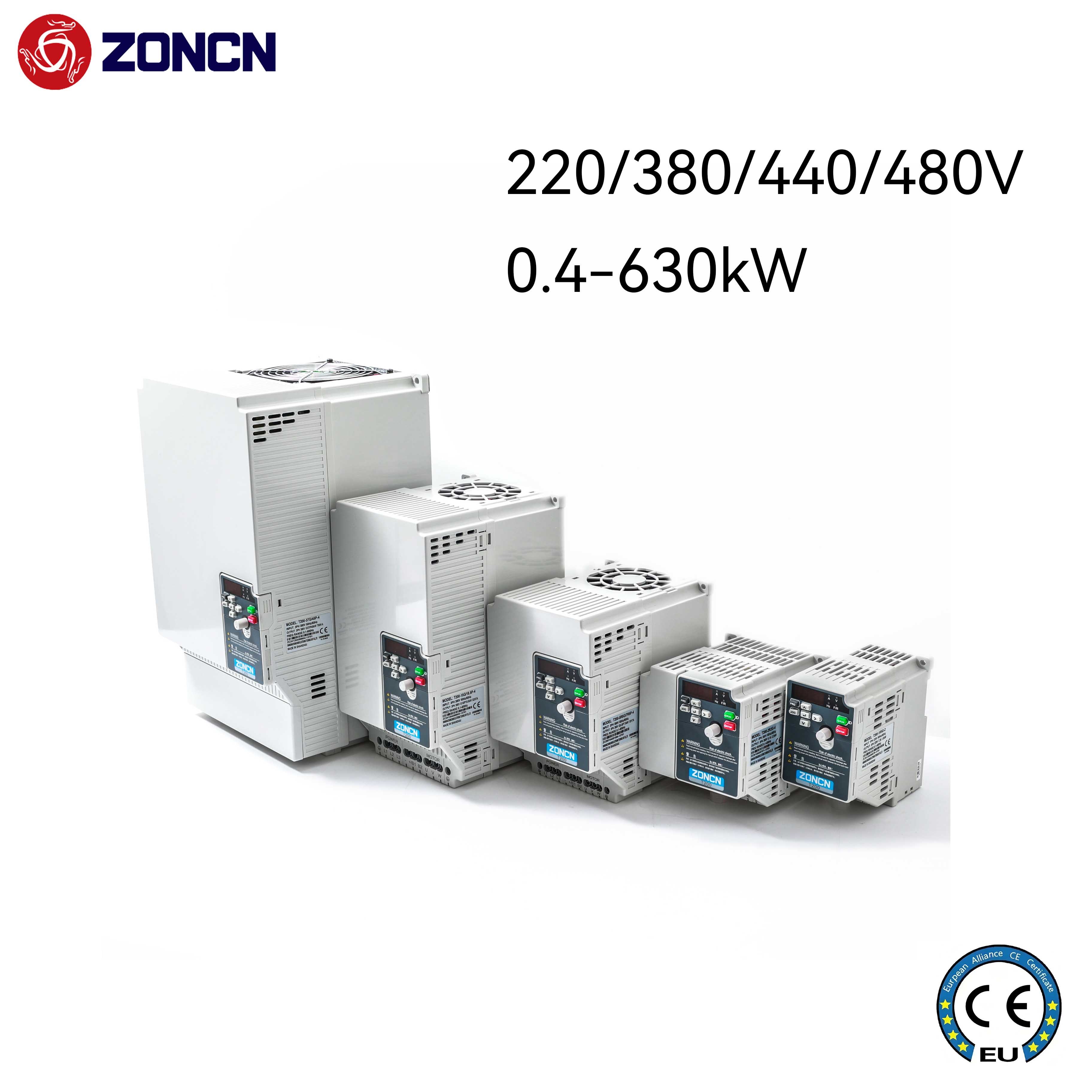

- Maximum 630KW

Product Specifications:

Item	T200 specification
Maximum frequency	0-600HZ
Carrier frequency	0.5kHz～16kHz The carrier frequency can be automatically adjusted based on the load features.
Input frequency resolution	Digital setting:0.01Hz Analog setting: maximum frequency×0.025%
Control mode	Voltage/Frequency control (V/F) Sensorless flux vector control (No PG) Closed loop vector control (Have PG)
Startup torque	G Type:0.5Hz/150%(No PG)； P Type:0.5Hz/100%
Speed range	1:100 No pg
Speed stability accuracy	±0.5%(No PG)
Torque control accuracy	±5%(Have PG)
Overload capacity	G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current
Torque boost	Fixed boost Customized boost 0.1%–30.0%
V/F curve	Multi-point V/F curve N-power V/F curve (1.2-power, 1.4-power, 1.6-power,1.8-power, square)
V/F separation	Two types: complete separation; half separation
Ramp mode	Straight-line ramp S-curve ramp Four groups of acceleration/deceleration time with the range of 0.0–6500.0s
DC braking	DC braking frequency: 0.00 Hz to maximum frequency Braking time: 0.0-100.0s；Braking action current value: 0.0%–100.0%
JOG control	Jog frequency range:0.00Hz~50.00Hz. JOG acceleration/deceleration time0.0s~6500.0s
Onboard Multiple preset speeds	It implements up to 16 speeds via the simple PLC function or by input terminal states
Onboard PID	It realizes process-controlled closed loop control system easily.
Auto voltage regulation (AVR)	It can keep constant output voltage automatically when the mains voltage changes.
Over-voltage/ Over-current stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current.
Rapid current limit	It helps to avoid frequent over-current faults of the inverter.
Torque limit and torque control	It can limit the torque automatically and prevent frequent over-current tripping during the running process.
High performance	Control of asynchronous motor is implemented through the high-performance current vector control technology.
Instantaneous stop doesn’t stop	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Timing control	Timing range 0.0Min～6500.0Min
Communication methods	RS-485,Supports CAN, profibus DP, Profinet, EtherCAT, Modbus TCP extensions
Running command channel	Given by the panel, control terminals, Serial communication port, can be switched by many ways
Frequency source	10 kinds of frequency source, given by digital analog voltage, analog current, Pulse, serial port. can be switched by many ways
Auxiliary frequency source	There are ten auxiliary frequency sources. It can implement fine tuning of auxiliary frequency and frequency synthesis
Input terminals	Power ≤ 55KW: 5 digital input terminals, one of which supports up to 100 kHz high-speed pulse input; 1 analog input terminal, supports 0-10V voltage input or 4–20 mA current input. Power ≥ 75KW: 6 digital input terminals, one of which supports high-speed pulse input up to 100kHz; 2 analog input terminals, 1 only supports 0-10V voltage input, 1 supports 0-10V voltage input or 4-20mA current input
Output terminal	Power ≤ 55KW: 1 digital output terminal 1 relay output terminal 1 analog output terminal :that supports 0–20 mA current output or 0–10 V voltage output Power ≥ 75KW: 1 digital output terminal, compatible with high-speed pulse output; 2 relay output terminals; 2 analog output terminals, supporting 0~20mA current output or 0~10V voltage output
LED display	It displays the parameters.
Key locking and function selection	It can lock the keys partially or completely and define the function range of some keys so as to prevent mis-function.
Protection mode	Motor short-circuit detection at power-on, input output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.

Introduction of ZONCN Technology Group:

VFD Variable Frequency Drive 380V 11kW 15HP 3 Phase AC Inverter With Built-in EMC Filter For Motor Speed Control 1

Wuhu ZONCN Automation Equipment Co., Ltd. is located in Wuhu, Anhui Province, China. It is the fourth factory of Shanghai Zhongchen Electronics Technology Co., Ltd. At present, it is responsible for the production of low-power frequency inverters, as well as the international trade, sales and expansion of ZONCN Technology Group.

The company has a professional overseas sales team and after-sales service support team. These teams are well-versed in international trade rules, customs declaration procedures and cross-border logistics operations, enabling them to provide barrier-free communication and efficient services for overseas clients.

All team members have more than 3 years of foreign trade experience in industrial automation products and are familiar with the technical standards and market demands of different countries.

The company’s products are exported to many countries and regions such as Russia, Spain, Italy, Brazil, Vietnam and so on. It has established a stable distributor network and customer base across the globe. Especially in the field of frequency inverters dedicated to air compressors, the company has seized an important share in the international market by virtue of high performance and reliability, and has become one of the preferred brands for overseas clients.

Trade show:

VFD Variable Frequency Drive 380V 11kW 15HP 3 Phase AC Inverter With Built-in EMC Filter For Motor Speed Control 2

Leveraging exhibitions as a pivotal bridge, Wuhu ZONCN Automation Equipment Co., Ltd. is advancing its global footprint and actively participating in top-tier domestic and international automation events annually. Domestically, the company focuses on key showcases such as the China International Industry Fair (CIIF) and the Shenzhen DMP Greater Bay Area Industrial Expo. Internationally, it maintains a strong presence at prestigious events including Hannover Messe (Germany) and the International Robot Exhibition (IREX, Japan), where it showcases core technologies and tailored solutions on these high-end platforms.
Seizing exhibition opportunities to integrate global resources, ZONCN not only demonstrates its industry-honed solid strength but also underscores its market aspiration to be rooted in China and radiate globally. This strategic approach enables the company to steadily expand its business footprint both domestically and internationally.

FAQ:

Q1:What is your MOQ?

A: 1 pc

Q2:What's your terms of payment?

A:T/T 100% before delivery.

Q3:What's your delivery time? A:After receiving the payment, we can almost guarantee that the goods will be dispatched within two weeks.

Q4:How could I get a trial inverter?

A:Before we received the first order,please afford the cost and express fee for the trial one.We will return its cost back to your first order.

Q5:How to contact you directly?

Email:pippo@whzoncn.com Whatsapp/Wechat/Mob:+86 17775287517
