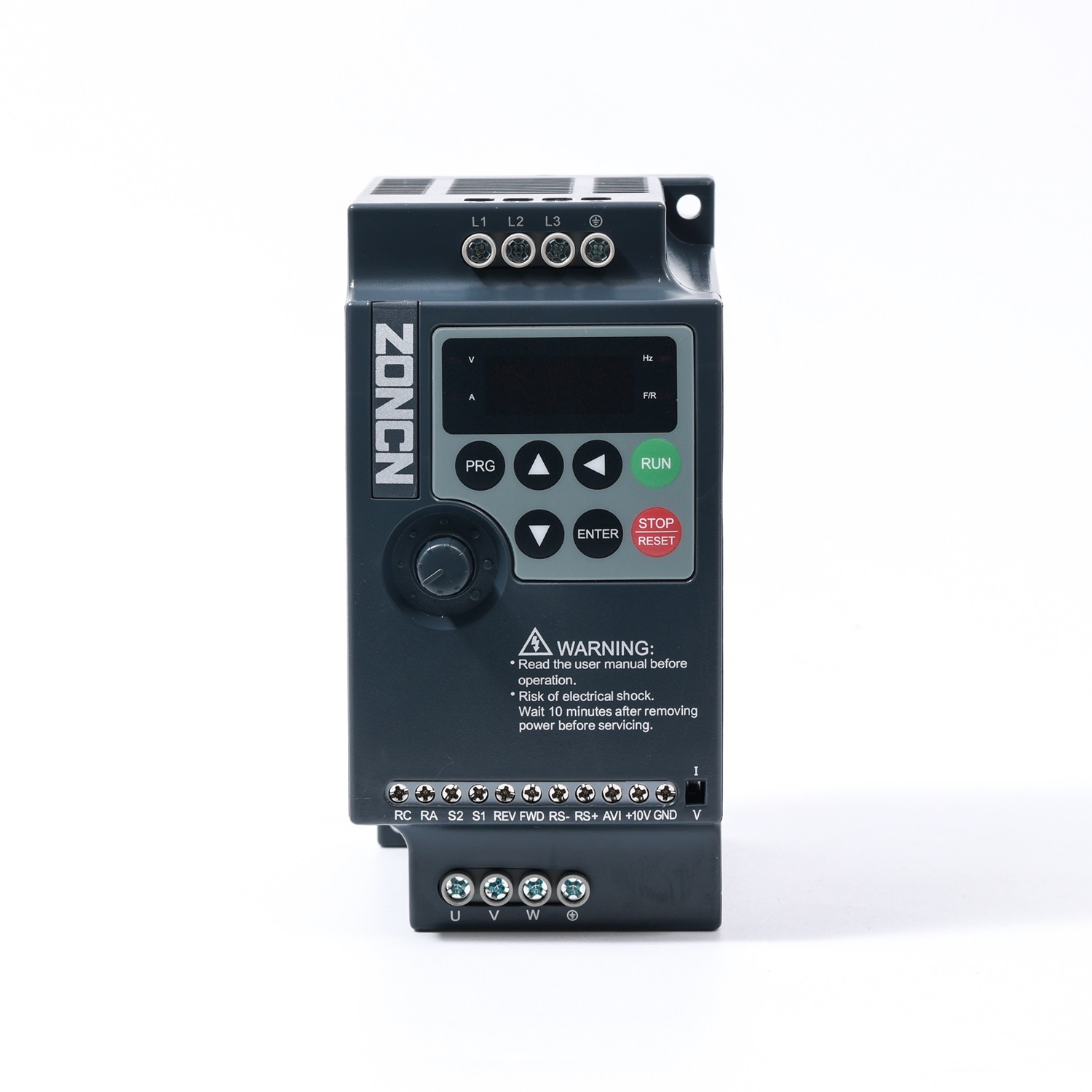

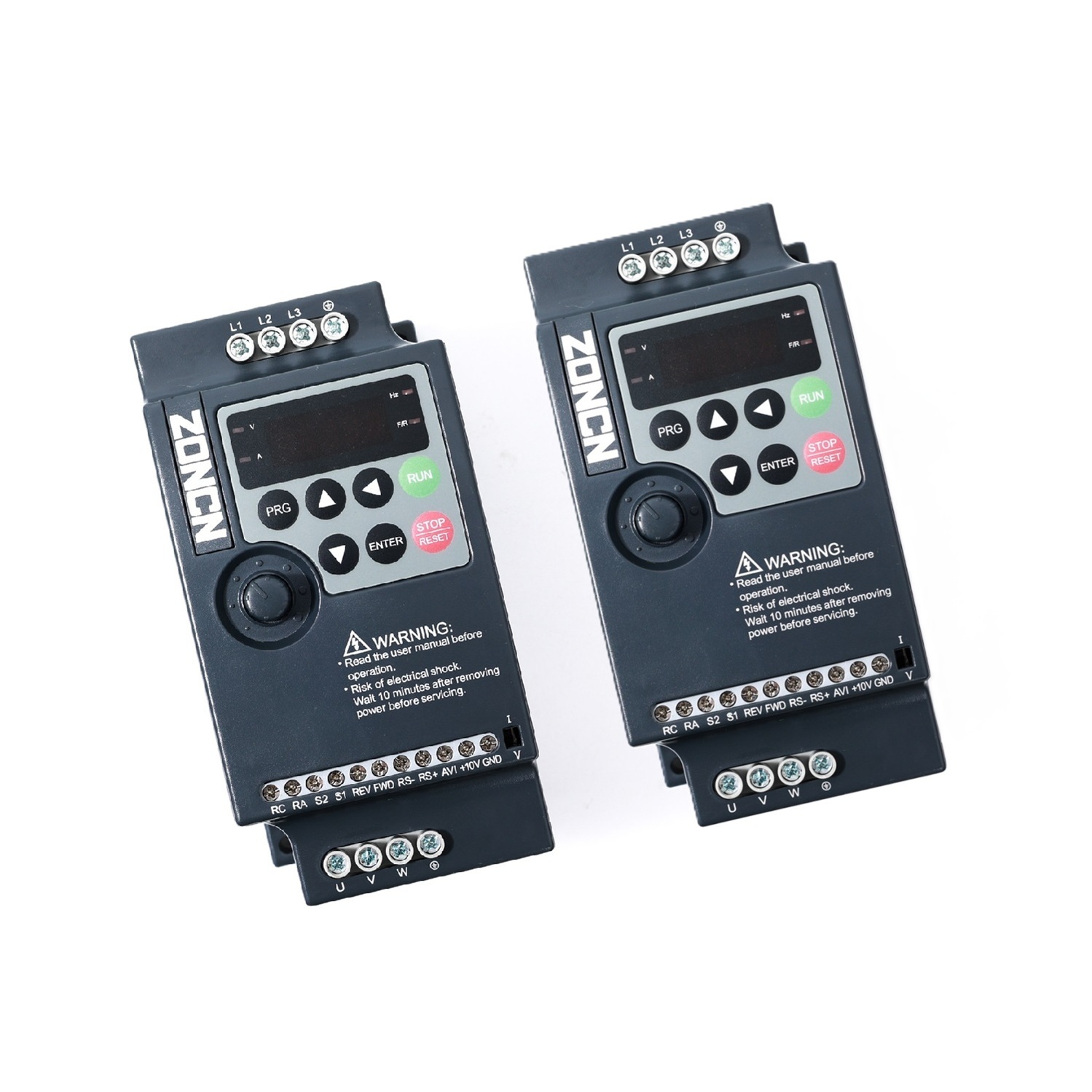

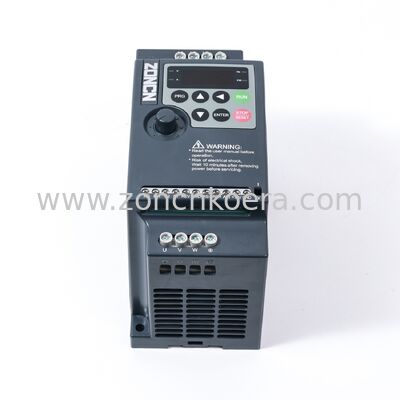

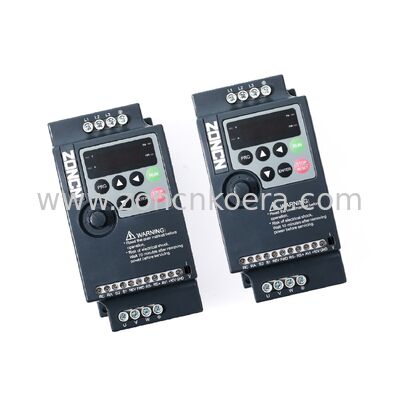

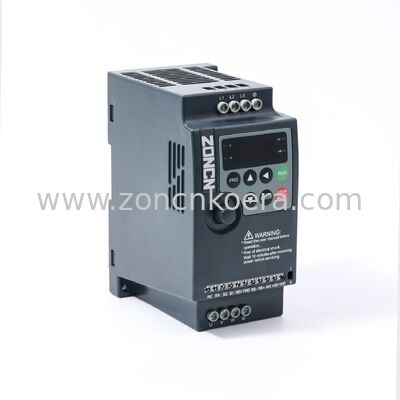

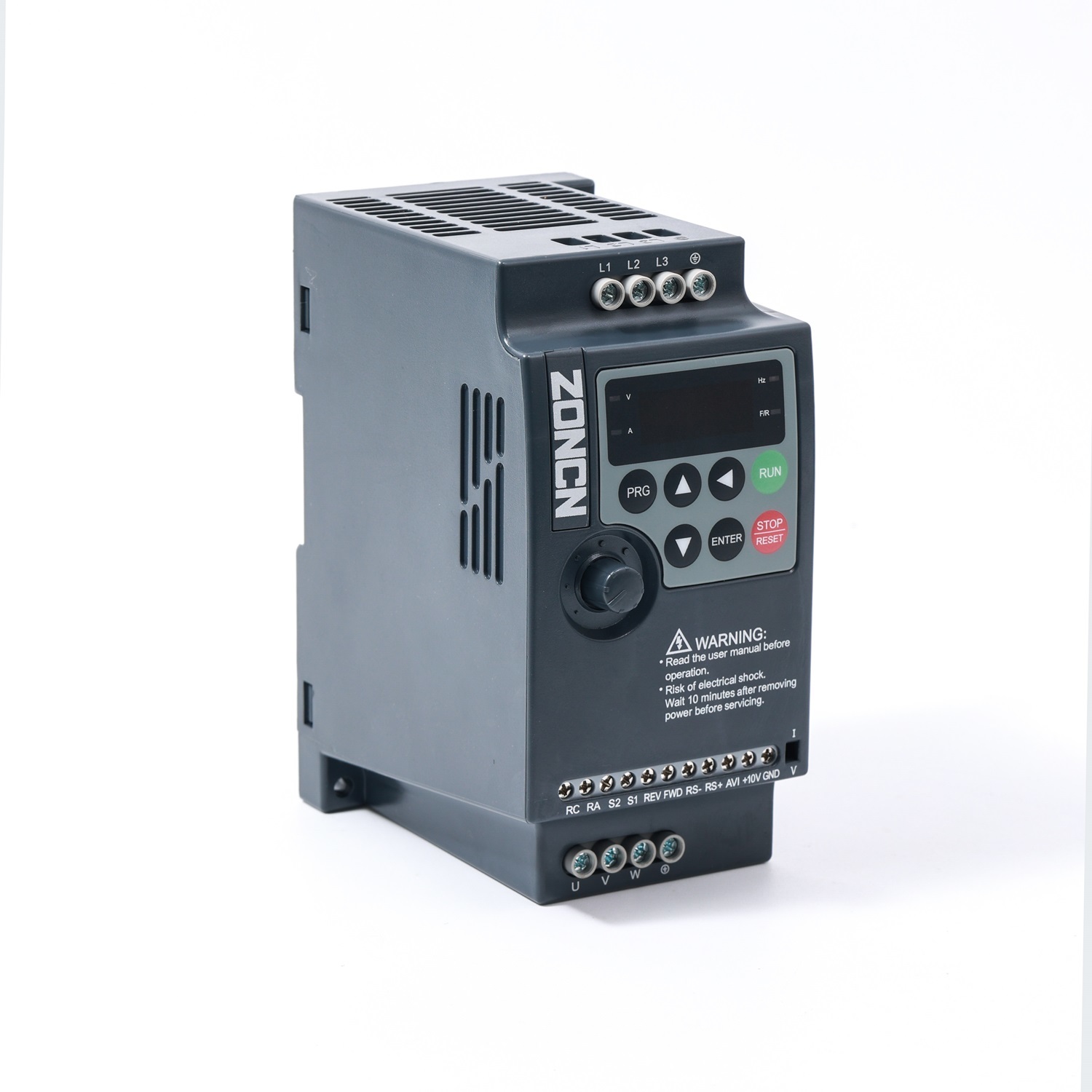

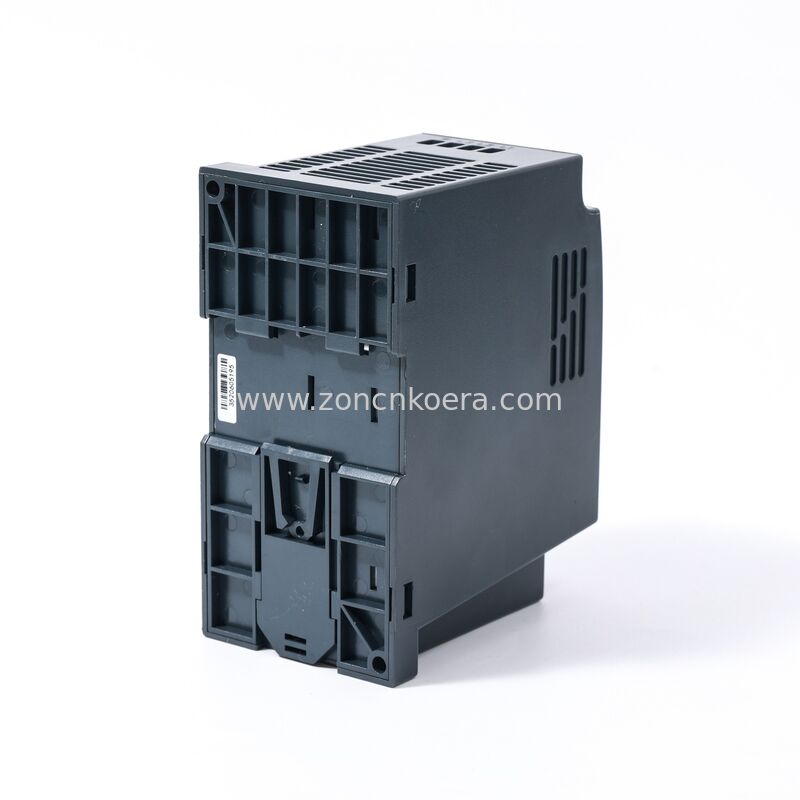

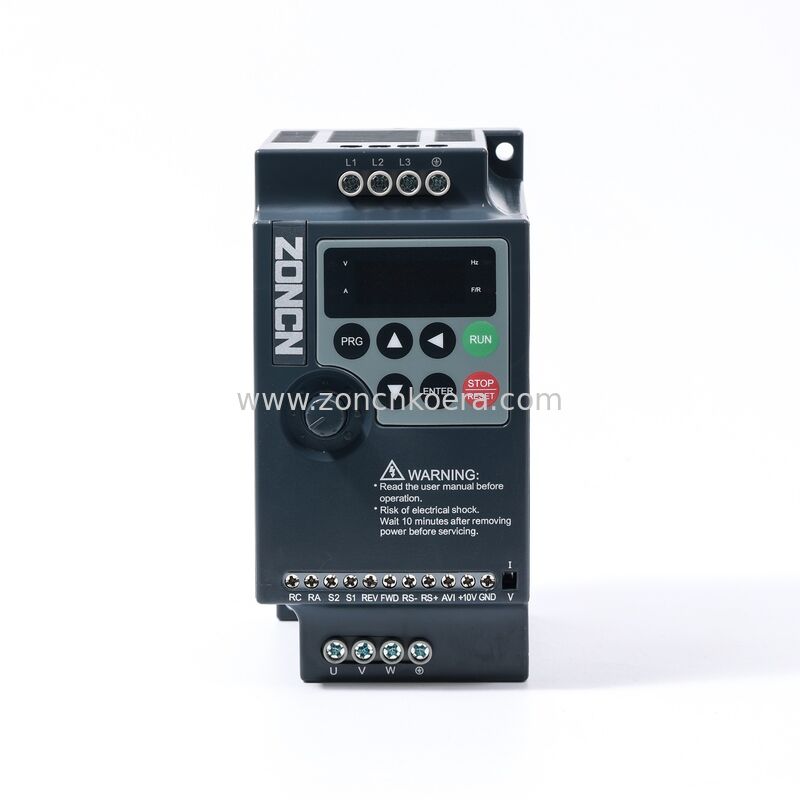

220v 380v 1hp 2hp Vector Control VFD 0.75kw 1.5kw Inverter With RS485 Communnication

220v 380v 1hp 2hp Vector Control VFD 0.75kw 1.5kw Inverter With RS485 Communnication

ZONCN NZ200 Series VFD Inverter Features and Advantages

The ZONCN NZ200 series represents a modern, versatile, and user-friendly Variable Frequency Drive designed for robust industrial performance. Here are its key features and advantages across ten points:

1. Advanced Motor Control Algorithms: This VFD inverter incorporates sophisticated sensorless vector control (SVC) and V/F control modes. This ensures the NZ200 VFD inverter delivers high starting torque, superior speed regulation, and precise control for a wide array of standard asynchronous motors.

2. Compact and Robust Design: Engineered for space-saving installation, this series of VFD inverter boasts a compact footprint. Despite its size, it is built with a durable enclosure and components that offer strong resistance to electrical noise and environmental dust, making each NZ200 VFD inverter reliable in harsh conditions.

3. High-Performance Energy Saving: A primary advantage of this VFD inverter is its intelligent energy optimization function. The NZ200 VFD inverter automatically adjusts motor voltage and output frequency to match the actual load demand, significantly reducing power consumption and operational costs.

4. Comprehensive Protection Features: The unit is a safeguarding VFD inverter, offering extensive built-in protections for both the drive and motor. These include overvoltage, undervoltage, overload, short circuit, and overheating protections, ensuring the longevity of the entire system protected by this VFD inverter.

5. User-Friendly Operation and Programming: Featuring a multilingual LED keypad with a responsive interface, this VFD inverter simplifies parameter setting. The keypad is removable for flexible mounting, allowing for easy configuration and monitoring of the VFD inverter from a convenient location.

6. Wide Voltage and Power Range: The NZ200 series VFD inverter is designed to accommodate fluctuating power supplies, operating effectively within a broad voltage range. Available across a comprehensive power spectrum, there is a suitable VFD inverter model for applications from fractional to several hundred horsepower.

7. Multiple Control and Input Options: This highly adaptable VFD inverter supports various control methods, including terminal commands, analog potentiometer, and pulse inputs. This flexibility makes the NZ200 VFD inverter compatible with complex control systems and automation protocols.

8. Effective Thermal Management: Integrated cooling fan technology ensures optimal heat dissipation from the power components. This proactive thermal design prevents overheating, a critical factor for the sustained reliability of any high-performance VFD inverter in continuous operation.

9. PID Functionality for Process Control: The built-in PID controller is a standout feature, transforming this VFD inverter into a precise process loop regulator. It allows the NZ200 VFD inverter to automatically adjust motor speed based on feedback signals like pressure or flow, maintaining setpoints without an external controller.

10. Rich Programmability and Application Macros: Pre-programmed application macros for common functions (e.g., pump, fan, simple PLC) enable rapid startup. This feature allows users to quickly configure the VFD inverter for specific uses, reducing commissioning time and making the NZ200 a truly application-optimized VFD inverter.

In summary, the ZONCN NZ200 series provides a compelling package of precision, efficiency, durability, and ease of use, establishing itself as a competent and cost-effective VFD inverter solution for diverse industrial applications.

NZ200 VFD Specification

About ZONCN

ZONCN is a specialized manufacturer dedicated to the research, development, and production of Variable Frequency Drive (VFD) inverters and industrial control solutions. Operating with a strong focus on the global market, the company has established itself as a provider of reliable and cost-effective motor control technology for a wide spectrum of applications, from pumps and fans to more complex machinery.

The core of ZONCN's product philosophy centers on delivering robust performance, user-friendly operation, and energy efficiency. Their product lines, such as the NZ200 series, are designed to meet the demanding needs of various industries, including HVAC, water treatment, textile, and material handling. By integrating advanced control algorithms and comprehensive protection features into their VFD inverters, ZONCN ensures optimized motor performance, reduced energy consumption, and enhanced system longevity.

Committed to quality and innovation, ZONCN supports its products with strong technical service and strives to offer a compelling balance of functionality and value. The company positions its VFD inverters as smart, adaptable solutions for modern industrial automation, aiming to help customers achieve greater operational efficiency and control reliability.

ZONCN NZ200 VFD Applications

FAQ

1. Q: What is a VFD, and what is its primary function?
A: A VFD (Variable Frequency Drive) is an electronic controller that adjusts the speed and torque of an AC induction motor by varying the frequency and voltage of the power supplied to it. Its primary function is to enable precise motor speed control, leading to significant energy savings, reduced mechanical stress, and improved process control in applications like pumps, fans, compressors, and conveyors.

2. Q: What are the main energy-saving benefits of using a VFD?
A: The key energy-saving benefit comes from the fact that, for centrifugal loads like pumps and fans, the power required is proportional to the cube of the speed. Reducing motor speed by 20% can save nearly 50% in energy consumption. A VFD eliminates energy waste from throttling valves or dampers and allows motors to run only at the needed speed.

3. Q: Do I need special motors to use with a VFD inverter?
A: Not necessarily. Standard AC induction motors are commonly used with VFDs. However, for long cable runs, very low speeds, or demanding applications, it's recommended to use motors with inverter-duty ratings. These have enhanced insulation to withstand voltage spikes from the VFD's switching and improved cooling for low-speed operation.

4. Q: What is the difference between Scalar (V/f) Control and Vector Control?
A: Scalar Control (V/f) maintains a constant voltage-to-frequency ratio. It's simple and suitable for applications with steady loads like basic fans or pumps. Vector Control provides superior performance by independently controlling the motor's magnetic flux and torque-producing current. It offers excellent speed regulation, high starting torque at low speeds, and is ideal for dynamic applications like cranes, extruders, or precision machinery.

5. Q: What are common issues or failures with VFDs, and how can they be prevented?
A: Common issues include:

• Overheating: Ensure adequate ventilation and clean air filters regularly.

• Electrical Noise/Interference: Use proper shielded motor cables, ground the VFD and motor correctly, and install input line reactors or filters.

• Motor Bearing Currents: Use insulated bearing or shaft grounding brushes for large motors.

• Tripping from Overload/Short Circuit: Correctly size the VFD and motor for the application and check for motor insulation issues.
  Proper installation, following EMC guidelines, and preventive maintenance are key to prevention.

6. Q: How do I choose the right size (horsepower/kW) for a VFD?
A: The VFD should typically be matched to the motor's nameplate current (in Amps) rather than just its horsepower. Always size the VFD based on the motor's full-load ampere (FLA) rating. It's good practice to select a VFD with a current rating at least 1.1 to 1.2 times the motor's FLA to provide a safety margin, especially for applications with heavy starting loads or potential overloads.
