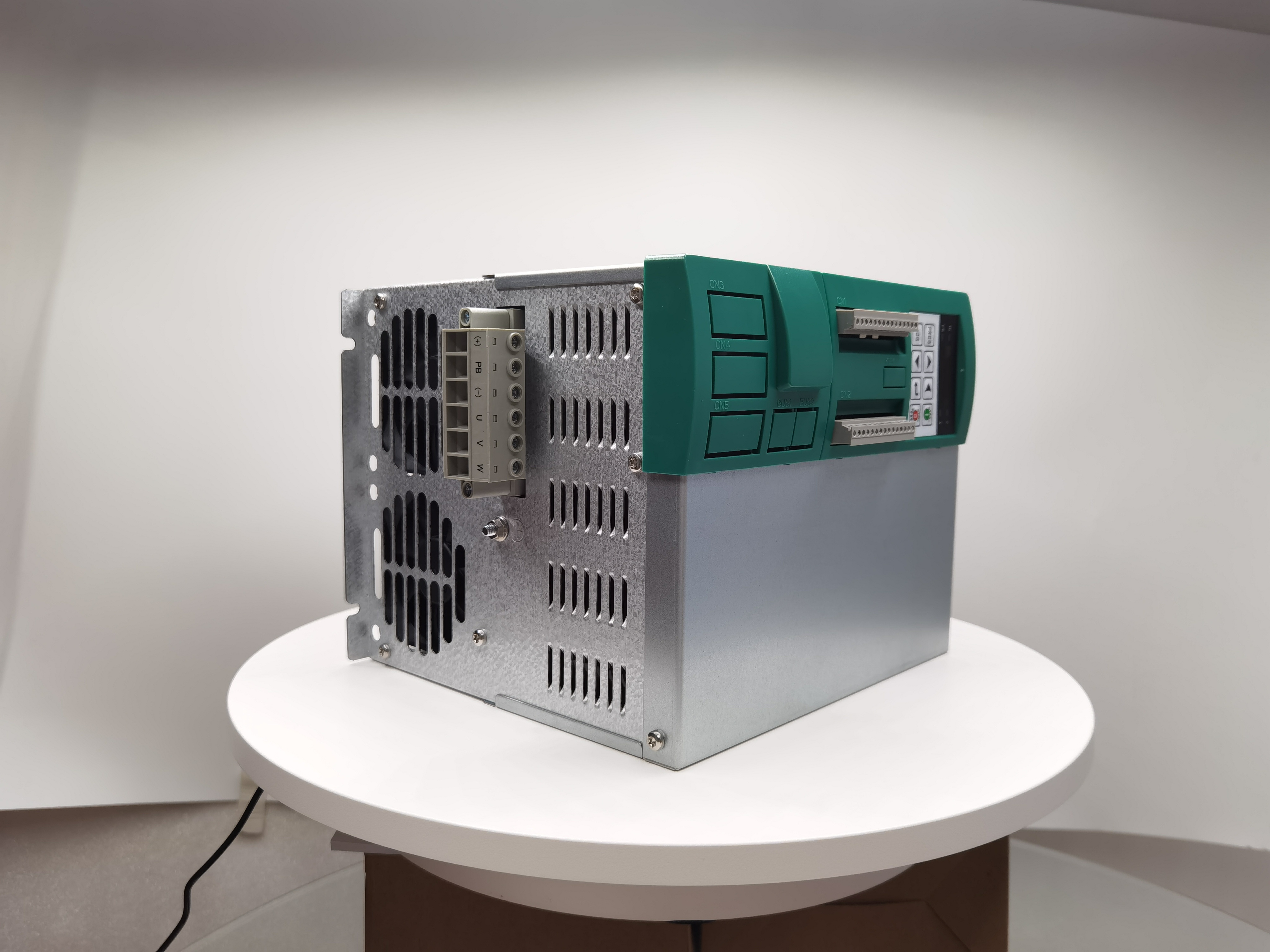

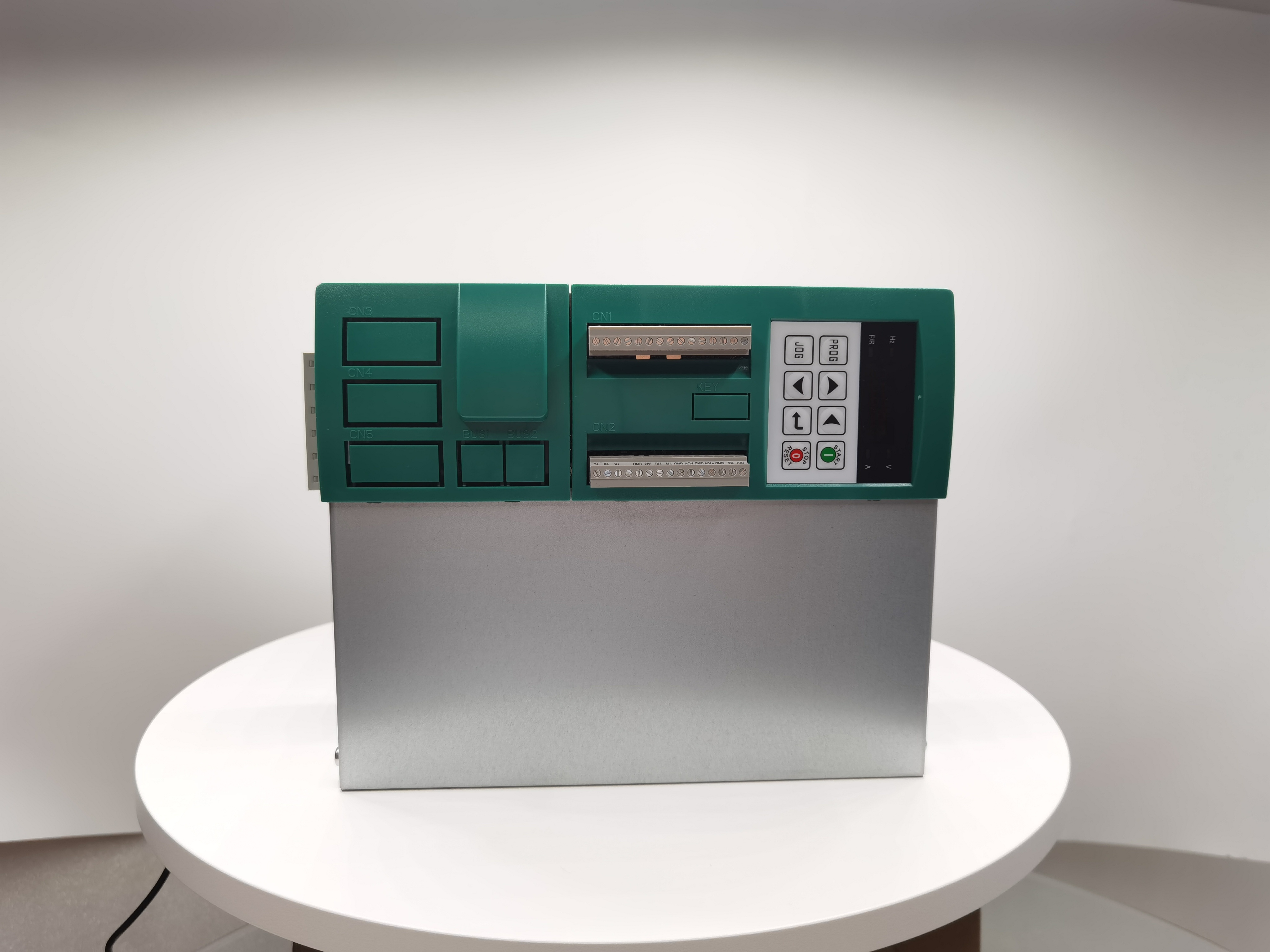

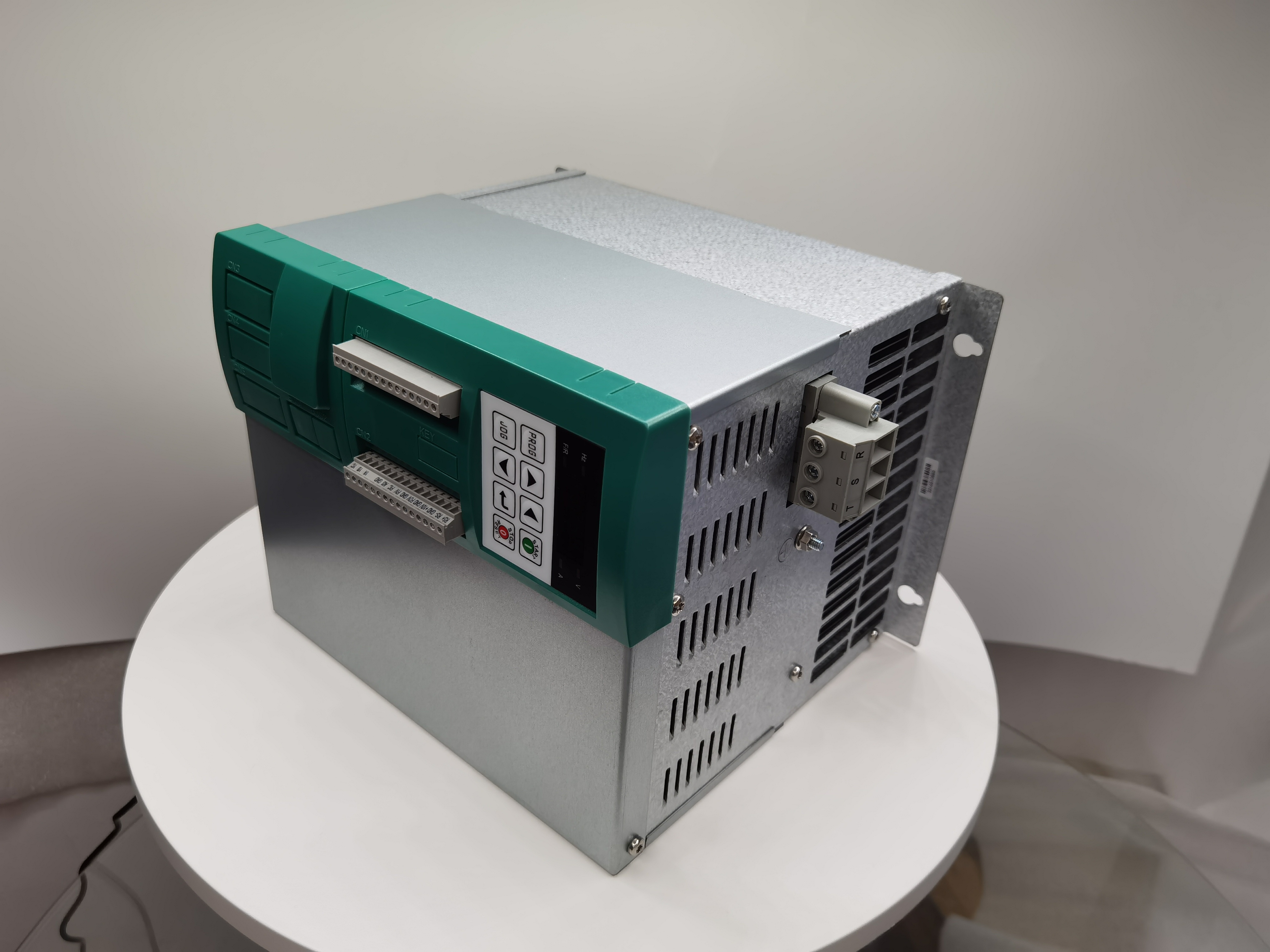

22KW VFD 3-phase Induction Motor Variable Speed Drive (VSD) for Spindle of CNC Machine Tool

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	ZONCN
Certification:	CE
Model Number:	T8400D-22G
Document:	ZONCN T8000D catalog.pdf

Minimum Order Quantity:	1 unit
Packaging Details:	Carton Packing
Delivery Time:	7-30 work days
Payment Terms:	T/T,Western Union，Paypal
Supply Ability:	100000 units per month

Get Best Price Contact Now

Model:	T8400D-22G	Spindle Orientation:	Support
Rated Input Current:	10A	Power:	22KW
Warranty:	18months	Mobus:	Modbus RTU Via RS485

22KW VFD for 3-phase Induction Motor CNC Milling Machine Tool

22KW VFD 3-phase Induction Motor Variable Speed Drive (VSD) for Spindle of CNC Machine Tool 0

T8000D VFD Inverter Introduction:

22KW VFD 3-phase Induction Motor Variable Speed Drive (VSD) for Spindle of CNC Machine Tool 1

22KW VFD 3-phase Induction Motor Variable Speed Drive (VSD) for Spindle of CNC Machine Tool 2

1:It has new functions like positioning control, pulse synchronous control and so on. It supports close loop control towards the spindle motor with encoder. This drive has high respoonding ability towards speed as well as smooth speed.

2:Multi encoder support with T8000D series drive: it can support differential encoder like ABZ encoder; resolver encoder and so on.

3:Overvoltage and overcurrent stall control: the system limits the output current and voltage automatically during operation to prevent frequent or excessive trips.

Other unique features:

1: Onboard multiple preset position: the system implements up to 16 position by using simple PLC function or by using digital input signals.

2: Torque limit and control: the system limits the torque automatically to prevent frequent overcurrent tripping during operation. Torque control is applied in vector control.

3: Power dip ride-through, load feedback energy compensates for any voltage reduction, allowing the drive to continue to operate for a short time during power drops.

4: The purpose-designed asynchronous servo axis optimized for asynchronous geared motors. Practical spectrum of functionalities for modern positioning and control drives.

T8000D VFD specification:

ZONCN company profile:

As a professional and innovative enterprise dedicated to electrical drive technology, ZONCN has established a strong market presence with its core product lines: high-performance inverters and precision servo systems. Our product portfolio is designed to meet diverse industrial needs, combining advanced technology, reliable performance, and flexible customization to support the digital transformation of global industries. ZONCN’s commitment to quality has enabled us to build a robust global distribution and service network. Currently, we have over 80 authorized dealers and service centers in China and abroad, strategically located in key industrial hubs (such as Guangzhou and Shanghai in China, Berlin in Germany, Dubai in the UAE, and Houston in the US). These local partners provide customers with timely services, including product consultation, installation guidance, maintenance, and spare parts supply—ensuring minimal downtime for industrial operations.​ Our products are exported to more than 50 countries and regions across Asia (e.g., Japan, India), Europe (e.g., France, Italy), Africa (e.g., South Africa, Nigeria), and the Americas (e.g., the US, Brazil). In each market, we tailor our solutions to local industrial standards and customer needs; for instance, in European markets, our products comply with CE and RoHS certifications to meet strict environmental and safety requirements.

Applications:

Numerically-controlled machine tool:The high-precision machining of CNC machine tools (such as tool changing, tapping, and indexing) relies on the precise positioning of the spindle. Meanwhile, precise positioning requires "real-time position feedback + precise speed control" — both of these capabilities can only be provided by frequency converters with positioning function and cannot be replaced by ordinary frequency converters. Therefore, the ZONCN T8000D series is highly suitable.
Milling machine:For a milling machine to perform high-precision machining such as thread milling and helical groove milling, the spindle and feed axis must have "proportionally linked movement"; this linkage requires pulse signals to transmit precise position/speed information; only frequency converters with pulse synchronization control can realize the interaction between the spindle and pulse signals, thereby achieving such linkage — without it, the core synchronous machining functions of the milling machine cannot be realized.
Packing machine:Without high-precision VFD such as the ZONCN T8000D series, packaging machines cannot stably produce products with uniform dimensions, securely sealed, and qualified appearance, nor can they meet the stringent standards of industries such as food and daily chemicals.
Spindle motor:The processing tasks of the spindle motor determine that it requires "precise positioning", and "precise positioning" needs "position feedback + closed-loop control" — these two core capabilities cannot be provided by ordinary frequency converters. Only frequency converters with spindle positioning function can connect "positioning commands from the CNC system" and "the execution of the spindle motor", upgrading the spindle motor from "blind start-stop" to "precisely controllable". The ZONCN T8000D series is highly suitable for this purpose.

FAQ:Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within ten days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
