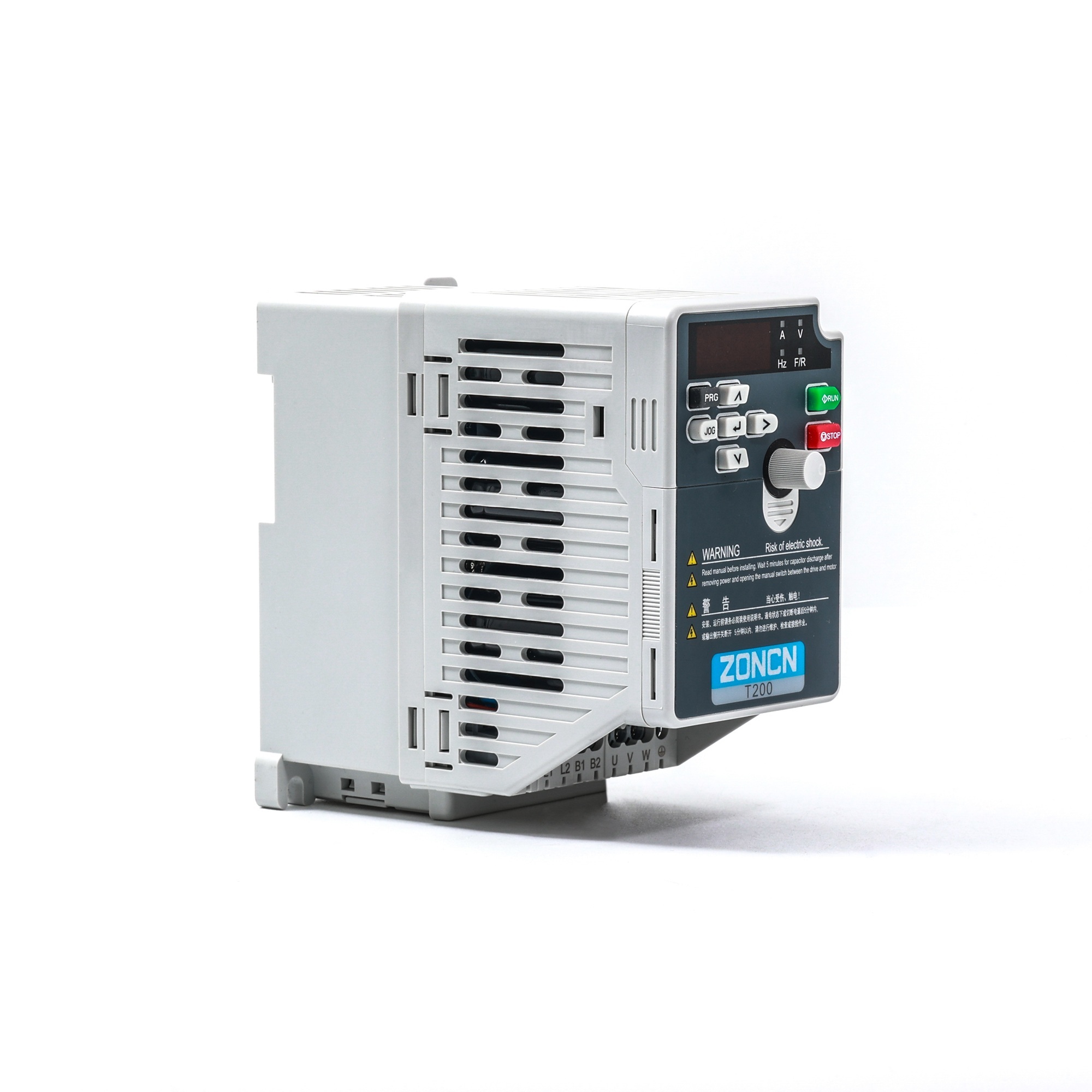

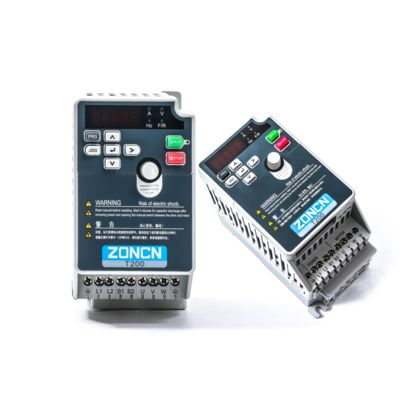

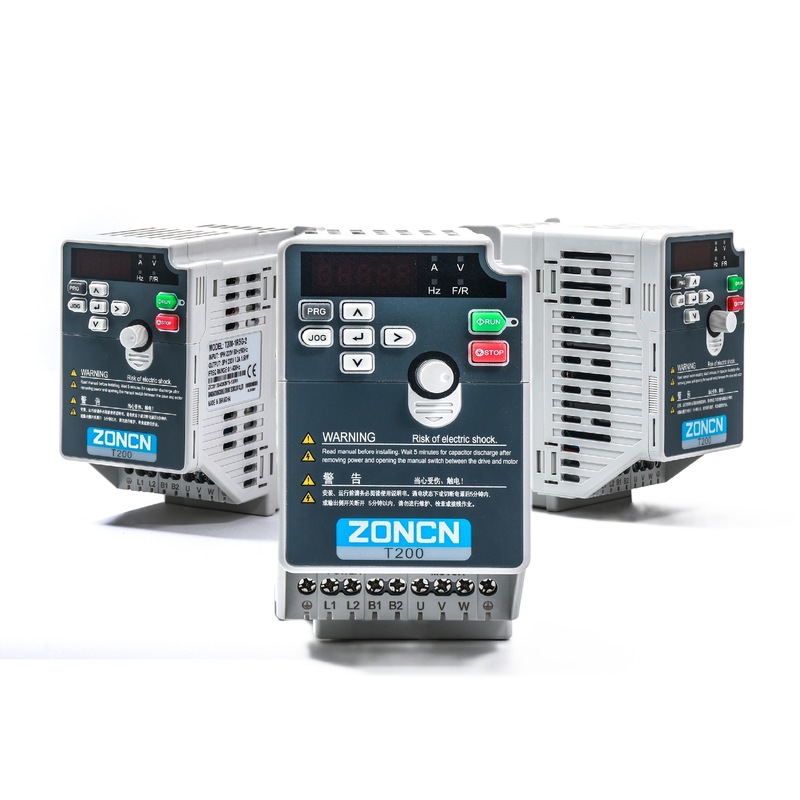

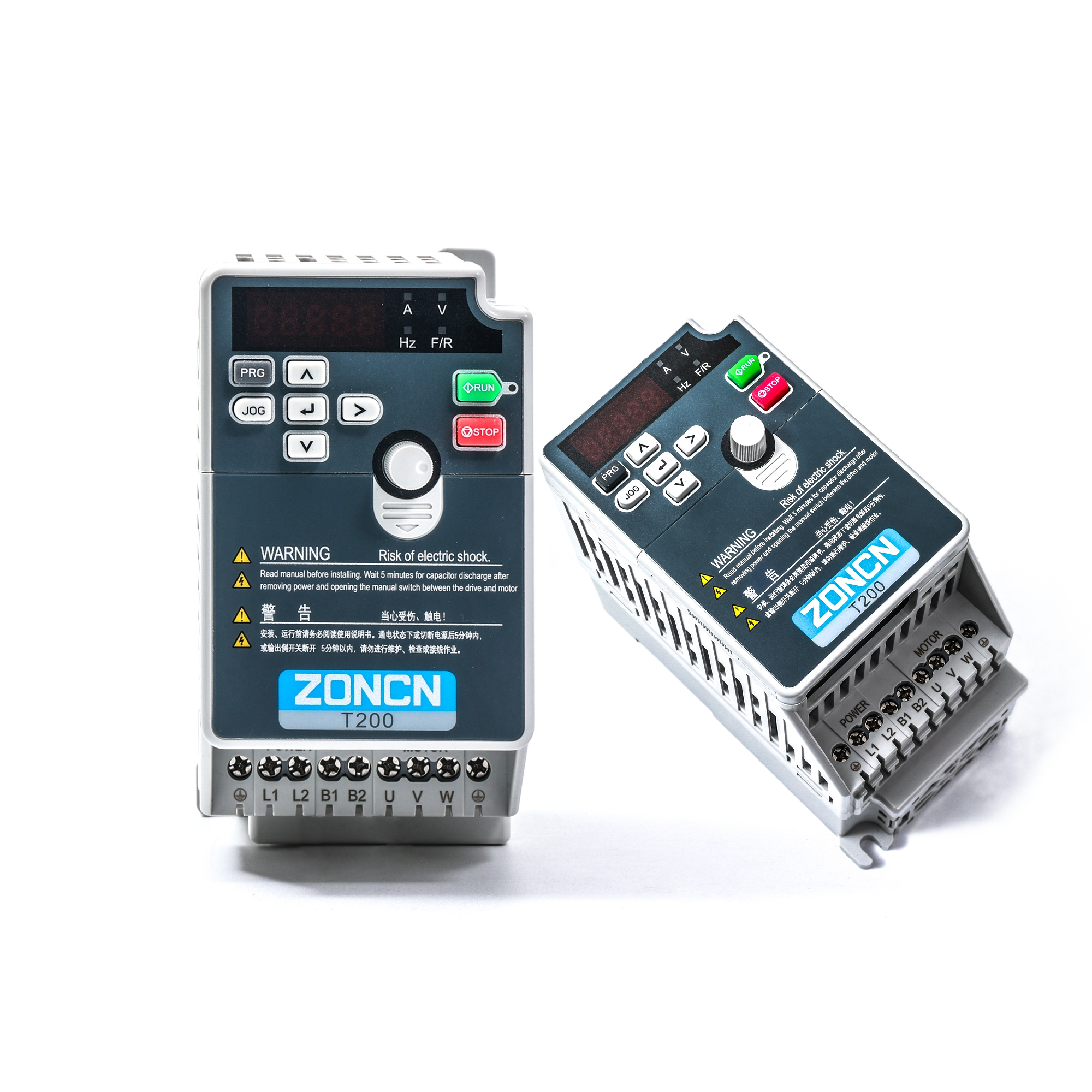

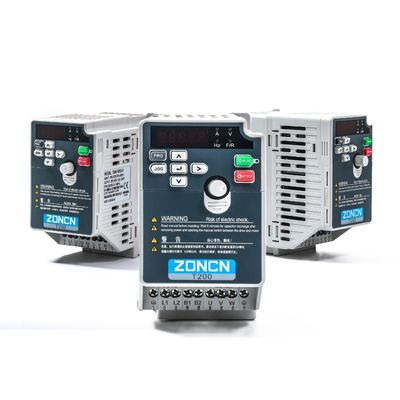

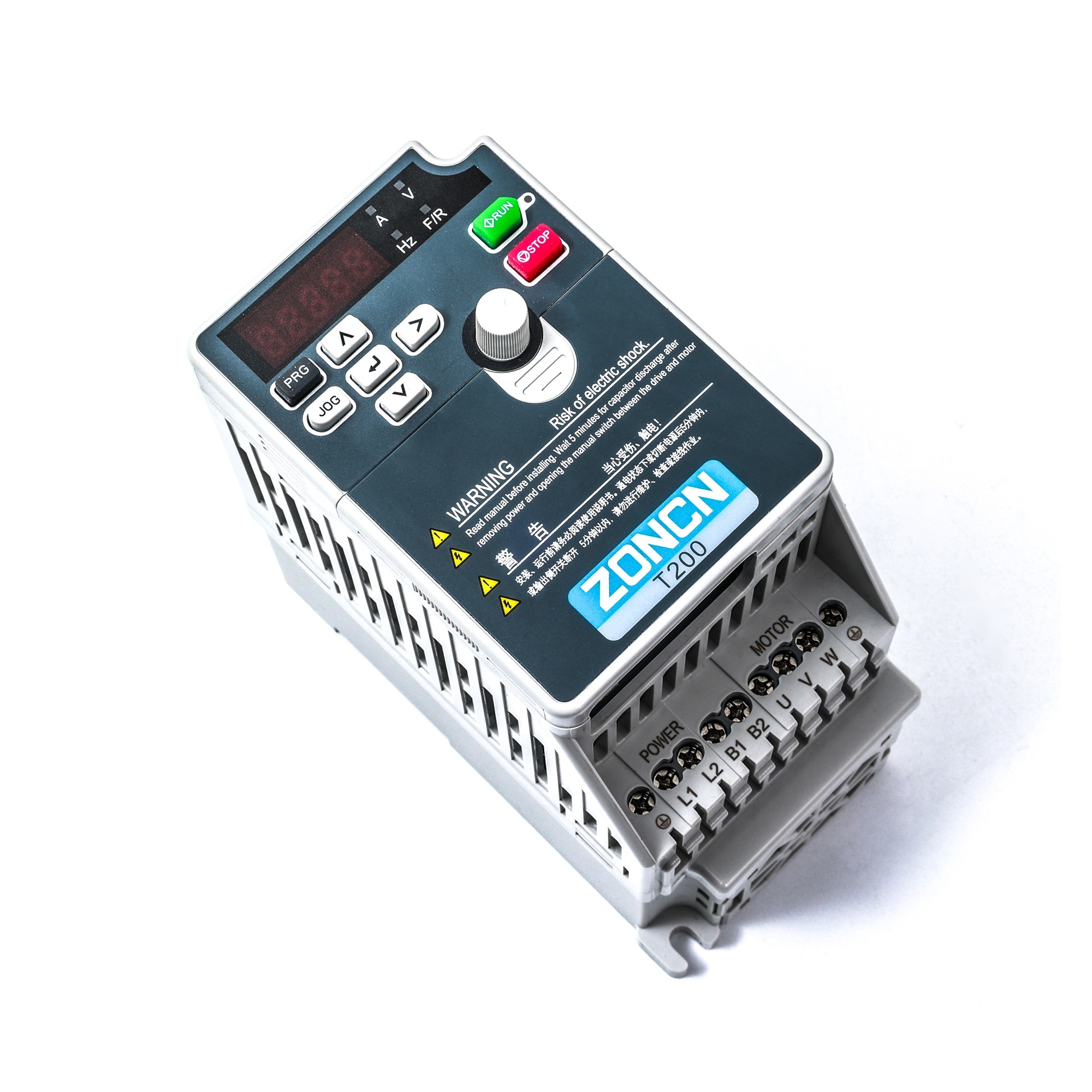

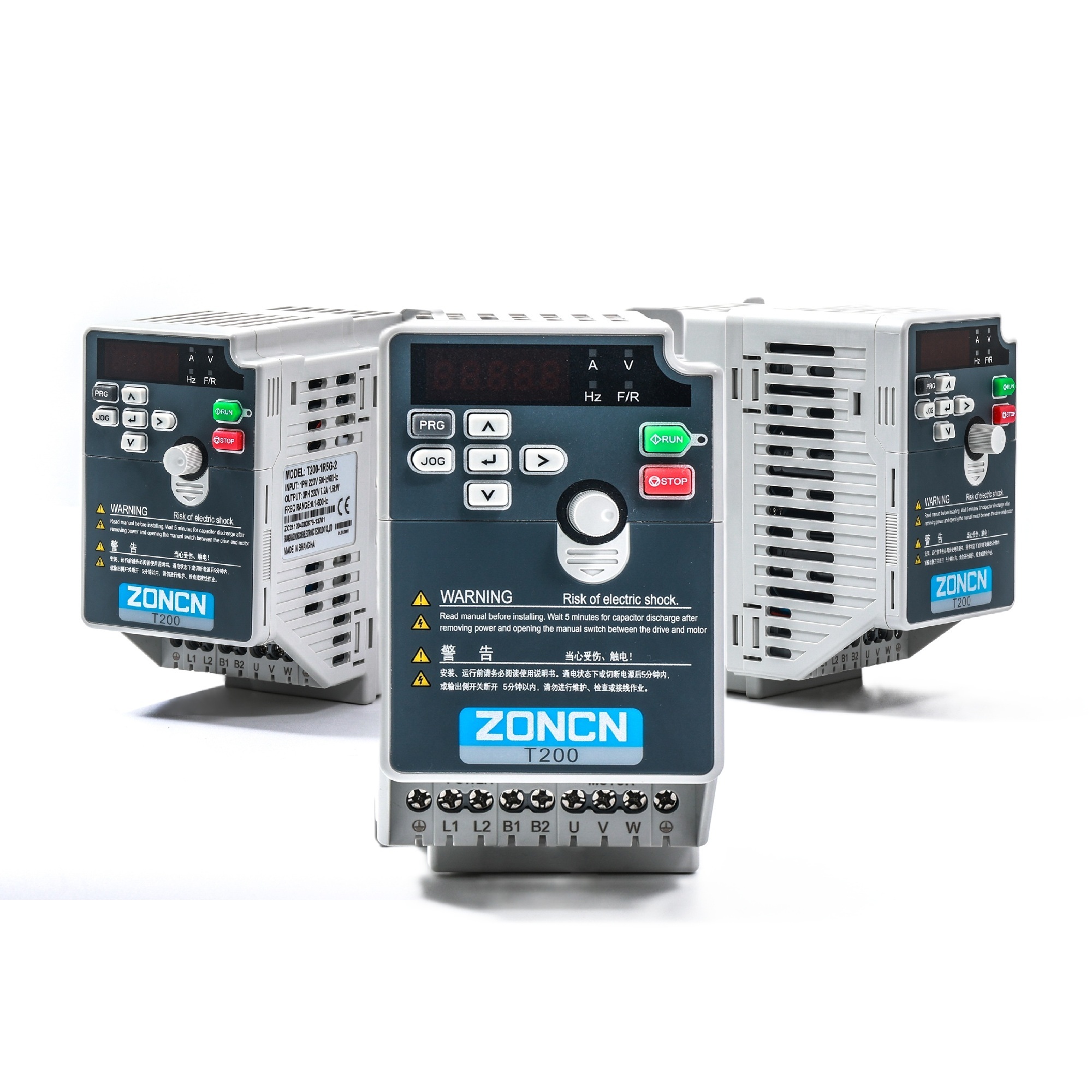

0.4kw-160kw Variable Frequency Drive with 18 Months Warranty and Multi-mode Control VFD Inverter

0.4kw-160kw Variable Frequency Drive with 18 Months Warranty and Multi-mode Control VFD Inverter
0.4kw-160kw Variable Frequency Drive with 18 Months Warranty and Multi-mode Control VFD Inverter 0.4kw-160kw Variable Frequency Drive with 18 Months Warranty and Multi-mode Control VFD Inverter 0.4kw-160kw Variable Frequency Drive with 18 Months Warranty and Multi-mode Control VFD Inverter 0.4kw-160kw Variable Frequency Drive with 18 Months Warranty and Multi-mode Control VFD Inverter 0.4kw-160kw Variable Frequency Drive with 18 Months Warranty and Multi-mode Control VFD Inverter 0.4kw-160kw Variable Frequency Drive with 18 Months Warranty and Multi-mode Control VFD Inverter 0.4kw-160kw Variable Frequency Drive with 18 Months Warranty and Multi-mode Control VFD Inverter 0.4kw-160kw Variable Frequency Drive with 18 Months Warranty and Multi-mode Control VFD Inverter 0.4kw-160kw Variable Frequency Drive with 18 Months Warranty and Multi-mode Control VFD Inverter 0.4kw-160kw Variable Frequency Drive with 18 Months Warranty and Multi-mode Control VFD Inverter 0.4kw-160kw Variable Frequency Drive with 18 Months Warranty and Multi-mode Control VFD Inverter 0.4kw-160kw Variable Frequency Drive with 18 Months Warranty and Multi-mode Control VFD Inverter
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE
Model Number: T200
Minimum Order Quantity: 1
Packaging Details: Carton Packaging
Delivery Time: within 15 days normally
Payment Terms: T/T
Supply Ability: 100000 per month
Get Best Price Contact Now
Type: AC Frequency Inverter Product Name: VFD Inverter
Brand: ZONCN Series: T200
Power Range: 0.4kw-160kw Voltage: 220v/380v/440v/480v
Communication: RS485/EtherCAT/Profibus/Profinet/Canopen STO: Have
PID Control: Built-in Certificate: CE
Warranty: 18 Months
Highlight:

0.4kw-160kw Variable Frequency Drive

,

18 Months Warranty VFD Inverter

,

Multi-mode Control Variable Speed Drive

220v 380v 440v 480v Variable Frequency Drive VFD Inverter Variable Speed Drive







ZONCN T200 Inverter Introduction



  1. Multi-mode control: The ZONCN T200 series VFD inverter supports V/F control, sensorless flux vector control (SFVC), and optional closed-loop vector control, integrating mature VFD inverter regulation technologies for diverse motor needs.
  2. Wide frequency range: This VFD inverter achieves 0.0-600.0Hz in vector control and 0.0-3200Hz in V/F control, with 0.01Hz digital setting resolution—key precision of the VFD inverter.
  3. Strong start torque: The VFD inverter delivers robust torque: G-type models reach 0.5Hz/150% (SFVC), P-type 0.5Hz/100%, a core advantage of this VFD inverter.
  4. Stable speed performance: The VFD inverter maintains a 1:100 speed range (SFVC) and ±0.5% speed stability, ensuring reliable operation of the VFD inverter.
  5. Intelligent carrier adjustment: The VFD inverter auto-adjusts carrier frequency (0.5-16kHz) based on load, optimizing efficiency and reducing noise of the VFD inverter.
  6. Robust overload protection: This VFD inverter handles overloads: G-type 150%/60s and 180%/3s; P-type 120%/60s and 150%/3s, safeguarding the VFD inverter and equipment.
  7. Flexible acceleration/deceleration: The VFD inverter offers 4 groups of 0.00-6500.0s ramps (straight/S-curve), adapting to varied start-stop demands of the VFD inverter.
  8. Versatile DC braking: The VFD inverter supports 0.00Hz-max frequency braking, 0.0-100.0s time, and 0.0%-100.0% current, enhancing the VFD inverter’s safety.
  9. Rich communication options: This VFD inverter has RS485 and optional EtherCAT/PROFINET/CANopen, enabling seamless integration of the VFD inverter into industrial systems.
  10. Practical built-in functions: The VFD inverter includes 16 preset speeds, simple PLC, PID control, and AVR, expanding application scenarios of the VFD inverter.





Technology Features
ITEM T200
Basic function Maximum frequency 0～600.00Hz
Carrier frequency 0.5kHz～16kHz
The carrier frequency can be automatically adjusted based on the load features.
Input frequency resolution Digital setting:0.01Hz
Analog setting: maximum frequency×0.025%
Control mode Voltage/Frequency control (V/F)
Sensorless flux vector control (No PG)
Closed loop vector control (Have PG)
Startup torque G Type:0.5Hz/150%(No PG)；
P Type:0.5Hz/100%
Speed range 1:100(No PG)
Speed stability accuracy ±0.5%(No PG)
Torque control accuracy ±5%(Have PG)
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current.
P type: 60s for 120% of the rated current, 3s for 150% of the rated current
Torque boost Fixed boost
Customized boost 0.1%–30.0%
V/F curve Straight-line V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power, 1.4-power, 1.6-power,1.8-power, square)
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp
S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.0–6500.0s
DC braking DC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0-100.0s
Braking action current value: 0.0%–100.0%
JOG control Jog frequency range:0.00Hz~50.00Hz. JOG acceleration/deceleration time0.0s~6500.0s.
Onboard Multiple preset speeds It implements up to 16 speeds via the simple PLC function or by input terminal states
Onboard PID It realizes process-controlled closed loop control system easily.
Auto voltage It can keep constant output voltage automatically when the mains voltage changes.
regulation (AVR)
Over-voltage/ The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current.
Over-current stall
control
Rapid current limit It helps to avoid frequent over-current faults of the inverter.
Torque limit and torque control It can limit the torque automatically and prevent frequent over-current tripping during the running process.
Individualized function High performance Control of asynchronous motor is implemented through the high-performance current vector control technology.
Instantaneous stop doesn’t stop The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Timing control Timing range 0.0Min～6500.0Min
Communication methods RS-485
Operation Running command channel Given by the panel, control terminals,
Serial communication port, can be switched by many ways
Frequency source 10 kinds of frequency source, given by digital analog voltage, analog current, Pulse, serial port. can be switched by many ways
Auxiliary frequency source There are ten auxiliary frequency sources. It can implement fine tuning of auxiliary frequency and frequency synthesis
Input terminals 5 digital input terminals, one of which supports up to 100 kHz high-speed pulse input;
1 analog input terminal, supports 0-10V voltage input or 4–20 mA current input.
Output terminal 1 digital output terminal
1 relay output terminal
1 analog output terminal :that supports 0–20 mA current output or 0–10 V voltage output
Display and operation panel LED display It displays the parameters.
Key locking and It can lock the keys partially or completely and define the
function selection function range of some keys so as to prevent mis-function.
Protection mode Motor short-circuit detection at power-on, input output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.
Environment Installation location Indoor, avoid direct sunlight, dust, corrosive gas, combustible gas, oil fog, steam, drip or salt.
Altitude Lower than 1000 m(Lower the grades when using higher then 1000m)
Ambient temperature -10°C ～40°C (Lower the grades if the ambient temperature is between 40°C and 50°C)
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9m/s2(0.6g)
Storage temperature －20℃~＋60℃

Model Specification

Selection Guide
Model Input voltage Rated output power (KW) Rated input current(A) Rated output current (A) Motor power (KW)
T200-0R4G-2 1PH AC 220V+/-15% 0.4 5.4 2.1 0.4
T200-0R75G-2 0.75 7.2 3.8 0.75
T200-1R5G-2 1.5 10 7.2 1.5
T200-2R2G-2 2.2 16 9 2.2
T200-3R7G-2 3.7 23 13 3.7
T200-0R4G-4 3PH AC 380V+/-15% 0.4 3.4 1.5 0.4
T200-0R75G-4 0.75 3.8 2.1 0.75
T200-1R5G-4 1.5 5 3.8 1.5
T200-2R2G-4 2.2 5.8 5.1 2.2
T200-3R0G-4 3 8.5 7.2 3
T200-3R7G/5R5P-4 3.7/5.5 10/15 9/13 3.7/5.5
T200-5R5G/7R5P-4 5.5/7.5 15/20 13/17 5.5/7.5
T200-7R5G/11P-4 7.5/11 20.0/26.0 17/25 7.5/11
T200-11G/15P-4 11/15 26/35 25/32 11/15
T200-15G/18.5P-4 15/18.5 35/38 32/37 15/18.5
T200-18.5G/22P-4 18.5/22 38/46 37/45 18.5/22
T200-22G/30P-4 22/30 46/62 45/60 22/30
T200-30G/37P-4 30/37 62/76 60/75 30/37
T200-37G/45P-4 37/45 76/92 75/90 37/45
T200-45G/55P-4 45/55 92/113 90/110 45/55
T200-55G/75P-4 55/75 113/157 110/152 55/75

About ZONCN

0.4kw-160kw Variable Frequency Drive with 18 Months Warranty and Multi-mode Control VFD Inverter 0

Founded in 2006 and headquartered in Shanghai, ZONCN is a listed high-tech enterprise. Covering nearly 100 acres with Wuhu-based production and export bases, it integrates R&D, production, sales, and service, boasting an annual capacity of 1million units and 1000+ employees. Guided by the mission of "energy conservation via advanced technology," its products serve global industries and earn CE, ISO9001 certifications.
ZONCN’s VFD (variable frequency drive) portfolio is robust, with 6 core series (NZ100, NZ200, Z2000, Z8000, T9000, H5000) spanning 0.4kW–2000kW and 110V–1140V. Supporting V/F and vector control, they excel in energy efficiency—ideal for fans, pumps, and air compressors—and offer overload protection (150%/60s, 180%/3s). Widely used in textiles, metallurgy, and water treatment, models like the NZ200 enable precise speed tuning and soft start/stop to extend equipment life.
Designed for high-precision scenarios like CNC machines and packaging, they deliver stable torque and speed control. With global presence in 50+ countries and 24/7 technical support, ZONCN stands as a leading domestic provider of industrial automation solutions.
