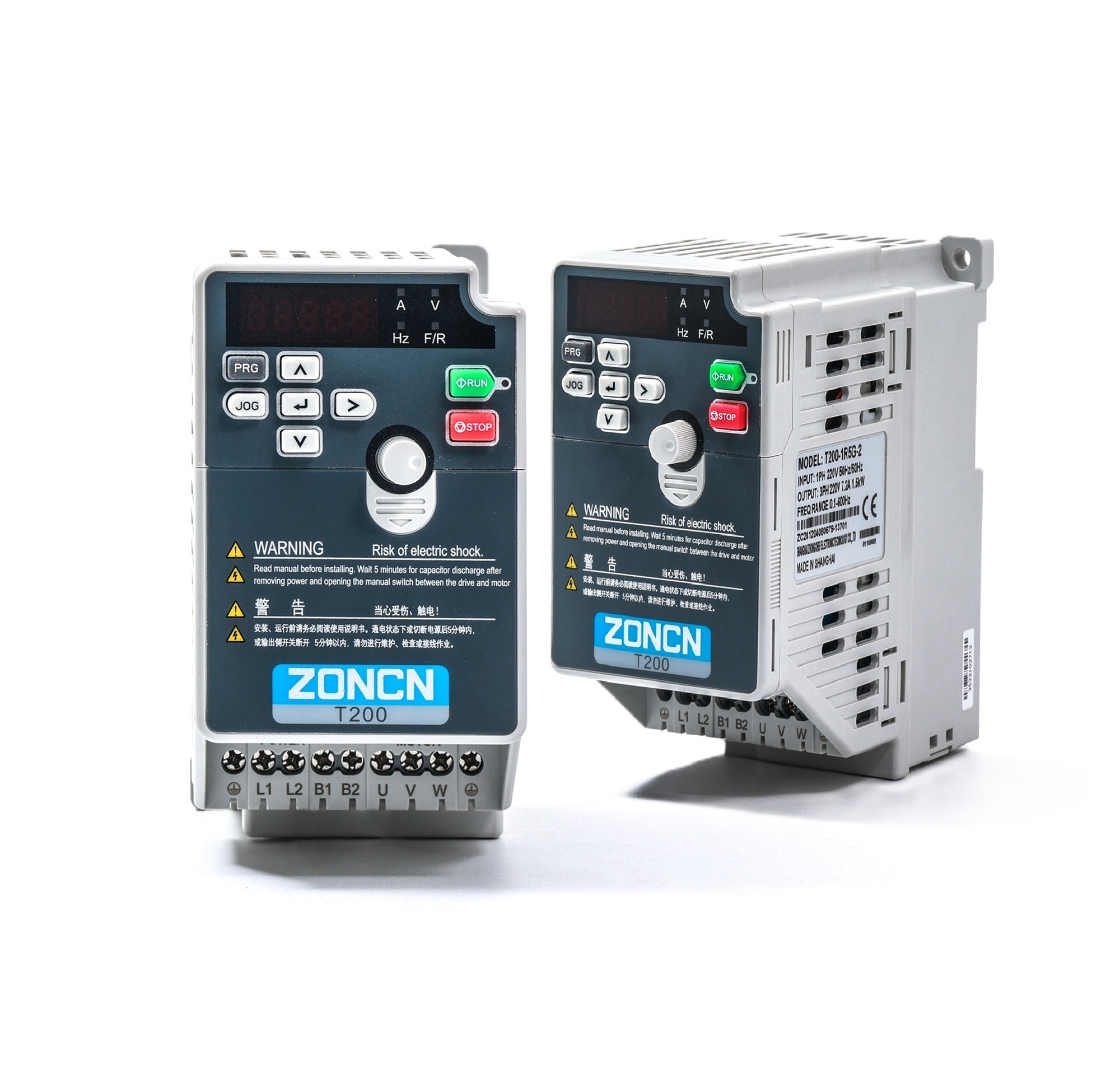

0.4kw-160kw VFD Inverter AC Drive with 18 Months Warranty and Available 24V Terminal

0.4kw-160kw VFD Inverter AC Drive with 18 Months Warranty and Available 24V Terminal
0.4kw-160kw VFD Inverter AC Drive with 18 Months Warranty and Available 24V Terminal 0.4kw-160kw VFD Inverter AC Drive with 18 Months Warranty and Available 24V Terminal 0.4kw-160kw VFD Inverter AC Drive with 18 Months Warranty and Available 24V Terminal
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE
Model Number: T200
Minimum Order Quantity: 1
Packaging Details: Carton Packaging
Delivery Time: within 15 days normally
Payment Terms: T/T
Supply Ability: 100000 per month
Get Best Price Contact Now
Type: AC Frequency Inverter Product Name: VFD Inverter
Brand: ZONCN Series: T200
Power Range: 0.4kw-160kw Voltage: 220v/380v
Communication: RS485/EtherCAT/Profibus/Profinet/Canopen EMC Filter: Built-in
LCD Keypad: Optional 24V Terminal: Available
STO: Have PID Control: Built-in
Highlight:

0.4kw-160kw VFD Inverter

,

18 Months Warranty AC Drive

,

Available 24V Terminal Frequency Inverter

0.4kw-160kw VFD VSD AC Drive Frequency Inverter Factory With 18 Months Warranty







ZONCN T200 Inverter Introduction



ZONCN T200 series vfd inverter stands out with versatile control and robust performance, tailored for diverse industrial needs. Its core advantage lies in multi-mode control: V/F, sensorless flux vector (SFVC), and closed-loop vector (CLVC) options, enabling precise motor regulation for induction and PMS motors alike .
This vfd inverter delivers impressive dynamic performance: G-type models achieve 0.5Hz/150% start torque (SFVC), while P-type offers 0.5Hz/100%, with a 1:100 speed range and ±0.5% stability—ideal for precision tasks like robotics or packaging . Frequency flexibility (0-600Hz vector, 0-3200Hz V/F) and 0.01Hz digital resolution further enhance its adaptability .
Durability is another strength. The vfd inverter features auto-adjusting carrier frequency (0.5-16kHz) based on load, reducing energy waste and heat . Overload protection (G-type: 150%/60s, 180%/3s; P-type: 120%/60s, 150%/3s) and STO fail-safe torque termination safeguard equipment and operators .
Integration is seamless with its multi-protocol suite (Modbus, EtherCAT, PROFINET, CANopen) and RS485, syncing easily with PLCs or IoT platforms . Built-in EMC filters cut electrical noise and installation costs, while the RJ45 keyboard port allows rugged, on-the-fly configuration .
Functional richness adds value: 16 preset speeds, S-curve ramps, auto voltage regulation (AVR), and DC braking (0-100s) meet varied operational demands . Compact design with IP20 protection fits tight spaces, making this vfd inverter a reliable, efficient choice for automation and retrofits.





Technology Features
ITEM T200
Basic function Maximum frequency 0～600.00Hz
Carrier frequency 0.5kHz～16kHz
The carrier frequency can be automatically adjusted based on the load features.
Input frequency resolution Digital setting:0.01Hz
Analog setting: maximum frequency×0.025%
Control mode Voltage/Frequency control (V/F)
Sensorless flux vector control (No PG)
Closed loop vector control (Have PG)
Startup torque G Type:0.5Hz/150%(No PG)；
P Type:0.5Hz/100%
Speed range 1:100(No PG)
Speed stability accuracy ±0.5%(No PG)
Torque control accuracy ±5%(Have PG)
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current.
P type: 60s for 120% of the rated current, 3s for 150% of the rated current
Torque boost Fixed boost
Customized boost 0.1%–30.0%
V/F curve Straight-line V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power, 1.4-power, 1.6-power,1.8-power, square)
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp
S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.0–6500.0s
DC braking DC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0-100.0s
Braking action current value: 0.0%–100.0%
JOG control Jog frequency range:0.00Hz~50.00Hz. JOG acceleration/deceleration time0.0s~6500.0s.
Onboard Multiple preset speeds It implements up to 16 speeds via the simple PLC function or by input terminal states
Onboard PID It realizes process-controlled closed loop control system easily.
Auto voltage It can keep constant output voltage automatically when the mains voltage changes.
regulation (AVR)
Over-voltage/ The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current.
Over-current stall
control
Rapid current limit It helps to avoid frequent over-current faults of the inverter.
Torque limit and torque control It can limit the torque automatically and prevent frequent over-current tripping during the running process.
Individualized function High performance Control of asynchronous motor is implemented through the high-performance current vector control technology.
Instantaneous stop doesn’t stop The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Timing control Timing range 0.0Min～6500.0Min
Communication methods RS-485
Operation Running command channel Given by the panel, control terminals,
Serial communication port, can be switched by many ways
Frequency source 10 kinds of frequency source, given by digital analog voltage, analog current, Pulse, serial port. can be switched by many ways
Auxiliary frequency source There are ten auxiliary frequency sources. It can implement fine tuning of auxiliary frequency and frequency synthesis
Input terminals 5 digital input terminals, one of which supports up to 100 kHz high-speed pulse input;
1 analog input terminal, supports 0-10V voltage input or 4–20 mA current input.
Output terminal 1 digital output terminal
1 relay output terminal
1 analog output terminal :that supports 0–20 mA current output or 0–10 V voltage output
Display and operation panel LED display It displays the parameters.
Key locking and It can lock the keys partially or completely and define the
function selection function range of some keys so as to prevent mis-function.
Protection mode Motor short-circuit detection at power-on, input output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.
Environment Installation location Indoor, avoid direct sunlight, dust, corrosive gas, combustible gas, oil fog, steam, drip or salt.
Altitude Lower than 1000 m(Lower the grades when using higher then 1000m)
Ambient temperature -10°C ～40°C (Lower the grades if the ambient temperature is between 40°C and 50°C)
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9m/s2(0.6g)
Storage temperature －20℃~＋60℃

Model Specification

Selection Guide
Model Input voltage Rated output power (KW) Rated input current(A) Rated output current (A) Motor power (KW)
T200-0R4G-2 1PH AC 220V+/-15% 0.4 5.4 2.1 0.4
T200-0R75G-2 0.75 7.2 3.8 0.75
T200-1R5G-2 1.5 10 7.2 1.5
T200-2R2G-2 2.2 16 9 2.2
T200-3R7G-2 3.7 23 13 3.7
T200-0R4G-4 3PH AC 380V+/-15% 0.4 3.4 1.5 0.4
T200-0R75G-4 0.75 3.8 2.1 0.75
T200-1R5G-4 1.5 5 3.8 1.5
T200-2R2G-4 2.2 5.8 5.1 2.2
T200-3R0G-4 3 8.5 7.2 3
T200-3R7G/5R5P-4 3.7/5.5 10/15 9/13 3.7/5.5
T200-5R5G/7R5P-4 5.5/7.5 15/20 13/17 5.5/7.5
T200-7R5G/11P-4 7.5/11 20.0/26.0 17/25 7.5/11
T200-11G/15P-4 11/15 26/35 25/32 11/15
T200-15G/18.5P-4 15/18.5 35/38 32/37 15/18.5
T200-18.5G/22P-4 18.5/22 38/46 37/45 18.5/22
T200-22G/30P-4 22/30 46/62 45/60 22/30
T200-30G/37P-4 30/37 62/76 60/75 30/37
T200-37G/45P-4 37/45 76/92 75/90 37/45
T200-45G/55P-4 45/55 92/113 90/110 45/55
T200-55G/75P-4 55/75 113/157 110/152 55/75
