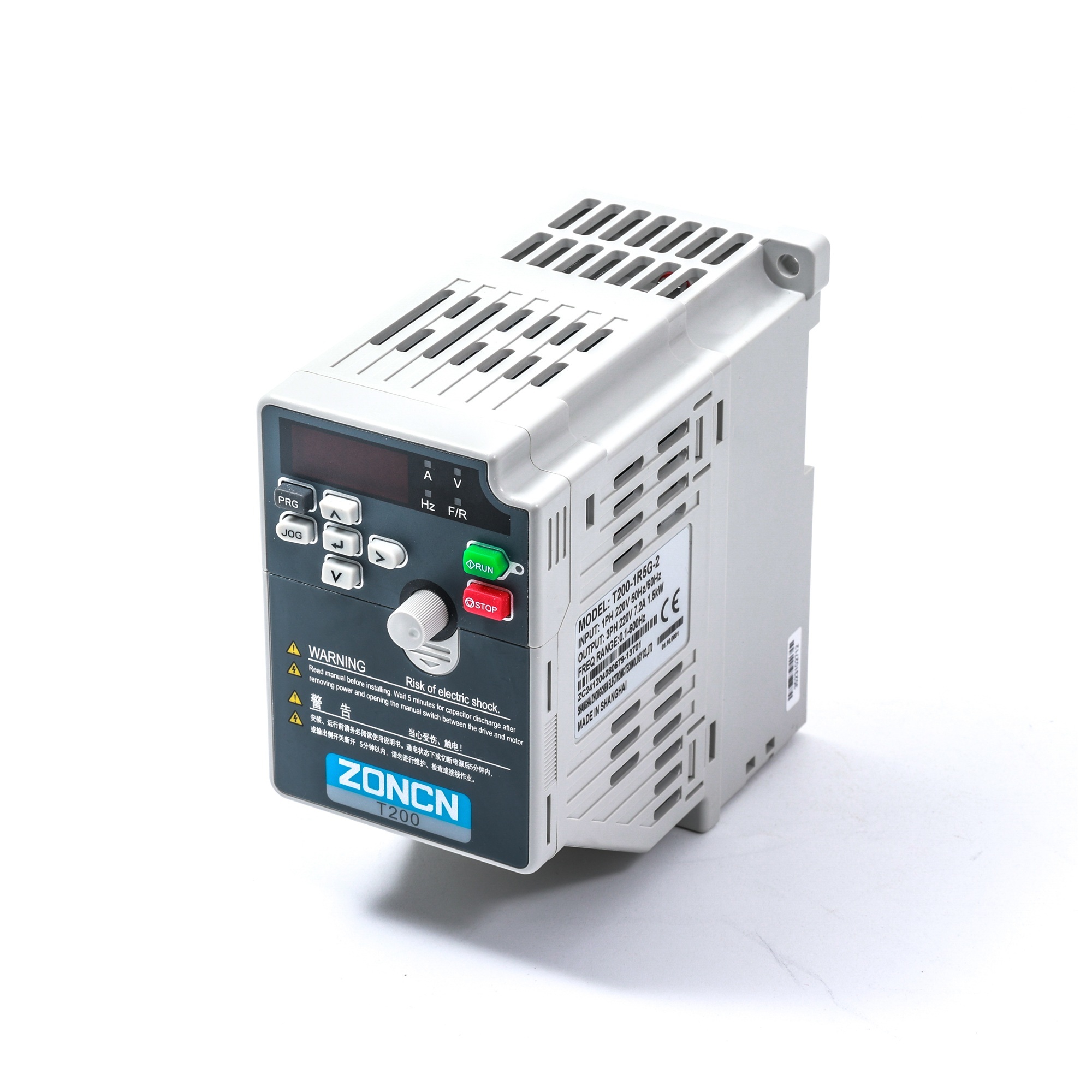

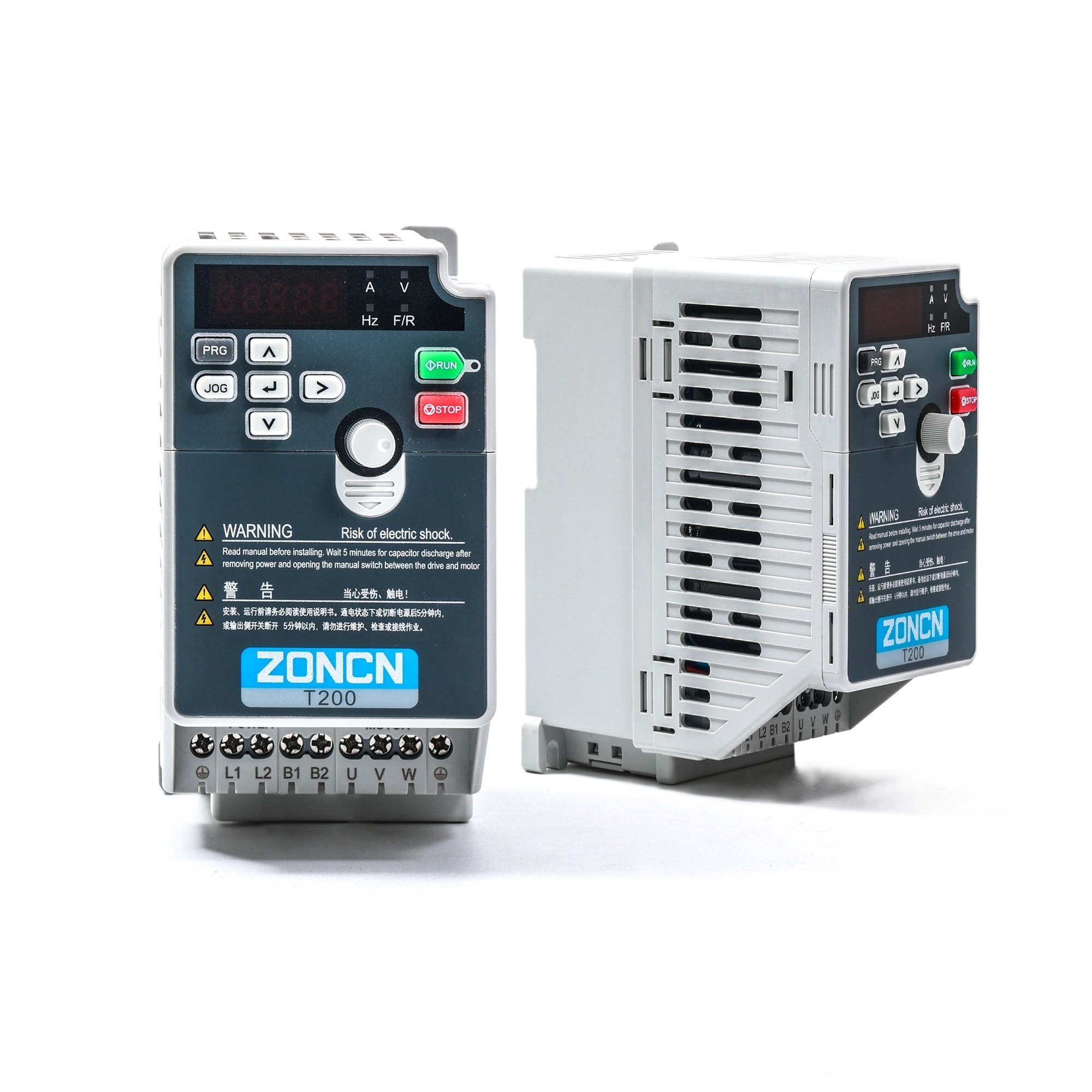

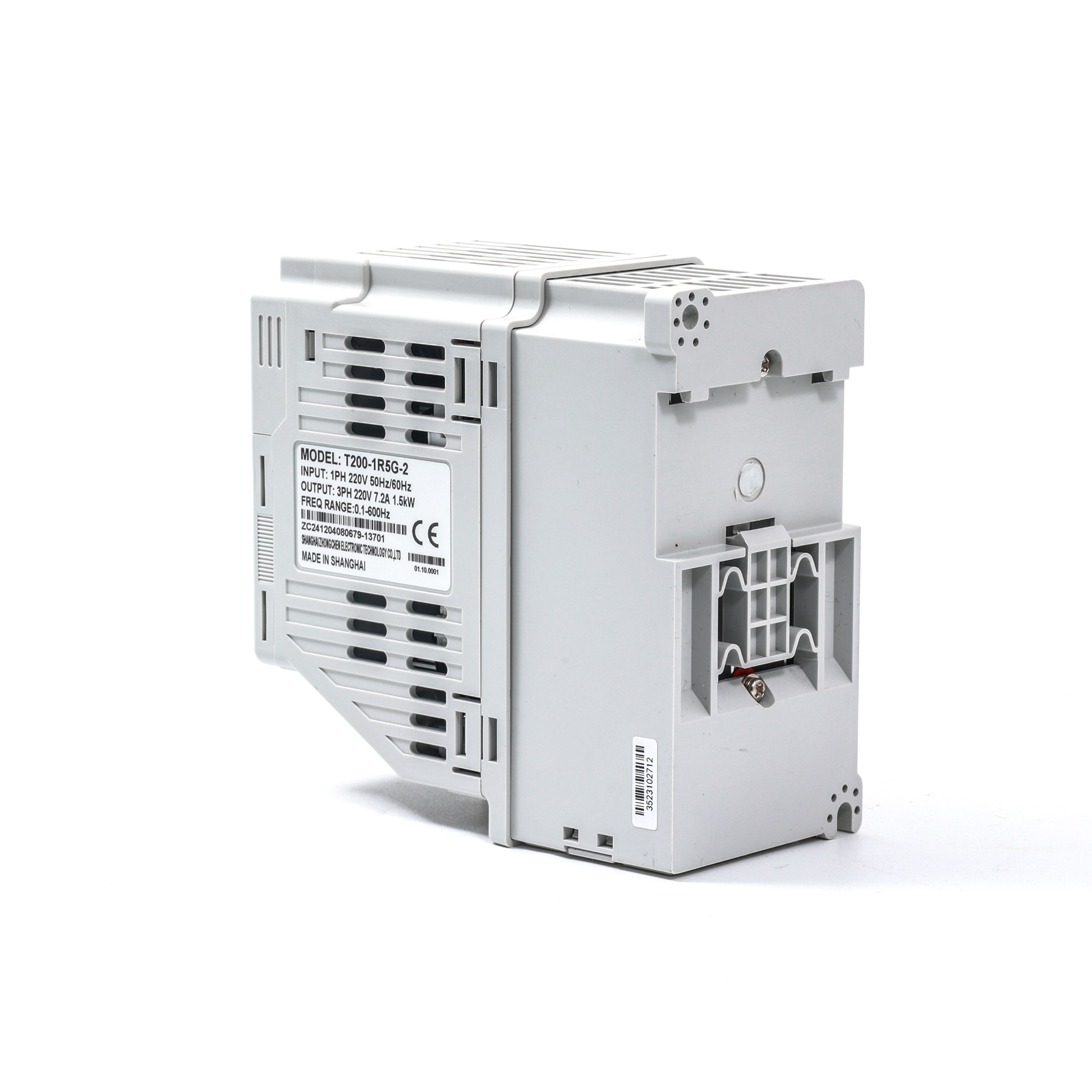

High Performance 1.5kW VFD Drive with 24V Terminal and 0.01Hz Digital Resolution Frequency Inverter

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	CE
Model Number:	T200

Minimum Order Quantity:	1
Packaging Details:	Carton Packaging
Delivery Time:	within 15 days normally
Payment Terms:	T/T
Supply Ability:	100000 per month

Get Best Price Contact Now

Type:	AC Inverter	Product Name:	VFD Drive
Brand:	ZONCN	Series:	T200
Power Range:	1.5kw/2HP	Voltage:	220v/380v
Communication:	RS485/EtherCAT/Profibus/Profinet/Canopen	EMC Filter:	Built-in
LCD Keypad:	Optional	24V Terminal:	Available
Highlight:	1.5kW VFD Drive , 24V Terminal Frequency Inverter , 0.01Hz Digital Resolution AC Drive

High Performance VFD Drive AC Frequency Inverter 220v 1.5kw VSD With STO

ZONCN T200 Inverter Introduction

ZONCN T200 series VFD inverter embodies over 20 years of VFD inverter engineering expertise, blending compact design with industrial-grade reliability. As a high-performance solution, this VFD inverter integrates decades of VFD inverter innovation to meet diverse motor control needs.

Rated from 0.4kW to 160kW, the T200 series VFD inverter supports 220V/380V inputs (1ph/3ph) and three core control modes—V/F, sensorless flux vector (SFVC), and optional closed-loop vector—hallmarks of refined VFD inverter technology. Its frequency range reaches 0.0-600Hz (vector control) and 0.0-3200Hz (V/F control), with 0.01Hz digital resolution, reflecting 20+ years of VFD inverter precision tuning.

This VFD inverter excels in torque and speed control: G-type models deliver 0.5Hz/150% start torque (SFVC), while P-type offers 0.5Hz/100%, with a 1:100 speed range and ±0.5% stability—key strengths honed by years of VFD inverter advancement. Carrier frequency auto-adjustment (0.5-16kHz) and built-in EMC filters enhance the VFD inverter’s adaptability and electromagnetic compatibility.

Equipped with robust protection, the VFD inverter handles overloads (G-type: 150%/60s, 180%/3s; P-type: 120%/60s, 150%/3s) and features overvoltage/overcurrent stall control. Functionalities like 16 preset speeds, S-curve ramps, auto voltage regulation (AVR), and DC braking further elevate this VFD inverter’s utility.

With RS485 and optional CANopen, the T200 series VFD inverter integrates seamlessly into industrial systems. Backed by ZONCN’s legacy in VFD inverter manufacturing, this VFD inverter balances simplicity and performance, proving why VFD inverter technology remains indispensable after 20+ years.

Technology Features
ITEM		T200
Basic function	Maximum frequency	0～600.00Hz
	Carrier frequency	0.5kHz～16kHz
	Carrier frequency	The carrier frequency can be automatically adjusted based on the load features.
	Input frequency resolution	Digital setting:0.01Hz
	Input frequency resolution	Analog setting: maximum frequency×0.025%
	Control mode	Voltage/Frequency control (V/F)
		Sensorless flux vector control (No PG)
		Closed loop vector control (Have PG)
	Startup torque	G Type:0.5Hz/150%(No PG)；
	Startup torque	P Type:0.5Hz/100%
	Speed range	1:100(No PG)
	Speed stability accuracy	±0.5%(No PG)
	Torque control accuracy	±5%(Have PG)
	Overload capacity	G type: 60s for 150% of the rated current, 3s for 180% of the rated current.
	Overload capacity	P type: 60s for 120% of the rated current, 3s for 150% of the rated current
	Torque boost	Fixed boost
	Torque boost	Customized boost 0.1%–30.0%
	V/F curve	Straight-line V/F curve
		Multi-point V/F curve
		N-power V/F curve (1.2-power, 1.4-power, 1.6-power,1.8-power, square)
	V/F separation	Two types: complete separation; half separation
	Ramp mode	Straight-line ramp
		S-curve ramp
		Four groups of acceleration/deceleration time with the range of 0.0–6500.0s
	DC braking	DC braking frequency: 0.00 Hz to maximum frequency
		Braking time: 0.0-100.0s
		Braking action current value: 0.0%–100.0%
	JOG control	Jog frequency range:0.00Hz~50.00Hz. JOG acceleration/deceleration time0.0s~6500.0s.
	Onboard Multiple preset speeds	It implements up to 16 speeds via the simple PLC function or by input terminal states
	Onboard PID	It realizes process-controlled closed loop control system easily.
	Auto voltage	It can keep constant output voltage automatically when the mains voltage changes.
	regulation (AVR)
	Over-voltage/	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current.
	Over-current stall
	control
	Rapid current limit	It helps to avoid frequent over-current faults of the inverter.
	Torque limit and torque control	It can limit the torque automatically and prevent frequent over-current tripping during the running process.
Individualized function	High performance	Control of asynchronous motor is implemented through the high-performance current vector control technology.
	Instantaneous stop doesn’t stop	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
	Timing control	Timing range 0.0Min～6500.0Min
	Communication methods	RS-485
Operation	Running command channel	Given by the panel, control terminals,
	Running command channel	Serial communication port, can be switched by many ways
	Frequency source	10 kinds of frequency source, given by digital analog voltage, analog current, Pulse, serial port. can be switched by many ways
	Auxiliary frequency source	There are ten auxiliary frequency sources. It can implement fine tuning of auxiliary frequency and frequency synthesis
	Input terminals	5 digital input terminals, one of which supports up to 100 kHz high-speed pulse input;
	Input terminals	1 analog input terminal, supports 0-10V voltage input or 4–20 mA current input.
	Output terminal	1 digital output terminal
		1 relay output terminal
		1 analog output terminal :that supports 0–20 mA current output or 0–10 V voltage output

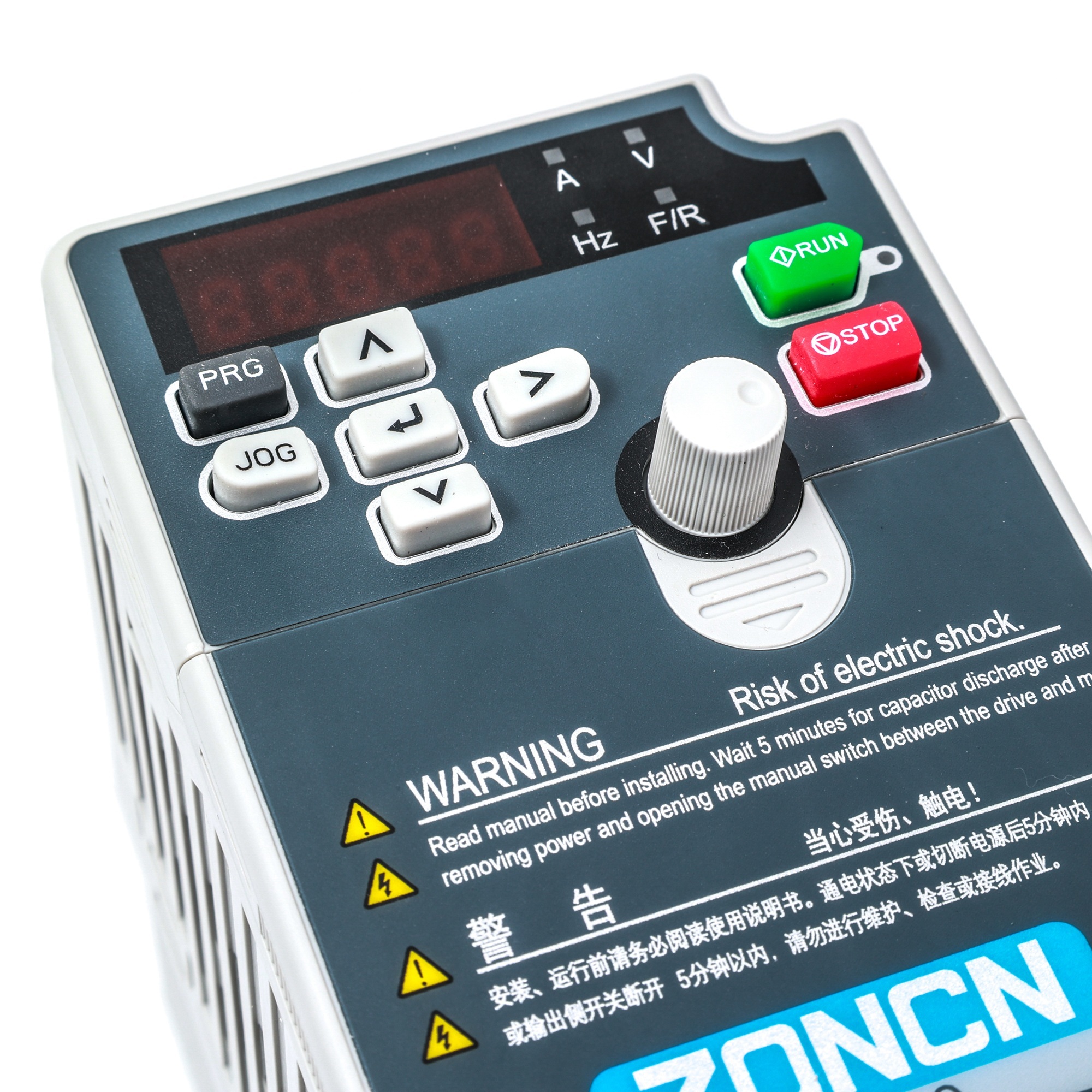

Display and operation panel	LED display	It displays the parameters.
	Key locking and	It can lock the keys partially or completely and define the
	function selection	function range of some keys so as to prevent mis-function.
	Protection mode	Motor short-circuit detection at power-on, input output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.
Environment	Installation location	Indoor, avoid direct sunlight, dust, corrosive gas, combustible gas, oil fog, steam, drip or salt.
	Altitude	Lower than 1000 m(Lower the grades when using higher then 1000m)
	Ambient temperature	-10°C ～40°C (Lower the grades if the ambient temperature is between 40°C and 50°C)
	Humidity	Less than 95%RH, without condensing
	Vibration	Less than 5.9m/s²(0.6g)
	Storage temperature	－20℃~＋60℃

Selection Guide
Model	Input voltage	Rated output power (KW)	Rated input current(A)	Rated output current (A)	Motor power (KW)
T200-0R4G-2	1PH AC 220V+/-15%	0.4	5.4	2.1	0.4
T200-0R75G-2		0.75	7.2	3.8	0.75
T200-1R5G-2		1.5	10	7.2	1.5
T200-2R2G-2		2.2	16	9	2.2
T200-3R7G-2		3.7	23	13	3.7
T200-0R4G-4	3PH AC 380V+/-15%	0.4	3.4	1.5	0.4
T200-0R75G-4		0.75	3.8	2.1	0.75
T200-1R5G-4		1.5	5	3.8	1.5
T200-2R2G-4		2.2	5.8	5.1	2.2
T200-3R0G-4		3	8.5	7.2	3
T200-3R7G/5R5P-4		3.7/5.5	10/15	9/13	3.7/5.5
T200-5R5G/7R5P-4		5.5/7.5	15/20	13/17	5.5/7.5
T200-7R5G/11P-4		7.5/11	20.0/26.0	17/25	7.5/11
T200-11G/15P-4		11/15	26/35	25/32	11/15
T200-15G/18.5P-4		15/18.5	35/38	32/37	15/18.5
T200-18.5G/22P-4		18.5/22	38/46	37/45	18.5/22
T200-22G/30P-4		22/30	46/62	45/60	22/30
T200-30G/37P-4		30/37	62/76	60/75	30/37
T200-37G/45P-4		37/45	76/92	75/90	37/45
T200-45G/55P-4		45/55	92/113	90/110	45/55
T200-55G/75P-4		55/75	113/157	110/152	55/75
