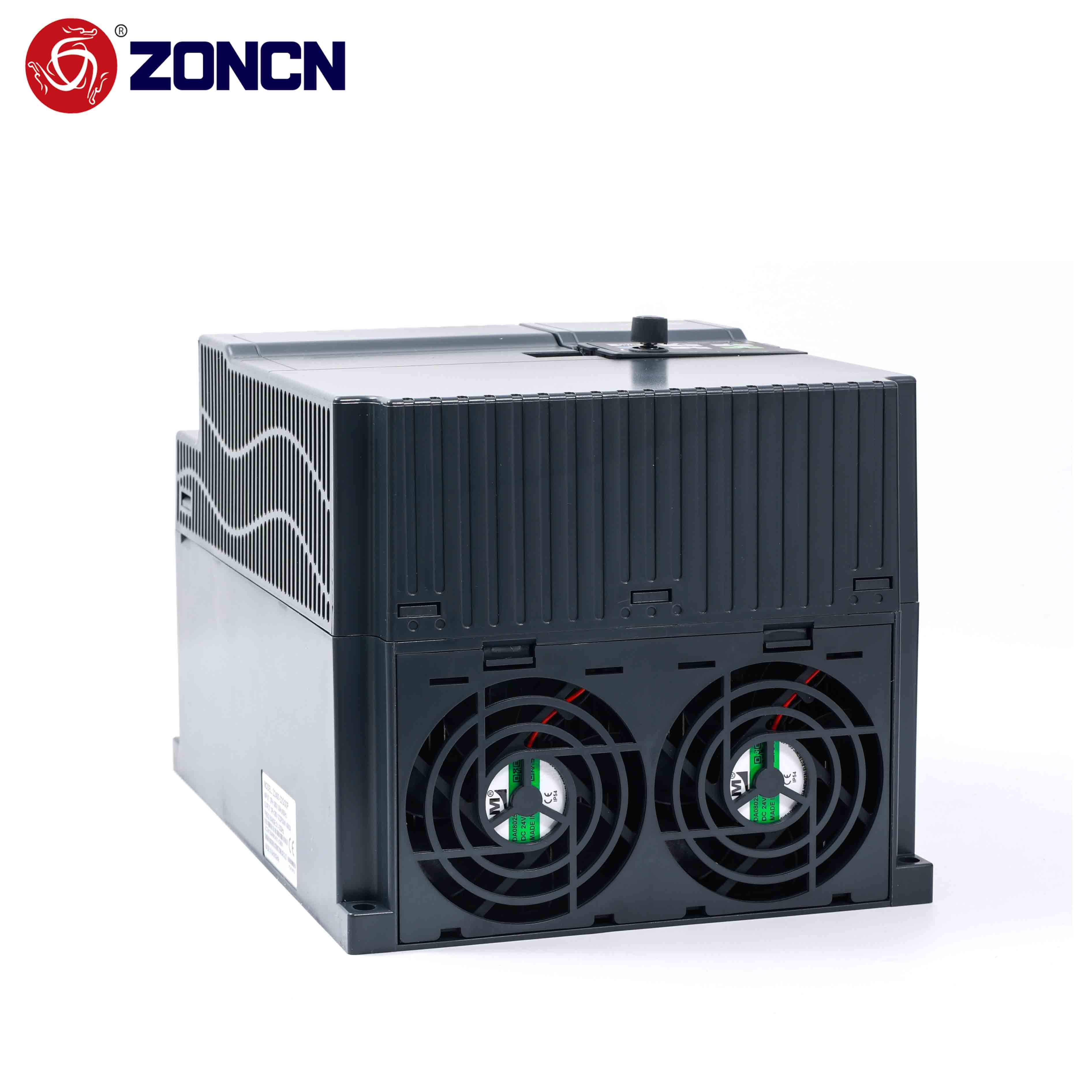

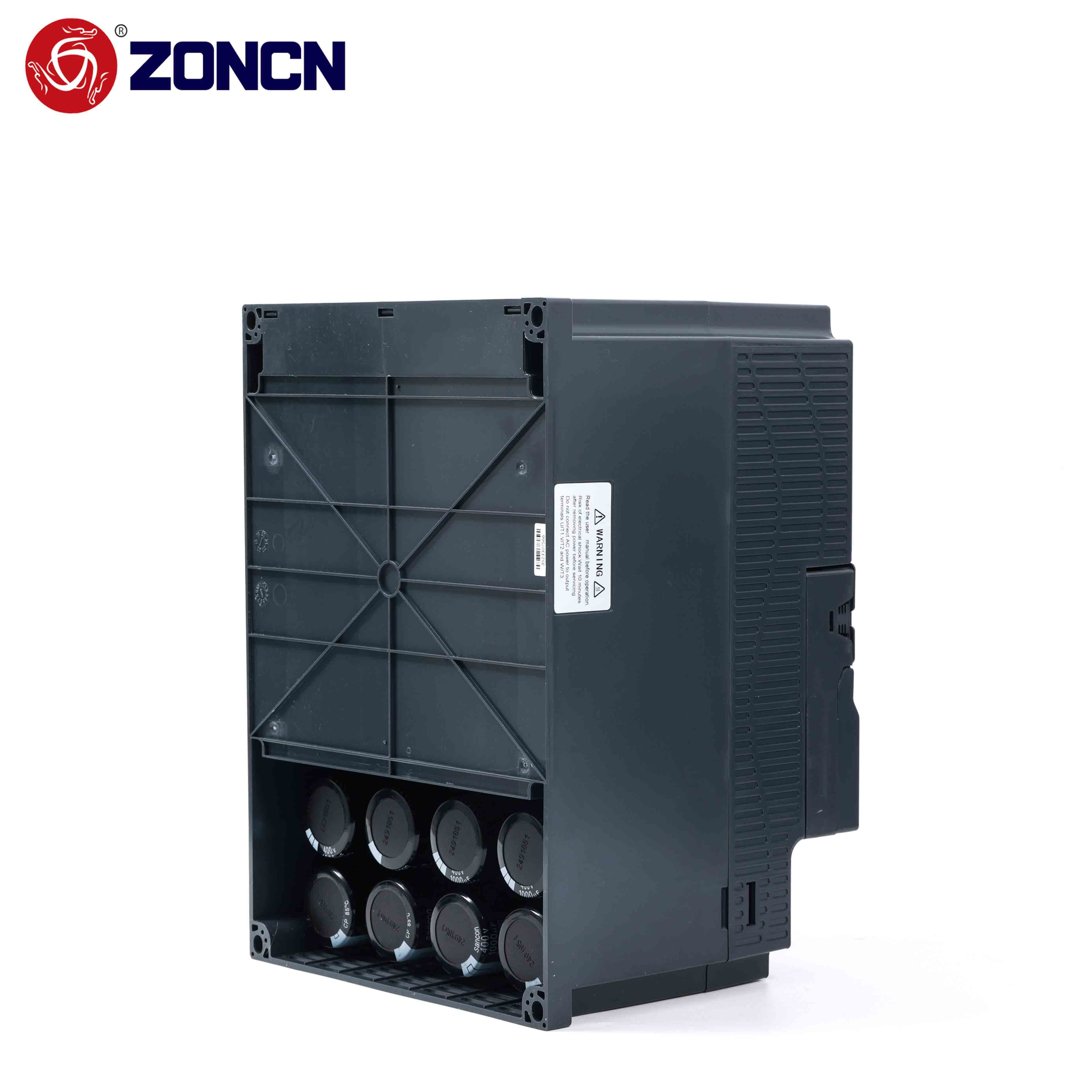

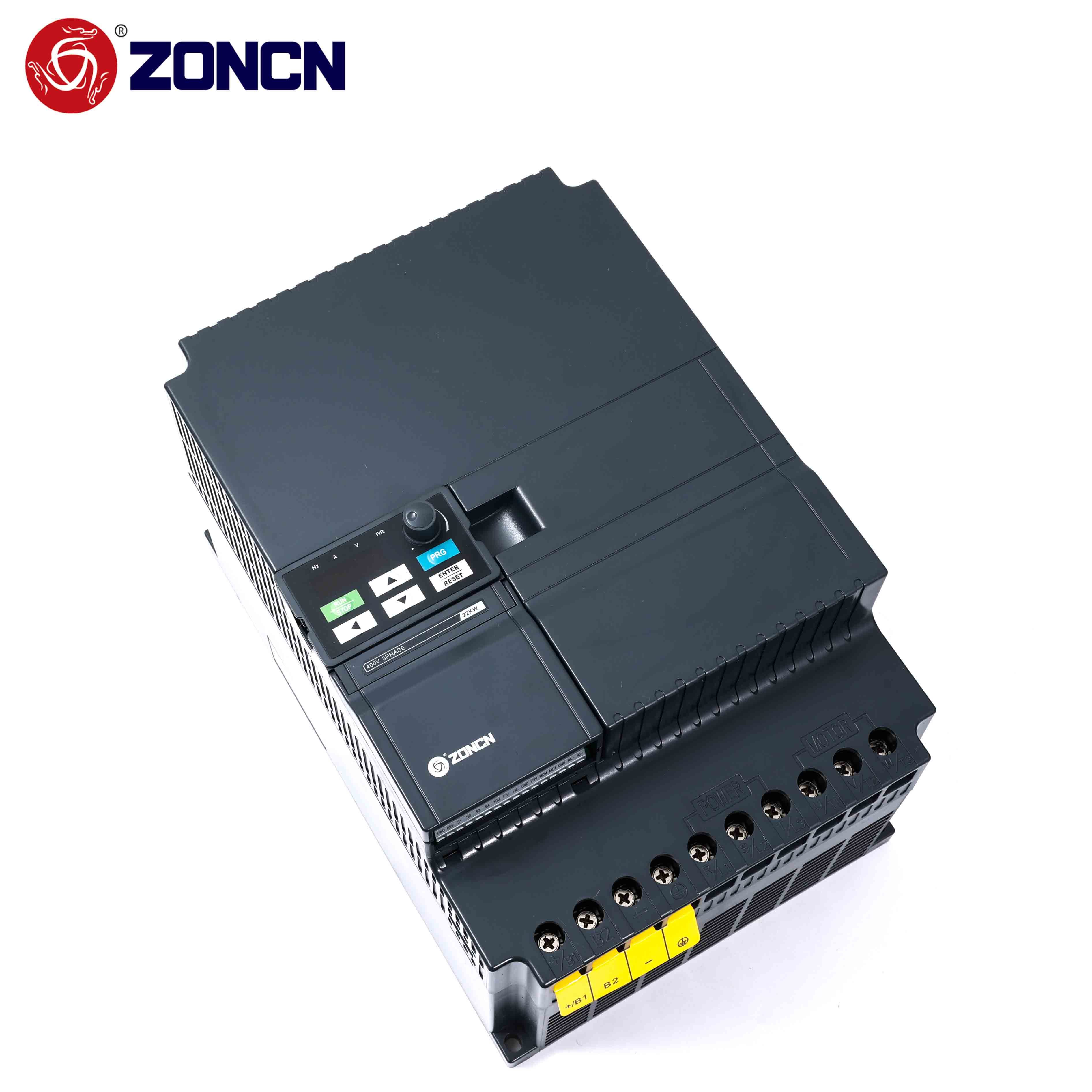

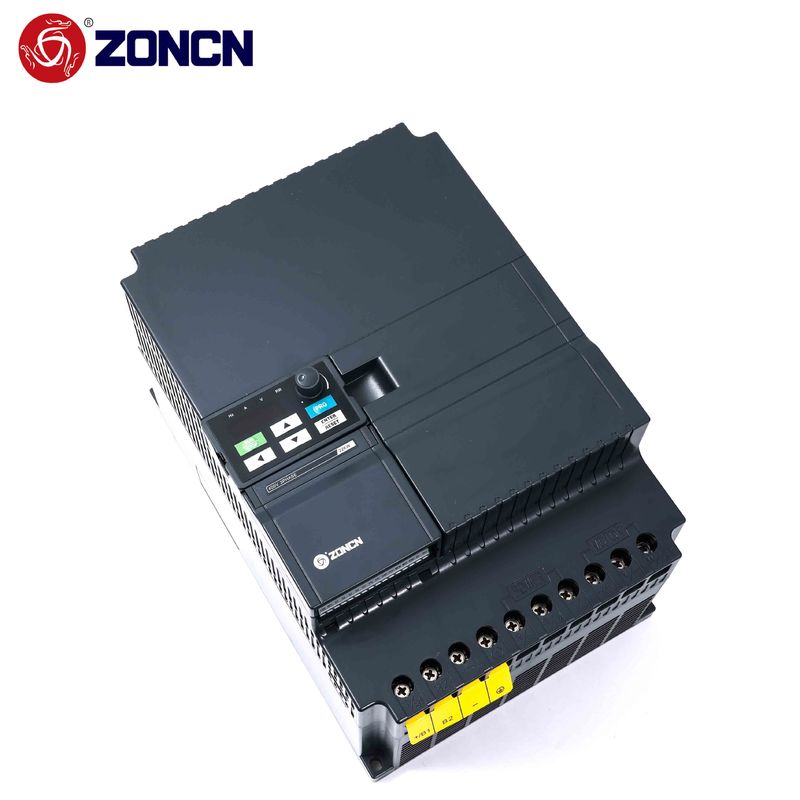

22KW 380V Variable Frequency Drive VFD with 220V Input and 440V Output for Industrial Applications

22KW 380V High-performance Frequency Converter

1:Introduction to VFD Functional Features

- Open-loop vector control, VF control；

- Easy to debug, with excellent performance；

- Optional built-in EMC filter, supports MODBUS RS485 communication, supports MODBUS RTU, and optional EtherCAT communication；

- Support permanent magnet synchronous motors；

- It has an overload capacity of 150% of rated current for a continuous 60 seconds and 180% of rated current for a continuous 3 seconds, and can handle frequent impact loads；

- Phase loss protection, overheat protection, overvoltage protection and other protection functions；

- Supports 220V input and 380V output; supports 110V; supports 380V; supports 440V; supports 480V

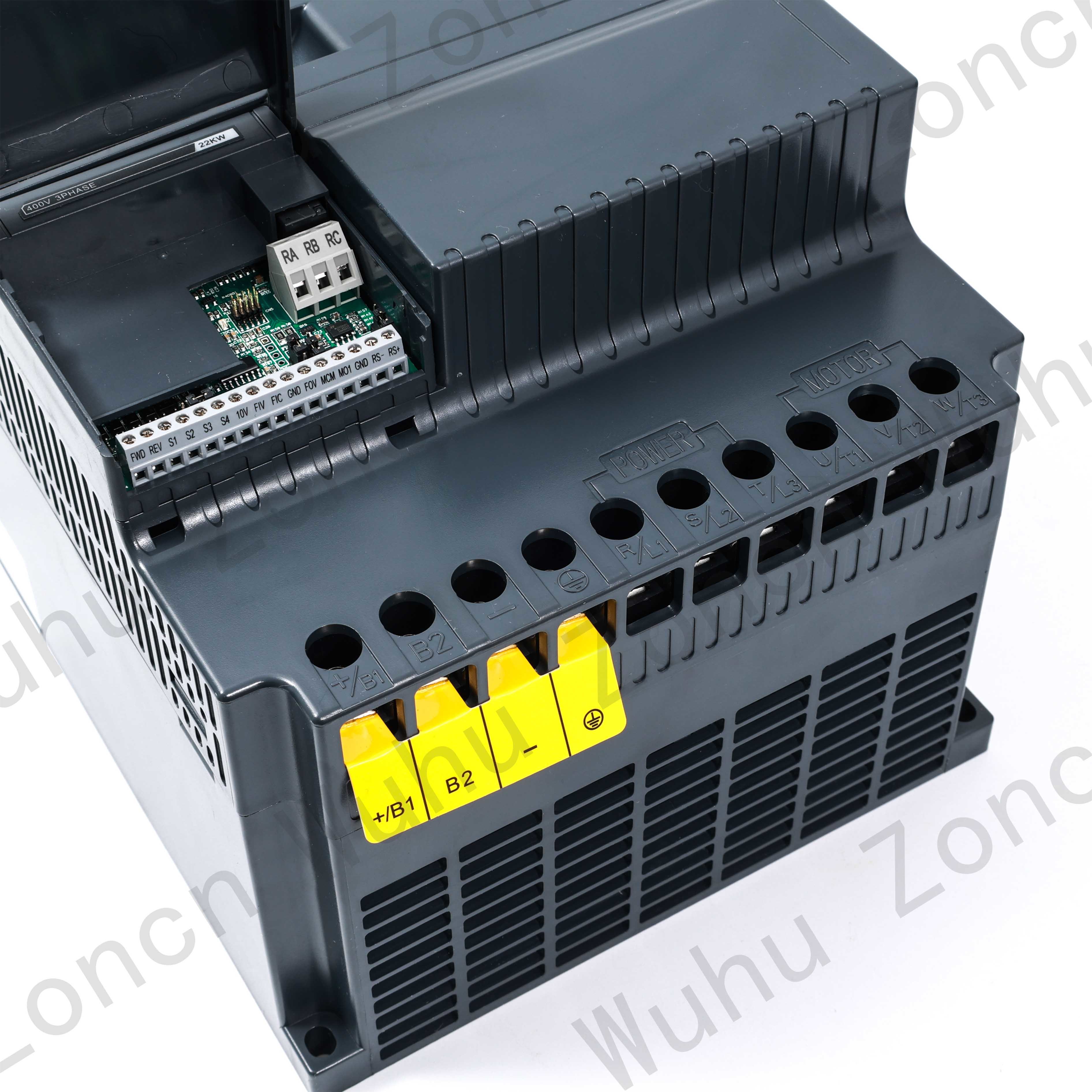

- 0.4 - 37KW with built-in braking unit; 45 - 160KW with optional built-in braking unit；

- For power ratings above 22KW, an internal DC reactor is optional. This can help mitigate the impact of unstable voltage；

- NPN supported, PNP optional；

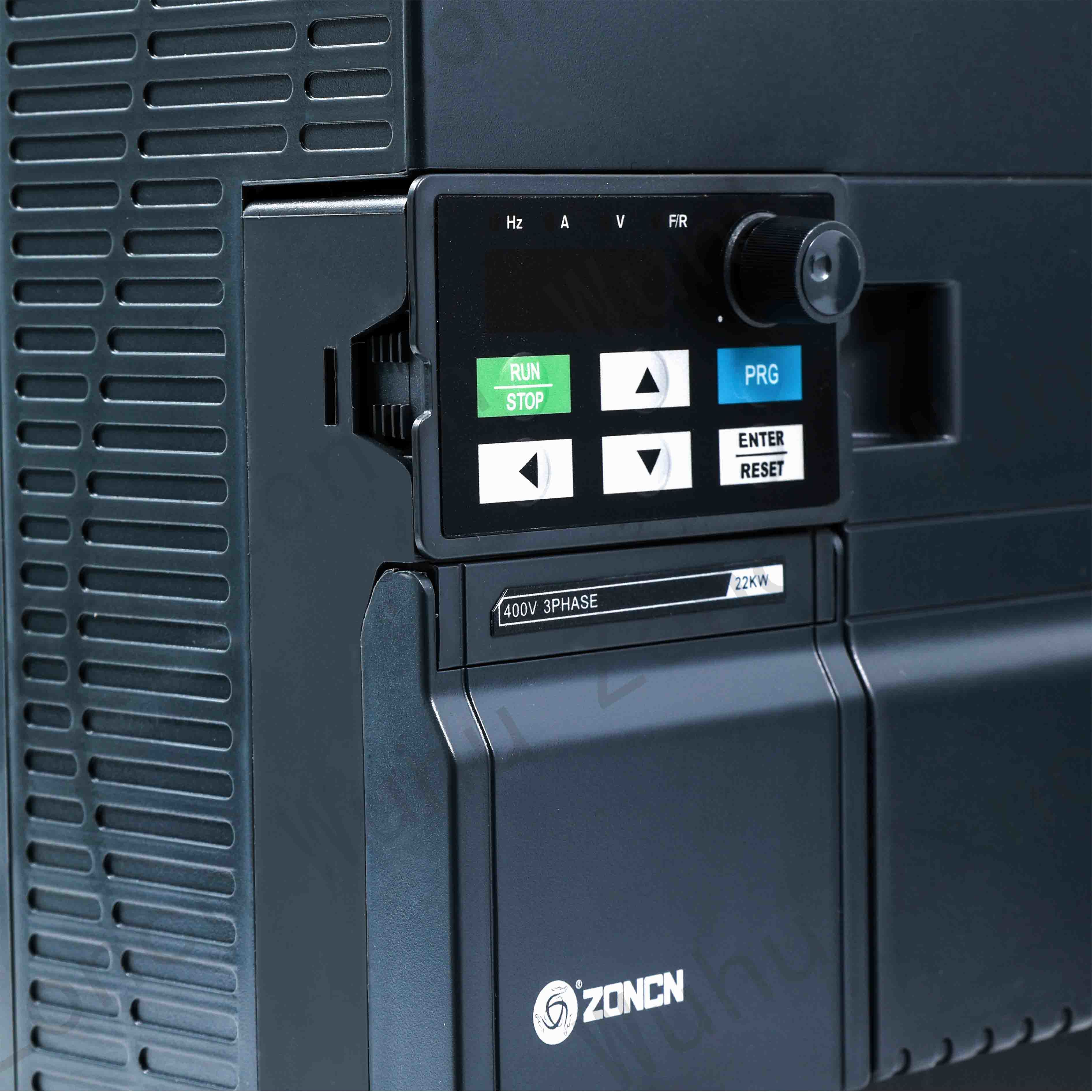

- Support detachable LED keyboard；

- High torque output ensures smooth startup of the motor during heavy loads；

- ZONCN independently developed IGBTs, with excellent performance；

- Power range: 220V 0.4 - 7.5KW 380V: 0.4 - 450KW；

2:VFD applications

- It has been widely applied in fields such as air compressors, food processing machinery, rubber production equipment, textile machinery, machine tools, water pumps, spindle motors, etc. For example, in the building materials industry, it cooperates with the multi-speed function to achieve precise temperature control of kilns; in hoisting equipment, it relies on the high dynamic response of vector control to avoid the risk of hook slipping.

3:ZONCN Company Profile

Wuhu Zhongchen Automation Equipment Co., Ltd., founded in [year], is a high-tech enterprise focusing on the industrial automation field. Headquartered in Jiujiang District, Wuhu City, Anhui Province, it is a subsidiary of Shanghai Zhongchen Electronic Technology Co., Ltd.

• Its core business covers the R&D, production and sales of electrical drive and industrial automation products.
• The product range includes frequency converters, servo systems, HMI touch screens, PLCs, etc.
• The products are widely used in more than 30 industrial fields such as air compressors, textile machinery, CNC machine tools and chemical equipment.
