Simple Vector Control Variable Frequency Drives Inverter For Bag Sealer Food Machinery Low Voltage 380v

Variable Frequency Inverters NZ200 Vfd Inverter Simple Vector Control

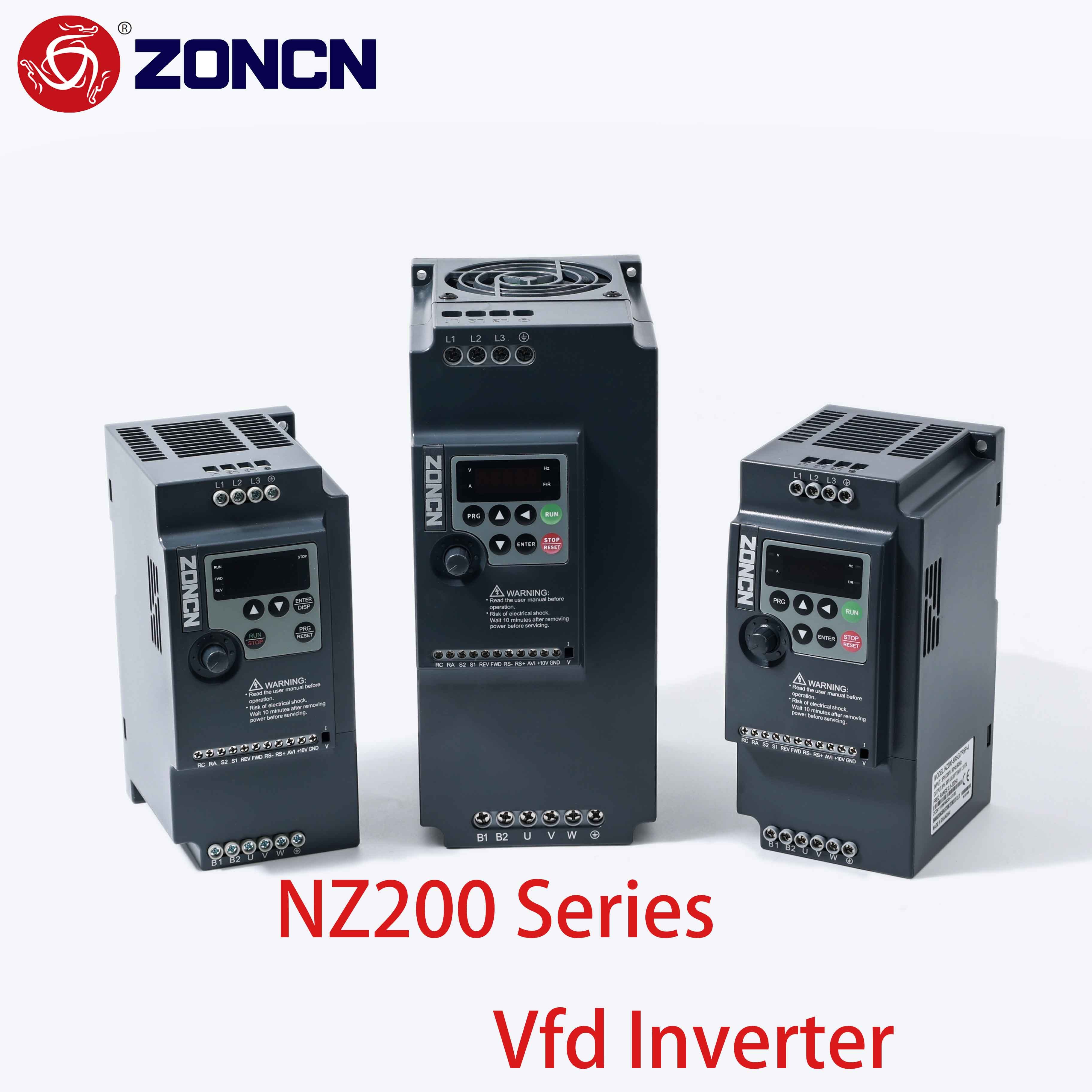

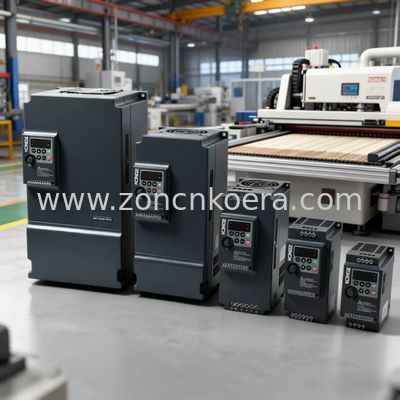

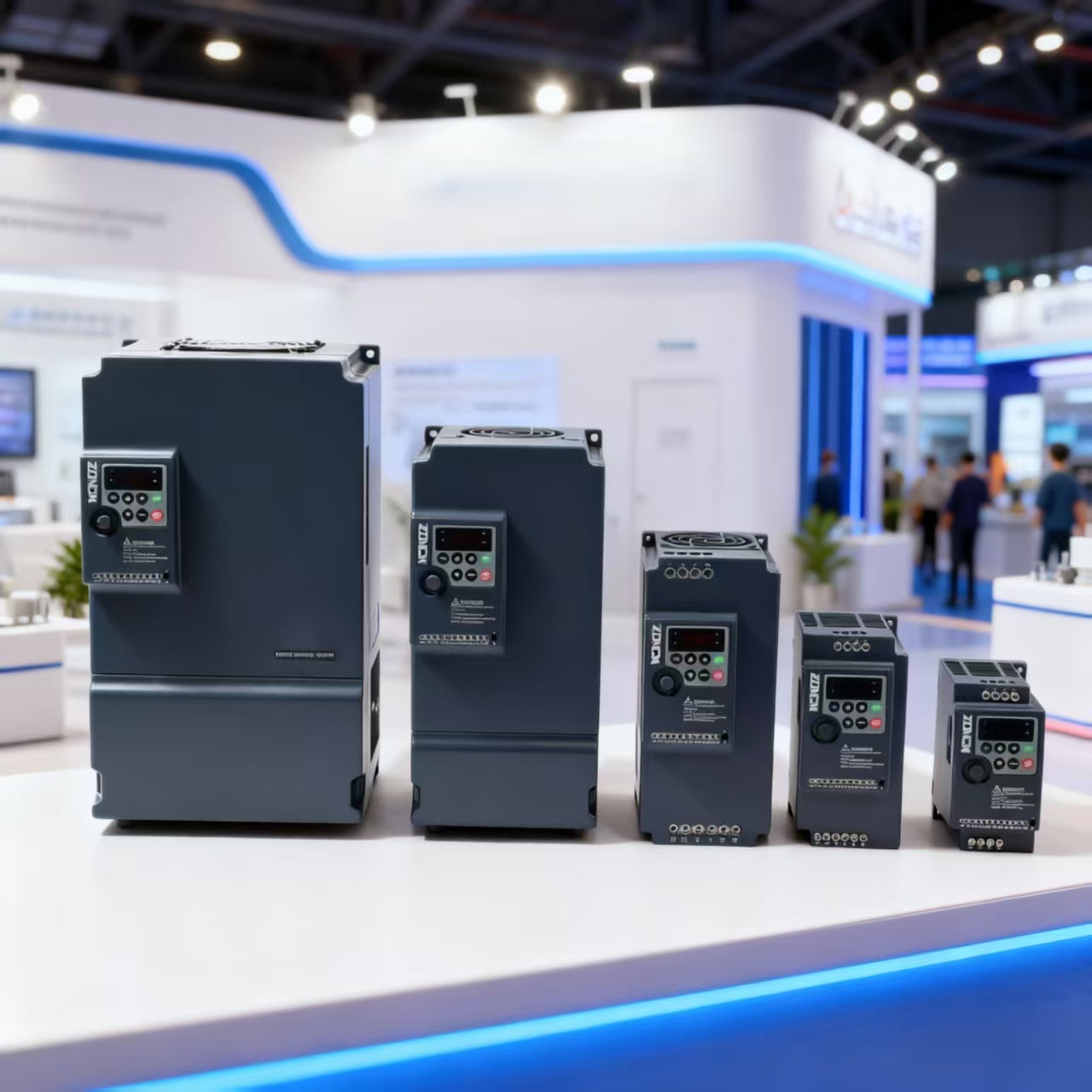

NZ200 product introduction:

- Open-loop vector control and VF control,Vector control mode outputs a maximum of 600Hz；

- Supports permanent magnet synchronous motors, which are commonly used in compressors；

- Simple structure, compact size, easy to install；

- Pull out LED keypad optional (DP8-B-1);

- Standard supports MODBUS via RS485, Maintenance-free; MODBUS RTU;

- Protection function: Output phase loss protection; Over-current protection, Over-voltage protection,Over-load protection, Over-heat protection etc.

- Supports built-in PID controller, which can directly achieve process control such as constant pressure water supply and temperature closed-loop control.

- The output power is automatically adjusted according to the load, and the actual energy savings rate in the application of fans and pumps is up to 20% - 35%.

- Overload capacity is 60s for 150% of rate current,3s for 180% of rate current.

- 220V 0.4-7.5KW 380V 0.4-630KW

-Braking unit remarks:

220V 0.4-1.5KW and 380v 0.4-2.2KW without braking unit;

220V 2.2-3.7KW, 380V 3.7-37K, built-in braking unit.

380V 45-630KW, with optional equipped built-in or external braking units.

- Application: Suitable for scenarios with low precision requirements and light-duty vector control, such as textile equipment, fans and water pumps, air compressors, packaging machines, food machinery, wire drawing machines, centrifuges, lathes and other equipment. It is also applicable to V/F control occasions with low load requirements, or occasions where one VFD drives multiple motors.

*NZ200 series inverter support external keyboard, please contact customer service to purchase separately.

VFD Inverter Specification:

Product Application:

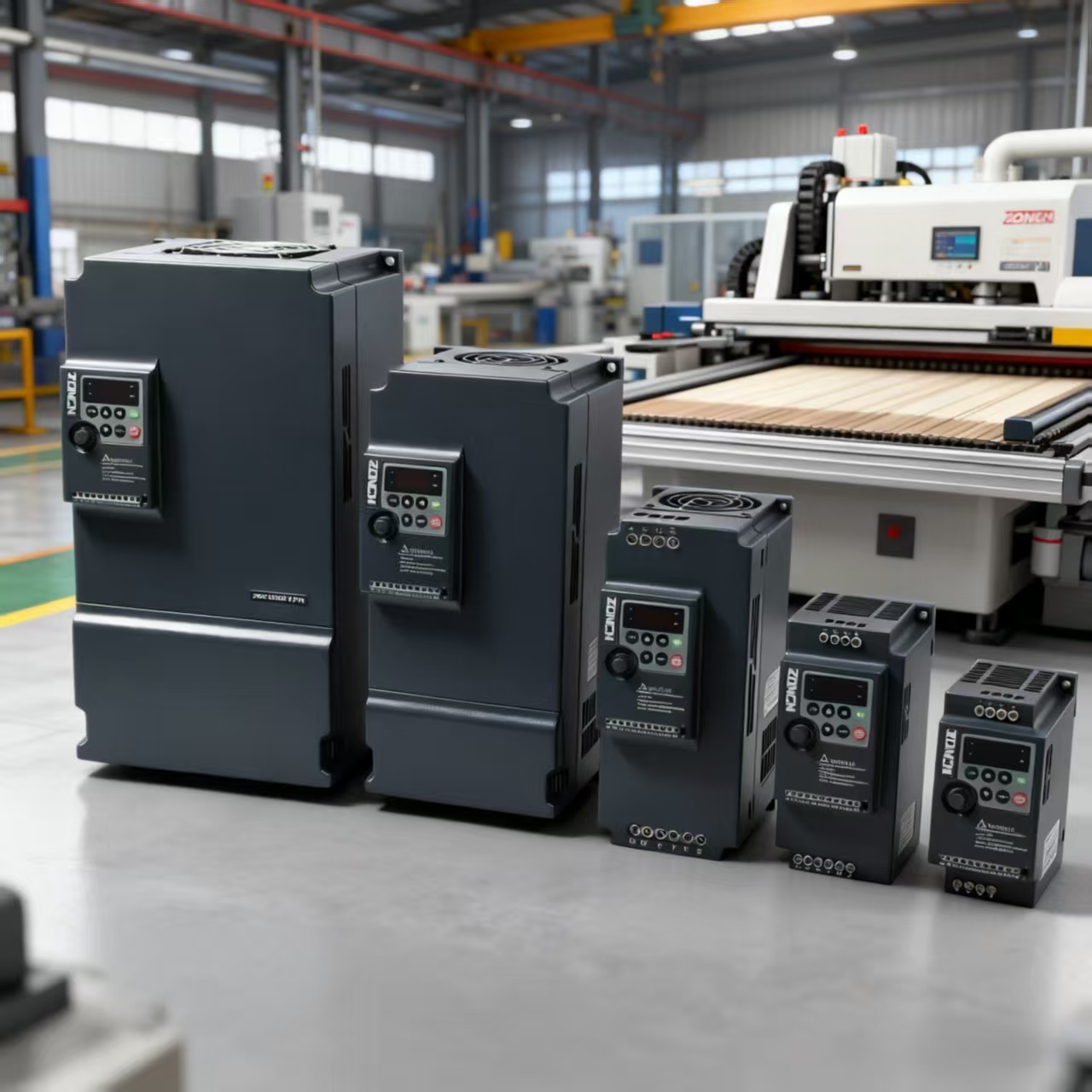

In general industrial scenarios, it is applied in printing equipment, CNC machine tools, industrial washing machines, refrigeration systems, etc. Some models (NZ200T Series) support permanent magnet synchronous motor control. Furthermore, the ZONCN NZ200 Series frequency converters, with their high cost-effectiveness, compact structure and reliable performance, are widely adapted to meet the motor speed regulation needs in industrial and civil fields.

In light-load machinery scenarios, their 1:100 speed regulation range and ±0.5% speed stability accuracy can satisfy the precise control requirements of textile machinery (such as spinning frames and texturing machines, enabling stable operation at 18000rpm) and packaging equipment (such as filling machines and cake forming machines, achieving a positioning accuracy of ±0.1mm). They are also commonly used for driving woodworking machinery (polishers, engraving machines), food processing equipment (dumpling machines, mixers) and conveyors, reducing fault downtime through overload protection.

Extended to automated production lines with higher energy efficiency requirements, the series, on the whole, balances cost and performance, making it an optimal solution for low-to-medium power speed regulation scenarios.

Company Introduction:

Our main products include inverter and servo system.Our company has a wide range of products, with medium and low voltage inverters divided into two categories:general-purpose products and industry-specific products, covering voltage levels from AC 220V to 1140V, power range from 0.4kW-1200kW, and widely used in industries such as air compressors, plastic machinery, construction machinery, water supply equipment, metallurgical equipment, textile machinery, machine tools, chemical machinery, mining machinery, printing and packaging, etc. The servo system isdivided into two categories: synchronous servo driver and asynchronous servo driver covers voltage range from AC220V to 480V, power range from 0.4 kW to 132 kW suitable for various occasions requiring high-performance precision control. ZONCN has more than 80 dealers in china and abroad. Now our products are exported to more than 50 countries in Asia, Europe.Africa and America. ZONCN will always dedicate in the field of electrical drive and warmly welcome you to be our partner.
