Universal Application Inverter 380v 22kw VFD Drives With RS485 Communication

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	CE
Model Number:	T9400-22G

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T,Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	Frequency Inverter	Brand:	ZONCN
Voltage:	380v+/-15%	Power:	22kw/30HP
PID Control:	Built-in	Control Mode:	Vector Control
Application:	Motor Speed Control	MOQ:	1 UNIT
Private Logo:	Support	CE:	Yes

Universal Application Inverter 380v 22kw VFD Drives With RS485 Communication

ZONCN is a leading company in the field of industrial automation, with its headquarters located in Shanghai. Since its establishment in 2005, ZONCN has been dedicated to the research, development, production, and sales of inverter and servo products. The company's factory, spanning an area of about 27,000 square meters, is staffed by 1000 employees, among which over 60 are professional technical engineers. With strict quality control, the factory has passed the ISO9001 quality control system, and all products hold CE certification. ZONCN has an extensive domestic and international sales network, boasting over 80 dealers. Their products are exported to more than 50 countries across Asia, Europe, Africa, and America, widely applied in diverse industries such as textile, print, CNC machine, food package, injection machine, fan, pump, air compressor, water treatment, and industrial washing machine.

The ZONCN T9000 series VFD inverters stand out in the market with their remarkable features:

Advanced Control Modes: Support open - loop/closed - loop vector control for both synchronous and asynchronous motors, as well as V/F control with built - in PID. This versatility allows for precise control in various applications. For example, in a textile mill, the open - loop vector control can ensure smooth and accurate speed regulation of the motors driving the spinning machines.
High Torque Output: Capable of providing large torque, it ensures smooth motor starting even under heavy loads. In an industrial scenario like a stone - cutting equipment factory, the high - torque output of the T9000 series VFD inverter enables the motor to start the cutting process smoothly, even when dealing with thick and hard stones.
Powerful Functionality: Suitable for most general - purpose applications. In a food packaging factory, the T9000 series VFD inverter can be used to control the motors of different packaging machines, such as filling machines and sealing machines, meeting the diverse requirements of speed regulation and operation stability.
PG Card Compatibility: Supports multiple types of PG cards, facilitating more accurate speed feedback and control. This is crucial in applications like precision CNC machining, where accurate speed control is essential for high - quality processing.
Compact Structure: Easy to install, saving valuable space in industrial settings. In a crowded factory with limited space for equipment installation, the compact design of the T9000 series VFD inverter makes it convenient to be integrated into the existing machinery layout.

The applications of ZONCN T9000 series VFD inverters are extensive:

Industrial Machinery: In injection molding machines, the T9000 series VFD inverter adjusts the motor speed according to the injection process requirements, improving product quality and production efficiency.
HVAC Systems: For fans and pumps in heating, ventilation, and air - conditioning systems, the VFD inverter can adjust the speed based on the actual load, achieving significant energy savings. For example, in a large commercial building, the fans and pumps can operate at reduced speeds during low - load periods, reducing energy consumption.
Conveyor Systems: Widely used in factories and logistics centers, the T9000 series VFD inverter enables flexible speed control of conveyor belts, adapting to different production and transportation needs. For instance, in an e - commerce warehouse, the conveyor belts can be adjusted to different speeds depending on the volume of packages.

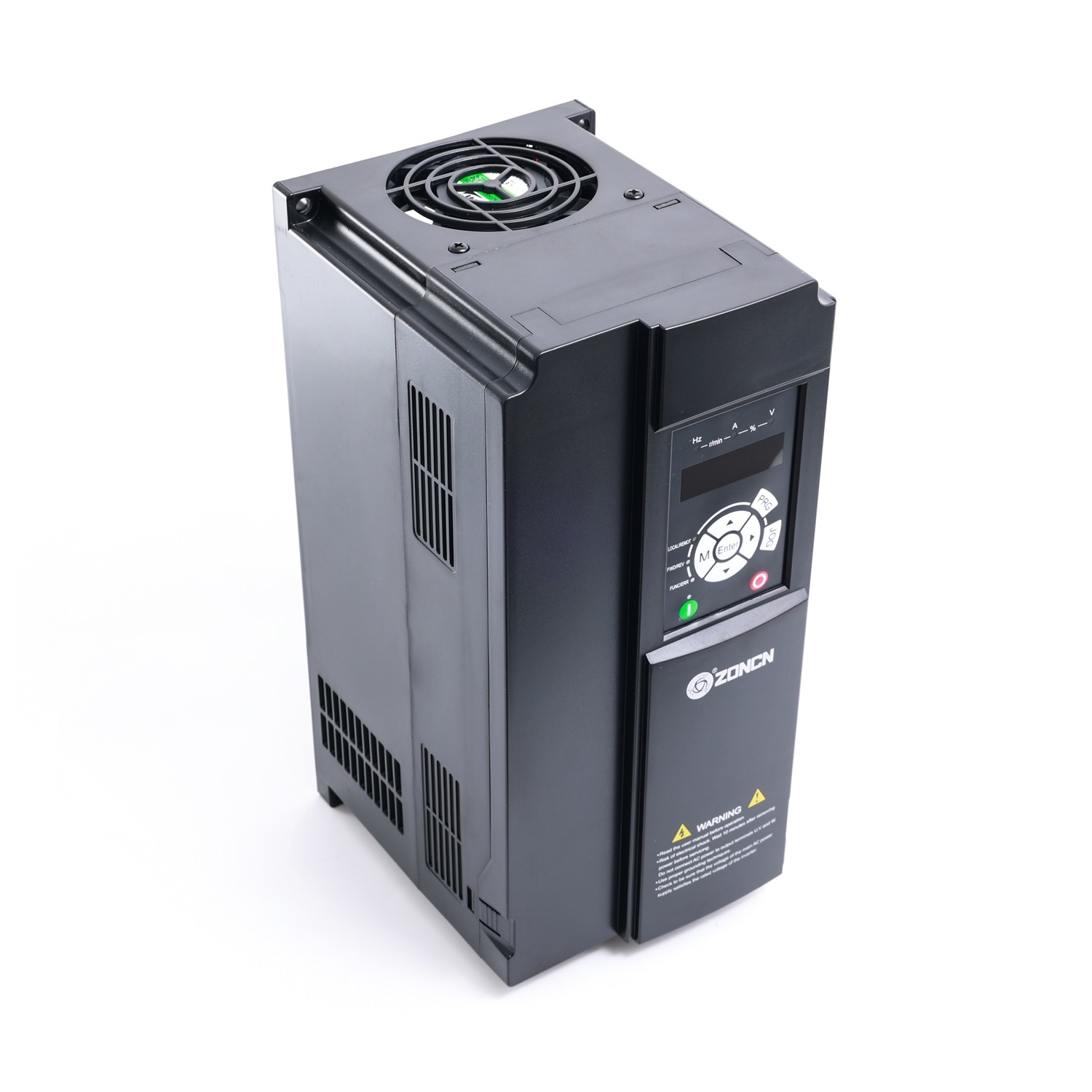

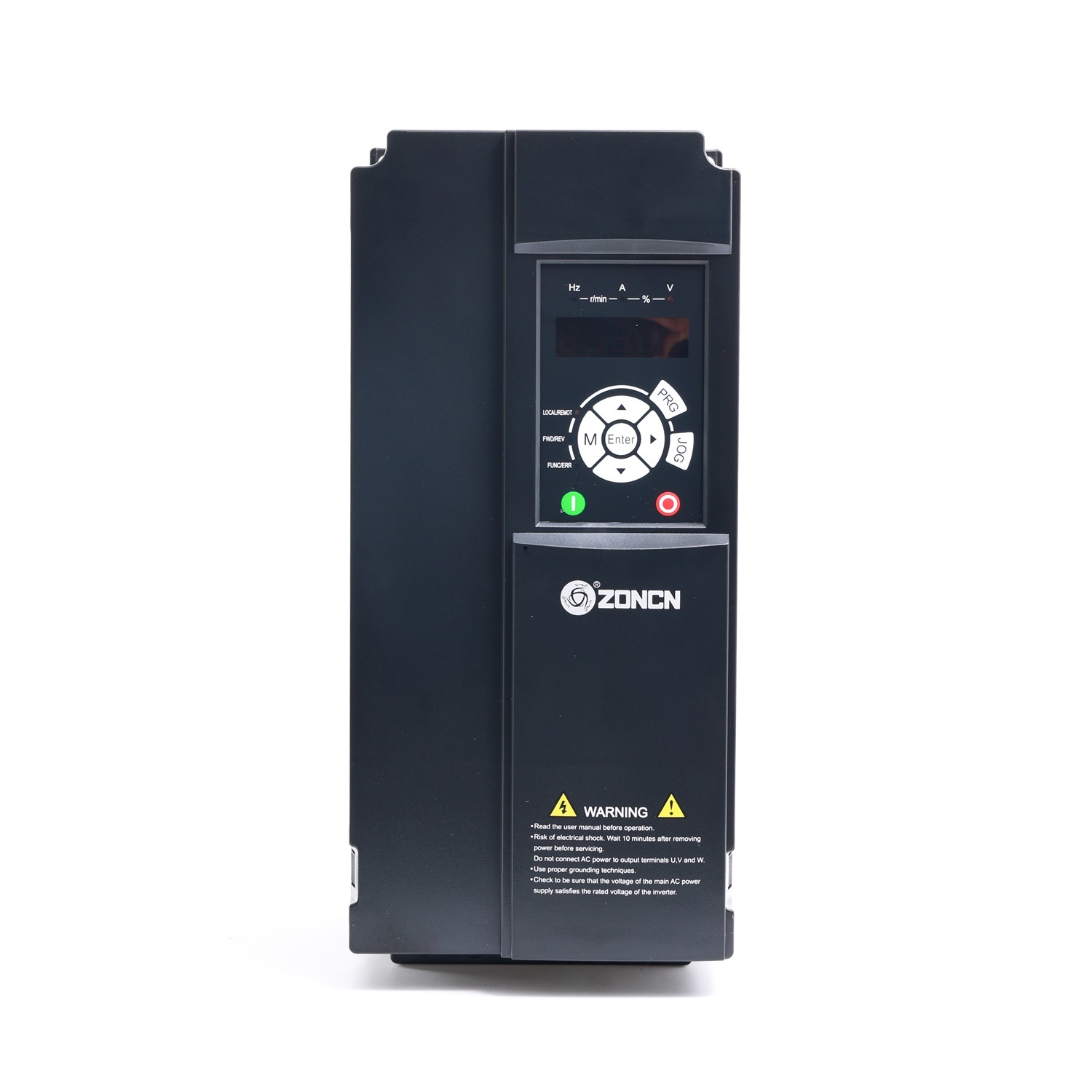

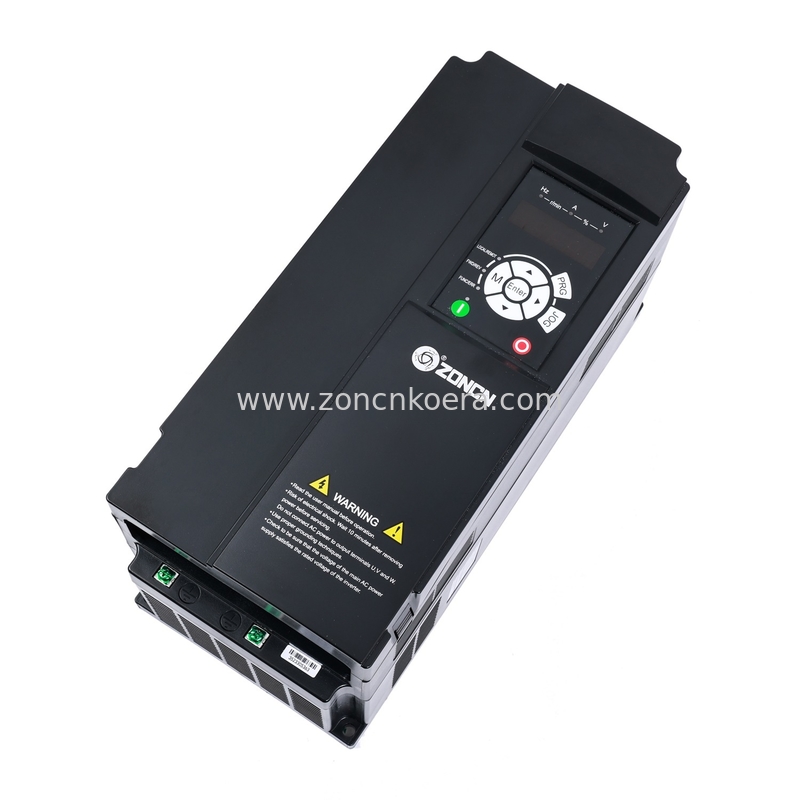

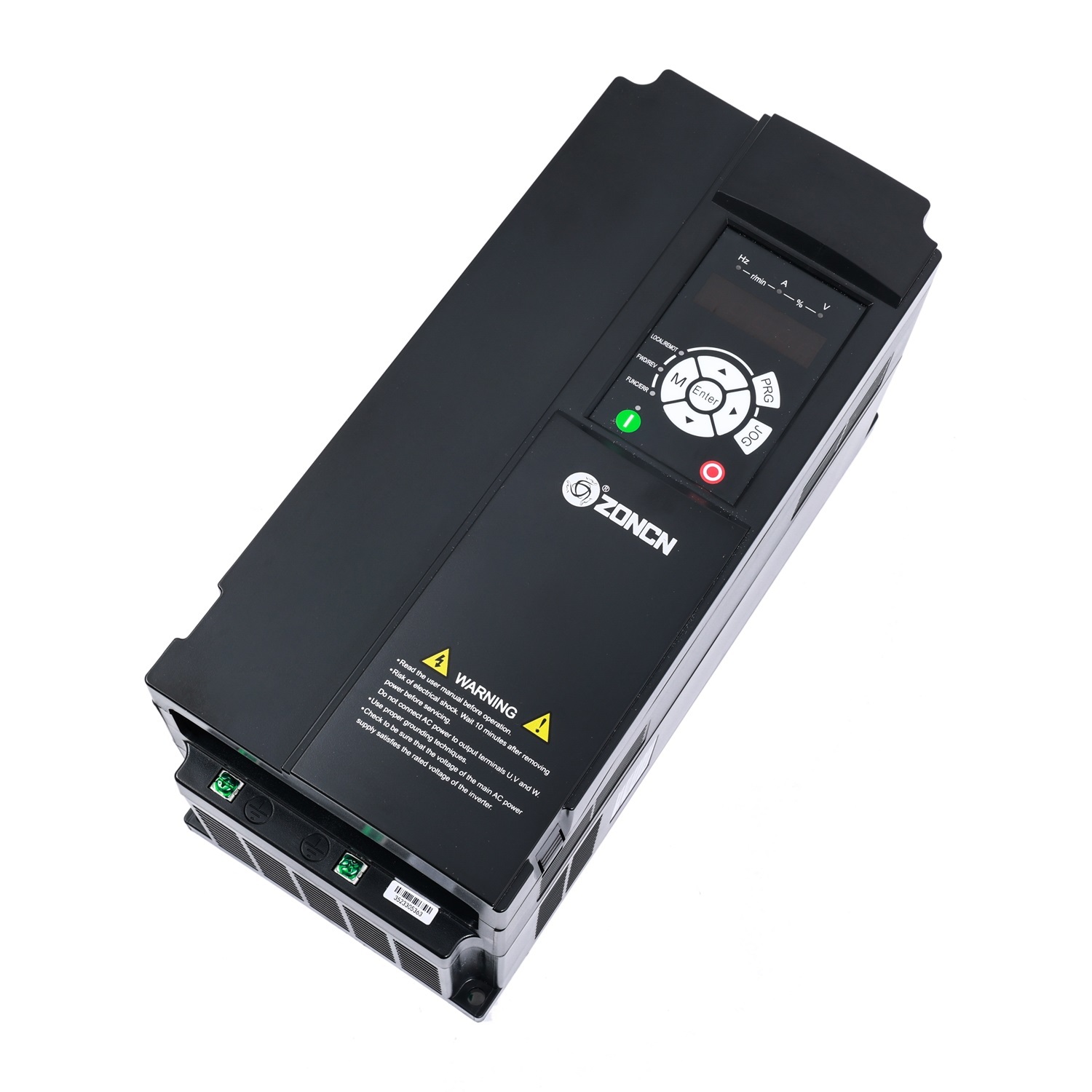

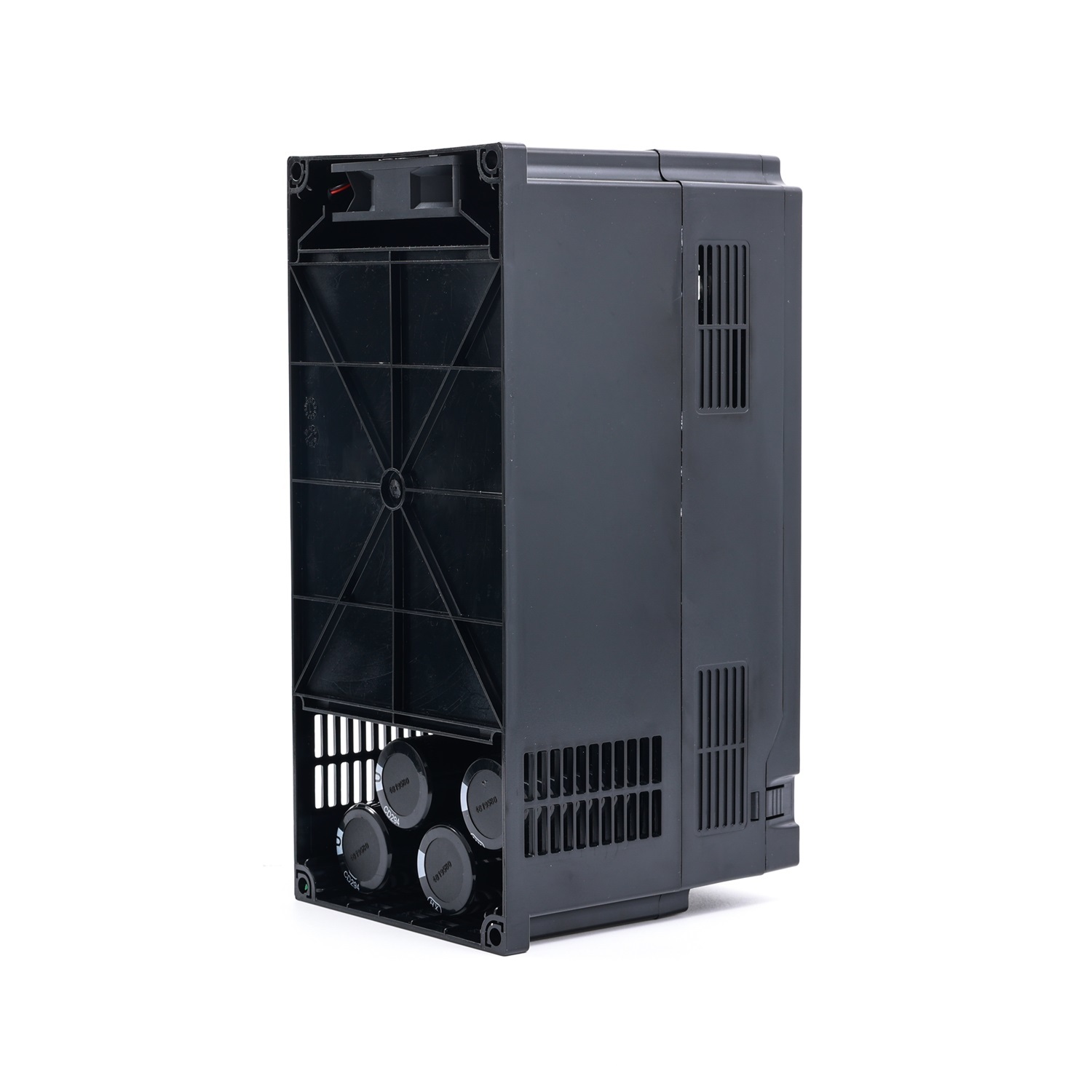

ZONCN T9000 Inverter

Universal Application Inverter 380v 22kw VFD Drives With RS485 Communication 0

Universal Application Inverter 380v 22kw VFD Drives With RS485 Communication 1

ZONCN T9000 Inverter Model	Input Voltage (V)	Rated output power(kW)	Rated input current(A)	Rated output current(A)	Motor Power (KW)
T9200-0R4G	1PH AC 220V±15%	0.4	5.4	2.5	0.4
T9200-0R75G		0.75	7.2	5	0.75
T9200-1R5G		1.5	10	7	1.5
T9200-2R2G		2.2	16	11	2.2
T9200-3R7G		3.7	17	16.5	3.7
T9200-5R5G		5.5	26	25	5.5
T9200-7R5G		7.5	35	32	7.5
T9400-0R4G	3PH AC 380V±15%	0.4	3.4	1.2	0.4
T9400-0R75G		0.75	3.8	2.5	0.75
T9400-1R5G		1.5	5	3.7	1.5
T9400-2R2G		2.2	5.8	5	2.2
T9400-3R7G/5R5P		3.7/5.5	10/15	9/13	3.7/5.5
T9400-5R5G/7R5P		5.5/7.5	15/20	13/17	5.5/7.5
T9400-7R5G/11P		7.5/11	20/26	17/25	7.5/11
T9400-11G/15P		11/15	26/35	25/32	11/15
T9400-15G/18.5P		15/18.5	35/38	32/37	15/18.5
T9400-18.5G/22P		18.5/22	38/46	37/45	18.5/22
T9400-22G/30P		22/30	46/62	45/60	22/30
T9400-30G/37P		30/37	62/76	60/75	30/37
T9400-37G/45P		37/45	76/90	75/90	37/45
T9400-45G/55P		45/55	92/113	90/110	45/55
T9400-55G		55	113	110	55
T9400-75G/90P		75/90	157/180	150/176	75/90
T9400-90G/110P		90/110	180/214	176/210	90/110
T9400-110G/132P		110/132	214/256	210/253	110/132
★Please contact us directly for inverter powers above 110kw

Inverter Specification

Item		Description
Basic function	Control Mode	VF control
		Sensorless flux vector control(SVC)
		Close-loop vector control(FVC)(Above 3.7kW)
	Maximum frequency	0~600Hz
	Carrier frequency	0.5kHZ——8kHz
		The carrier frequency is automatically adjusted based on the load features
	Input frequency resolution	Digital setting:0.01Hz
		Analog setting: Maximum frequency x 0.025%
	Start torque	G Type:0.5Hz/150%(SVC)
		P Type:0.5Hz/100%
	Speed range	1:100 (SVC)
	Speed stability accuracy	±0.5%(SVC)
	Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
	Torque boost	Auto-boost ;
		Customized boost: 0.1%~30.0%
	V/F Curve	Straight-line V/F curve
		Multi-point V/F curve
		N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
	V/F separation	2 types: complete separation; half separation
	Ramp Mode	Straight-line ramp.
		Four groups of acceleration/deceleration time with the range of 0.00`6500.0s
	DC braking	DC braking frequency:0.00Hz~Maximum frequency
		Braking time:0.0s~36.0s
		Braking action current value:0.0%~100.0%
	JOG control	JOG frequency range:0.00Hz~50.00Hz
		JOG acceleration/deceleration time: 0.0s~6500.0s.
	Simple PLC,Multiple preset speeds	It implements up to 16 speeds via the simple PLC function or combination of terminal states
	Onboard PID	It realizes process-controlled closed loop control system easily
	Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage
	Overvoltage/overcurrent stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
	Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
	Torque limit and control	It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be
		implemented in the FVC mode.
	Support for multiple PG card	Support for differential input PG card, resolver PG card ,rotating transformer PG card
