220v 380v 480v Variable Frequency Drive 0.4kw To 1000kw From Chinese Inverter Factory

220v 380v 480v Variable Frequency Drive 0.4kw To 1000kw From Chinese Inverter Factory
220v 380v 480v Variable Frequency Drive 0.4kw To 1000kw From Chinese Inverter Factory 220v 380v 480v Variable Frequency Drive 0.4kw To 1000kw From Chinese Inverter Factory 220v 380v 480v Variable Frequency Drive 0.4kw To 1000kw From Chinese Inverter Factory 220v 380v 480v Variable Frequency Drive 0.4kw To 1000kw From Chinese Inverter Factory 220v 380v 480v Variable Frequency Drive 0.4kw To 1000kw From Chinese Inverter Factory 220v 380v 480v Variable Frequency Drive 0.4kw To 1000kw From Chinese Inverter Factory 220v 380v 480v Variable Frequency Drive 0.4kw To 1000kw From Chinese Inverter Factory 220v 380v 480v Variable Frequency Drive 0.4kw To 1000kw From Chinese Inverter Factory 220v 380v 480v Variable Frequency Drive 0.4kw To 1000kw From Chinese Inverter Factory 220v 380v 480v Variable Frequency Drive 0.4kw To 1000kw From Chinese Inverter Factory 220v 380v 480v Variable Frequency Drive 0.4kw To 1000kw From Chinese Inverter Factory 220v 380v 480v Variable Frequency Drive 0.4kw To 1000kw From Chinese Inverter Factory
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE
Model Number: T9400-2R2G
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T,Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: Inverters Brand: ZONCN
Input: 380v+/-15% 3ph Output: 0-380v 3ph
Power: 2.2kw/3hp Control Mode: Vector Control
Communication: RS485 OEM Logo: Yes
Warranty: 18 Months Certificate: CE

Vfd Inverter Factory 0.4kw-1000kw Frequency Inverter VFD Variable Frequency Drive



Advantages of the ZONCN T9000 Series VFD Inverter

  • The advanced VFD inverter technology ensures superior energy efficiency, drastically cutting operational costs.

  • This precise VFD inverter provides exceptional speed and torque control for sensitive applications.

  • Engineered for reliability, this robust VFD inverter boasts a long operational lifespan with minimal maintenance.

  • The compact design of this specific VFD inverter allows for easy installation in space-constrained panels.

  • An intuitive user interface on this VFD inverter simplifies setup and parameter tuning.

  • This intelligent VFD inverter features comprehensive built-in protection for both the motor and itself.

  • The stable performance of this VFD inverter significantly reduces mechanical stress on equipment.

  • Advanced thermal management in this VFD inverter ensures consistent performance under heavy loads.

Applications of the ZONCN T9000 Series VFD Inverter

  • Industrial Automation: This versatile VFD inverter is ideal for controlling conveyor speed and synchronization.

  • HVAC Systems: Installing this VFD inverter on fans and pumps optimizes climate control and saves energy.

  • Water Treatment: This reliable VFD inverter precisely manages pump pressure and flow rates.

  • Material Handling: The robust VFD inverter controls hoists, cranes, and elevators smoothly.

  • Packaging Machinery: This high-performance VFD inverter ensures accurate positioning and motion control.

  • Food and Beverage: The easy-to-clean VFD inverter is suitable for production line conveyors and mixers.

  • Textile Industry: This precise VFD inverter maintains consistent spindle speeds for quality output.

  • Printing: The accurate VFD inverter is crucial for controlling tension and registration in printing presses.

In summary, the innovative VFD inverter from ZONCN, the T9000, is a top-tier solution for modern industrial motor control.

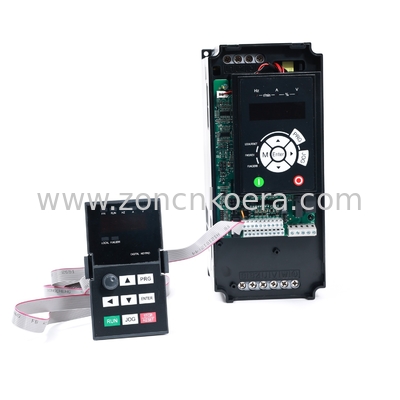

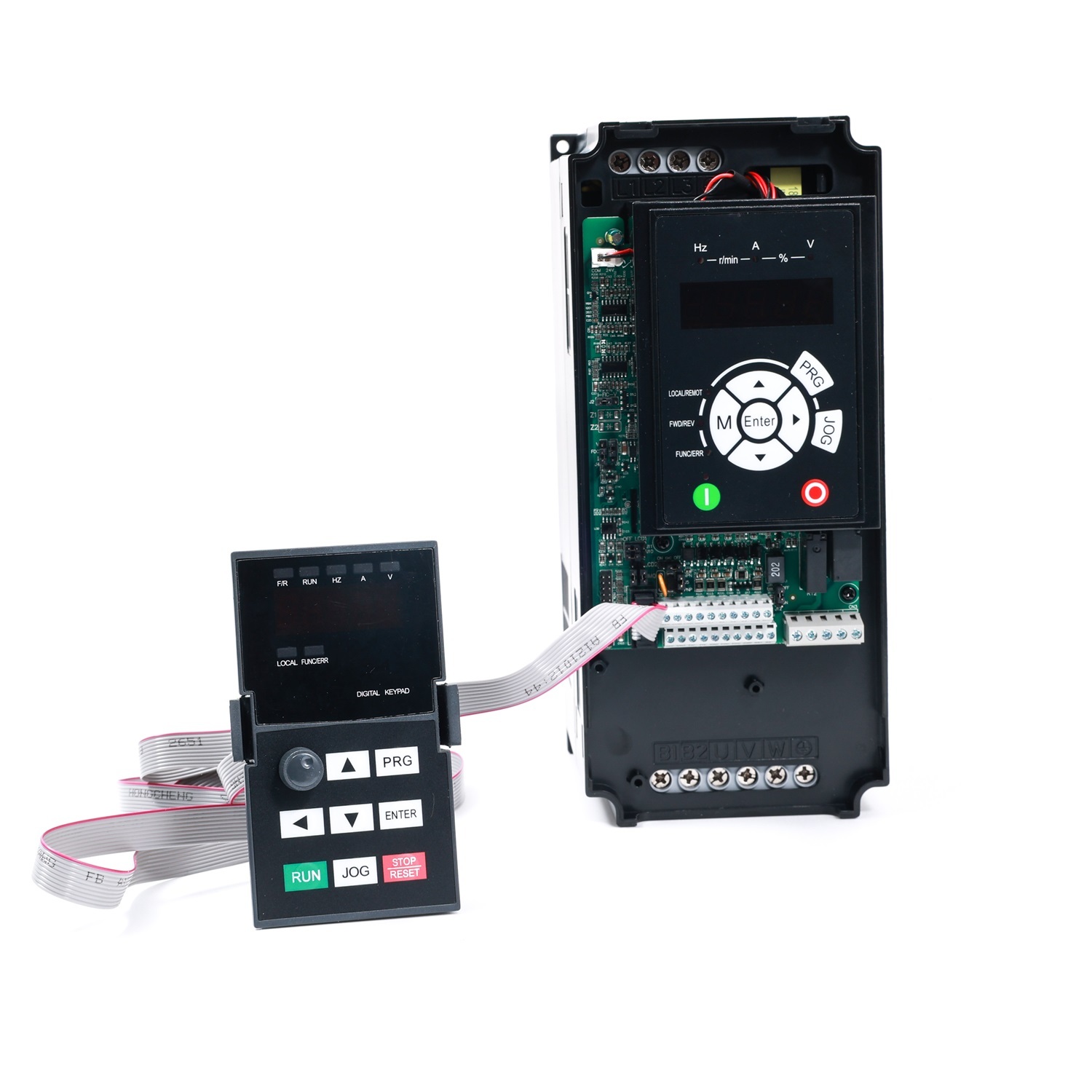

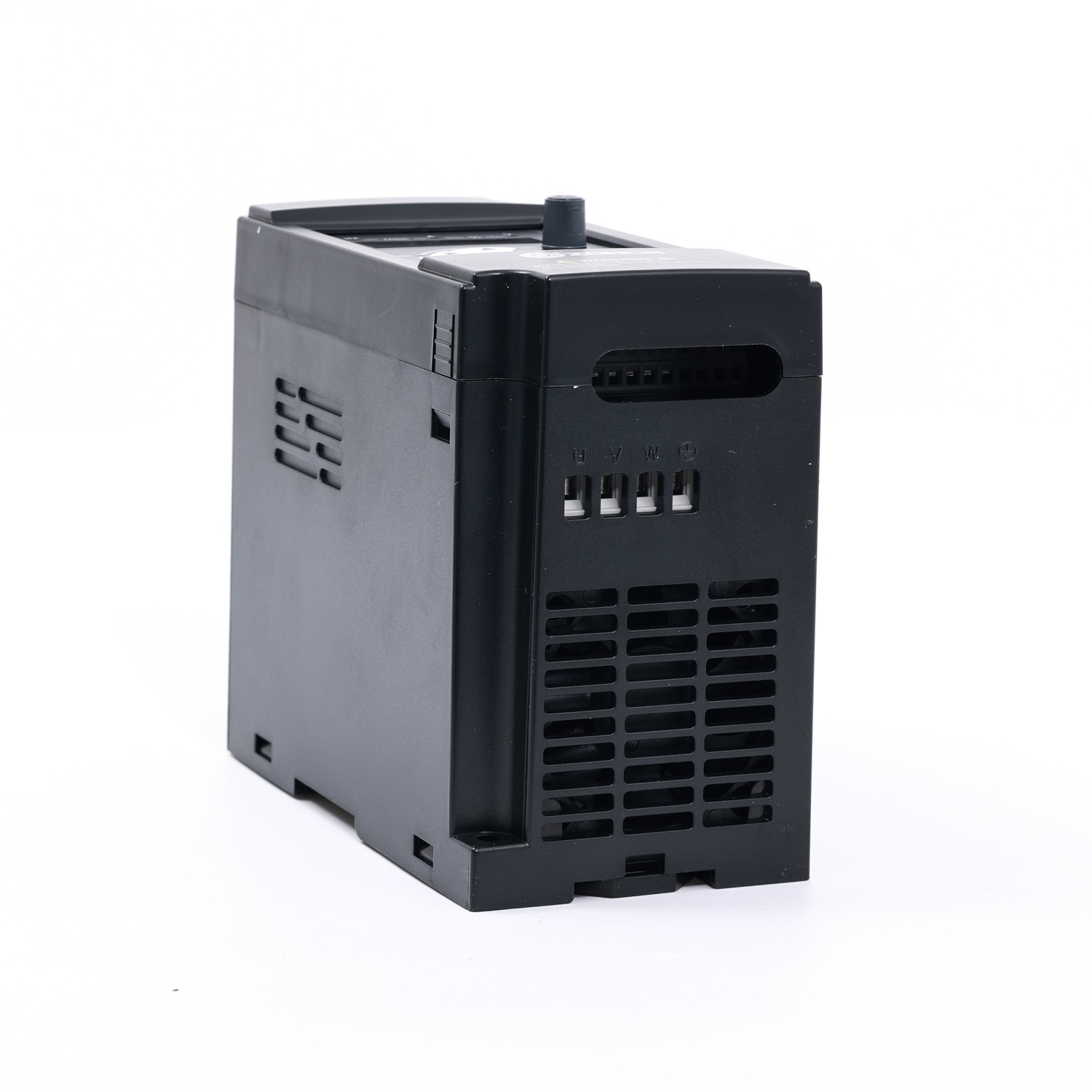

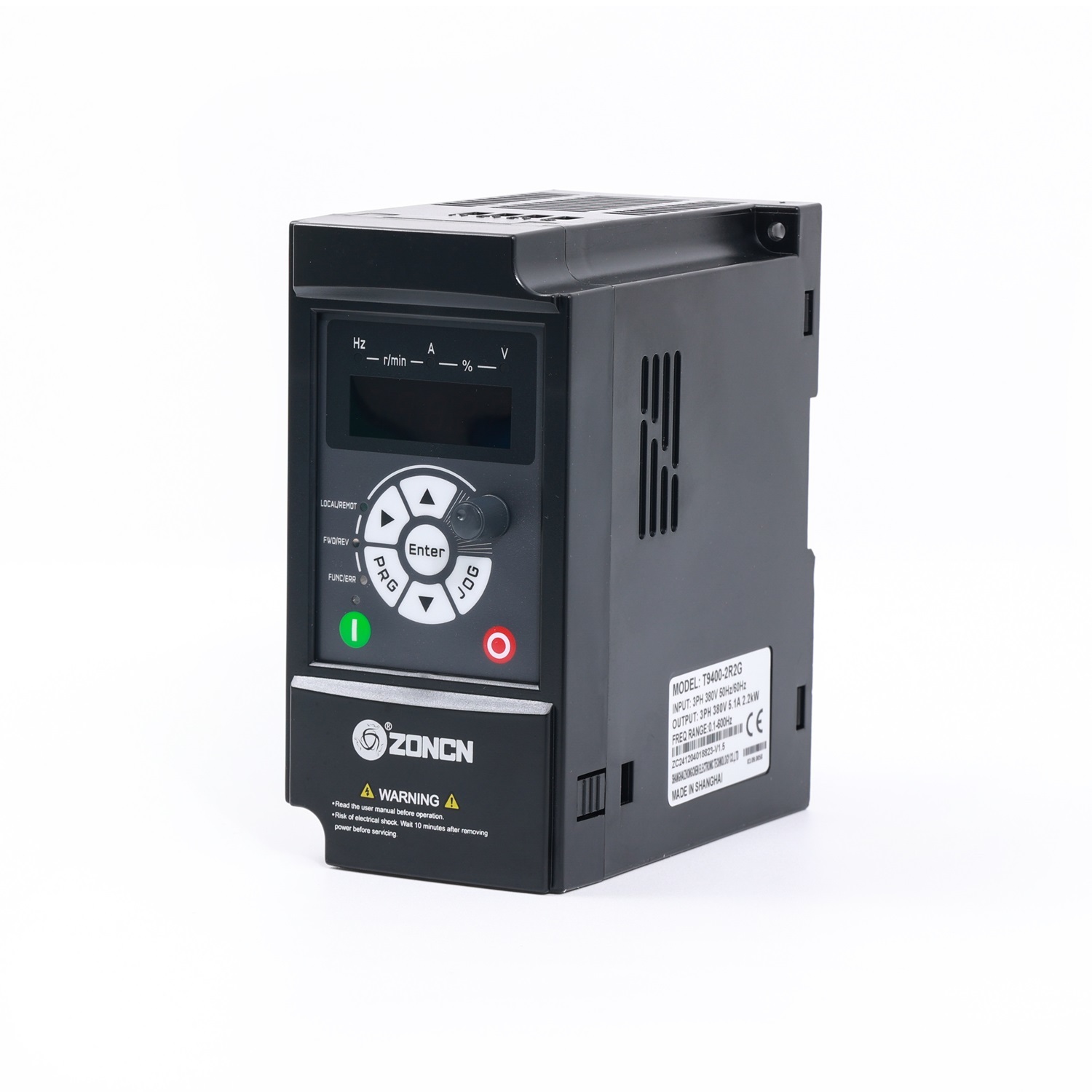

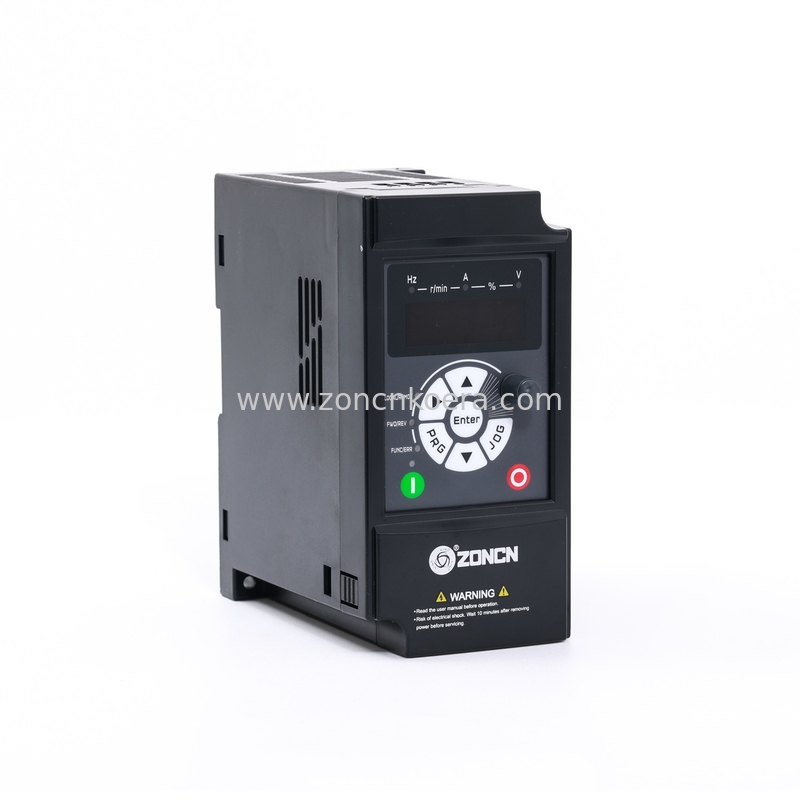

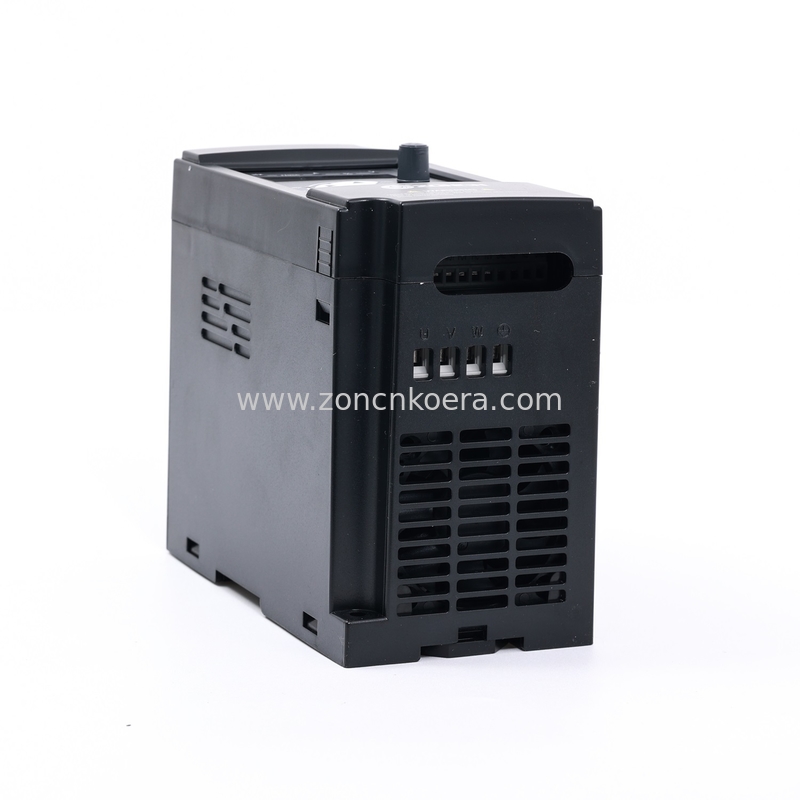

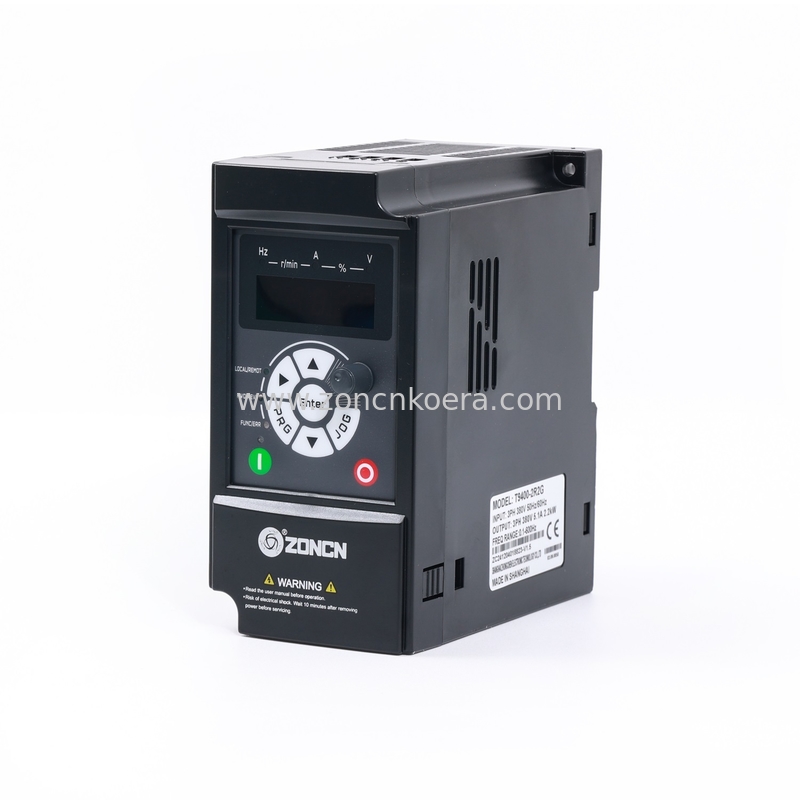

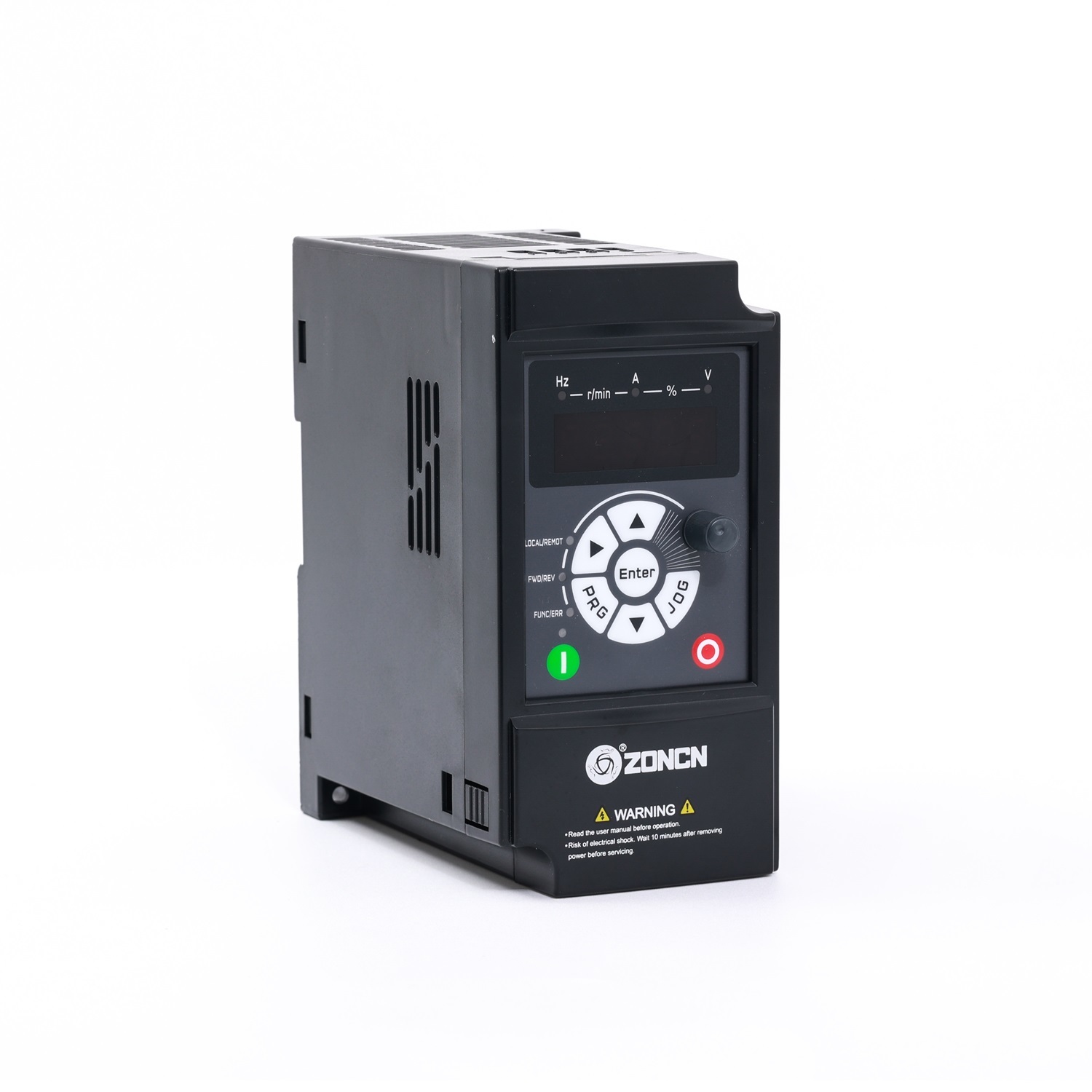

ZONCN T9000 Inverter

220v 380v 480v Variable Frequency Drive 0.4kw To 1000kw From Chinese Inverter Factory 0

220v 380v 480v Variable Frequency Drive 0.4kw To 1000kw From Chinese Inverter Factory 1

ZONCN T9000 Inverter Model Input Voltage (V) Rated output power(kW) Rated input current(A) Rated output current(A) Motor Power (KW)
T9200-0R4G 1PH AC 220V±15% 0.4 5.4 2.5 0.4
T9200-0R75G 0.75 7.2 5 0.75
T9200-1R5G 1.5 10 7 1.5
T9200-2R2G 2.2 16 11 2.2
T9200-3R7G 3.7 17 16.5 3.7
T9200-5R5G 5.5 26 25 5.5
T9200-7R5G 7.5 35 32 7.5
T9400-0R4G 3PH AC 380V±15% 0.4 3.4 1.2 0.4
T9400-0R75G 0.75 3.8 2.5 0.75
T9400-1R5G 1.5 5 3.7 1.5
T9400-2R2G 2.2 5.8 5 2.2
T9400-3R7G/5R5P 3.7/5.5 10/15 9/13 3.7/5.5
T9400-5R5G/7R5P 5.5/7.5 15/20 13/17 5.5/7.5
T9400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
T9400-11G/15P 11/15 26/35 25/32 11/15
T9400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
T9400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
T9400-22G/30P 22/30 46/62 45/60 22/30
T9400-30G/37P 30/37 62/76 60/75 30/37
T9400-37G/45P 37/45 76/90 75/90 37/45
T9400-45G/55P 45/55 92/113 90/110 45/55
T9400-55G 55 113 110 55
T9400-75G/90P 75/90 157/180 150/176 75/90
T9400-90G/110P 90/110 180/214 176/210 90/110
T9400-110G/132P 110/132 214/256 210/253 110/132
★Please contact us directly for inverter powers above 110kw



Inverter Specification

Item Description
Basic function Control Mode VF control
Sensorless flux vector control(SVC)
Close-loop vector control(FVC)(Above 3.7kW)
Maximum frequency 0~600Hz
Carrier frequency 0.5kHZ——8kHz
The carrier frequency is automatically adjusted based on the load features
Input frequency resolution Digital setting:0.01Hz
Analog setting: Maximum frequency x 0.025%
Start torque G Type:0.5Hz/150%(SVC)
P Type:0.5Hz/100%
Speed range 1:100 (SVC)
Speed stability accuracy ±0.5%(SVC)
Overload capacity G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto-boost ;
Customized boost: 0.1%~30.0%
V/F Curve Straight-line V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
V/F separation 2 types: complete separation; half separation
Ramp Mode Straight-line ramp.
Four groups of acceleration/deceleration time with the range of 0.00`6500.0s
DC braking DC braking frequency:0.00Hz~Maximum frequency
Braking time:0.0s~36.0s
Braking action current value:0.0%~100.0%
JOG control JOG frequency range:0.00Hz~50.00Hz
JOG acceleration/deceleration time: 0.0s~6500.0s.
Simple PLC,Multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of terminal states
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage
Overvoltage/overcurrent stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive.
Torque limit and control It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be
implemented in the FVC mode.
　 Support for multiple PG card Support for differential input PG card, resolver PG card ,rotating transformer PG card




About us

220v 380v 480v Variable Frequency Drive 0.4kw To 1000kw From Chinese Inverter Factory 2

220v 380v 480v Variable Frequency Drive 0.4kw To 1000kw From Chinese Inverter Factory 3

ZONCN other series




NZ100 Series:  Mini size, low cost, V/F control use for fan, pump, blower, conveyor, etc.



NZ200 Series: General-purpose vector inverter that supports open-loop vector control and V/F control. It has strong overload capacity, with 150% rated current sustainable for 60s and 180% rated current sustainable for 3s. It also features functions such as uninterrupted operation during instantaneous power failure and fast current limiting, and supports permanent magnet synchronous motor control.



T200 Series: High-performance vector inverter with a micro-compact design, supporting DIN rail installation. It has V/F control, open-loop vector control and closed-loop vector control modes, and is compatible with various expansion cards.



Z2000 Series: High-performance vector inverter. Power range 0.4kw-450kw. Support Ethercat communication.



Z8000 Series: ZONCN high peformance series, voltage 220v/380v/690v,  power range 0.4kw-1000kw. Support profibus communication.



Z5000BF Series: ip65/ip54 high protection series, which can be used in bad environment.
