Vfd Inverter Factory 0.4kw-1000kw Frequency Inverter VFD Variable Frequency Drive

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	CE
Model Number:	T9400-2R2G

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T,Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	VFD Variable Frequency Drive	Brand:	ZONCN
Voltage:	380v+/-15%	Power:	2.2kw/3hp
PID Control:	Built-in	24V Terminal:	Have
Communication:	RS485	Lead Time:	Within 15 Days Normally
Warranty:	18 Months	OEM Brand:	Yes

Vfd Inverter Factory 0.4kw-1000kw Frequency Inverter VFD Variable Frequency Drive

The ZONCN T9000 series represents the pinnacle of advanced motor control technology. This high-performance VFD inverter is engineered for superior precision and reliability in demanding industrial environments. The core function of this VFD inverter is to provide exceptional control over motor speed and torque.

Engineered for robustness, the T9000 VFD inverter features a compact design and enhanced thermal management. The sophisticated algorithm within this VFD inverter ensures smooth operation and minimizes mechanical stress on equipment. This specific VFD inverter model is renowned for its energy-saving capabilities, significantly reducing power consumption.

The application range for this versatile VFD inverter is vast. In manufacturing, this VFD inverter precisely controls conveyor belts and assembly lines. For HVAC systems, installing this VFD inverter on pumps and fans optimizes airflow and water pressure, leading to substantial energy savings. The robust construction of this VFD inverter makes it ideal for harsh applications like material handling.

User-friendly features are a hallmark of this VFD inverter, including an intuitive interface for easy configuration. The built-in PLC functionality in this VFD inverter allows for customized control logic. With comprehensive protective functions, this VFD inverter safeguards both itself and the connected motor from faults.

Ultimately, the T9000 VFD inverter delivers unmatched performance and efficiency. Choosing this VFD inverter from ZONCN means selecting a solution designed for productivity and cost reduction, solidifying its status as a premier VFD inverter solution.

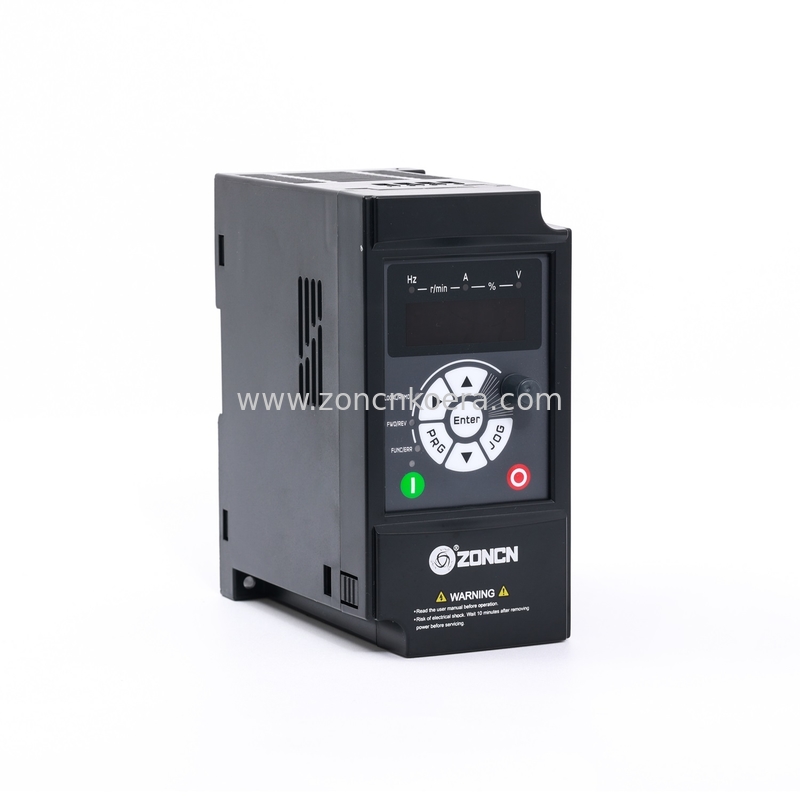

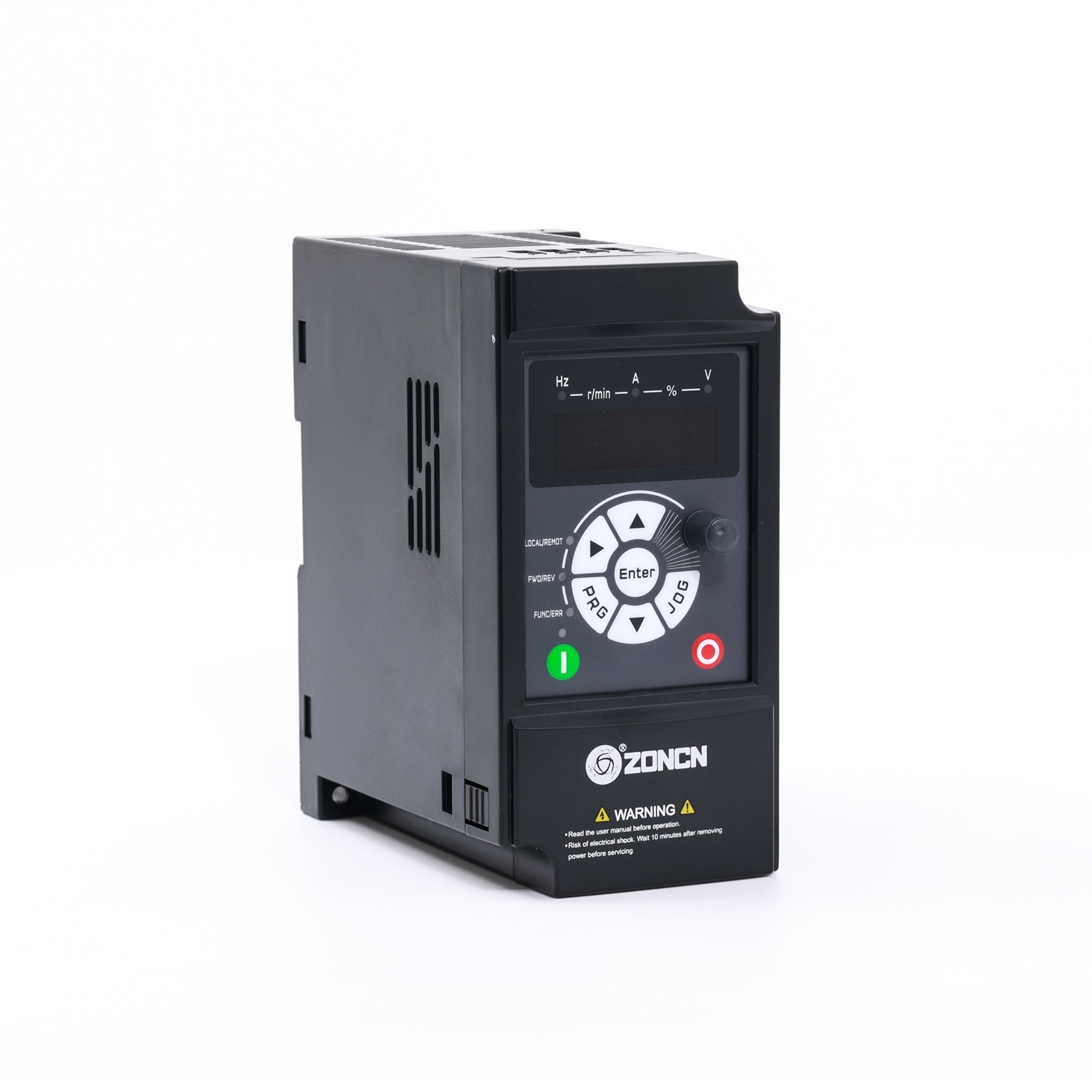

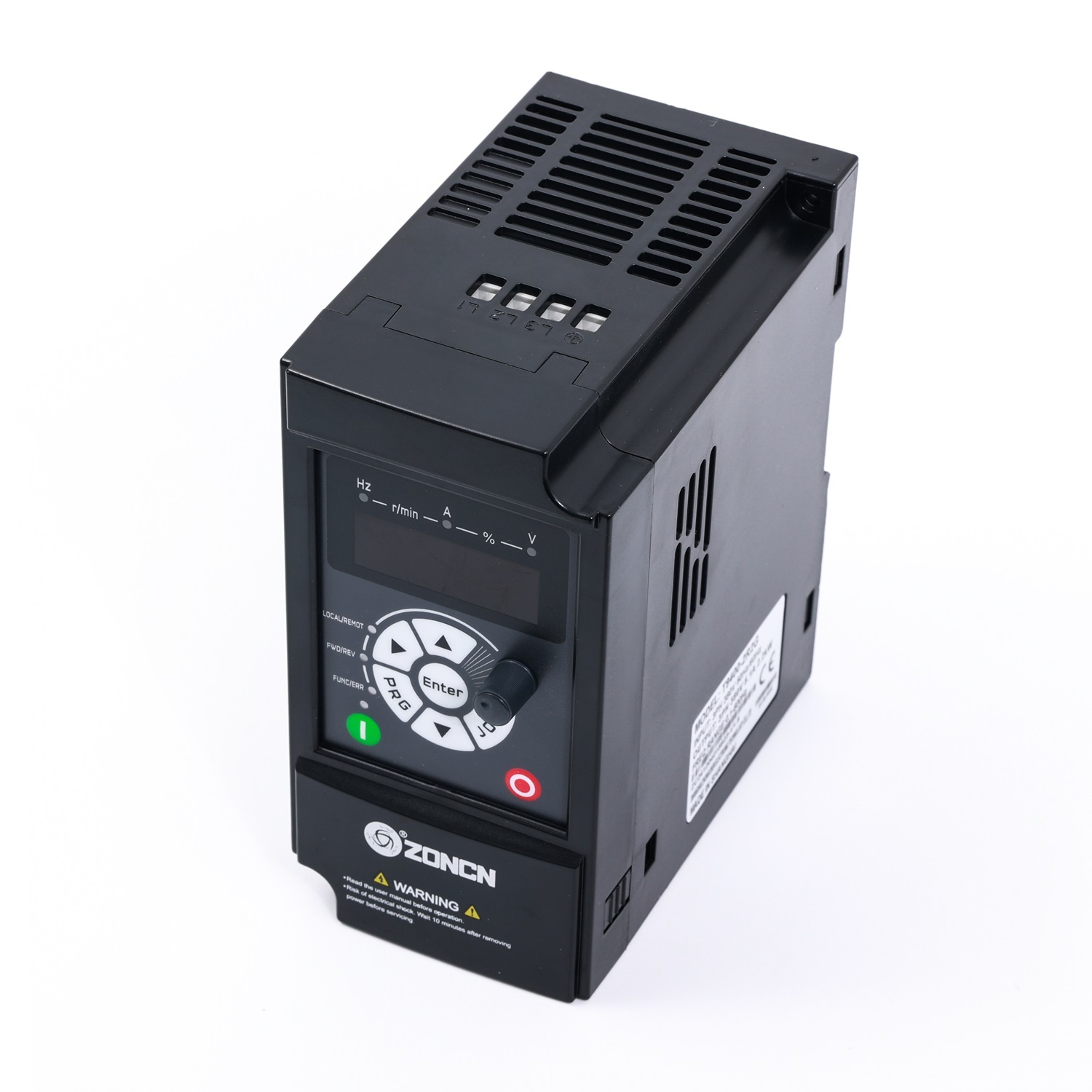

ZONCN T9000 Inverter

Vfd Inverter Factory 0.4kw-1000kw Frequency Inverter VFD Variable Frequency Drive 0

Vfd Inverter Factory 0.4kw-1000kw Frequency Inverter VFD Variable Frequency Drive 1

ZONCN T9000 Inverter Model	Input Voltage (V)	Rated output power(kW)	Rated input current(A)	Rated output current(A)	Motor Power (KW)
T9200-0R4G	1PH AC 220V±15%	0.4	5.4	2.5	0.4
T9200-0R75G		0.75	7.2	5	0.75
T9200-1R5G		1.5	10	7	1.5
T9200-2R2G		2.2	16	11	2.2
T9200-3R7G		3.7	17	16.5	3.7
T9200-5R5G		5.5	26	25	5.5
T9200-7R5G		7.5	35	32	7.5
T9400-0R4G	3PH AC 380V±15%	0.4	3.4	1.2	0.4
T9400-0R75G		0.75	3.8	2.5	0.75
T9400-1R5G		1.5	5	3.7	1.5
T9400-2R2G		2.2	5.8	5	2.2
T9400-3R7G/5R5P		3.7/5.5	10/15	9/13	3.7/5.5
T9400-5R5G/7R5P		5.5/7.5	15/20	13/17	5.5/7.5
T9400-7R5G/11P		7.5/11	20/26	17/25	7.5/11
T9400-11G/15P		11/15	26/35	25/32	11/15
T9400-15G/18.5P		15/18.5	35/38	32/37	15/18.5
T9400-18.5G/22P		18.5/22	38/46	37/45	18.5/22
T9400-22G/30P		22/30	46/62	45/60	22/30
T9400-30G/37P		30/37	62/76	60/75	30/37
T9400-37G/45P		37/45	76/90	75/90	37/45
T9400-45G/55P		45/55	92/113	90/110	45/55
T9400-55G		55	113	110	55
T9400-75G/90P		75/90	157/180	150/176	75/90
T9400-90G/110P		90/110	180/214	176/210	90/110
T9400-110G/132P		110/132	214/256	210/253	110/132
★Please contact us directly for inverter powers above 110kw

Inverter Specification

Item		Description
Basic function	Control Mode	VF control
		Sensorless flux vector control(SVC)
		Close-loop vector control(FVC)(Above 3.7kW)
	Maximum frequency	0~600Hz
	Carrier frequency	0.5kHZ——8kHz
		The carrier frequency is automatically adjusted based on the load features
	Input frequency resolution	Digital setting:0.01Hz
		Analog setting: Maximum frequency x 0.025%
	Start torque	G Type:0.5Hz/150%(SVC)
		P Type:0.5Hz/100%
	Speed range	1:100 (SVC)
	Speed stability accuracy	±0.5%(SVC)
	Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
	Torque boost	Auto-boost ;
		Customized boost: 0.1%~30.0%
	V/F Curve	Straight-line V/F curve
		Multi-point V/F curve
		N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
	V/F separation	2 types: complete separation; half separation
	Ramp Mode	Straight-line ramp.
		Four groups of acceleration/deceleration time with the range of 0.00`6500.0s
	DC braking	DC braking frequency:0.00Hz~Maximum frequency
		Braking time:0.0s~36.0s
		Braking action current value:0.0%~100.0%
	JOG control	JOG frequency range:0.00Hz~50.00Hz
		JOG acceleration/deceleration time: 0.0s~6500.0s.
	Simple PLC,Multiple preset speeds	It implements up to 16 speeds via the simple PLC function or combination of terminal states
	Onboard PID	It realizes process-controlled closed loop control system easily
	Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage
	Overvoltage/overcurrent stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
	Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
	Torque limit and control	It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be
		implemented in the FVC mode.
	Support for multiple PG card	Support for differential input PG card, resolver PG card ,rotating transformer PG card

Our Factory

Vfd Inverter Factory 0.4kw-1000kw Frequency Inverter VFD Variable Frequency Drive 2

Vfd Inverter Factory 0.4kw-1000kw Frequency Inverter VFD Variable Frequency Drive 3
