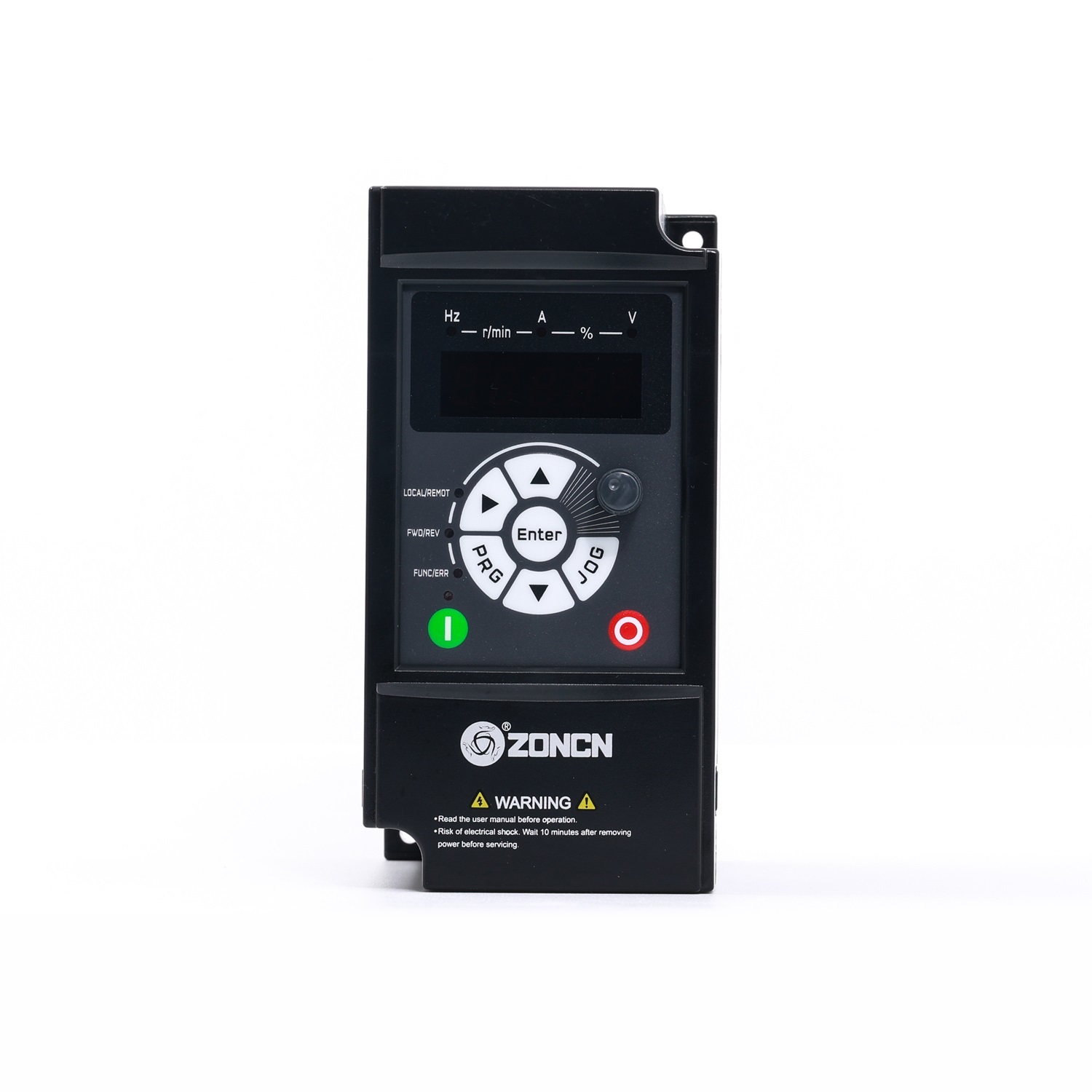

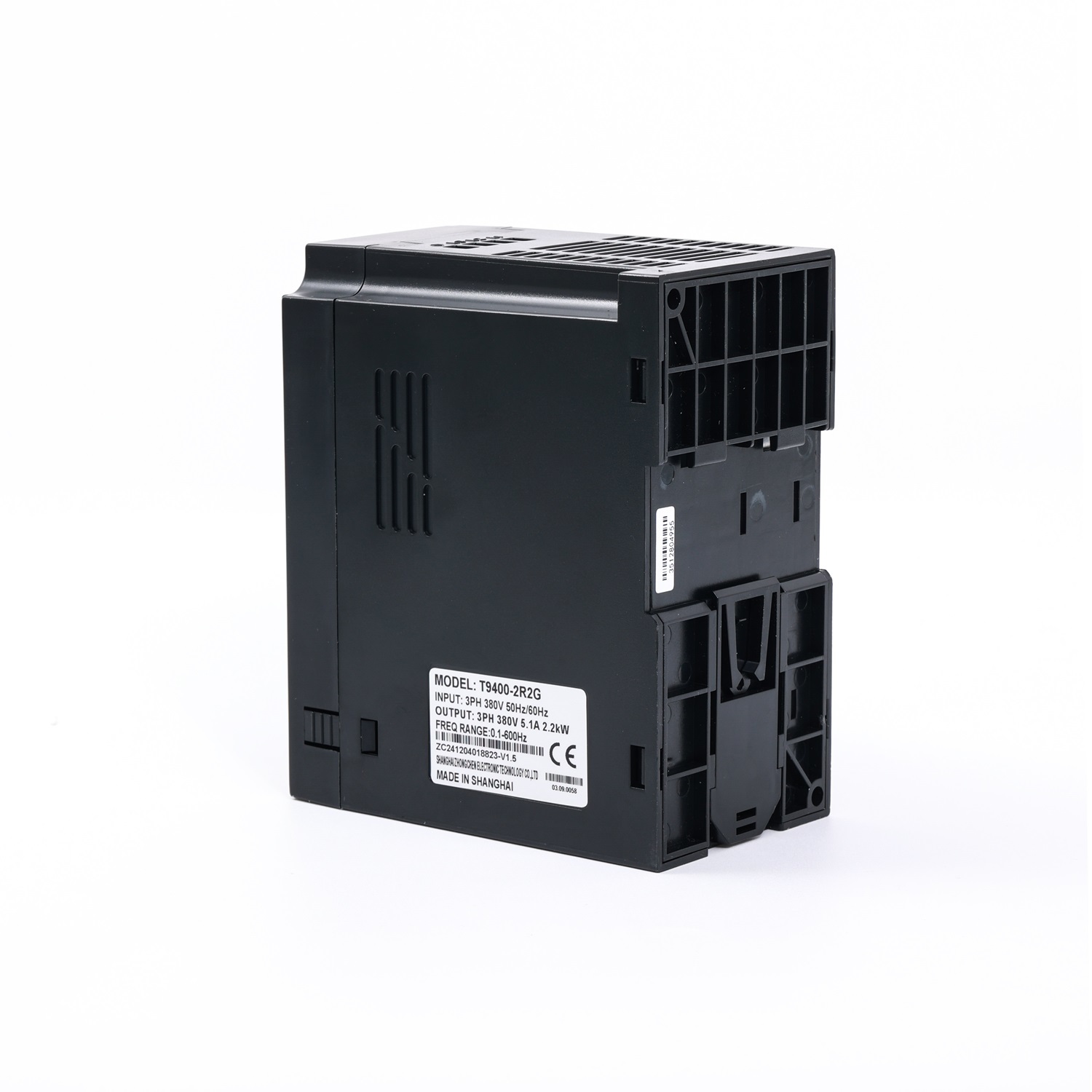

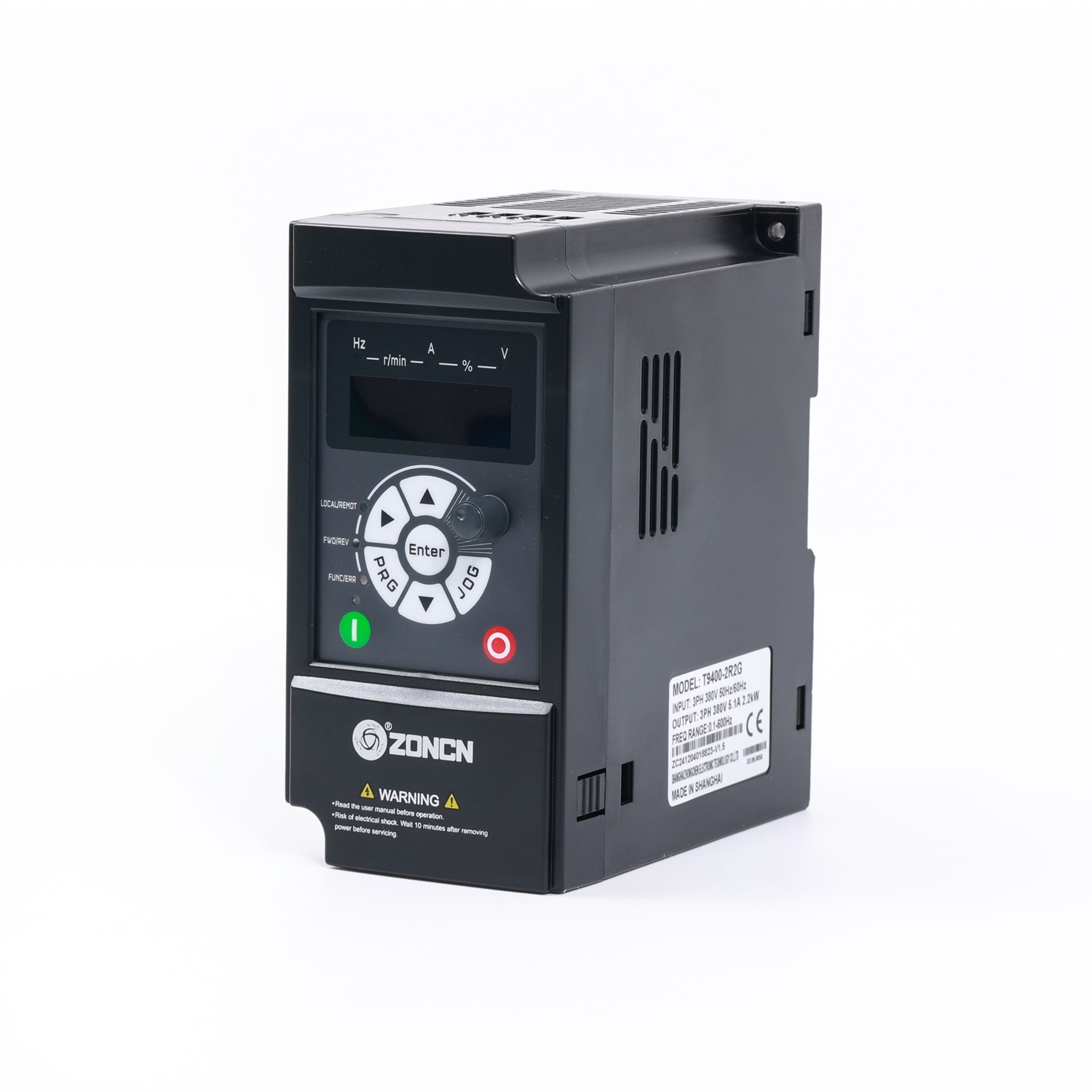

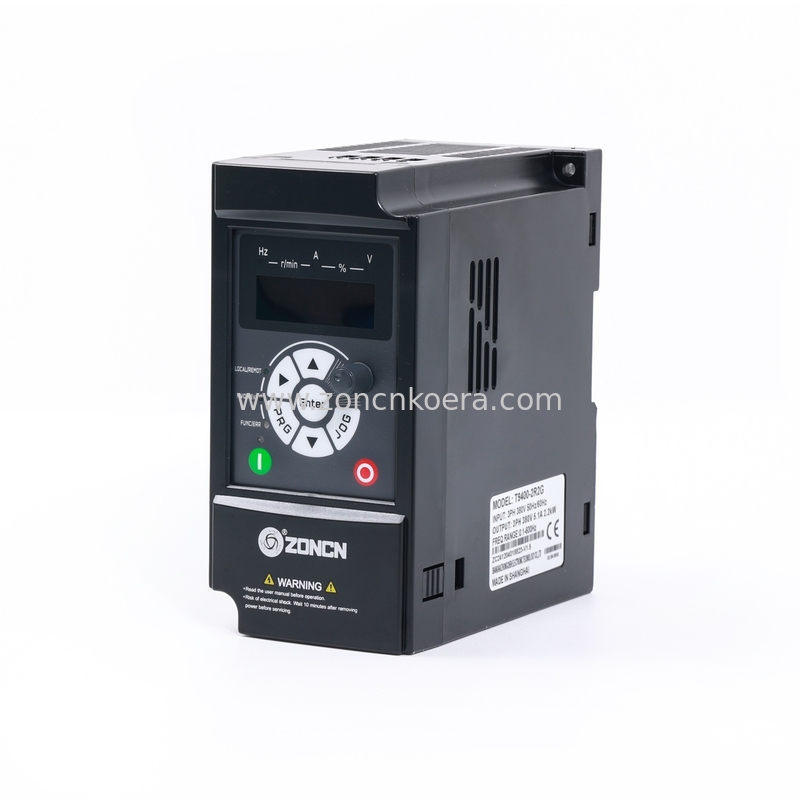

Inverter Manufacturing Vector Control Frequency Converter 2.2kw VFD AC Drives 380v

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	CE
Model Number:	T9400-2R2G

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T,Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	Variable Frequency Drives VFD	Brand:	ZONCN
Voltage:	380v	Power:	3HP/2.2kw
PID Control:	Built-in	24V Terminal:	Have

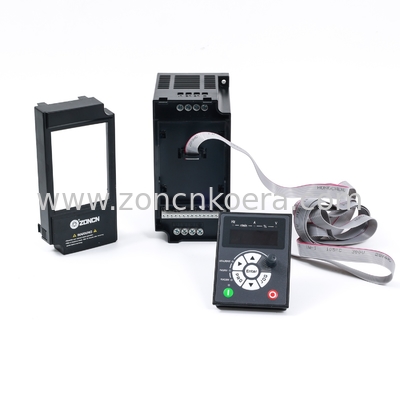

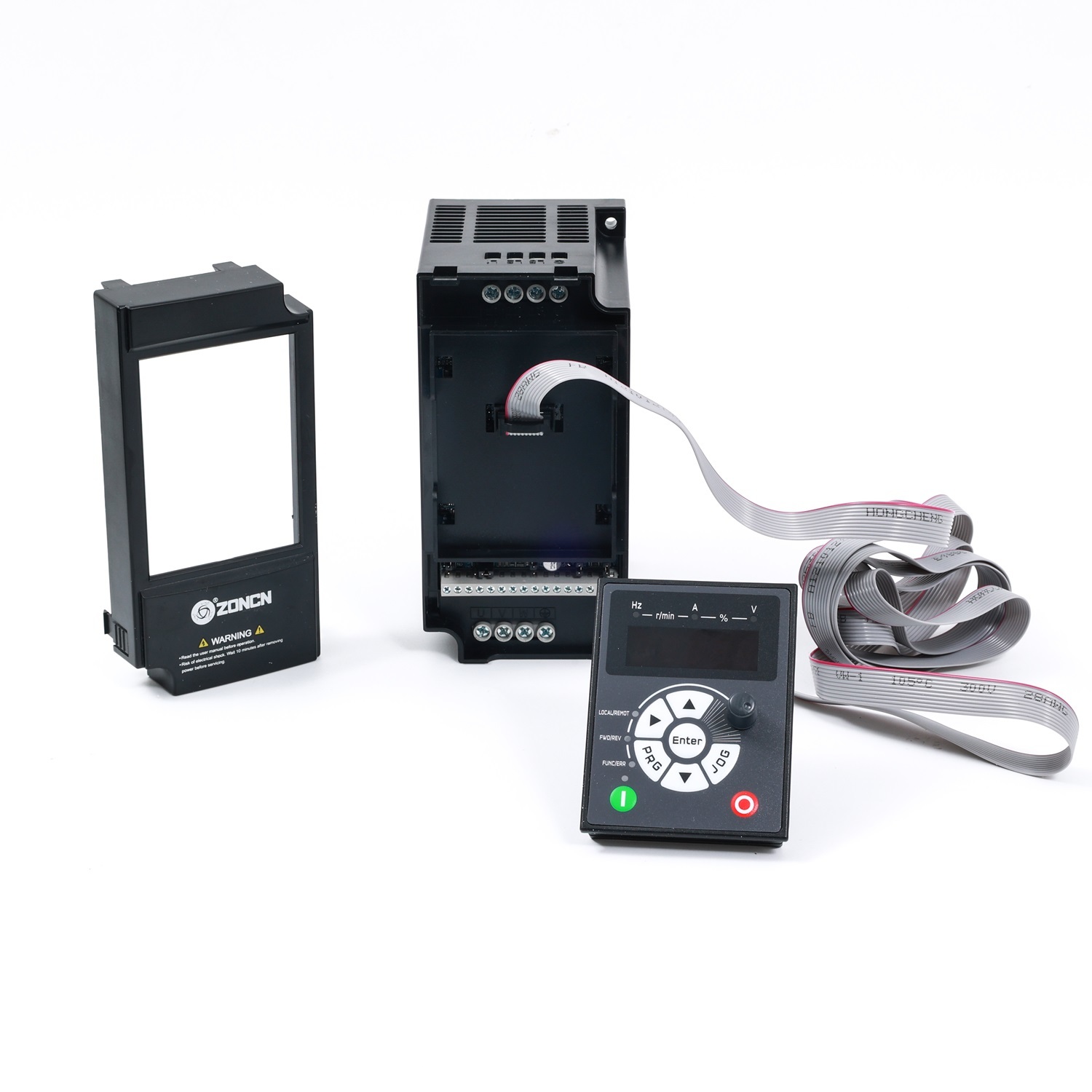

External Keypad:	Available	Weight:	2kg
MOQ:	1PC	Warranty:	18 Months

Inverter Manufacturing Vector Control Frequency Converter 2.2kw VFD AC Drives 380v

ZONCN is a leading supplier specializing in industrial automation solutions, with a core focus on the research, development, and manufacturing of high-performance VFD inverters. VFD inverter, or Variable Frequency Drive inverter, is the cornerstone of modern industrial energy savings and precise motor control.

The primary function of a VFD inverter is to control the speed and torque of an AC motor by varying the frequency and voltage of its power supply. The advanced technology within a VFD inverter allows for soft starting, reducing mechanical stress. The sophisticated design of a VFD inverter ensures optimal performance across various applications. By installing a VFD inverter, facilities can achieve significant reductions in energy consumption. The robust construction of a quality VFD inverter guarantees longevity even in demanding environments.

ZONCN's VFD inverter is engineered with precision, incorporating the latest innovations in VFD inverter technology. The intuitive interface on a ZONCN VFD inverter simplifies setup and operation. The reliability of their VFD inverter products minimizes downtime, enhancing overall productivity.

When you select a ZONCN VFD inverter, you are choosing a solution backed by strong technical support. The versatility of their VFD inverter lineup means there is a perfect VFD inverter for nearly every application. Ultimately, the strategic use of a VFD inverter is key to modern industrial efficiency, and ZONCN stands as a trusted partner in providing top-tier VFD inverter solutions worldwide. The company’s commitment to innovation ensures its VFD inverter products remain at the industry's forefront.

ZONCN T9000 Series

Inverter Specification

Item		Description
Basic function	Control Mode	VF control
		Sensorless flux vector control(SVC)
		Close-loop vector control(FVC)(Above 3.7kW)
	Maximum frequency	0~600Hz
	Carrier frequency	0.5kHZ——8kHz
		The carrier frequency is automatically adjusted based on the load features
	Input frequency resolution	Digital setting:0.01Hz
		Analog setting: Maximum frequency x 0.025%
	Start torque	G Type:0.5Hz/150%(SVC)
		P Type:0.5Hz/100%
	Speed range	1:100 (SVC)
	Speed stability accuracy	±0.5%(SVC)
	Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
	Torque boost	Auto-boost ;
		Customized boost: 0.1%~30.0%
	V/F Curve	Straight-line V/F curve
		Multi-point V/F curve
		N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
	V/F separation	2 types: complete separation; half separation
	Ramp Mode	Straight-line ramp.
		Four groups of acceleration/deceleration time with the range of 0.00`6500.0s
	DC braking	DC braking frequency:0.00Hz~Maximum frequency
		Braking time:0.0s~36.0s
		Braking action current value:0.0%~100.0%
	JOG control	JOG frequency range:0.00Hz~50.00Hz
		JOG acceleration/deceleration time: 0.0s~6500.0s.
	Simple PLC,Multiple preset speeds	It implements up to 16 speeds via the simple PLC function or combination of terminal states
	Onboard PID	It realizes process-controlled closed loop control system easily
	Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage
	Overvoltage/overcurrent stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
	Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
	Torque limit and control	It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be
		implemented in the FVC mode.
	Support for multiple PG card	Support for differential input PG card, resolver PG card ,rotating transformer PG card

ZONCN T9000 Inverter Model	Input Voltage (V)	Rated output power(kW)	Rated input current(A)	Rated output current(A)	Motor Power (KW)
T9200-0R4G	1PH AC 220V±15%	0.4	5.4	2.5	0.4
T9200-0R75G		0.75	7.2	5	0.75
T9200-1R5G		1.5	10	7	1.5
T9200-2R2G		2.2	16	11	2.2
T9200-3R7G		3.7	17	16.5	3.7
T9200-5R5G		5.5	26	25	5.5
T9200-7R5G		7.5	35	32	7.5
T9400-0R4G	3PH AC 380V±15%	0.4	3.4	1.2	0.4
T9400-0R75G		0.75	3.8	2.5	0.75
T9400-1R5G		1.5	5	3.7	1.5
T9400-2R2G		2.2	5.8	5	2.2
T9400-3R7G/5R5P		3.7/5.5	10/15	9/13	3.7/5.5
T9400-5R5G/7R5P		5.5/7.5	15/20	13/17	5.5/7.5
T9400-7R5G/11P		7.5/11	20/26	17/25	7.5/11
T9400-11G/15P		11/15	26/35	25/32	11/15
T9400-15G/18.5P		15/18.5	35/38	32/37	15/18.5
T9400-18.5G/22P		18.5/22	38/46	37/45	18.5/22
T9400-22G/30P		22/30	46/62	45/60	22/30
T9400-30G/37P		30/37	62/76	60/75	30/37
T9400-37G/45P		37/45	76/90	75/90	37/45
T9400-45G/55P		45/55	92/113	90/110	45/55
T9400-55G		55	113	110	55
T9400-75G/90P		75/90	157/180	150/176	75/90
T9400-90G/110P		90/110	180/214	176/210	90/110
T9400-110G/132P		110/132	214/256	210/253	110/132
★Please contact us directly for inverter powers above 110kw
