Place of Origin: | China |
---|---|
Brand Name: | ZONCN |
Certification: | KC; CE |
Model Number: | NZ100-1R5G-4 |
Minimum Order Quantity: | 1 PC |
Packaging Details: | inside: box; outside: carton |
Delivery Time: | 7-30 days |
Payment Terms: | T/T, L/C, Western Union, Paypal |
Supply Ability: | 100,000 pcs/month |
Product: | Variable Frequency Drives | Brand: | ZONCN |
---|---|---|---|
Series: | NZ100 | Control Mode: | V/F Control |
PID Control: | Built-in | Power: | 1.5kw/2HP |
Communication: | RS485 | Protection: | IP20 |
Cooling Mode: | Forced Air Cooling | OEM: | Yes |
Highlight: | 0.75kw VFD Inverter Factory,1.5kw VFD Inverter Factory,380v VFD Inverter Factory |
VFD Inverter Factory High Performance 380v Variable Frequency Drives 0.75kw 1.5kw
ZONCN NZ100 Series VFD: Key Features & Advantages
Advanced Control
This high-performance VFD features V/F control with built-in PID for precise motor regulation. The intelligent VFD automatically adjusts parameters for optimal operation.
User-Friendly Design
The compact VFD has externally accessible ports for easy wiring and maintenance.
Includes a detachable remote control keypad, allowing flexible operation from a distance.

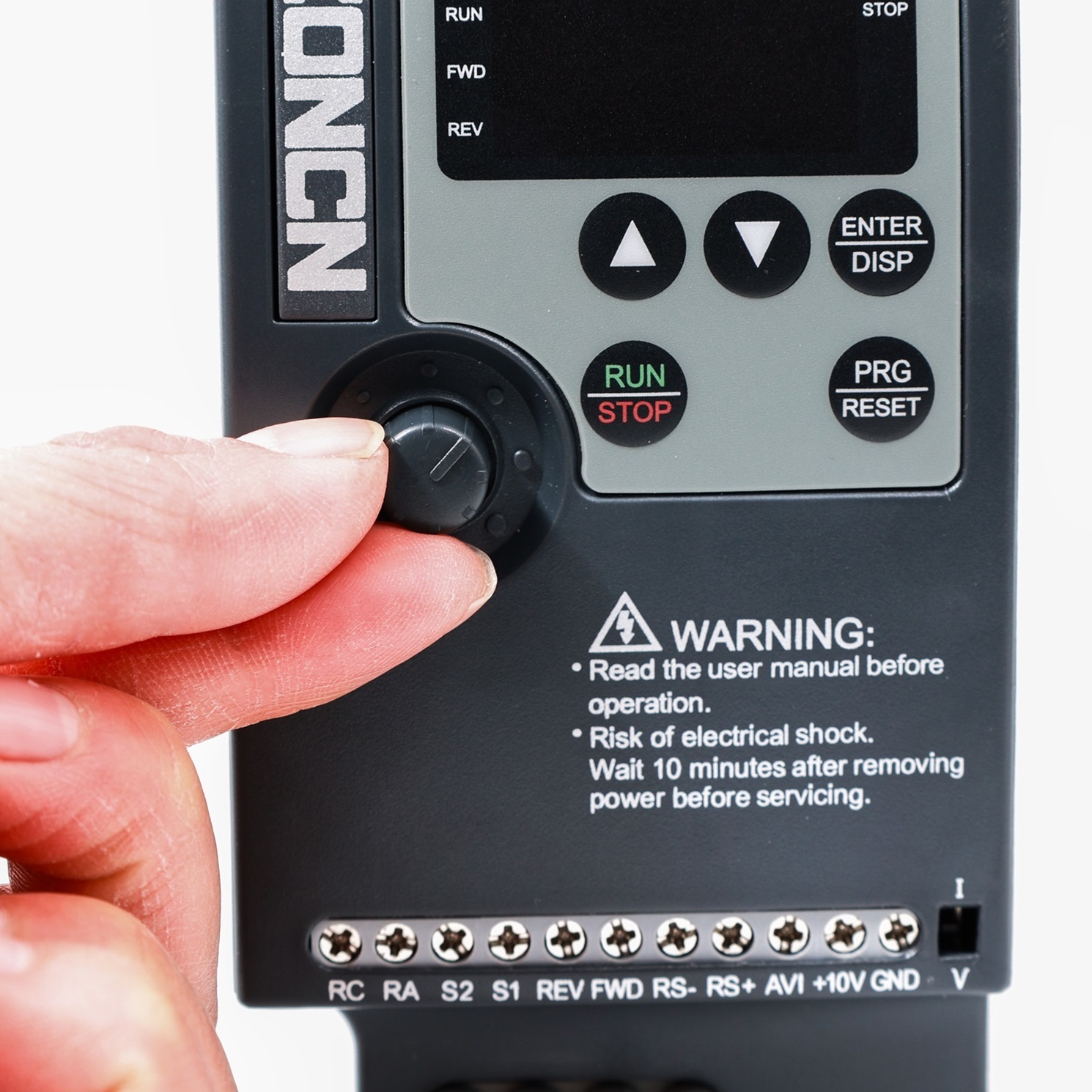

Equipped with a manual potentiometer knob for quick speed adjustment.
Versatile I/O Options
The VFD provides analog input terminals (0-10V/4-20mA) for seamless sensor integration.
Supports RS485 communication (MODBUS RTU/ASCII), enabling PLC/SCADA connectivity.
Space-Saving Installation
With its ultra-compact size, this VFD fits perfectly in tight control cabinets.
Units ≤5.5KW feature 35mm DIN rail mounting for tool-free installation.
Customization Ready
The OEM-friendly VFD supports customized firmware and parameter presets.
Includes programmable multi-function terminals for special applications.
Reliable Protection
This durable VFD offers overcurrent/overvoltage protection with IP20 rating.
Operates stably in -10°C~50°C environments.
Energy Efficient
The smart VFD reduces energy consumption by 20-40% through optimized algorithms.
Ideal for pumps, conveyors and OEM equipment, this feature-packed VFD delivers exceptional value. The NZ100 VFD combines compact design with professional-grade functionality.
VFD inverter's Nameplate Description
VFD inverter's Specification
VFD Model | Input Voltage | Output Power (KW) | Input Current (A) | Output Current (A) | Motor Equipped (KW) |
NZ100-0R4G-2 | 1PH AC220V+/-15% | 0.4 | 5.4 | 2.5 | 0.4 |
NZ100-0R75G-2 | 0.75 | 8.2 | 5 | 0.75 | |
NZ100-1R5G-2 | 1.5 | 14 | 7 | 1.5 | |
NZ100-2R2G-2 | 2.2 | 23 | 11 | 2.2 | |
NZ100-0R75G-4 | 3PH AC380V+/-15% | 0.75 | 3.4 | 2.7 | 0.75 |
NZ100-1R5G-4 | 1.5 | 5.0 | 4.0 | 1.5 | |
NZ100-2R2G-4 | 2.2 | 5.8 | 5.0 | 2.2 | |
NZ100-3R7G-4 | 3.7 | 10.7 | 8.6 | 3.7 | |
NZ100-5R5G-4 | 5.5 | 14.6 | 12.5 | 5.5 | |
For powers above 5.5kw, NZ200 series with vector control is recommended. |
