High Protection IP65 VFD Inverter 0.75kw 1.5kw 2.2w 220v 1hp 2hp 3hp

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	KC; CE
Model Number:	Z5200A0D75K-BF

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	VFD Inverter	Brand:	ZONCN
Protection:	IP65	Communication:	RS485
Frequency:	50hz / 60Hz	EMC Filter:	Built-in
Power Range:	0.75kw-160kw	Voltage:	110V/220V/400V
Analog Input:	0-10V, 0-20mA	OEM:	Support
Warranty:	18 Months	Delivery Time:	15 Days Normally
Highlight:	0.75kw IP65 VFD Inverter , 1hp IP65 VFD Inverter , 1.5kw IP65 VFD Inverter

High Protection IP65 VFD Inverter 0.75kw 1.5kw 2.2w 220v Variadores 1hp 2hp 3hp

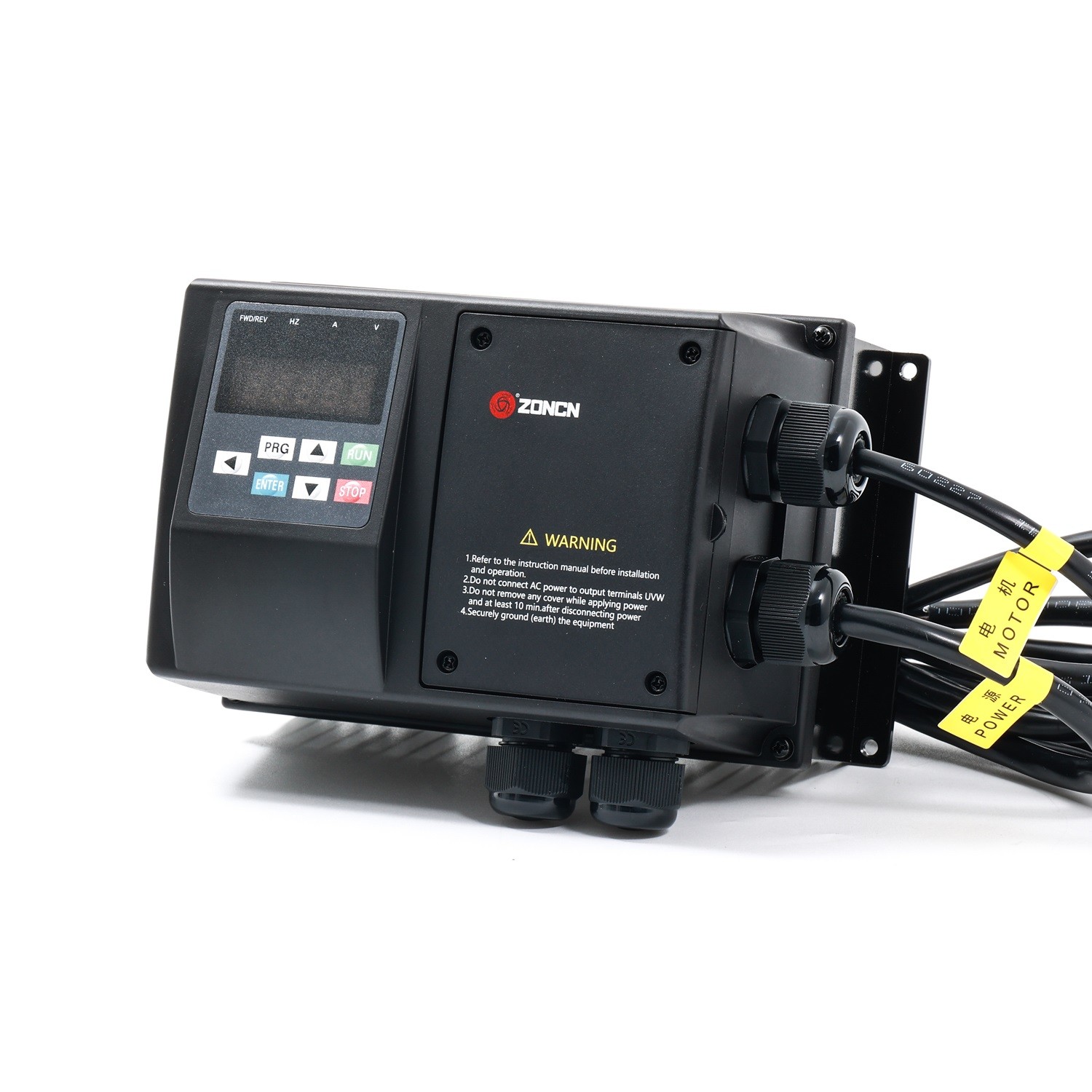

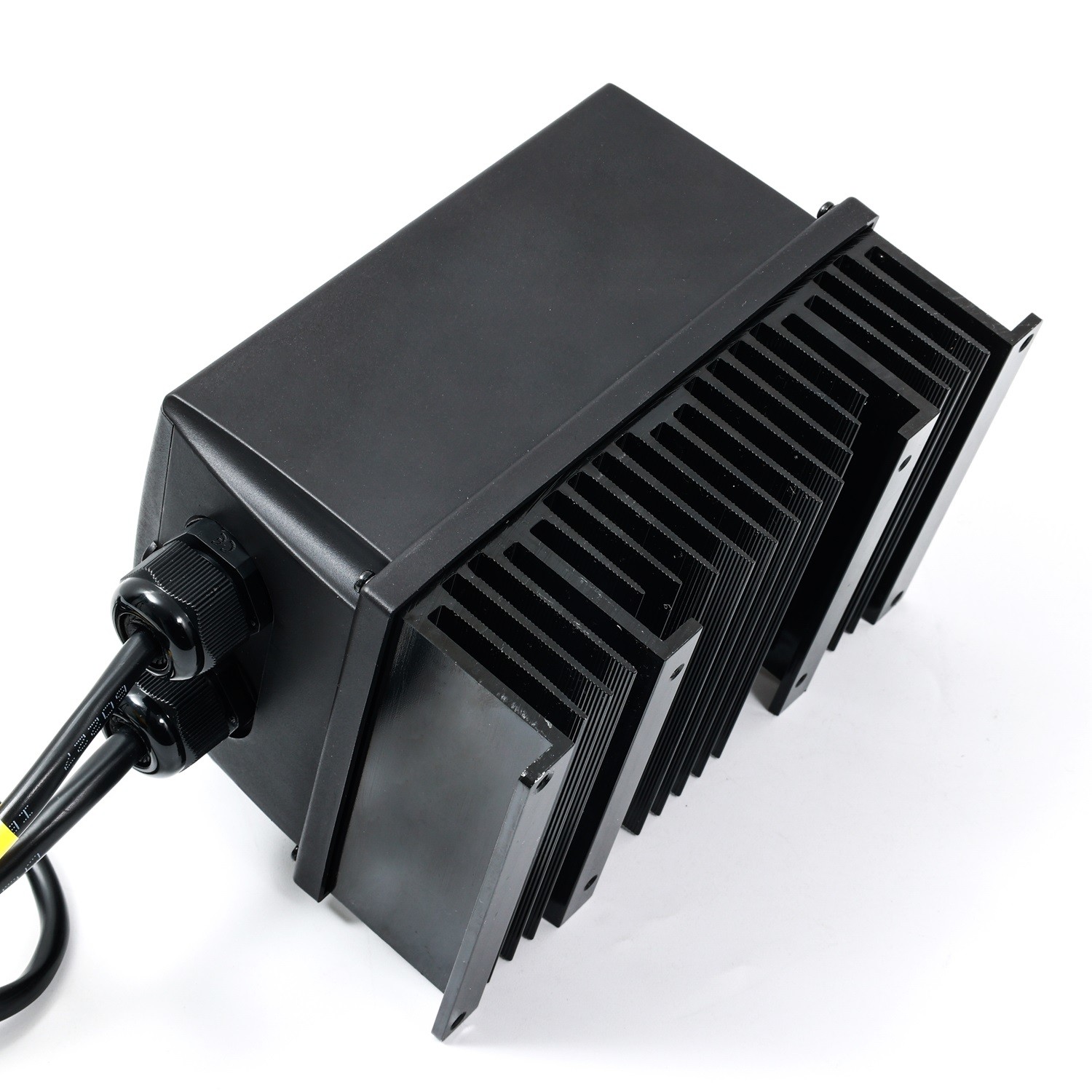

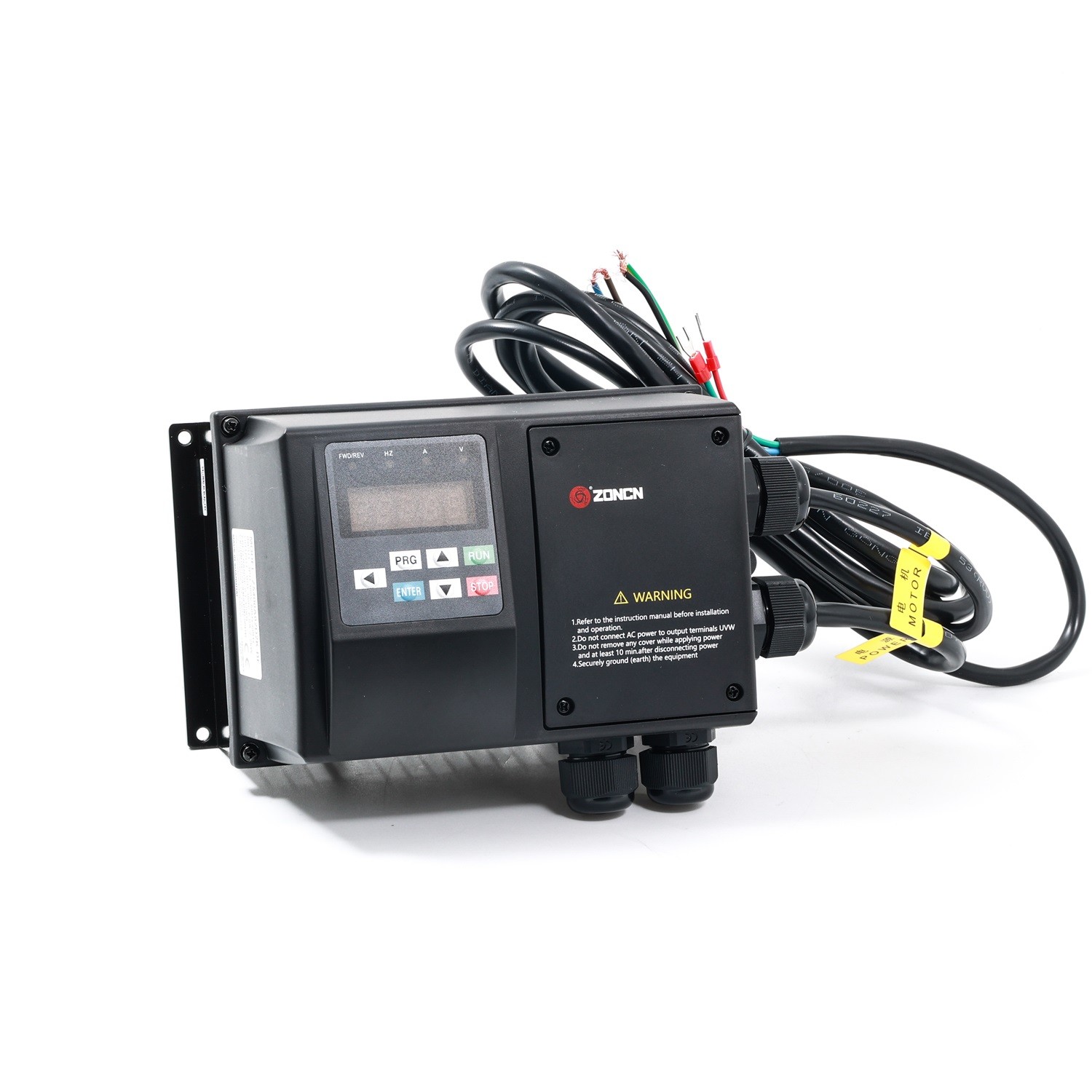

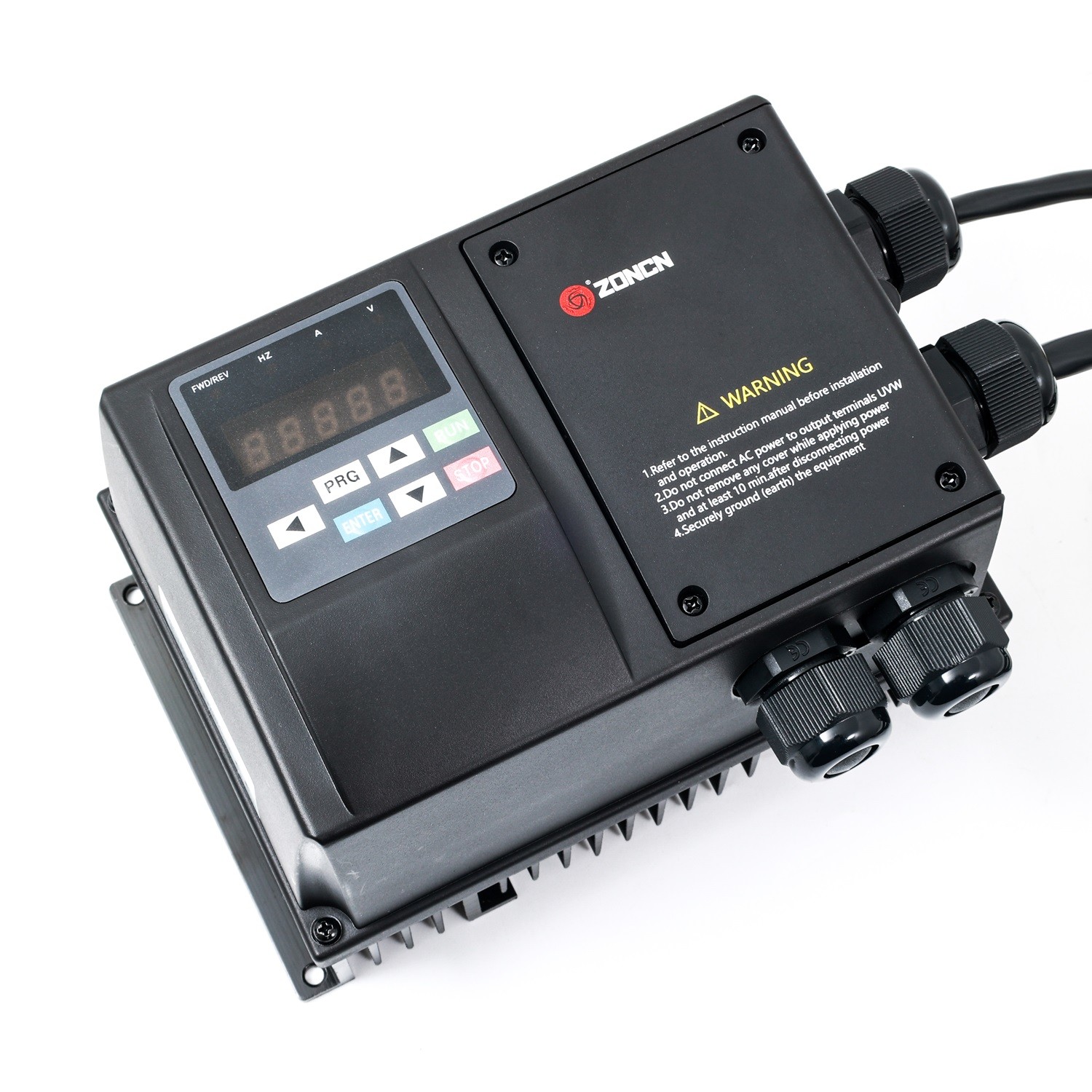

Introducing the ZONCN IP65 High-Protection VFD Series Z5000

The ZONCN IP65 VFD Series Z5000 is a cutting-edge variable frequency drive (VFD) designed for demanding industrial environments. With an IP65 protection rating, this VFD ensures superior resistance against dust and water, making it ideal for harsh applications.

This VFD delivers precise motor control, enhancing energy efficiency and operational reliability. The Z5000 VFD supports a wide power range, catering to diverse industrial needs. Its robust construction ensures the VFD performs flawlessly in extreme conditions, reducing downtime.

Key features of this VFD include advanced thermal management, overload protection, and user-friendly programming. The Z5000 VFD also offers seamless integration with automation systems, boosting productivity.

Engineered for durability, this VFD is perfect for industries like food processing, mining, and wastewater treatment. The IP65-rated VFD guarantees long-term performance, even in wet or dusty environments.

With its compact design and high efficiency, the ZONCN Z5000 VFD stands out as a top-tier variable frequency drive. Whether for pumps, fans, or conveyors, this VFD ensures smooth and reliable operation.

Upgrade to the Z5000 VFD for unmatched protection and performance. Trust this VFD to deliver consistent results in the toughest conditions. The ZONCN IP65 VFD Series Z5000—where innovation meets industrial strength.

VFD Inverter Description

ITEM		Z5000-BF
Input	Rated voltage, Frequency	1PH/3PH AC 220V 50/60Hz; 3PH AC 380V 50/60 Hz
Input	Voltage Range	220V: 170~240V; 380V: 330V～440V
Output	Voltage Range	220V: 0~220V ; 380 V: 0～380 V
Output	Frequency Range	0.10～400.0 Hz
Control method		V/F control, Space vector control
Indication		Operating status/Alarm definition, interactive guidance; eg, frequency setting, the output frequency /current, rotating speed, fault and so on.
Control specification	Output Frequency Range	0.10～400.00 Hz.
	Frequency Setting Resolution	Digital input: 0.01 Hz.
	Frequency Setting Resolution	Analog input:0,1% of maximum output frequency
	Output Frequency Accuracy	0.01 Hz.
	V/F Control	Setting V/F curve to satisfy various load requirements
	Torque Control	Auto increase: auto raise torque by loading condition; Manual increase: enable to set 0.0~20% of raising torque
	Multifunctional Input Terminal	4 multi-function input terminals, realizing functions including 15 section speed control, program running, 4 section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions
	Multifunctional Output Terminal	1 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings
	Acceleration/deceleration Time Setting	0~999.9 s acceleration/deceleration time can be set individually
Other functions	PID Control	Built-in PID control
	RS485	Standard RS485 communication function (MODBUS)
	Frequency Setting	Analog input 0～10V, 0～20мА, can be selected; Digital input: input using the setting dial of the operation panel or RS 485 or UP/DOWN
	Multi-speed	4 multi-function input terminals,15 section speed can be set
	Automatic voltage regulation	Automatic voltage regulation function can be selected
	Counter	Built-in 2 group of counters
Protection function	Overload	150%, 60s (Constant torque); 120%,60s (variable torque)
	Over Voltage	Over voltage protection can be set
	Under Voltage	Under voltage protection can be set
	Other Protections	Output short-circuit, over current, and parameter lock and so on.
Environment	Ambient Temperature	–10℃~40℃(non-freezing)
	Ambient Humidity	Max. 95% (non-condensing)
	Altitude	Lower than 1000м.
	Vibration	Max. 0.5 g
Structrure	Cooling Mode	Below 3.7 kW no have fan; Above 5.5 kW Forced air cooling
Structrure	Protective Structure	Below 3.7kw IP 65, 3.7kw and above IP54

Specification

Model	Input voltage	Rated Output Power (KW)	Rated Input current (A)	Rated Output Current (A)	Motor Power (kW)
Z5200A00D7K-BF	1PH AC220V ±15%	0.75	7.2	5	0.75
Z5200A01D5K-BF		1.5	10	7	1.5
Z5200A02D2K-BF		2.2	16	11	2.2
Z5400A0D75K-BF	3PH AC380V ±15%	0.75	3.8	2.5	0.75
Z5400A1D5K-BF		1.5	5	3.7	1.5
Z5400A02D2K-BF		2.2	5.8	5	2.2
Z5400A03D7K-BF		3.7	10	9	3.7
Z5400A05D5K-BF		5.5	15	13	5.5
Z5400A07D5K-BF		7.5	20	17	7.5
Z5400A0011K-BF		11	26	25	11
Z5400A0015K-BF		15	35	32	15
Z5400A0018K-BF		18.5	38	37	18.5
Z5400A0022K-BF		22	46	45	22
Z5400A0030K-BF		30	62	60	30
Z5400A0037K-BF		37	76	75	37
…		…	…	…	…
Z5400A00160K-BF		160			160
