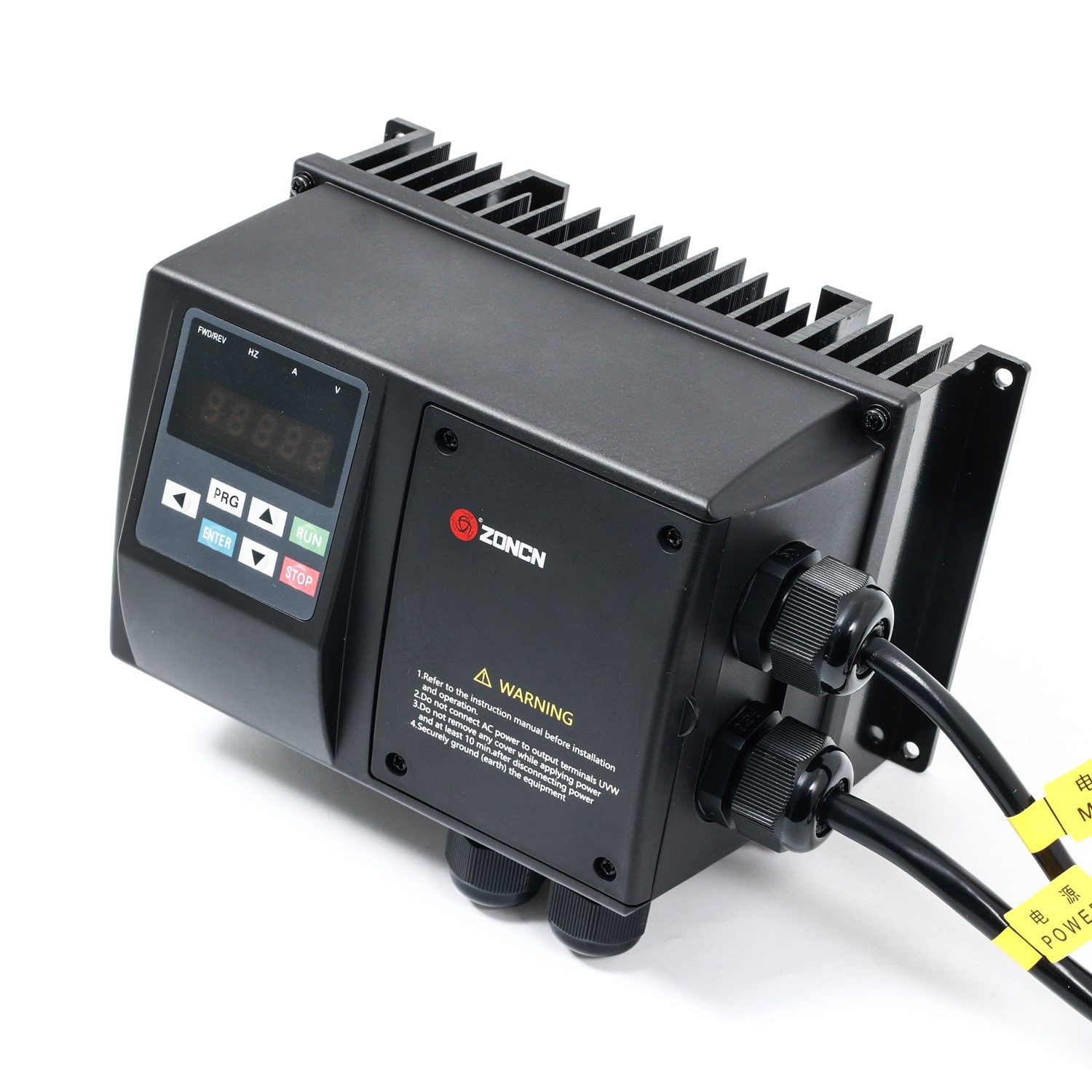

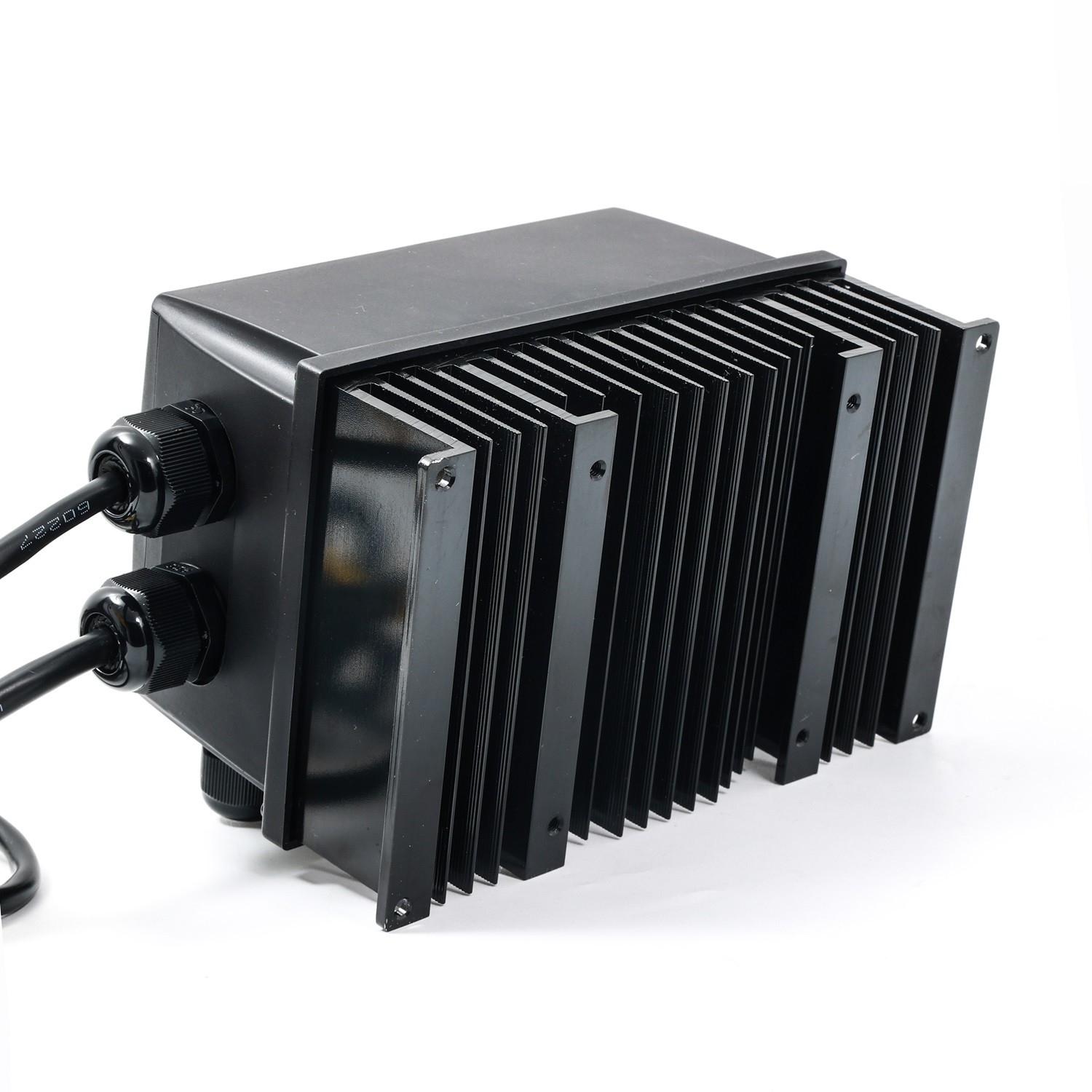

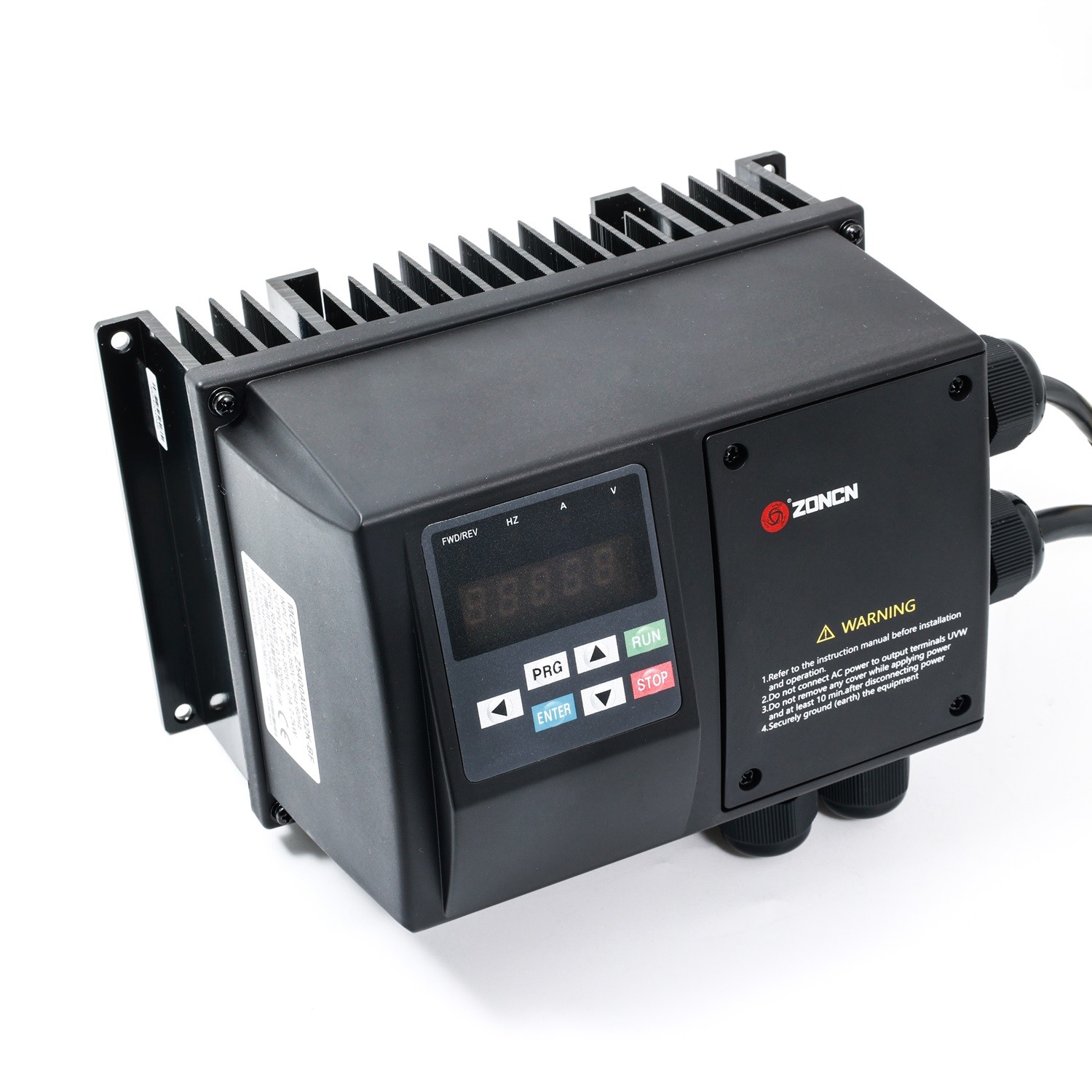

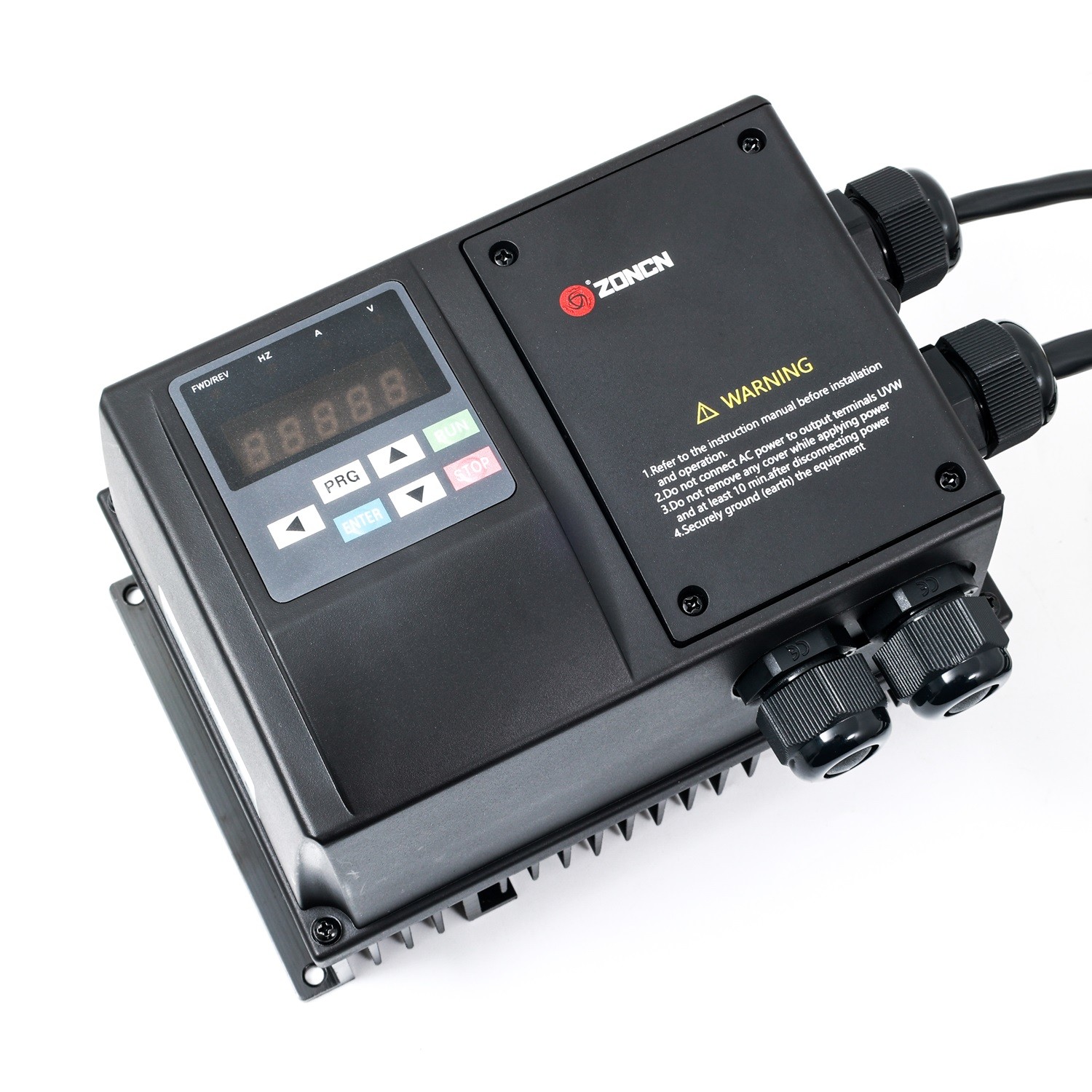

High Protection IP65 Inverter 1.5kw 2.2w VFD Drive 380v 1hp 2hp 3hp

High Protection IP65 Inverter 1.5kw 2.2w VFD Drive 380v 1hp 2hp 3hp
High Protection IP65 Inverter 1.5kw 2.2w VFD Drive 380v 1hp 2hp 3hp
High Protection IP65 Inverter 1.5kw 2.2w VFD Drive 380v 1hp 2hp 3hp High Protection IP65 Inverter 1.5kw 2.2w VFD Drive 380v 1hp 2hp 3hp High Protection IP65 Inverter 1.5kw 2.2w VFD Drive 380v 1hp 2hp 3hp High Protection IP65 Inverter 1.5kw 2.2w VFD Drive 380v 1hp 2hp 3hp High Protection IP65 Inverter 1.5kw 2.2w VFD Drive 380v 1hp 2hp 3hp High Protection IP65 Inverter 1.5kw 2.2w VFD Drive 380v 1hp 2hp 3hp High Protection IP65 Inverter 1.5kw 2.2w VFD Drive 380v 1hp 2hp 3hp High Protection IP65 Inverter 1.5kw 2.2w VFD Drive 380v 1hp 2hp 3hp High Protection IP65 Inverter 1.5kw 2.2w VFD Drive 380v 1hp 2hp 3hp High Protection IP65 Inverter 1.5kw 2.2w VFD Drive 380v 1hp 2hp 3hp High Protection IP65 Inverter 1.5kw 2.2w VFD Drive 380v 1hp 2hp 3hp High Protection IP65 Inverter 1.5kw 2.2w VFD Drive 380v 1hp 2hp 3hp High Protection IP65 Inverter 1.5kw 2.2w VFD Drive 380v 1hp 2hp 3hp
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: Z5400A01D5K-BF
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: VFD Inverter Brand: ZONCN
Protection: IP65 Communication: RS485
Frequency: 50hz / 60Hz EMC Filter: Built-in
Power Range: 0.75kw-160kw Analog Input: 0-10V, 0-20mA
OEM: Support Warranty: 18 Months
MOQ: 1PC Delivery Time: 15 Days Normally
Highlight:

IP65 Inverter

,

1.5kw IP65 Inverter

High Protection IP65 Inverter 1.5kw 2.2w VFD Drive 380v Variadores 1hp 2hp 3hp





ZONCN Z5000 IP65-Rated VFD Inverter – Superior Protection & Performance

The ZONCN Z5000 VFD inverter stands out as an industrial-grade solution designed for extreme environments. With its IP65/IP54 protection rating, this VFD inverter delivers unmatched resistance against dust, moisture, and harsh conditions while maintaining exceptional motor control performance.

Key Features of the Z5000 VFD Inverter

  1. Robust Enclosure Protection

    • IP65/IP54-rated VFD inverter housing prevents dust ingress and withstands water jets

    • Corrosion-resistant coating for long-term durability in chemical environments

    • Reinforced cooling system maintains optimal VFD inverter temperature

  2. Advanced Motor Control

    • Sensorless vector control in this VFD inverter ensures ±0.2% speed accuracy

    • 150% overload capacity for heavy-duty applications

    • Built-in brake chopper in the VFD inverter for rapid deceleration

  3. Wide Application Range

    • Ideal for outdoor VFD inverter installations in mining, marine, and wastewater

    • Performs reliably in extreme temperatures (-20°C to +60°C)

    • Vibration-resistant design makes this VFD inverter perfect for mobile equipment

Why Choose This VFD Inverter?

The Z5000 VFD inverter combines military-grade protection with industrial automation performance. Its IP65/IP54-rated VFD inverter design eliminates the need for additional enclosures, reducing installation costs. This VFD inverter guarantees safety and reliability in the most challenging environments.

VFD Inverter Description



ITEM Z5000-BF
Input Rated voltage, Frequency 1PH/3PH AC 220V 50/60Hz;
3PH AC 380V 50/60 Hz
Voltage Range 220V: 170~240V; 380V: 330V～440V
Output Voltage Range 220V: 0~220V ; 380 V: 0～380 V
Frequency Range 0.10～400.0 Hz
Control method V/F control, Space vector control
Indication Operating status/Alarm definition, interactive guidance; eg, frequency setting, the output frequency /current, rotating speed, fault and so on.
Control specification Output Frequency Range 0.10～400.00 Hz.
Frequency Setting Resolution Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency
Output Frequency Accuracy 0.01 Hz.
V/F Control Setting V/F curve to satisfy various load requirements
Torque Control Auto increase: auto raise torque by loading condition; Manual increase: enable to set 0.0~20% of raising torque
Multifunctional Input Terminal 4 multi-function input terminals, realizing functions including 15 section speed control, program running, 4 section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions
Multifunctional Output Terminal 1 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings
Acceleration/deceleration Time Setting 0~999.9 s acceleration/deceleration time can be set individually
Other functions PID Control Built-in PID control
RS485 Standard RS485 communication function (MODBUS)
Frequency Setting Analog input 0～10V, 0～20мА, can be selected; Digital input: input using the setting dial of the operation panel or RS 485 or UP/DOWN
Multi-speed 4 multi-function input terminals,15 section speed can be set
Automatic voltage regulation Automatic voltage regulation function can be selected
Counter Built-in 2 group of counters
Protection function Overload 150%, 60s (Constant torque); 120%,60s (variable torque)
Over Voltage Over voltage protection can be set
Under Voltage Under voltage protection can be set
Other Protections Output short-circuit, over current, and parameter lock and so on.
Environment Ambient Temperature –10℃~40℃(non-freezing)
Ambient Humidity Max. 95% (non-condensing)
Altitude Lower than 1000м.
Vibration Max. 0.5 g
Structrure Cooling Mode Below 3.7 kW no have fan; Above 5.5 kW Forced air cooling
Protective Structure Below 3.7kw IP 65, 3.7kw and above IP54







Specification

Model Input voltage Rated Output Power (KW) Rated Input current (A) Rated Output Current (A) Motor Power (kW)
Z5200A00D7K-BF 1PH AC220V ±15% 0.75 7.2 5 0.75
Z5200A01D5K-BF 1.5 10 7 1.5
Z5200A02D2K-BF 2.2 16 11 2.2
Z5400A0D75K-BF 3PH AC380V ±15% 0.75 3.8 2.5 0.75
Z5400A1D5K-BF 1.5 5 3.7 1.5
Z5400A02D2K-BF 2.2 5.8 5 2.2
Z5400A03D7K-BF 3.7 10 9 3.7
Z5400A05D5K-BF 5.5 15 13 5.5
Z5400A07D5K-BF 7.5 20 17 7.5
Z5400A0011K-BF 11 26 25 11
Z5400A0015K-BF 15 35 32 15
Z5400A0018K-BF 18.5 38 37 18.5
Z5400A0022K-BF 22 46 45 22
Z5400A0030K-BF 30 62 60 30
Z5400A0037K-BF 37 76 75 37
… … … … …
Z5400A00160K-BF 160 　 　 160
