High Protection IP65 IP54 Inverter 380v Variable Frequency Drive VFD 1hp 2hp

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	KC; CE
Model Number:	Z5400A07D5K-BF
Document:	Z5000-BF series catalog.pdf

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	VFD Drives	Protection:	IP65/IP54
Communication:	RS485	Frequency:	50hz / 60Hz
EMC Filter:	Built-in	Power Range:	0.75kw-160kw
Analog Input:	0-10V, 0-20mA	OEM:	Support
Delivery Time:	15 Days Normally	Warranty:	18 Months

High Protection IP65 Inverter 380v Variable Frequency Drive VFD 0.75kw 1.5kw

Variable Frequency Drive (VFD) Inverters

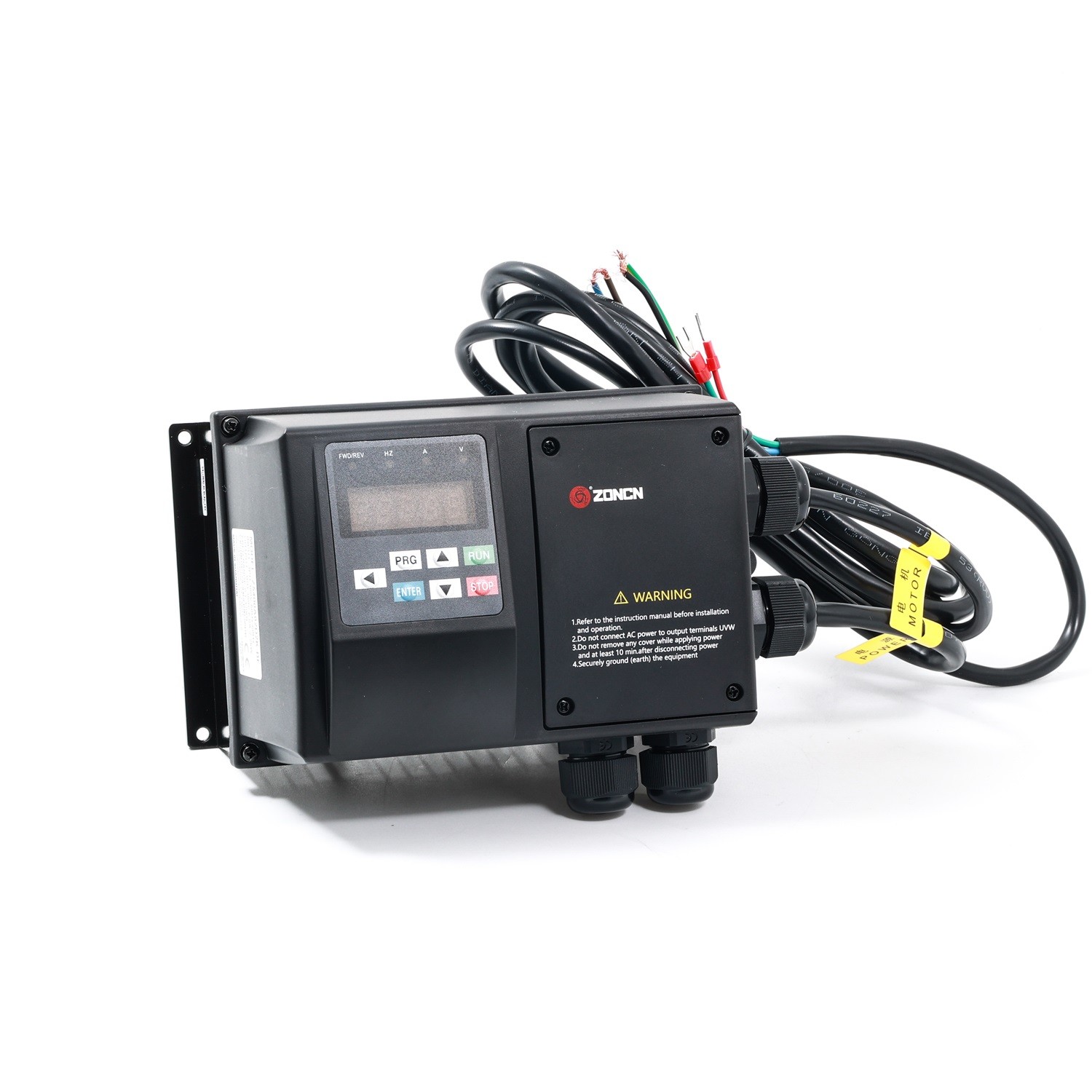

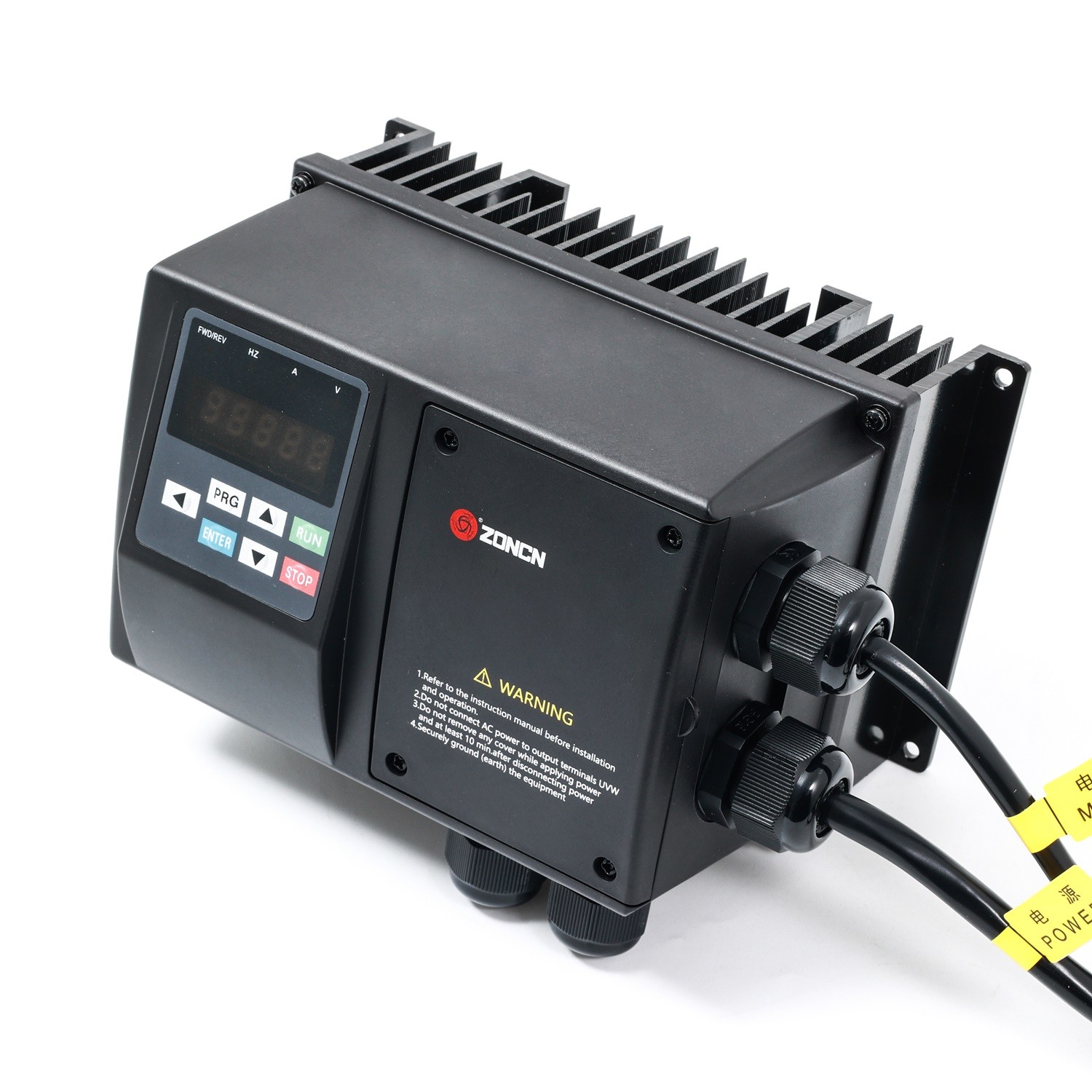

The ZONCN Z5000 series VFD represents a high-performance solution designed for challenging industrial environments. This rugged VFD features a unique motor-flange mounting capability, allowing for space-saving installation directly on motor end covers. Engineered for heavy-duty equipment, this VFD delivers reliable performance in the most demanding applications.

With flexible control options, the Z5000 series VFD offers both advanced vector control and cost-effective V/F control versions to suit various operational requirements. The VFD incorporates intelligent protection features including dry-run protection that automatically stops operation when no liquid is detected, preventing pump damage.

This versatile VFD provides multiple practical functions including:

Programmable timing control
Anti-freeze protection
Automatic pump switching during faults
Dry-run alarm notification

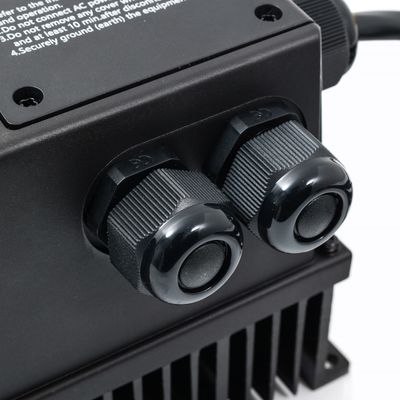

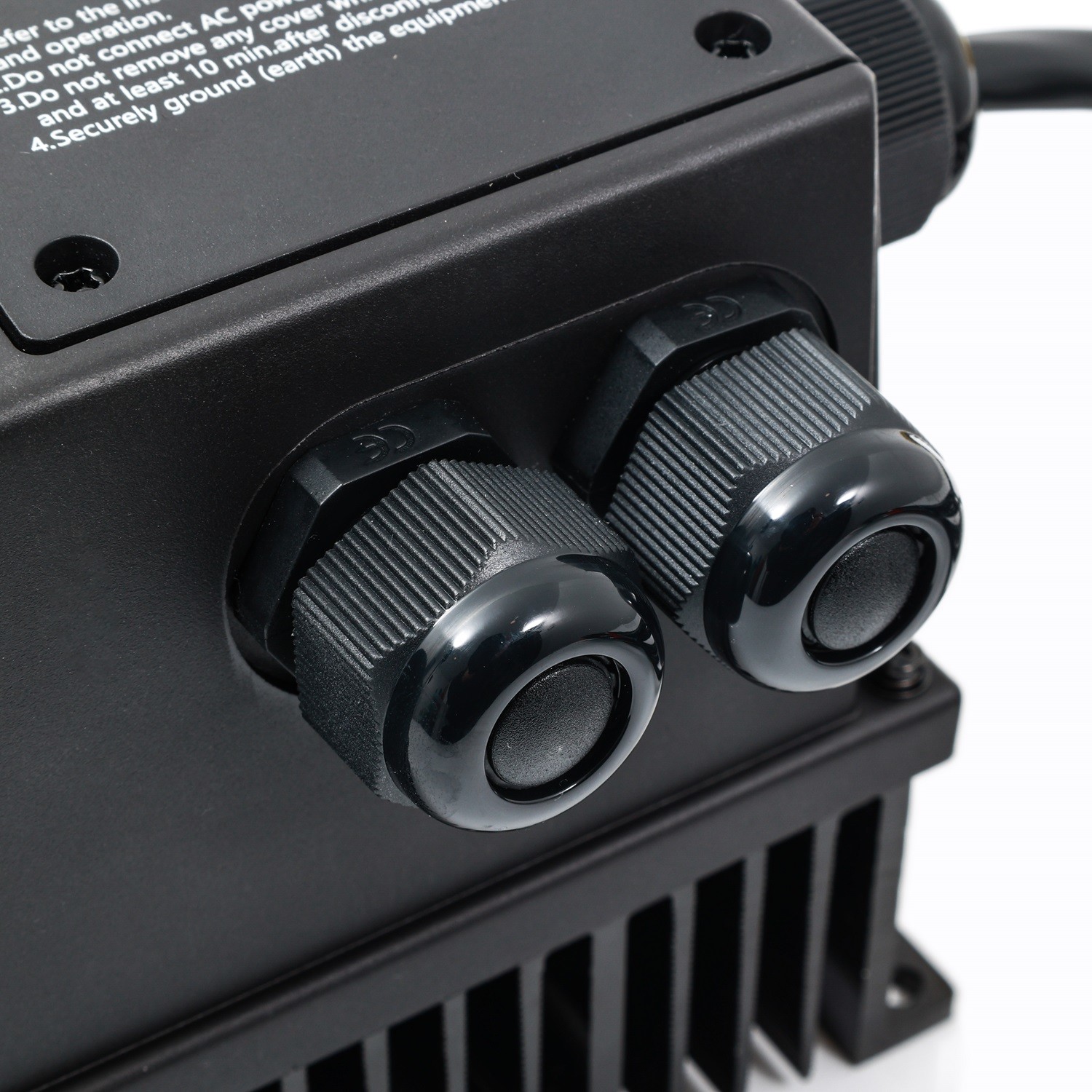

The Z5000 series VFD boasts IP65 protection rating, making this VFD exceptionally resistant to dust and water ingress. This high level of protection ensures the VFD can operate reliably in harsh environments where standard drives would fail.

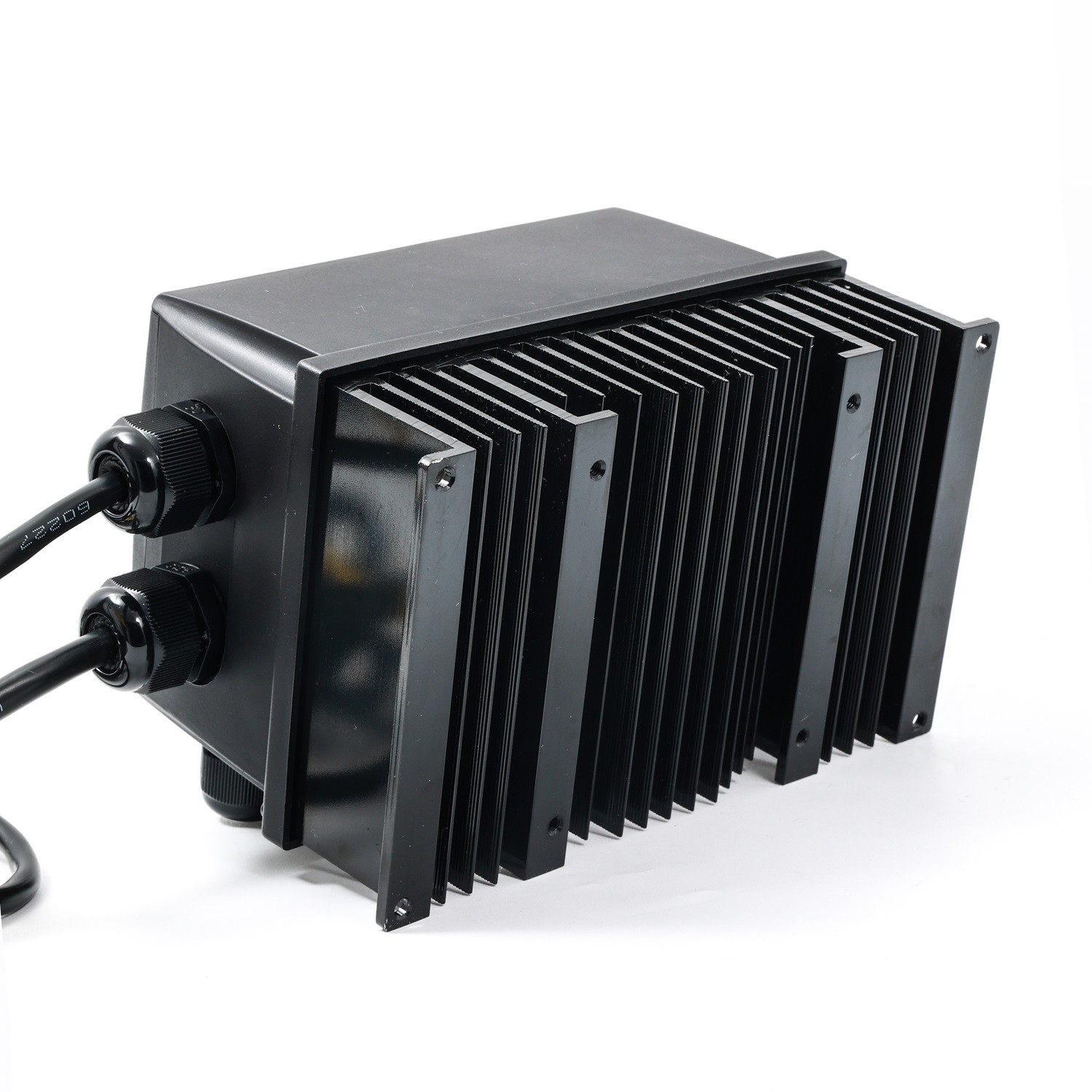

Designed for industrial durability, the ZONCN VFD features robust construction that withstands vibration, moisture, and temperature extremes. The VFD's advanced cooling system maintains optimal operating temperatures even in confined spaces.

With its combination of rugged design, intelligent features, and flexible installation options, the Z5000 series VFD is particularly suitable for:

Water treatment systems
Industrial pumping applications
Mining operations
Food processing equipment
Agricultural machinery

This high-performance VFD delivers both reliability and energy efficiency, making it an ideal choice for users seeking durable motor control solutions. The ZONCN Z5000 series VFD continues to set new standards for protection and performance in demanding industrial applications.

ITEM		Z5000-BF
Input	Rated voltage, Frequency	1PH/3PH AC 220V 50/60Hz; 3PH AC 380V 50/60 Hz
Input	Voltage Range	220V: 170~240V; 380V: 330V～440V
Output	Voltage Range	220V: 0~220V ; 380 V: 0～380 V
Output	Frequency Range	0.10～400.0 Hz
Control method		V/F control, Space vector control
Indication		Operating status/Alarm definition, interactive guidance; eg, frequency setting, the output frequency /current, rotating speed, fault and so on.
Control specification	Output Frequency Range	0.10～400.00 Hz.
	Frequency Setting Resolution	Digital input: 0.01 Hz.
	Frequency Setting Resolution	Analog input:0,1% of maximum output frequency
	Output Frequency Accuracy	0.01 Hz.
	V/F Control	Setting V/F curve to satisfy various load requirements
	Torque Control	Auto increase: auto raise torque by loading condition; Manual increase: enable to set 0.0~20% of raising torque
	Multifunctional Input Terminal	4 multi-function input terminals, realizing functions including 15 section speed control, program running, 4 section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions
	Multifunctional Output Terminal	1 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings
	Acceleration/deceleration Time Setting	0~999.9 s acceleration/deceleration time can be set individually
Other functions	PID Control	Built-in PID control
	RS485	Standard RS485 communication function (MODBUS)
	Frequency Setting	Analog input 0～10V, 0～20мА, can be selected; Digital input: input using the setting dial of the operation panel or RS 485 or UP/DOWN
	Multi-speed	4 multi-function input terminals,15 section speed can be set
	Automatic voltage regulation	Automatic voltage regulation function can be selected
	Counter	Built-in 2 group of counters
Protection function	Overload	150%, 60s (Constant torque); 120%,60s (variable torque)
	Over Voltage	Over voltage protection can be set
	Under Voltage	Under voltage protection can be set
	Other Protections	Output short-circuit, over current, and parameter lock and so on.
Environment	Ambient Temperature	–10℃~40℃(non-freezing)
	Ambient Humidity	Max. 95% (non-condensing)
	Altitude	Lower than 1000м.
	Vibration	Max. 0.5 g
Structrure	Cooling Mode	Below 3.7 kW no have fan; Above 5.5 kW Forced air cooling
Structrure	Protective Structure	Below 3.7kw IP 65, 3.7kw and above IP54

Specification

Model	Input voltage	Rated Output Power (KW)	Rated Input current (A)	Rated Output Current (A)	Motor Power (kW)
Z5200A00D7K-BF	1PH AC220V ±15%	0.75	7.2	5	0.75
Z5200A01D5K-BF		1.5	10	7	1.5
Z5200A02D2K-BF		2.2	16	11	2.2
Z5400A0D75K-BF	3PH AC380V ±15%	0.75	3.8	2.5	0.75
Z5400A1D5K-BF		1.5	5	3.7	1.5
Z5400A02D2K-BF		2.2	5.8	5	2.2
Z5400A03D7K-BF		3.7	10	9	3.7
Z5400A05D5K-BF		5.5	15	13	5.5
Z5400A07D5K-BF		7.5	20	17	7.5
Z5400A0011K-BF		11	26	25	11
Z5400A0015K-BF		15	35	32	15
Z5400A0018K-BF		18.5	38	37	18.5
Z5400A0022K-BF		22	46	45	22
Z5400A0030K-BF		30	62	60	30
Z5400A0037K-BF		37	76	75	37
…		…	…	…	…
Z5400A00160K-BF		160			160
