IP65 High Protection Inverter 0.75kw 380v Variable Frequency Drive VFD 1.5kw

IP65 High Protection Inverter 0.75kw 380v Variable Frequency Drive VFD 1.5kw
IP65 High Protection Inverter 0.75kw 380v Variable Frequency Drive VFD 1.5kw
IP65 High Protection Inverter 0.75kw 380v Variable Frequency Drive VFD 1.5kw IP65 High Protection Inverter 0.75kw 380v Variable Frequency Drive VFD 1.5kw IP65 High Protection Inverter 0.75kw 380v Variable Frequency Drive VFD 1.5kw IP65 High Protection Inverter 0.75kw 380v Variable Frequency Drive VFD 1.5kw IP65 High Protection Inverter 0.75kw 380v Variable Frequency Drive VFD 1.5kw IP65 High Protection Inverter 0.75kw 380v Variable Frequency Drive VFD 1.5kw IP65 High Protection Inverter 0.75kw 380v Variable Frequency Drive VFD 1.5kw IP65 High Protection Inverter 0.75kw 380v Variable Frequency Drive VFD 1.5kw IP65 High Protection Inverter 0.75kw 380v Variable Frequency Drive VFD 1.5kw IP65 High Protection Inverter 0.75kw 380v Variable Frequency Drive VFD 1.5kw IP65 High Protection Inverter 0.75kw 380v Variable Frequency Drive VFD 1.5kw IP65 High Protection Inverter 0.75kw 380v Variable Frequency Drive VFD 1.5kw IP65 High Protection Inverter 0.75kw 380v Variable Frequency Drive VFD 1.5kw
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: Z5400A02D2K-BF
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: Variable Frequency Drives Brand: ZONCN
Protection: Dust-proof IP Grade: IP65
Communication: RS485 (MODBUS) Power Range: 380v 0.75kw-160kw
No Water Stop: Yes Timing Fuction: Yes
Antifreeze: Yes
Highlight:

380v Variable Frequency Drive

,

IP65 Variable Frequency Drive

,

380v Inverter 1.5kw

IP65 High Protection Inverter 0.75kw 380v Variable Frequency Drive VFD 1.5kw





Variable Frequency Drive (VFD) Inverters

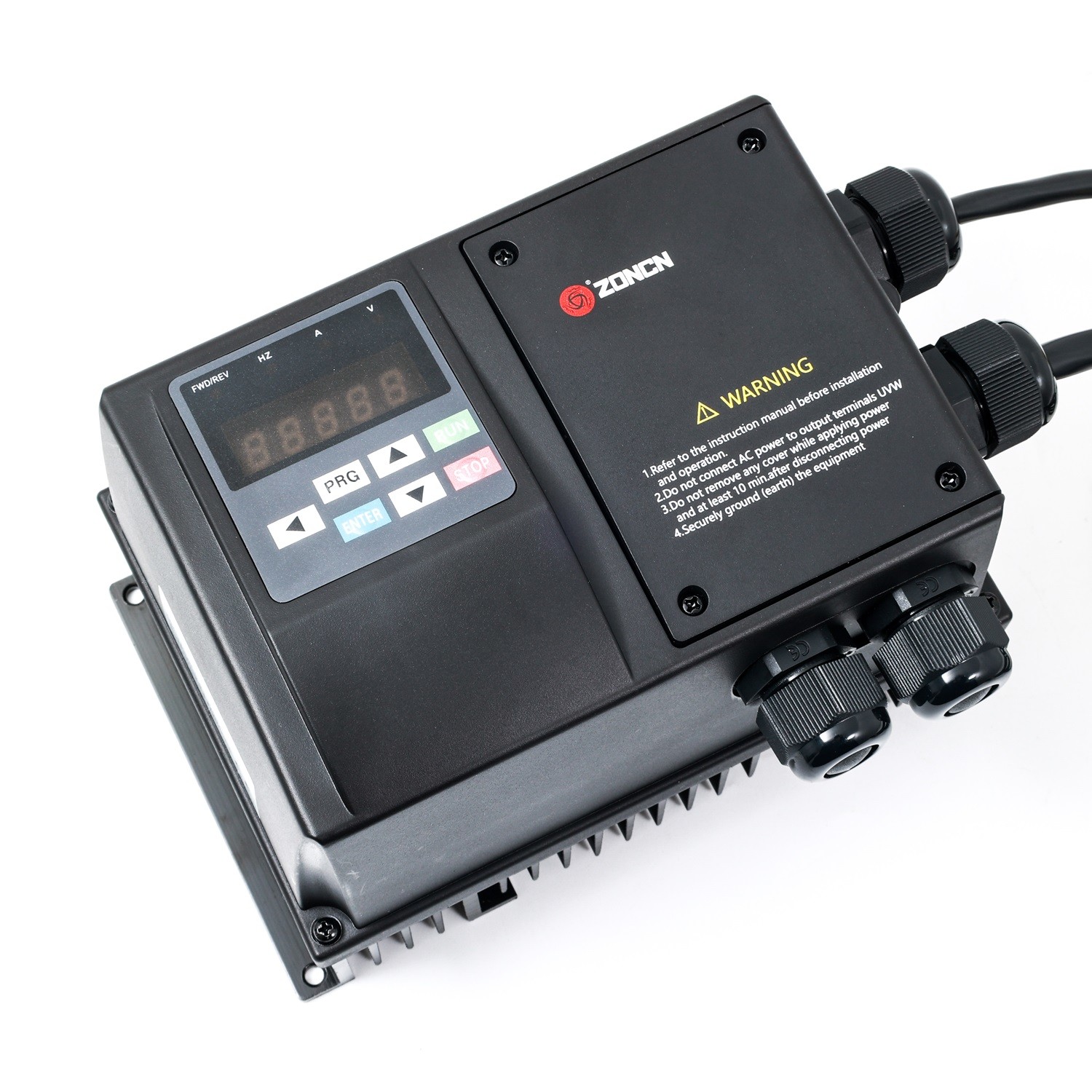

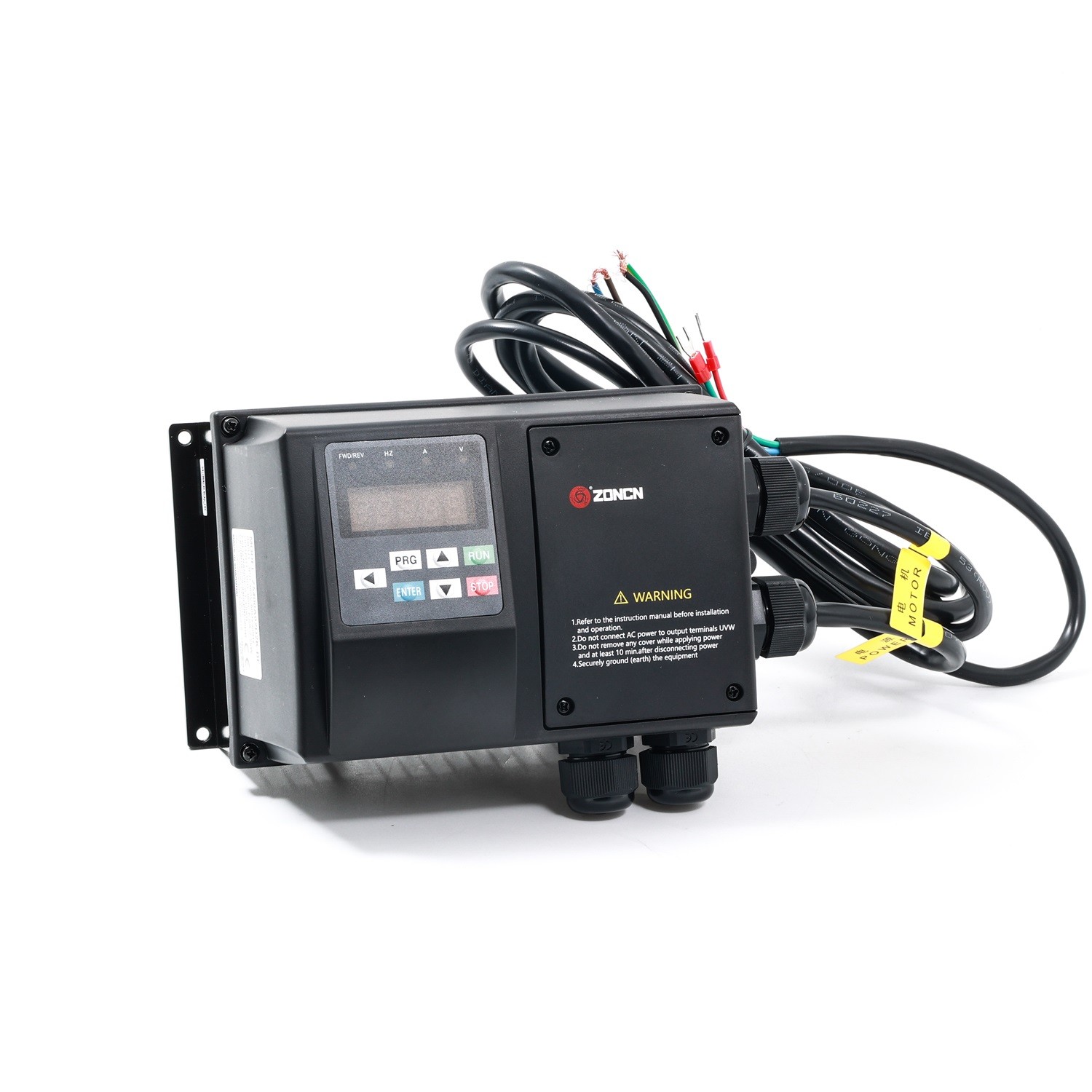

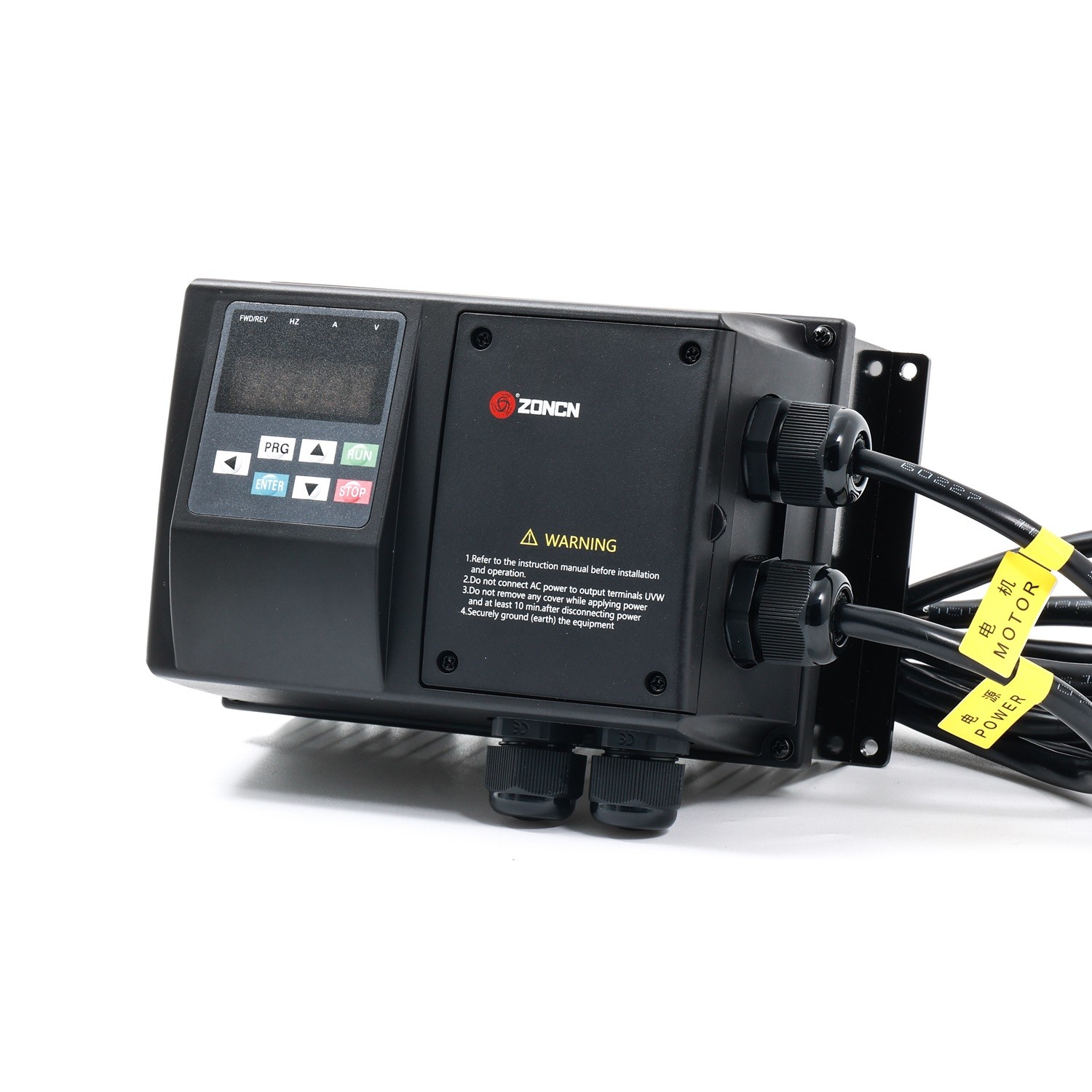

The ZONCN Z5000 VFD is a rugged, high-performance drive designed for extreme conditions. With IP65 protection, this VFD resists dust and water, making it perfect for harsh industrial environments.

A key feature of this VFD is its motor-flange mounting capability, allowing direct installation on motor end covers to save space. Built for heavy-duty equipment, the Z5000 VFD delivers reliable power for demanding applications.

The VFD offers flexible control with optional V/F control versions, ensuring cost-effective operation. Its intelligent dry-run protection automatically stops the motor when no liquid is detected, preventing pump damage. Additional smart functions include timed operation, anti-freeze protection, fault pump switching, and dry-run alarms—all integrated into this versatile VFD.

For enhanced performance, the Z5000 VFD includes a built-in EMC filter, reducing electromagnetic interference for stable operation. It also supports RS485 communication, enabling seamless integration into automation systems.

Whether in water treatment, mining, or food processing, the ZONCN Z5000 VFD combines durability, smart protection, and energy efficiency—making it the ideal choice for tough industrial applications.



VFD Inverter Description



ITEM Z5000-BF
Input Rated voltage, Frequency 1PH/3PH AC 220V 50/60Hz;
3PH AC 380V 50/60 Hz
Voltage Range 220V: 170~240V; 380V: 330V～440V
Output Voltage Range 220V: 0~220V ; 380 V: 0～380 V
Frequency Range 0.10～400.0 Hz
Control method V/F control, Space vector control
Indication Operating status/Alarm definition, interactive guidance; eg, frequency setting, the output frequency /current, rotating speed, fault and so on.
Control specification Output Frequency Range 0.10～400.00 Hz.
Frequency Setting Resolution Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency
Output Frequency Accuracy 0.01 Hz.
V/F Control Setting V/F curve to satisfy various load requirements
Torque Control Auto increase: auto raise torque by loading condition; Manual increase: enable to set 0.0~20% of raising torque
Multifunctional Input Terminal 4 multi-function input terminals, realizing functions including 15 section speed control, program running, 4 section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions
Multifunctional Output Terminal 1 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings
Acceleration/deceleration Time Setting 0~999.9 s acceleration/deceleration time can be set individually
Other functions PID Control Built-in PID control
RS485 Standard RS485 communication function (MODBUS)
Frequency Setting Analog input 0～10V, 0～20мА, can be selected; Digital input: input using the setting dial of the operation panel or RS 485 or UP/DOWN
Multi-speed 4 multi-function input terminals,15 section speed can be set
Automatic voltage regulation Automatic voltage regulation function can be selected
Counter Built-in 2 group of counters
Protection function Overload 150%, 60s (Constant torque); 120%,60s (variable torque)
Over Voltage Over voltage protection can be set
Under Voltage Under voltage protection can be set
Other Protections Output short-circuit, over current, and parameter lock and so on.
Environment Ambient Temperature –10℃~40℃(non-freezing)
Ambient Humidity Max. 95% (non-condensing)
Altitude Lower than 1000м.
Vibration Max. 0.5 g

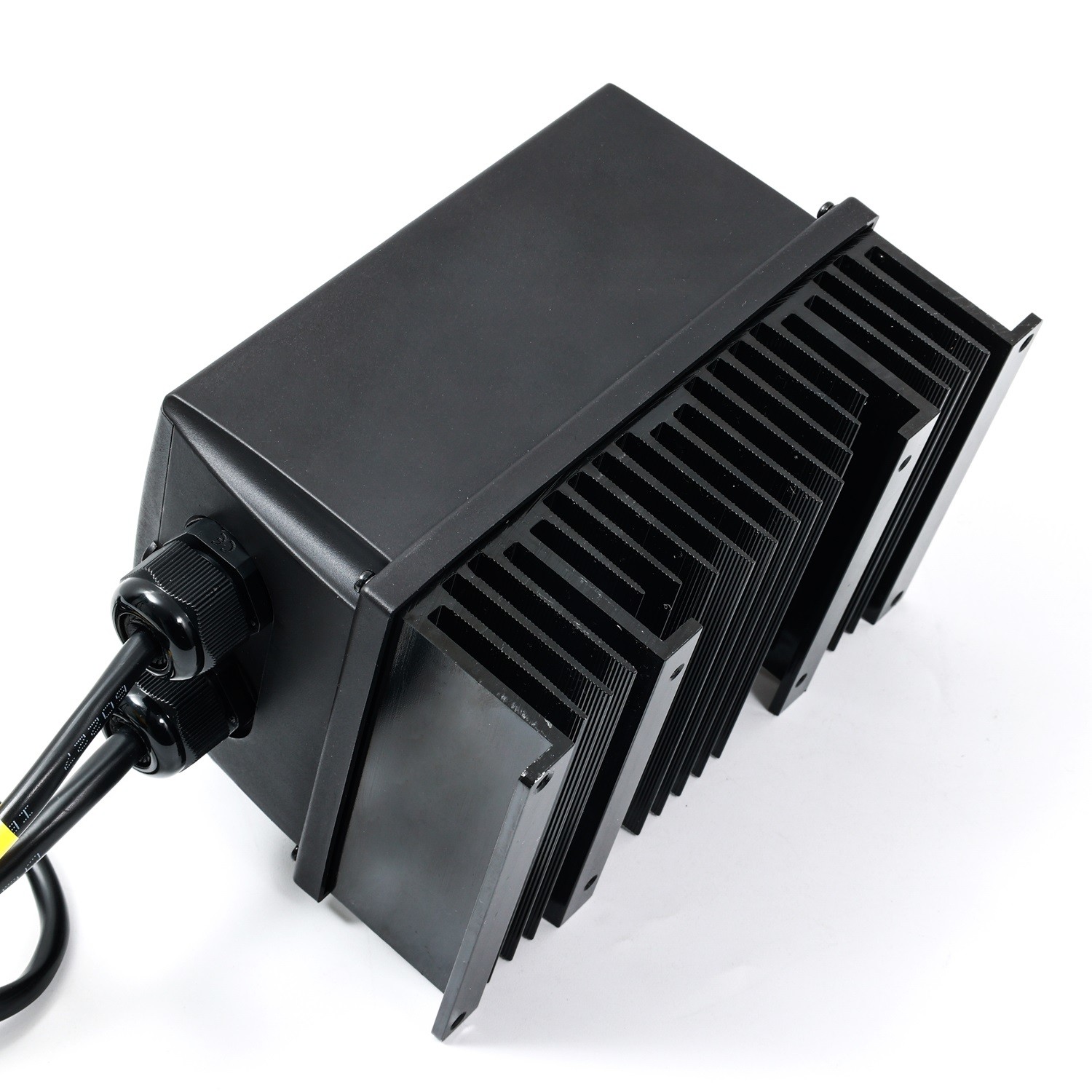

Structrure Cooling Mode Below 3.7 kW no have fan; Above 5.5 kW Forced air cooling
Protective Structure Below 3.7kw IP 65, 3.7kw and above IP54







Specification

Model Input voltage Rated Output Power (KW) Rated Input current (A) Rated Output Current (A) Motor Power (kW)
Z5200A00D7K-BF 1PH AC220V ±15% 0.75 7.2 5 0.75
Z5200A01D5K-BF 1.5 10 7 1.5
Z5200A02D2K-BF 2.2 16 11 2.2
Z5400A0D75K-BF 3PH AC380V ±15% 0.75 3.8 2.5 0.75
Z5400A1D5K-BF 1.5 5 3.7 1.5
Z5400A02D2K-BF 2.2 5.8 5 2.2
Z5400A03D7K-BF 3.7 10 9 3.7
Z5400A05D5K-BF 5.5 15 13 5.5
Z5400A07D5K-BF 7.5 20 17 7.5
Z5400A0011K-BF 11 26 25 11
Z5400A0015K-BF 15 35 32 15
Z5400A0018K-BF 18.5 38 37 18.5
Z5400A0022K-BF 22 46 45 22
Z5400A0030K-BF 30 62 60 30
Z5400A0037K-BF 37 76 75 37
… … … … …
Z5400A00160K-BF 160 　 　 160







Company Introduction





IP65 High Protection Inverter 0.75kw 380v Variable Frequency Drive VFD 1.5kw 0





ZONCN is a leading manufacturer of VFD inverters (Variable Frequency Drives), specializing in industrial motor control solutions. With a strong focus on innovation, the company designs VFD inverters for precision, energy efficiency, and reliability across multiple industries.

VFD Inverter Expertise

ZONCN’s VFD inverters feature advanced sensorless vector control, ensuring ±0.5% speed accuracy. These VFD inverters support multi-motor control, built-in PLCs, and PID functions, making them ideal for pumps, fans, and CNC machinery.

Applications of VFD Inverters

From HVAC systems to textile manufacturing, ZONCN’s VFD inverters optimize energy use, reducing consumption by up to 50%. The rugged design of these VFD inverters (IP65-rated) ensures durability in harsh environments.

Global Demand for VFD Inverters

Exported to over 30 countries, Wuhu Zhongchen’s VFD inverters are widely used in Southeast Asia , Africa , and Latin America . The company’s VFD inverters stand out for competitive pricing, localized support, and compliance with CE/ISO standards.
