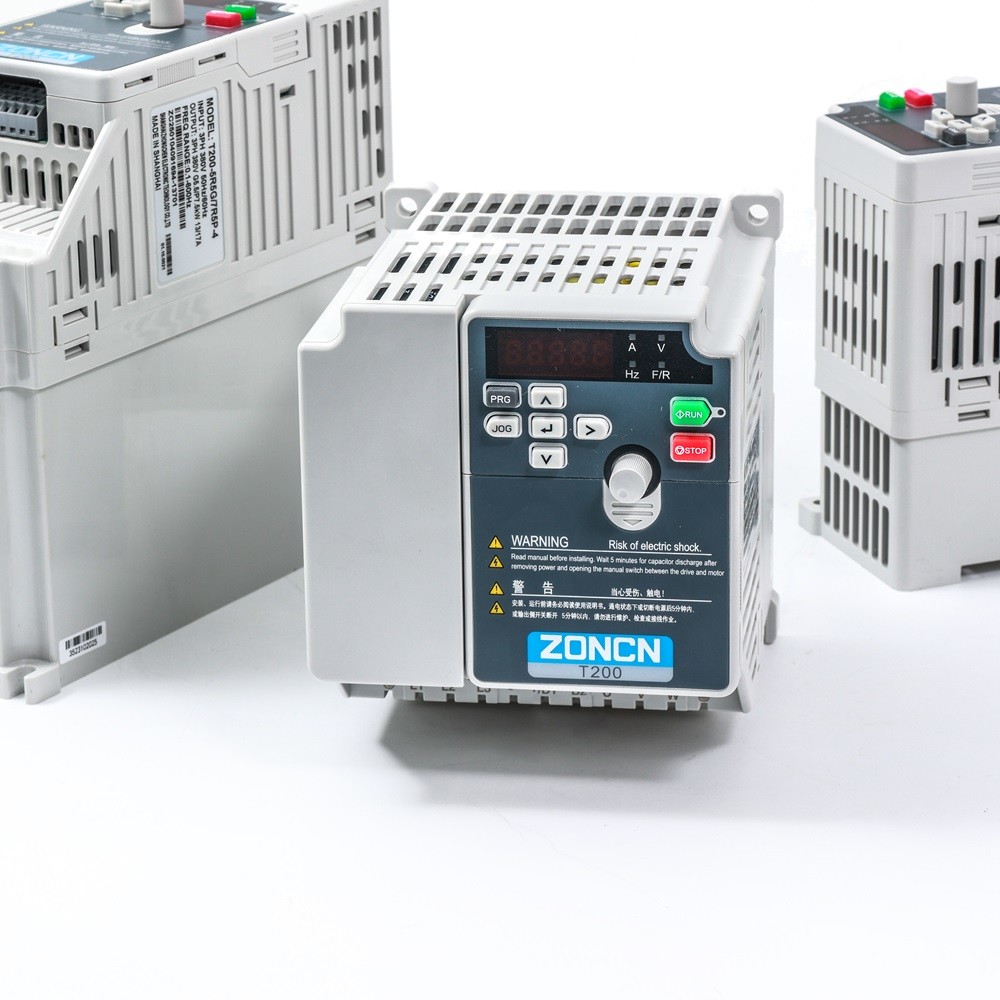

Low Voltage Mini Inverter 2.2KW Variable Speed Drive 3 Phase AC VFD for Compressor Motor

Basic Information

Place of Origin:	Shanghai,China
Brand Name:	ZONCN VFD INVERTER
Certification:	CE
Model Number:	T200-2R2G-4 VFD
Document:	ZONCN T200 series catalog.pdf

Minimum Order Quantity:	1 unit
Packaging Details:	Carton
Delivery Time:	7-30 work days
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	100000 per month

Get Best Price Contact Now

Type:	VFD Frequency Converter	Warranty:	18 Months
OEM/ODM:	Accept	Maximal Frequency:	0~599Hz
Open-loop Vector Control:	Support	Close-loop Vector Control:	Support
Display:	LED	Power Range:	0.4~55kw
PID:	Built-in	JOG Control:	Support
Highlight:	3-Phase AC VFD , Low Voltage Mini Inverter , 2.2KW AC VFD

2.2KW Mini Inverter Variable Speed Drive 3 Phase AC VFD FOR Compressor Motor

Low Voltage Mini Inverter 2.2KW Variable Speed Drive 3 Phase AC VFD for Compressor Motor 0

T200 Series VFD Multi-function and High-performance Vector Frequency Converter Product Introduction

For industrial automation, the T200 Series vfd Vector Frequency Converter offers high performance at an affordable price. It’s a top choice for various industrial needs, proven effective in multiple real - world applications.​
Powerful Performance: With V/F, open - loop, and closed - loop vector control, it suits different devices. Its 0.4 - 55KW power range (75KW+ models in development) covers most industrial applications. Multiple expansion cards like EtherCAT, Profibus DP enable seamless integration with different systems.​
User - friendly Design: Its micro compact build saves space, and 3.7KW - below models support easy DIN rail installation. The RJ45 keyboard cable ensures stable operation. A built - in EMC filter cuts interference, and 24V DC power boosts compatibility. The external keyboard parameter copy function speeds up debugging.​
Practical Functions: The STO function (for 15KW - below devices at 380V) enhances safety by quickly stopping equipment in emergencies. PID adjustment optimizes system parameters for top - notch performance.

T200 Series VFD Technology Features:

ITEM		T200
Basic function	Maximum frequency	0～600.00Hz
	Carrier frequency	0.5kHz～16kHz
	Carrier frequency	The carrier frequency can be automatically adjusted based on the load features.
	Input frequency resolution	Digital setting:0.01Hz
	Input frequency resolution	Analog setting: maximum frequency×0.025%
	Control mode	Voltage/Frequency control (V/F)
		Sensorless flux vector control (No PG)
		Closed loop vector control (Have PG)
	Startup torque	G Type:0.5Hz/150%(No PG)；
	Startup torque	P Type:0.5Hz/100%
	Speed range	1:100(No PG)
	Speed stability accuracy	±0.5%(No PG)
	Torque control accuracy	±5%(Have PG)
	Overload capacity	G type: 60s for 150% of the rated current, 3s for 180% of the rated current.
	Overload capacity	P type: 60s for 120% of the rated current, 3s for 150% of the rated current
	Torque boost	Fixed boost
	Torque boost	Customized boost 0.1%–30.0%
	V/F curve	Straight-line V/F curve
		Multi-point V/F curve
		N-power V/F curve (1.2-power, 1.4-power, 1.6-power,1.8-power, square)
	V/F separation	Two types: complete separation; half separation
	Ramp mode	Straight-line ramp
		S-curve ramp
		Four groups of acceleration/deceleration time with the range of 0.0–6500.0s
	DC braking	DC braking frequency: 0.00 Hz to maximum frequency
		Braking time: 0.0-100.0s
		Braking action current value: 0.0%–100.0%
	JOG control	Jog frequency range:0.00Hz~50.00Hz. JOG acceleration/deceleration time0.0s~6500.0s.
	Onboard Multiple preset speeds	It implements up to 16 speeds via the simple PLC function or by input terminal states
	Onboard PID	It realizes process-controlled closed loop control system easily.
	Auto voltage	It can keep constant output voltage automatically when the mains voltage changes.
	regulation (AVR)
	Over-voltage/	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current.
	Over-current stall
	control
	Rapid current limit	It helps to avoid frequent over-current faults of the inverter.
	Torque limit and torque control	It can limit the torque automatically and prevent frequent over-current tripping during the running process.
Individualized function	High performance	Control of asynchronous motor is implemented through the high-performance current vector control technology.
	Instantaneous stop doesn’t stop	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
	Timing control	Timing range 0.0Min～6500.0Min
	Communication methods	RS-485
Operation	Running command channel	Given by the panel, control terminals,
	Running command channel	Serial communication port, can be switched by many ways
	Frequency source	10 kinds of frequency source, given by digital analog voltage, analog current, Pulse, serial port. can be switched by many ways
	Auxiliary frequency source	There are ten auxiliary frequency sources. It can implement fine tuning of auxiliary frequency and frequency synthesis
	Input terminals	5 digital input terminals, one of which supports up to 100 kHz high-speed pulse input;
	Input terminals	1 analog input terminal, supports 0-10V voltage input or 4–20 mA current input.
	Output terminal	1 digital output terminal
		1 relay output terminal
		1 analog output terminal :that supports 0–20 mA current output or 0–10 V voltage output

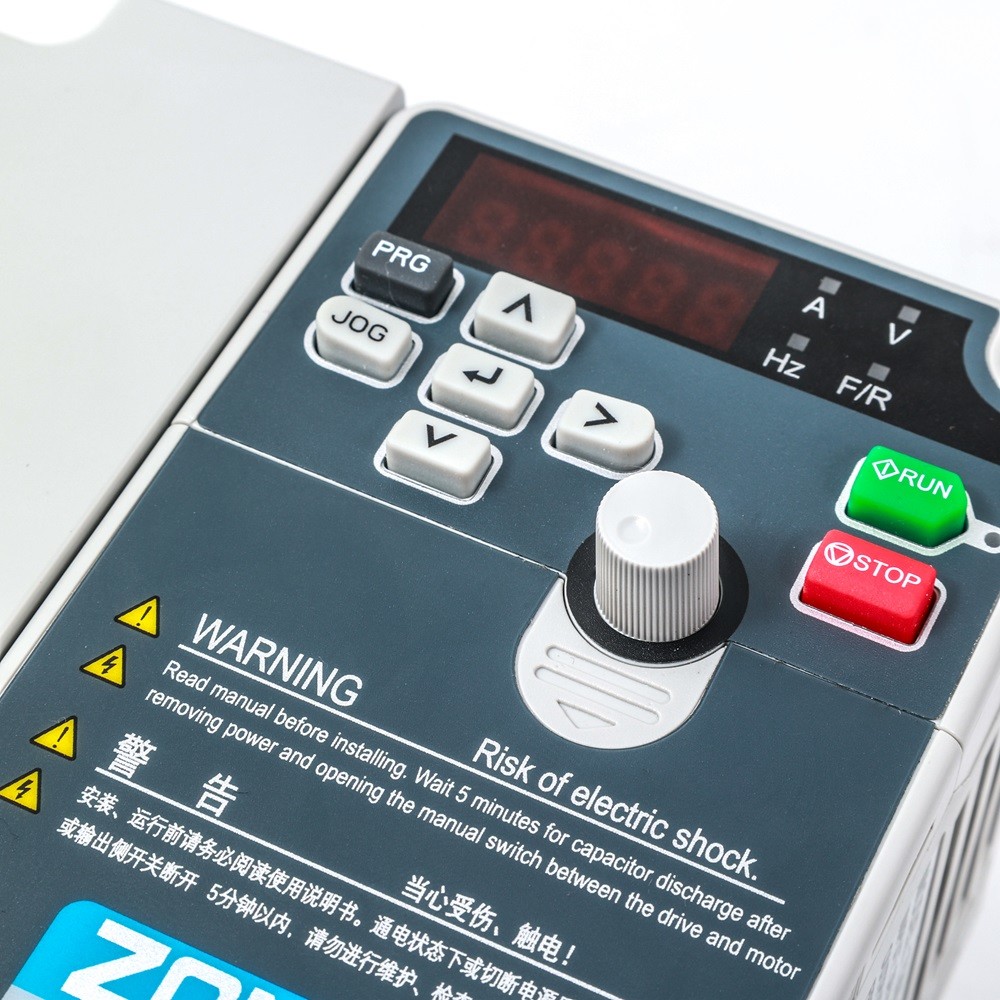

Display and operation panel	LED display	It displays the parameters.
	Key locking and	It can lock the keys partially or completely and define the
	function selection	function range of some keys so as to prevent mis-function.
	Protection mode	Motor short-circuit detection at power-on, input output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.
Environment	Installation location	Indoor, avoid direct sunlight, dust, corrosive gas, combustible gas, oil fog, steam, drip or salt.
	Altitude	Lower than 1000 m(Lower the grades when using higher then 1000m)
	Ambient temperature	-10°C ～40°C (Lower the grades if the ambient temperature is between 40°C and 50°C)
	Humidity	Less than 95%RH, without condensing
	Vibration	Less than 5.9m/s2(0.6g)
	Storage temperature	－20℃~＋60℃

T200 Series VFD Description of Name Plate

Low Voltage Mini Inverter 2.2KW Variable Speed Drive 3 Phase AC VFD for Compressor Motor 3

FAQ:
Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you.

We have cooperation with more than forty manufacturers.
