380V 3 Phase Variable Frequency Drive 37KW AC Drive Low Voltage Inverter Motor Special For Elevators & Lifts VFD

Basic Information

Place of Origin:	Shanghai,China
Brand Name:	ZONCN INVERTER
Certification:	CE
Model Number:	T9400-37G/45P VFD
Document:	T9000 series user's manual.pdf

Minimum Order Quantity:	1 unit
Packaging Details:	Carton
Delivery Time:	7-30 work days
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	100000 per month

Get Best Price Contact Now

Type:	VFD AC Drive	Warranty:	18 Months
OEM:	Accept	Maximal Frequency:	599Hz
PG Cards:	Support	Close-loop Vector Control:	Support (Above 3.7kw)
Power Range:	37kw Vfd	Storage Temperature:	-20℃~+60℃
Highlight:	37KW AC Drive , Elevators VFD , 380V 3 Phase Variable Frequency Drive

Variable Frequency Drive 37kw AC Drive Low Voltage Inverter

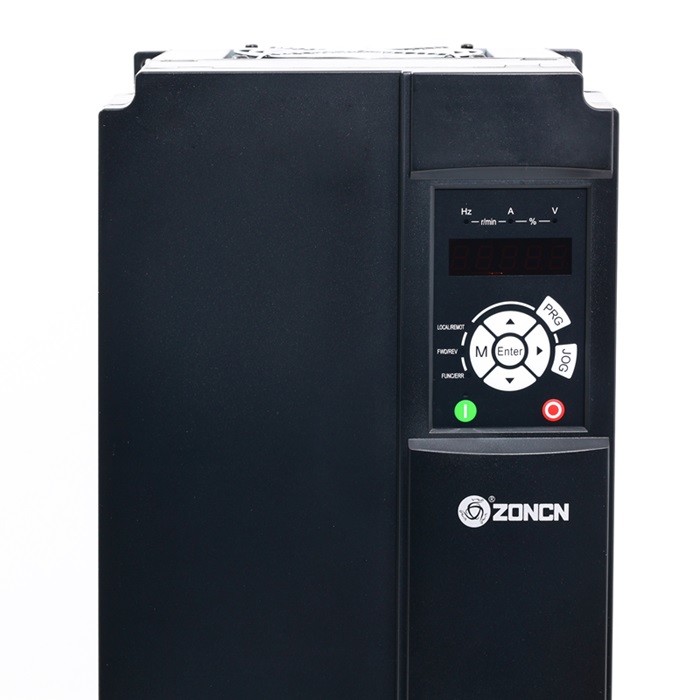

380V 3 Phase Variable Frequency Drive 37KW AC Drive Low Voltage Inverter Motor Special For Elevators & Lifts VFD 0

T9000 Series Advanced Vector Control Inverter Product Introduction

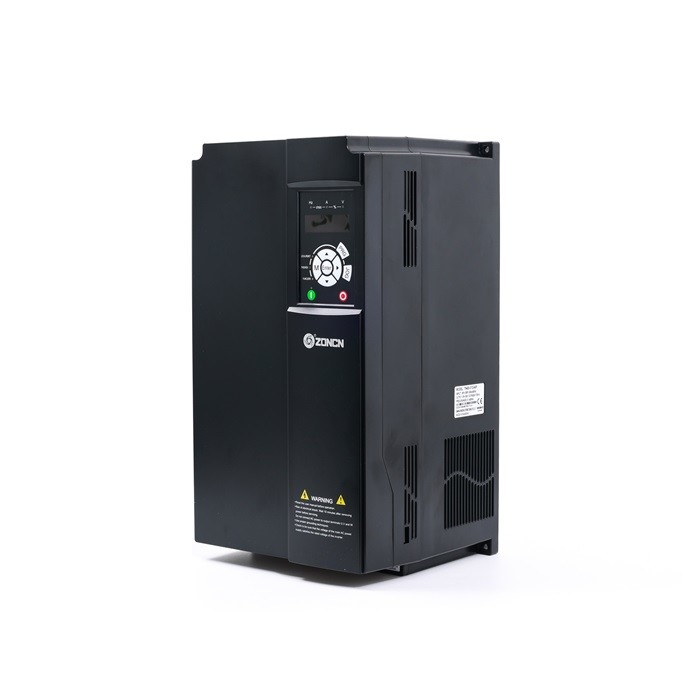

380V 3 Phase Variable Frequency Drive 37KW AC Drive Low Voltage Inverter Motor Special For Elevators & Lifts VFD 2

The T9000 Series Advanced Vector Control Inverter is a cutting-edge solution designed to meet diverse industrial motor control needs. It offers open loop/closed loop vector control and VF control with a built-in PID function, providing seamless operation for both synchronous and asynchronous motors.

With its remarkable ability to deliver large torque output, this inverter ensures motors can start smoothly even under heavy loads, minimizing startup stress and enhancing system reliability. Its powerful functionality and outstanding performance make it suitable for a wide range of general industrial applications, from manufacturing lines to conveyor systems.

The T9000 Series supports multiple types of PG cards, enabling flexible system configurations. It also features instant stop and instant start capabilities, improving operational efficiency and safety. Its compact structure simplifies installation, saving valuable space in control cabinets and reducing setup time.

Available in a broad power range, the inverter caters to various power requirements. For 220V systems, it covers 0.4 - 3.7KW, while for 380V systems, the range extends from 0.4 - 450kW. Whether you need to optimize motor performance, enhance system stability, or streamline installation, the T9000 Series Advanced Vector Control Inverter is your ideal choice for reliable and efficient operation.

T9000 Series VFD Technical specification:

Item		Description
Basic function	Control Mode	VF control
		Sensorless flux vector control(SVC)
		Close-loop vector control(FVC)(Above 3.7kW)
	Maximum frequency	0~600Hz
	Carrier frequency	0.5kHZ——8kHz
		The carrier frequency is automatically adjusted based on the load features
	Input frequency resolution	Digital setting:0.01Hz
		Analog setting: Maximum frequency x 0.025%
	Start torque	G Type:0.5Hz/150%(SVC)
		P Type:0.5Hz/100%
	Speed range	1:100 (SVC)
	Speed stability accuracy	±0.5%(SVC)
	Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
	Torque boost	Auto-boost ;
		Customized boost: 0.1%~30.0%
	V/F Curve	Straight-line V/F curve
		Multi-point V/F curve
		N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
	V/F separation	2 types: complete separation; half separation
	Ramp Mode	Straight-line ramp.
		Four groups of acceleration/deceleration time with the range of 0.00`6500.0s
	DC braking	DC braking frequency:0.00Hz~Maximum frequency
		Braking time:0.0s~36.0s
		Braking action current value:0.0%~100.0%
	JOG control	JOG frequency range:0.00Hz~50.00Hz
		JOG acceleration/deceleration time: 0.0s~6500.0s.
	Simple PLC,Multiple preset speeds	It implements up to 16 speeds via the simple PLC function or combination of terminal states
	Onboard PID	It realizes process-controlled closed loop control system easily
	Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage
	Overvoltage/overcurrent stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
	Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
	Torque limit and control	It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be
		implemented in the FVC mode.
	Support for multiple PG card	Support for differential input PG card, resolver PG card ,rotating transformer PG card
