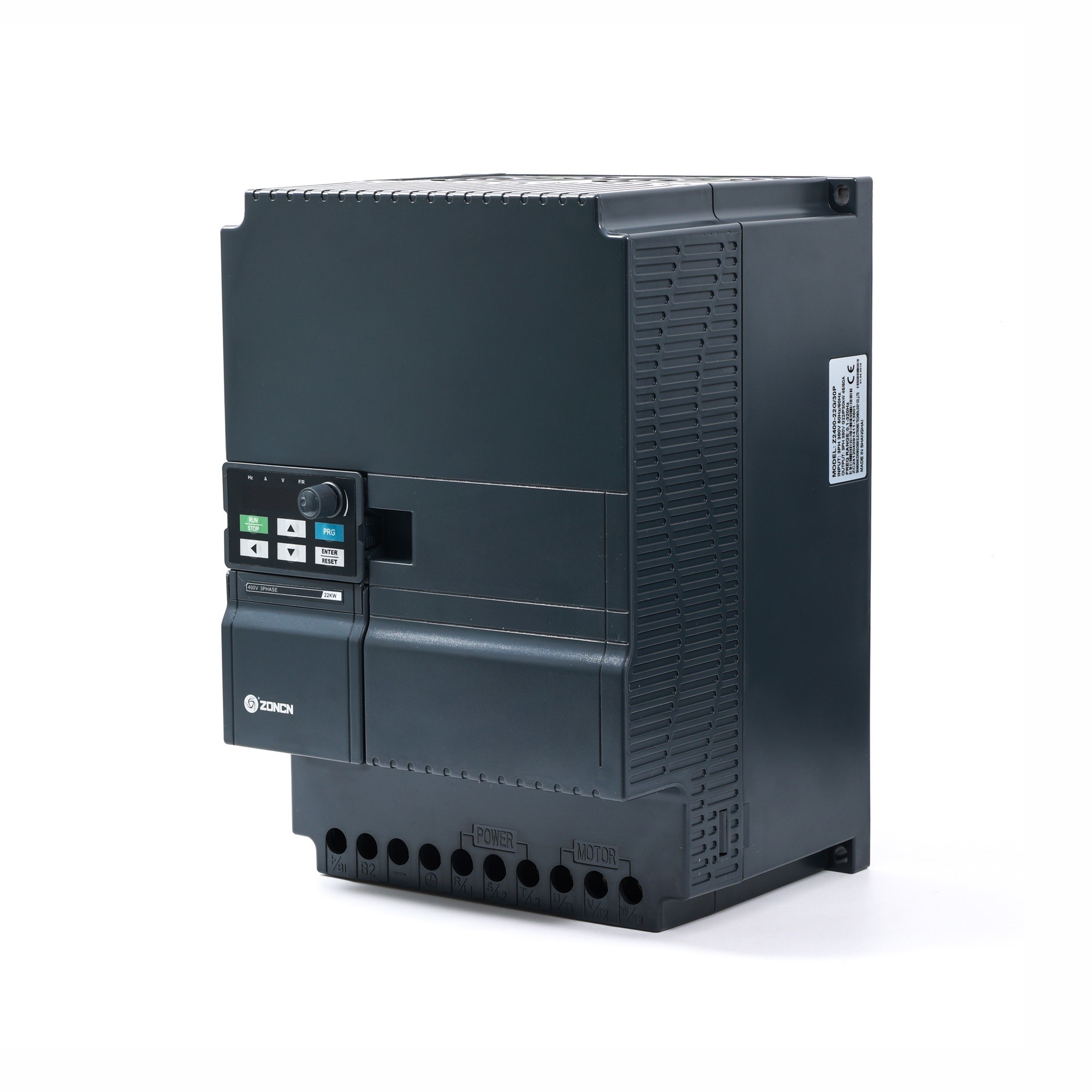

Low Voltage Inverter 22KW Three Phase 380V Variable Frequency Drive 50/60Hz for Industrial Equipment

Basic Information

Place of Origin:	Shanghai
Brand Name:	ZONCN
Certification:	CE
Model Number:	Z2400-22G/30P

Minimum Order Quantity:	1 unit
Packaging Details:	Carton
Delivery Time:	7-30 work day
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	100000 units a month

Get Best Price Contact Now

Type:	Vfd,ac Drive	Application:	Industrial Automation
Control Method:	V/F Control ， SFVC	Voltage:	380V VFD
Frequency Range:	0~599Hz(V/F Control)	Warranty:	18 Months
OEM:	Accept	Input Current:	46/62
Output Current:	45/60	Output Power:	22/30kw
Highlight:	Industrial Equipment Low Voltage Inverter , 50/60Hz Low Voltage Inverter , 22KW Low Voltage Inverter

22KW Three Phase 380V Variable Frequency Drive 50/60Hz

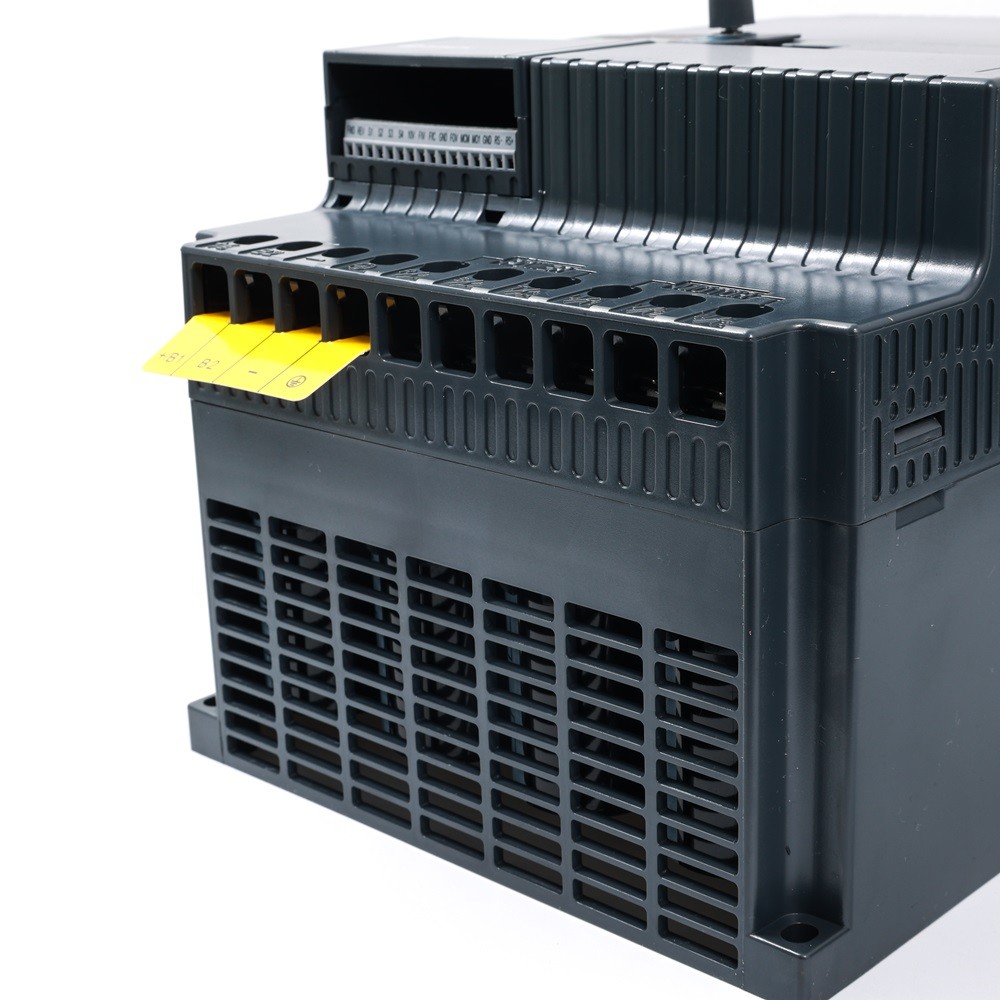

Low Voltage Inverter 22KW Three Phase 380V Variable Frequency Drive 50/60Hz for Industrial Equipment 0

Z2000 Series Compact Vector Control Inverter

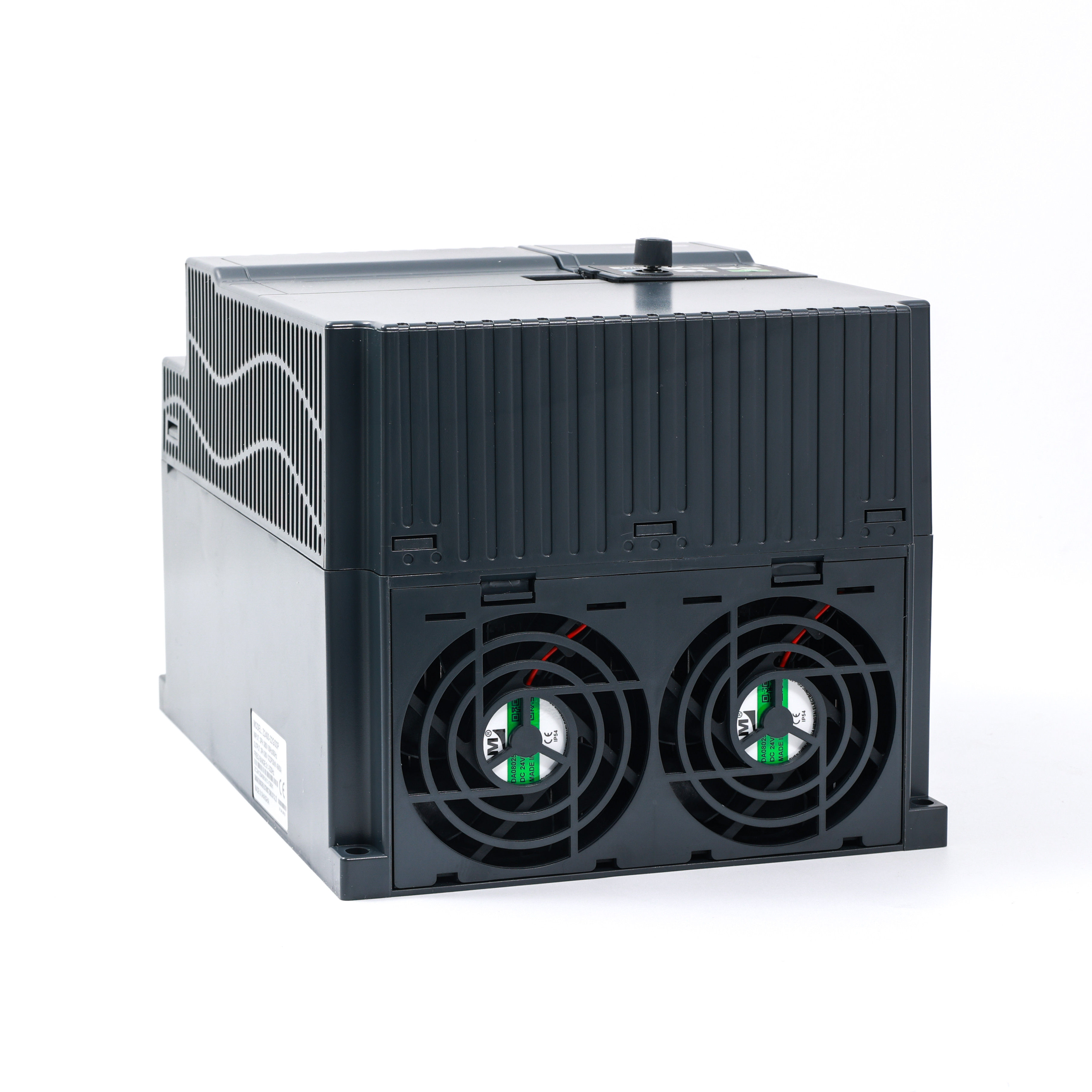

Low Voltage Inverter 22KW Three Phase 380V Variable Frequency Drive 50/60Hz for Industrial Equipment 2

Z2000 Series Vector Universal Inverter
The Z2000 series vector universal inverters combine advanced tech with reliable performance, making them ideal for diverse industrial applications.​
Control Modes: Offer open - loop vector and V/F control. Open - loop ensures precise motor control, while V/F provides stable operation for less demanding scenarios.​
Overload Capacity: Withstand 150% rated current for 60s and 180% for 3s, enabling smooth heavy - load motor starts.​
Performance: Excellent performance and strong adaptability to harsh environments reduce malfunction risks.​
Design: Compact and simple - structured, easy to install, saving space in equipment.​
Features: “Ride - through” and fast current limiting cut fault alarms. Comprehensive protection covers phase - loss, over - current, - voltage, - load, and - temperature.​
Compatibility: Z2000T series supports permanent magnet synchronous motors.​
Power Range: 0.4 - 7.5kW for 220V systems; 0.75 - 450kW for 380V systems.


Z2000 Series VFD technical specification:

Item
Z2000

Standard Function
Control mode
 Senseless flux vector control(SFVC) ; Voltage/Frequency (V/F) control

Maximum frequency
Vector control: 0-320Hz ; V/F control: 0-3200Hz

Carrier frequency
1-16kHz ;                                                                                                                                       The carrier frequency is automatically adjusted based on the load features

Input frequency solution
Digital setting: 0.01Hz  ;   Analog setting: maximum frequency x 0.025%

Startup torque
G type: 0.5Hz/150%(SFVC)  ;  P type: 0.5Hz/100%

Speed range
1:100

Speed stability accuracy
±0.5%

Overload capacity
G type: 60s for 150% of the rated current, 3s for 180% of the rated current.                                           P type: 60s for 120% of the rated current, 3s for 150% of the rated current.

Torque boost
Auto boost ; Customized boost 0.1%-30.0%

V/F curve
Line V/F curve; Multi-point V/F curve; N-power V/F curve

V/F separation
Two types: complete separation; half separation

Ramp mode
Straight-line ramp ; S-curve ramp ;                                                                                                    Four groups of acceleration/deceleration time with the range of 0.0-6500.0s

DC braking
DC braking frequency : 0.0Hz to maximum frequency                                                                   Braking time: 0.0~100.0s       Braking action current value: 0.0%~100.0%

JOG control
JOG frequency range: 0.00~50.00Hz                                                                                               JOG acceleration/deceleration time: 0.0~6500.0s

Onboard multiple preset speeds
It implements up to 16 speeds via the simple PLC function or combination of X terminal states.

Onboard PID
It realizes process-controlled closed loop control system easily

Auto voltage regulation(AVR)
It can keep constant output voltage automatically when the mains voltage changes.

Auto voltage/ Over current stall control
The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current

Rapid current limit
It helps to avoid frequent over current faults of the AC drive

Torque limit and control
It can keep constant output voltage automatically when the mains voltage changes

FAQ:
Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
