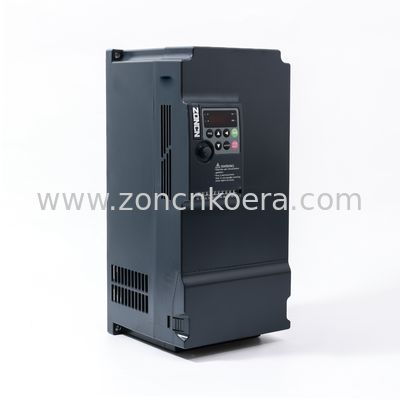

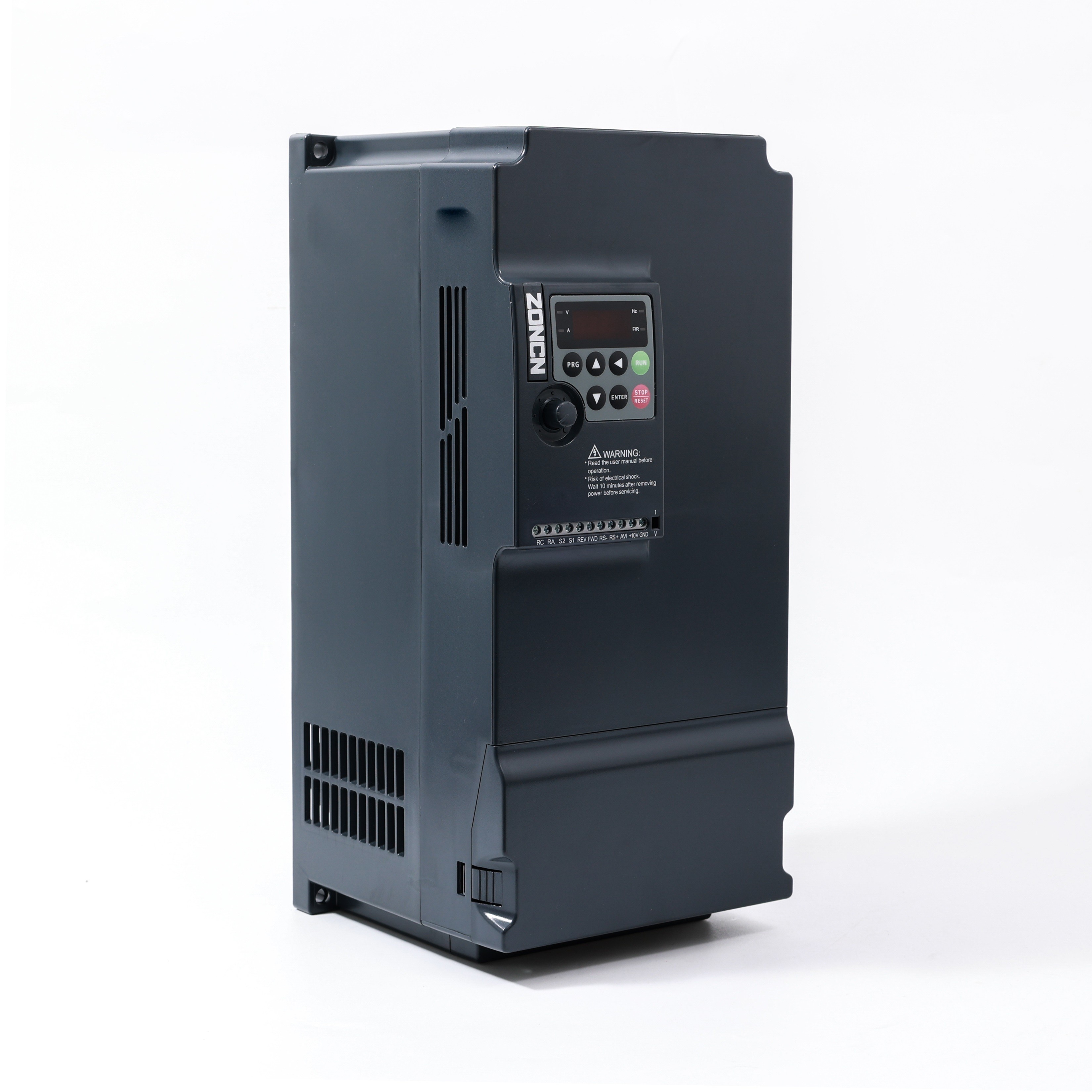

Industrial Equipment Inverter 22KW Three Phase 380V Variable Frequency Drive 50/60Hz VFD

Basic Information

Place of Origin:	Shanghai
Brand Name:	ZONCN
Certification:	CE
Model Number:	NZ200-22G/30P-4

Minimum Order Quantity:	1 unit
Packaging Details:	Carton
Delivery Time:	7-30 work day
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	100000 units a month

Get Best Price Contact Now

Application:	Industrial Automation	Type:	Vfd,AC Drive
V/F Control:	Support	PID Control:	Support
Voltage Range:	0~380V	Frequency Range:	0~599Hz
Warranty:	18 Months	OEM:	Accept
Communication:	Modbus/RS485	Protective Structure:	IP 20
Highlight:	Industrial Equipment VFD Inverter , 22kW Three Phase VFD

Three phase Industrial Equipment Inverter 380v Variable Frequency Driver 22KW VFD

Industrial Equipment Inverter 22KW Three Phase 380V Variable Frequency Drive 50/60Hz VFD 0

NZ200 Series Economical Vector Inverter Features:
Dual Control Modes: Offers open-loop vector control and V/F control for precise motor operation and energy-efficient performance.
Exceptional Overload Capacity: Handles 150% of the rated current for 60 seconds and 180% for 3 seconds, ensuring reliable operation under heavy loads.
High Performance & Adaptability: Delivers superior performance and adapts well to various industrial environments.
Compact & Easy-to-Install Design: Features a simple structure and compact size, facilitating effortless installation and space-saving in control cabinets.
Powerful Torque Output: Provides high torque, guaranteeing smooth startup of motors even under heavy-duty conditions.
Intelligent Protection Functions: Equipped with ride-through and rapid current limiting to reduce fault alarms, enhancing system reliability.
Comprehensive Protection: Offers output phase loss protection, along with overcurrent, overvoltage, overload, and overheating protection to safeguard the inverter and connected equipment.
Extended Compatibility: The Z200T series supports permanent magnet synchronous motor control, expanding application possibilities.

NZ200 Series Variable frequency Driver(VFD) Specification:

Model
Input Voltage (V)
Rated output power    ( KW)
Rated input current(A)
Rated output current (A)
Motor power  ( KW)

NZ200-0R4G-2
                                          1PH  220V±15%
0.4
5.4
2.5
0.4

NZ200-0R75G-2
0.75
7.2
5
0.75

NZ200-1R5G-2
1.5
10
7
1.5

NZ200-2R2G-2
2.2
16
11
2.2

NZ200-3R7G-2
3.7
17
16.5
3.7

NZ200-0R4G-4
 3PH  380V±15%
0.4
3.4
1.2
0.4

NZ200-0R75G-4
0.75
3.8
2.5
0.75

NZ200-1R5G-4
1.5
5
3.7
1.5

NZ200-2R2G-4
2.2
5.8
5
2.2

NZ200-3R7G/5R5P-4
3.7
10.7
9
3.7

NZ200-5R5G/75R5P-4
5.5
14.6
13
5.5

NZ200-7R5G/11P-4
7.5
20
17
7.5

NZ200-11G/15P-4
11
26
25
11

NZ200-15G/18.5P-4
15
35
32
15

NZ200-18.5G/22P-4
18.5
38
37
18.5

NZ200-22G/30P-4
22
46
45
22

NZ200-30G/37P-4
30
62
60
30

NZ200-37G/45P-4
37
76
75
37

NZ200-45G/55P-4
45
90
90
45

NZ200-55G-4
55
105
110
55

NZ200-75G/90P-4
75
140
150
75

NZ200-90G/110P-4
90
160
176
90

NZ200-110G/132P-4
110
210
210
110

NZ200-132G/160P-4
132
240
253
132

...
...
...
...
...

NZ200-450G/500P-4
450
790
790
450

NZ200 Series Inverter Package&Shipment

Tag:

Variable Frequency Drive Inverter,

vector control inverter,

low power inverter

Contact Details

More Low Voltage Inverter

Industrial Equipment Inverter 22KW Three Phase 380V Variable Frequency Drive 50/60Hz VFD

Industrial Equipment VFD Inverter

22kW Three Phase VFD

NZ200 Series Economical Vector Inverter Features:

Variable Frequency Drive Inverter,

vector control inverter,

low power inverter

220v 380v Mini Inverter VFD 0.75kw 1.5kw Variable Frequency Drive 50Hz 60Hz

0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 220v VFD Drives 380V Variable Frequency Drives From ZONCN

220v 3phase variable frequency drives 0.75kw VFD inverter 1hp

30kw 37kw VFD 380v Good Price High Quality Variable Frequency Drive AC Inverters

Model	Input Voltage (V)	Rated output power ( KW)	Rated input current(A)	Rated output current (A)	Motor power ( KW)
NZ200-0R4G-2	1PH 220V±15%	0.4	5.4	2.5	0.4
NZ200-0R75G-2		0.75	7.2	5	0.75
NZ200-1R5G-2		1.5	10	7	1.5
NZ200-2R2G-2		2.2	16	11	2.2
NZ200-3R7G-2		3.7	17	16.5	3.7
NZ200-0R4G-4	3PH 380V±15%	0.4	3.4	1.2	0.4
NZ200-0R75G-4		0.75	3.8	2.5	0.75
NZ200-1R5G-4		1.5	5	3.7	1.5
NZ200-2R2G-4		2.2	5.8	5	2.2
NZ200-3R7G/5R5P-4		3.7	10.7	9	3.7
NZ200-5R5G/75R5P-4		5.5	14.6	13	5.5
NZ200-7R5G/11P-4		7.5	20	17	7.5
NZ200-11G/15P-4		11	26	25	11
NZ200-15G/18.5P-4		15	35	32	15
NZ200-18.5G/22P-4		18.5	38	37	18.5
NZ200-22G/30P-4		22	46	45	22
NZ200-30G/37P-4		30	62	60	30
NZ200-37G/45P-4		37	76	75	37
NZ200-45G/55P-4		45	90	90	45
NZ200-55G-4		55	105	110	55
NZ200-75G/90P-4		75	140	150	75
NZ200-90G/110P-4		90	160	176	90
NZ200-110G/132P-4		110	210	210	110
NZ200-132G/160P-4		132	240	253	132
...		...	...	...	...
NZ200-450G/500P-4		450	790	790	450
