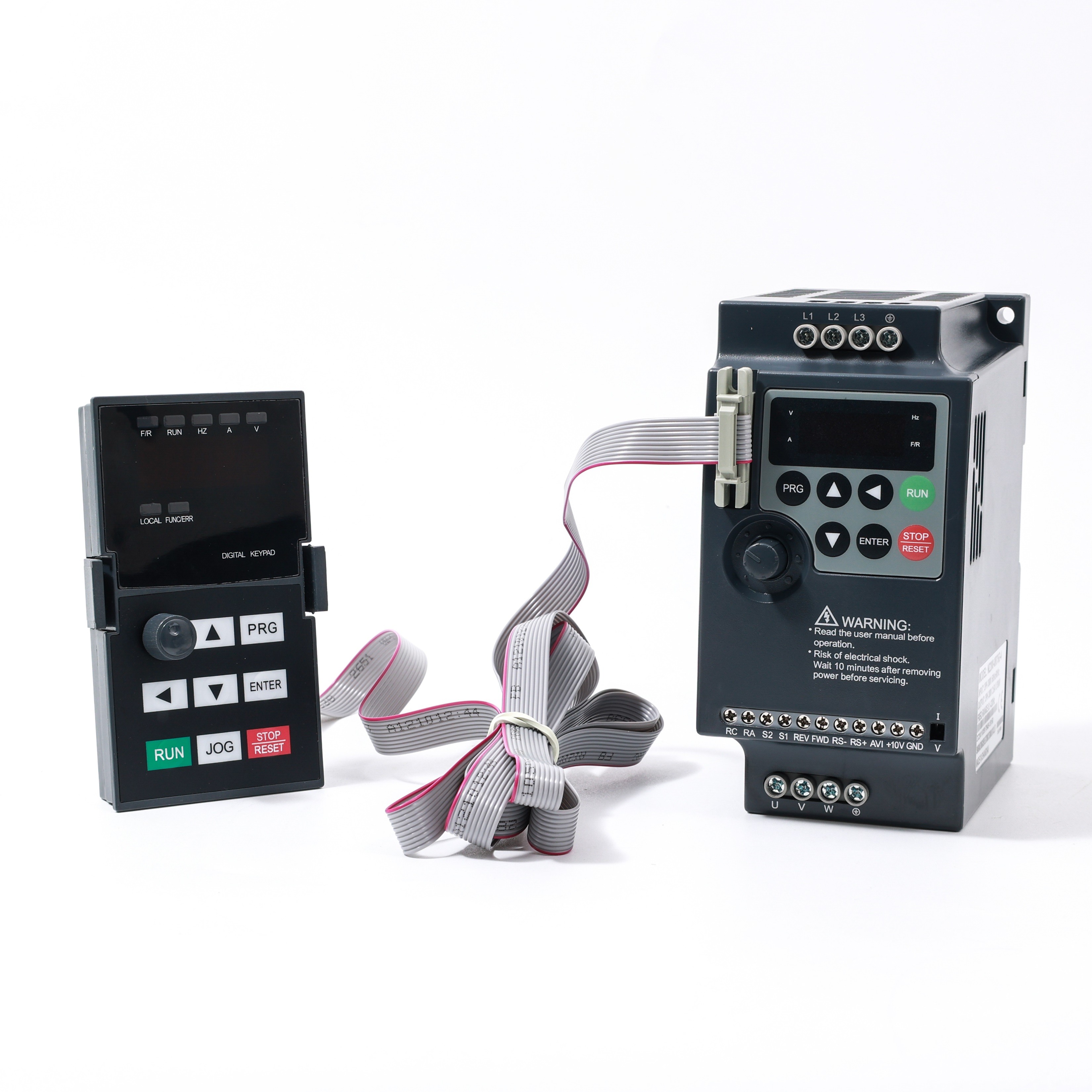

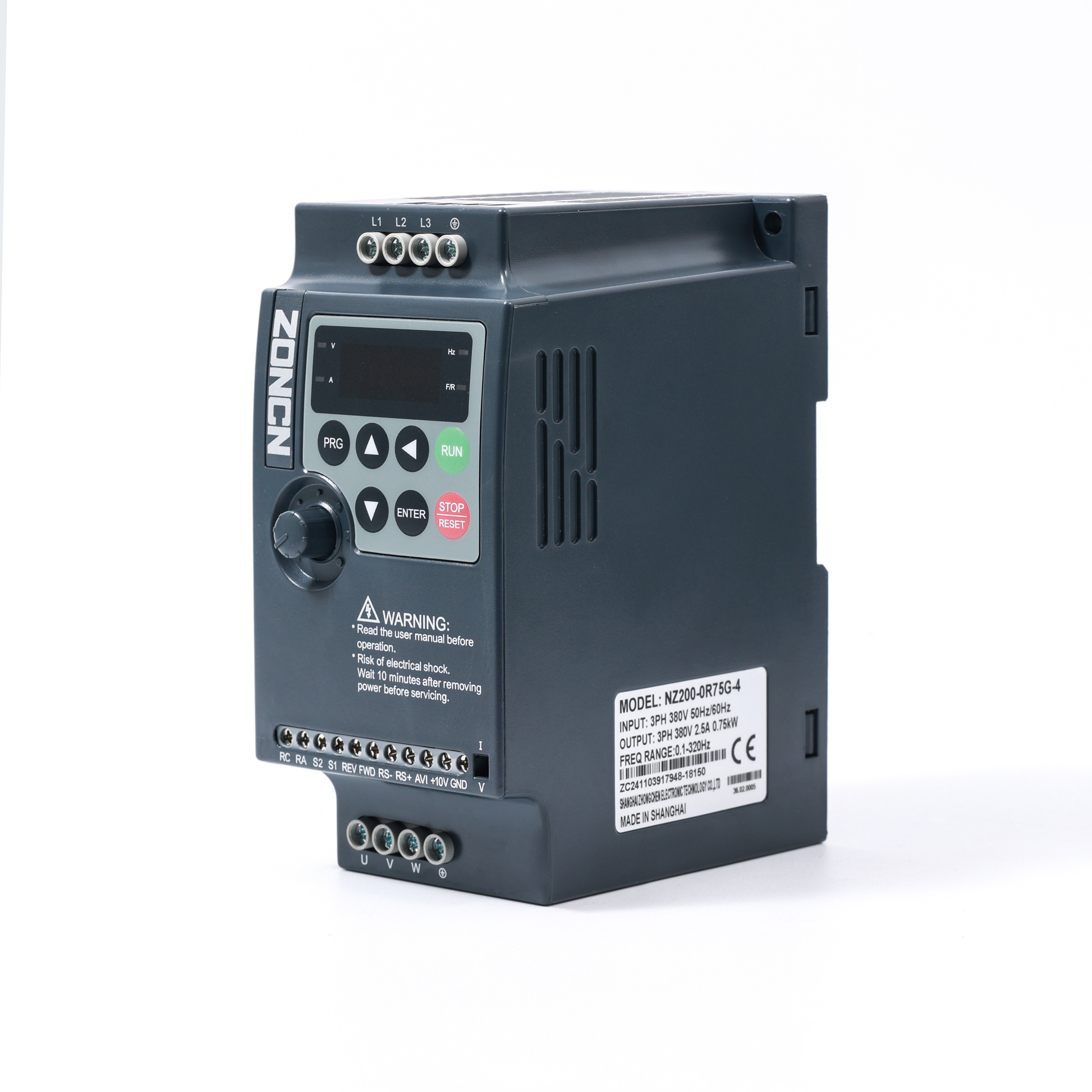

380V VFD Drive 3-Phase Low Voltage Inverter with Variable Speed for 0.75KW Motor

Basic Information

Place of Origin:	Shanghai
Brand Name:	ZONCN
Certification:	CE
Model Number:	NZ200-0R75G-4

Minimum Order Quantity:	1 unit
Packaging Details:	Carton
Delivery Time:	7-30 work day
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	100000 units a month

Get Best Price Contact Now

Type:	Vfd,AC Drive	Application:	Industrial Automation
Control Method:	V/F Control	Voltage Range:	0~380V
Frequency Range:	0~599Hz	Warranty:	18 Months
OEM:	Accept	PID Control:	Support
Communication:	Modbus/RS485	Protective Structure:	IP 20
Highlight:	0.75KW Inverter VFD Drive , 380V VFD Drive 3 Phase , 380V Inverter VFD Drive

0.75KW Three phase Inverter 380v Variable Frequency Driver(VFD)

NZ200 Series Economical Vector Inverter

The NZ200 Series Economical Vector Inverter combines advanced technology with affordability, tailored for diverse industrial needs.

Featuring open-loop vector and V/F control, it ensures precise motor operation and energy efficiency. With an impressive overload capacity (150% rated current for 60s, 180% for 3s), it excels under heavy loads. Its compact design simplifies installation, while high torque output enables smooth startup even in tough conditions.

The built-in ride-through and rapid current limiting reduce fault alarms, enhancing reliability. Comprehensive protections like phase loss, overcurrent, and overheating safeguard the inverter and connected devices. The Z200T series vfd also supports permanent magnet synchronous motor control.

For reliable, efficient, and cost-effective industrial motor control, the NZ200 Series vfd inverter is the optimal choice.

NZ200 Series Variable frequency Driver(VFD) Specification:

Model
Input Voltage (V)
Rated output power    ( KW)
Rated input current(A)
Rated output current (A)
Motor power  ( KW)

NZ200-0R4G-2
                                          1PH  220V±15%
0.4
5.4
2.5
0.4

NZ200-0R75G-2
0.75
7.2
5
0.75

NZ200-1R5G-2
1.5
10
7
1.5

NZ200-2R2G-2
2.2
16
11
2.2

NZ200-3R7G-2
3.7
17
16.5
3.7

NZ200-0R4G-4
 3PH  380V±15%
0.4
3.4
1.2
0.4

NZ200-0R75G-4
0.75
3.8
2.5
0.75

NZ200-1R5G-4
1.5
5
3.7
1.5

NZ200-2R2G-4
2.2
5.8
5
2.2

NZ200-3R7G/5R5P-4
3.7
10.7
9
3.7

NZ200-5R5G/75R5P-4
5.5
14.6
13
5.5

NZ200-7R5G/11P-4
7.5
20
17
7.5

NZ200-11G/15P-4
11
26
25
11

NZ200-15G/18.5P-4
15
35
32
15

NZ200-18.5G/22P-4
18.5
38
37
18.5

NZ200-22G/30P-4
22
46
45
22

NZ200-30G/37P-4
30
62
60
30

NZ200-37G/45P-4
37
76
75
37

NZ200-45G/55P-4
45
90
90
45

NZ200-55G-4
55
105
110
55

NZ200-75G/90P-4
75
140
150
75

NZ200-90G/110P-4
90
160
176
90

NZ200-110G/132P-4
110
210
210
110

NZ200-132G/160P-4
132
240
253
132

...
...
...
...
...

NZ200-450G/500P-4
450
790
790
450
