Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE
Model Number: NZ200-7R5G-4
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: Variable Frequency Drive Product Name: Frequency Inverter
Brand: ZONCN Series: NZ200
Model: NZ200-7R5G-4 Input Voltage: 380v/440v/480v
Control Mode: Vector Control Braking Unit: Built-in
24V Terminal: Have Communication: RS485
OEM: Yes Warranty: 18 Months
Highlight:

380v Variable Frequency Drive

,

50hz Variable Frequency Drive

,

60hz Variable Frequency Drive

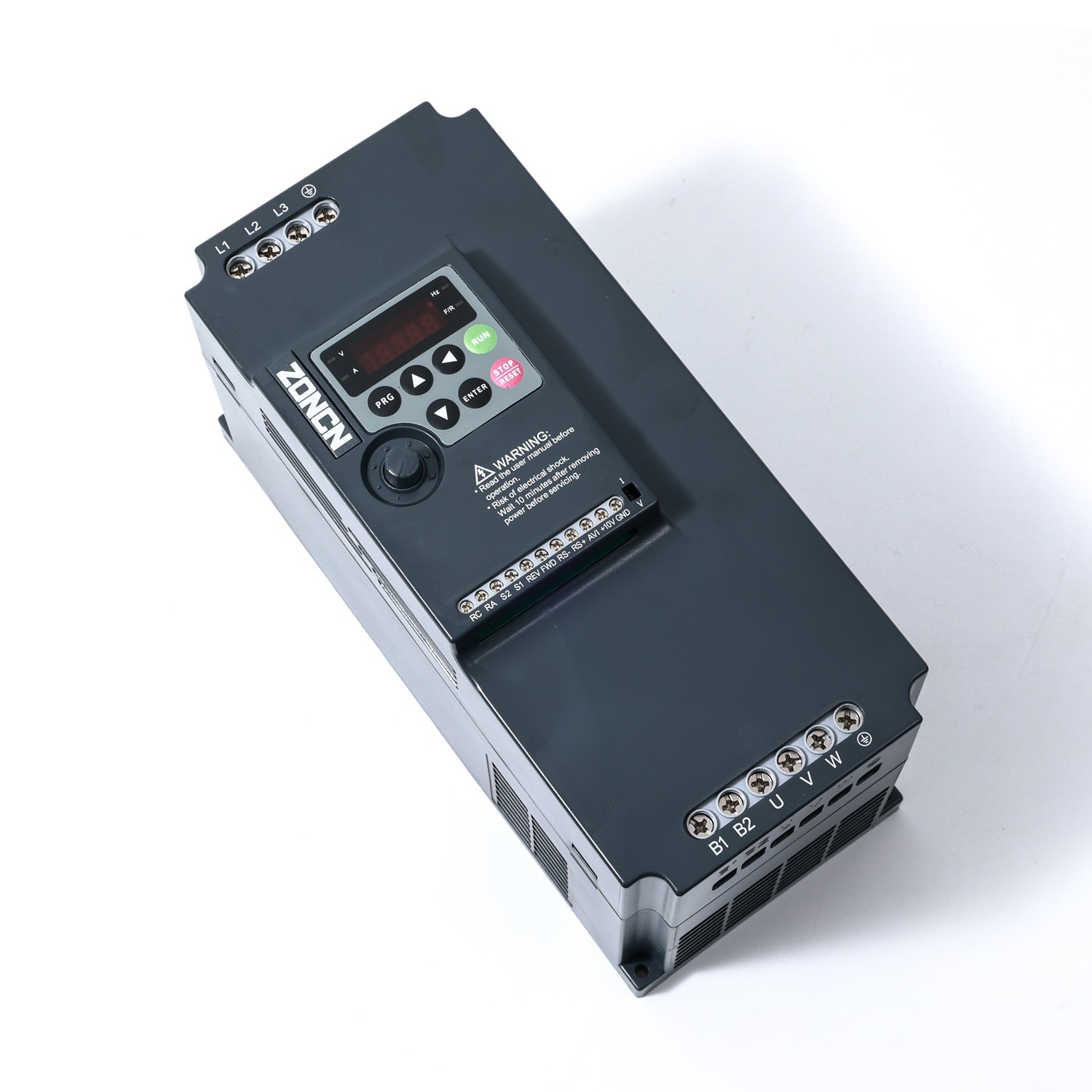

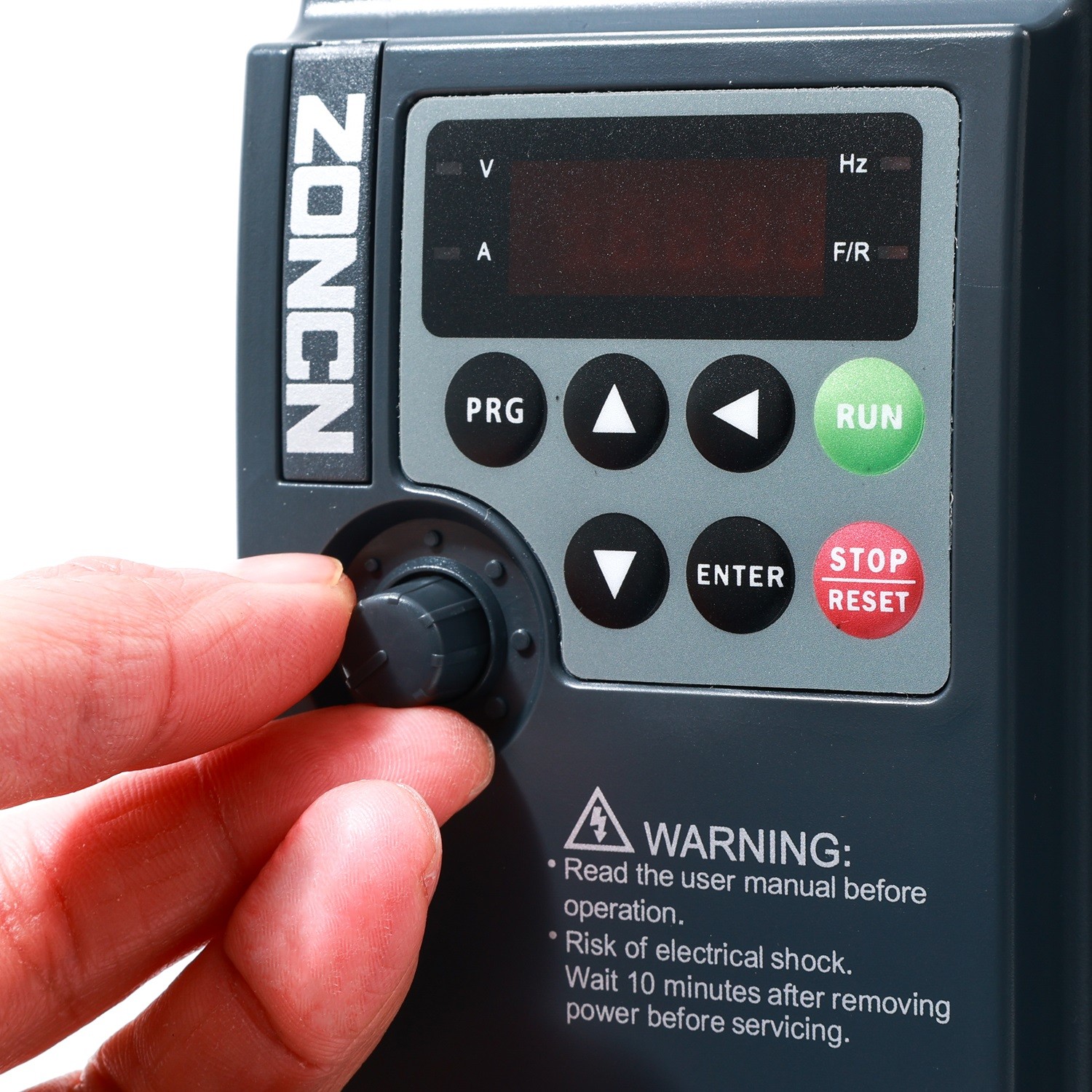

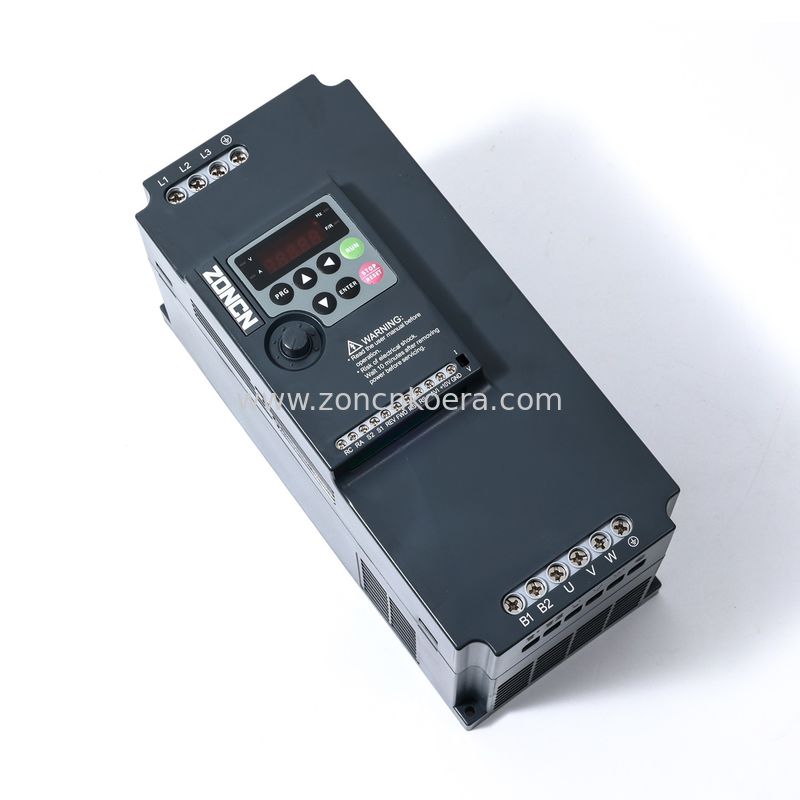

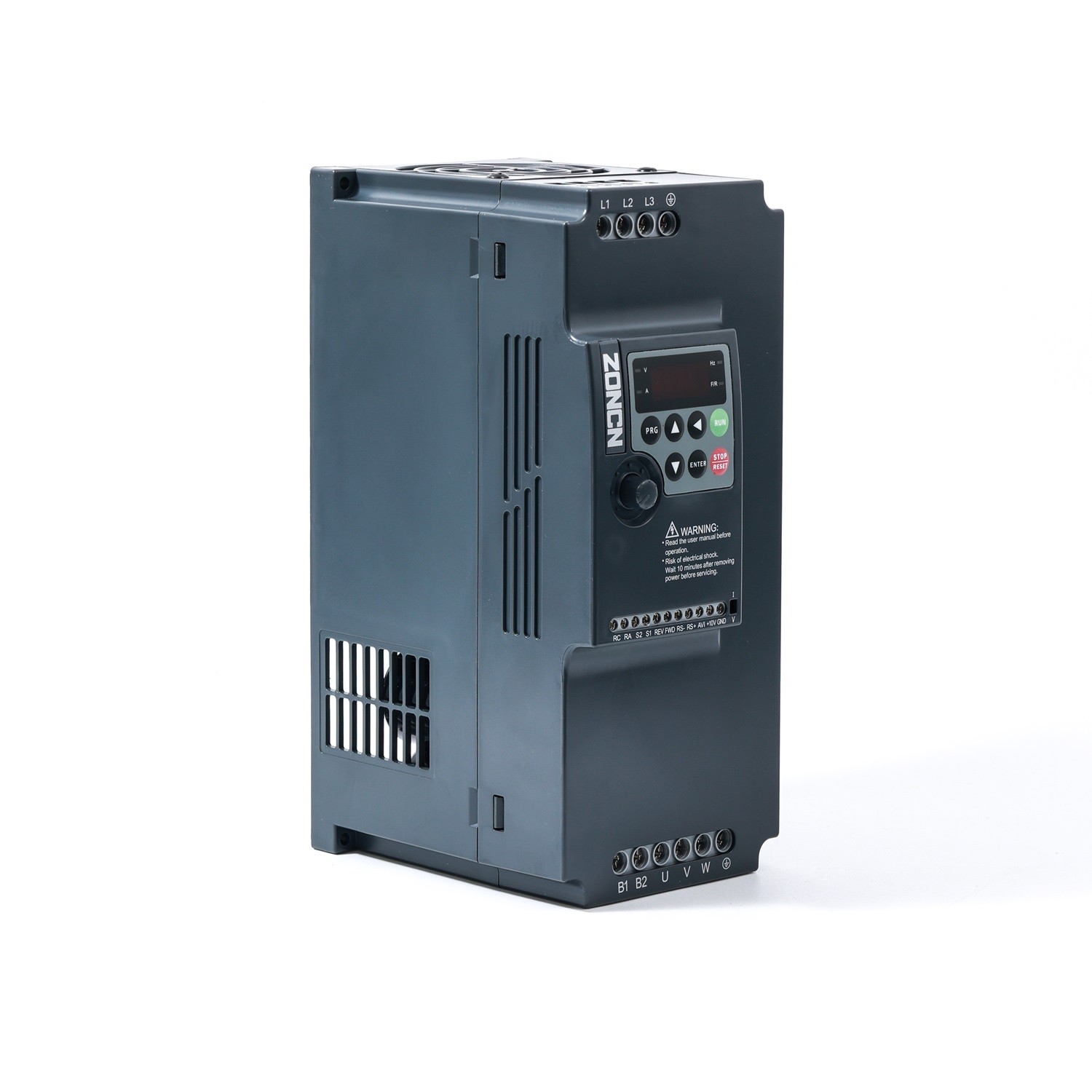

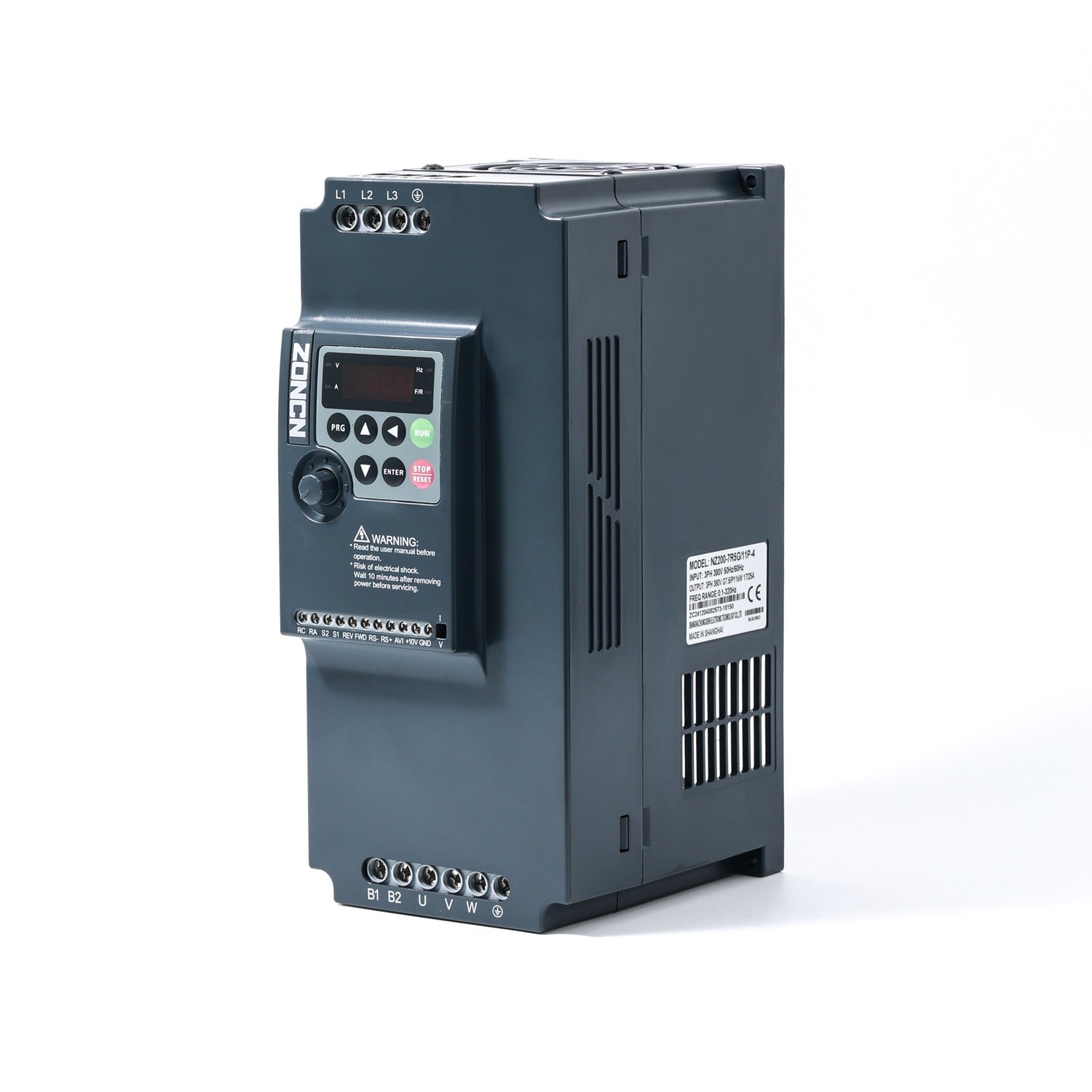

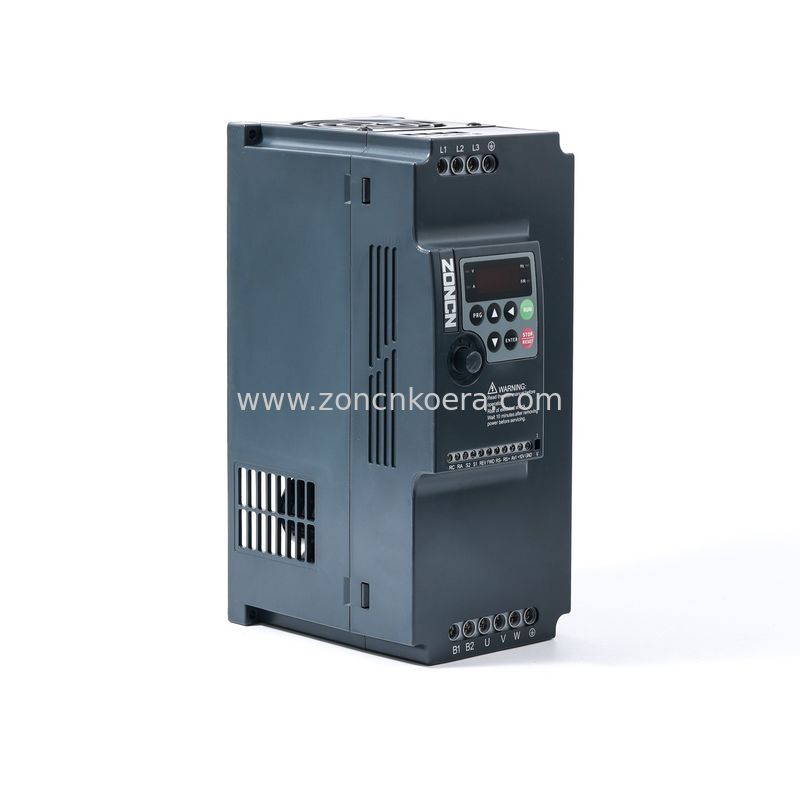

Variable Frequency Drive 10hp 380v Frequency Converter 50hz 60hz 7.5kw AC Drives



NZ200 VFD Inverter Features

The ZONCN NZ200 series represents a high-performance yet economical variable frequency drive solution designed for industrial automation applications. This advanced drive system incorporates open-loop vector control technology, delivering exceptional high torque output with starting torque capability of 150% at 0.5Hz for superior motor control performance.

Engineered with a compact footprint, the NZ200 series facilitates easy installation in space-constrained control cabinets while maintaining optimal thermal performance. The drive incorporates comprehensive protection mechanisms including output phase-loss protection, overcurrent/overvoltage safeguards, overload protection, and thermal monitoring to ensure reliable operation in demanding environments.

Key functional highlights include:

  • Integrated PID controller for precise process regulation

  • Compatibility with Permanent Magnet Synchronous Motors (PMSM)

  • Cost-optimized design offering exceptional price/performance ratio

  • RS485 communication interface with Modbus protocol support

  • 24V auxiliary power terminals for peripheral devices

  • Analog input capability (0-10V/4-20mA) for flexible control integration

The NZ200 series demonstrates exceptional versatility across multiple industrial applications including fan and pump systems, conveyor belts, packaging machinery, extruders, textile equipment, CNC machines, and air compressors. Available in an extensive power range from 0.4kW to 630kW, this drive solution accommodates diverse motor control requirements.

Additionally, ZONCN offers OEM customization services for the NZ200 series, enabling brand-specific adaptations to meet specialized application needs. The combination of robust performance characteristics, flexible configuration options, and competitive pricing positions the NZ200 as an optimal choice for industrial motor control applications requiring reliable and cost-effective solutions.





NZ200 VFD Specification



VFD Model Input Voltage (V) Rated output power ( KW) Rated input current(A) Rated output current (A) Motor power ( KW)
NZ200-0R4G-2 1PH 220V±15% 0.4 5.4 2.5 0.4
NZ200-0R75G-2 0.75 7.2 5 0.75
NZ200-1R5G-2 1.5 10 7 1.5
NZ200-2R2G-2 2.2 16 11 2.2
NZ200-3R7G-2 3.7 17 16.5 3.7
NZ200-0R4G-4 3PH 380V±15% 0.4 3.4 1.2 0.4
NZ200-0R75G-4 0.75 3.8 2.5 0.75
NZ200-1R5G-4 1.5 5 3.7 1.5
NZ200-2R2G-4 2.2 5.8 5 2.2
NZ200-3R7G/5R5P-4 3.7 10.7 9 3.7
NZ200-5R5G/75R5P-4 5.5 14.6 13 5.5
NZ200-7R5G/11P-4 7.5 20 17 7.5
NZ200-11G/15P-4 11 26 25 11
NZ200-15G/18.5P-4 15 35 32 15
NZ200-18.5G/22P-4 18.5 38 37 18.5
NZ200-22G/30P-4 22 46 45 22
NZ200-30G/37P-4 30 62 60 30
NZ200-37G/45P-4 37 76 75 37
NZ200-45G/55P-4 45 90 90 45
NZ200-55G-4 55 105 110 55
NZ200-75G/90P-4 75 140 150 75
NZ200-90G/110P-4 90 160 176 90
NZ200-110G/132P-4 110 210 210 110
NZ200-132G/160P-4 132 240 253 132
... ... ... ... ...
NZ200-450G/500P-4 450 790 790 450





ZONCN NZ200 VFD Applications

Variable Frequency Drive 10hp 380v Frequency Converter 50hz 60hz 7.5kw AC Drives 0

About ZONCN

Variable Frequency Drive 10hp 380v Frequency Converter 50hz 60hz 7.5kw AC Drives 1

Variable Frequency Drive 10hp 380v Frequency Converter 50hz 60hz 7.5kw AC Drives 2
