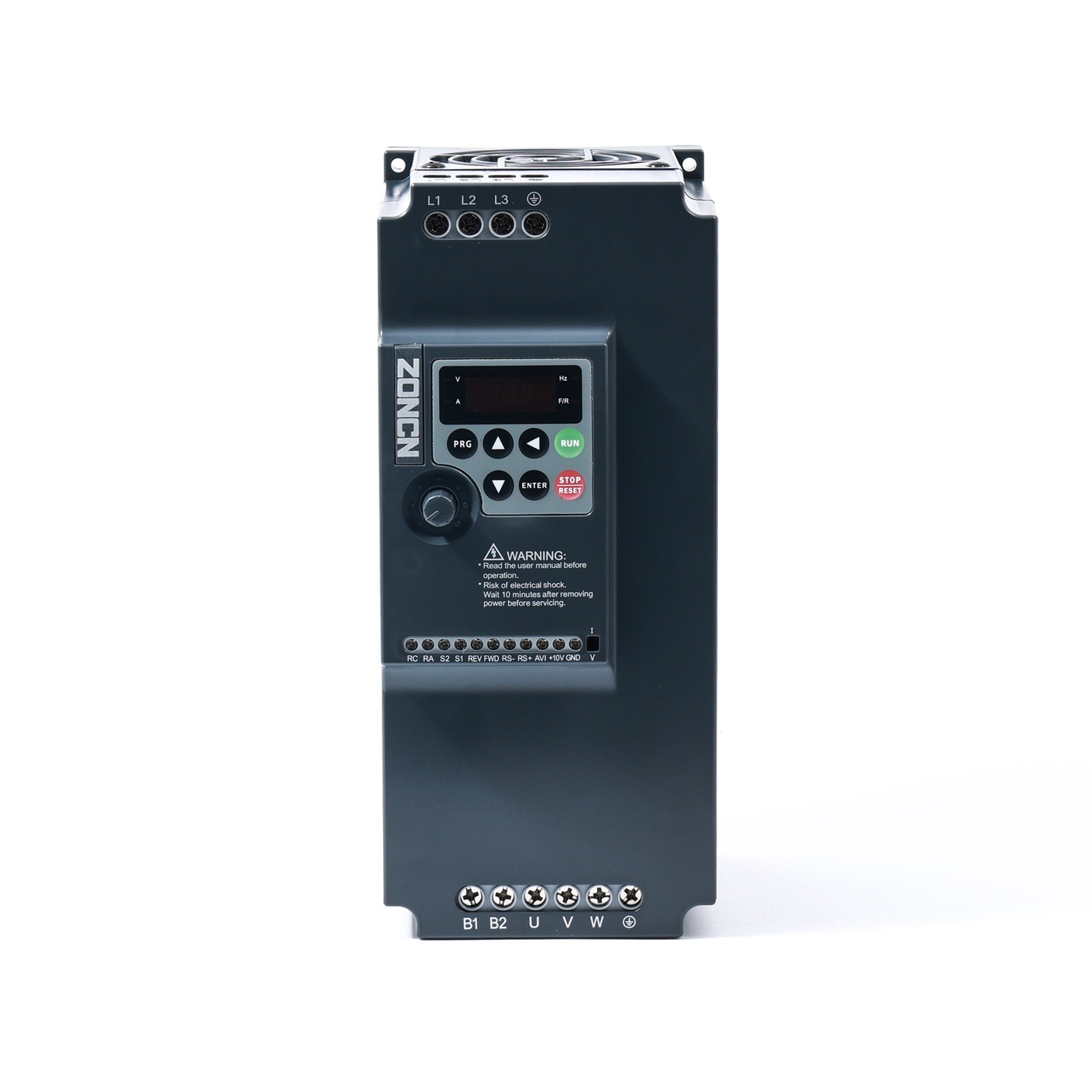

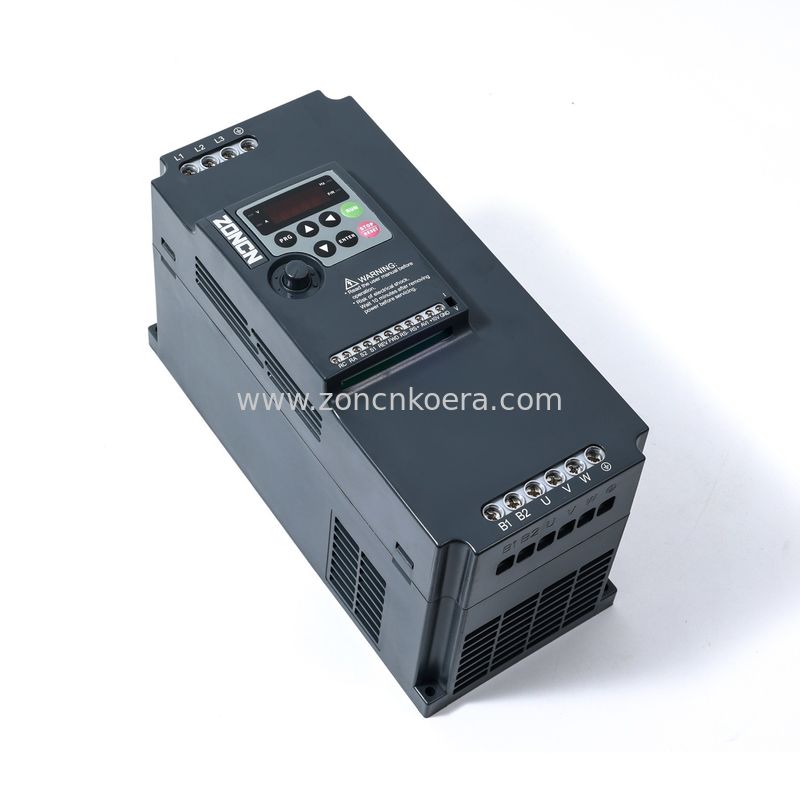

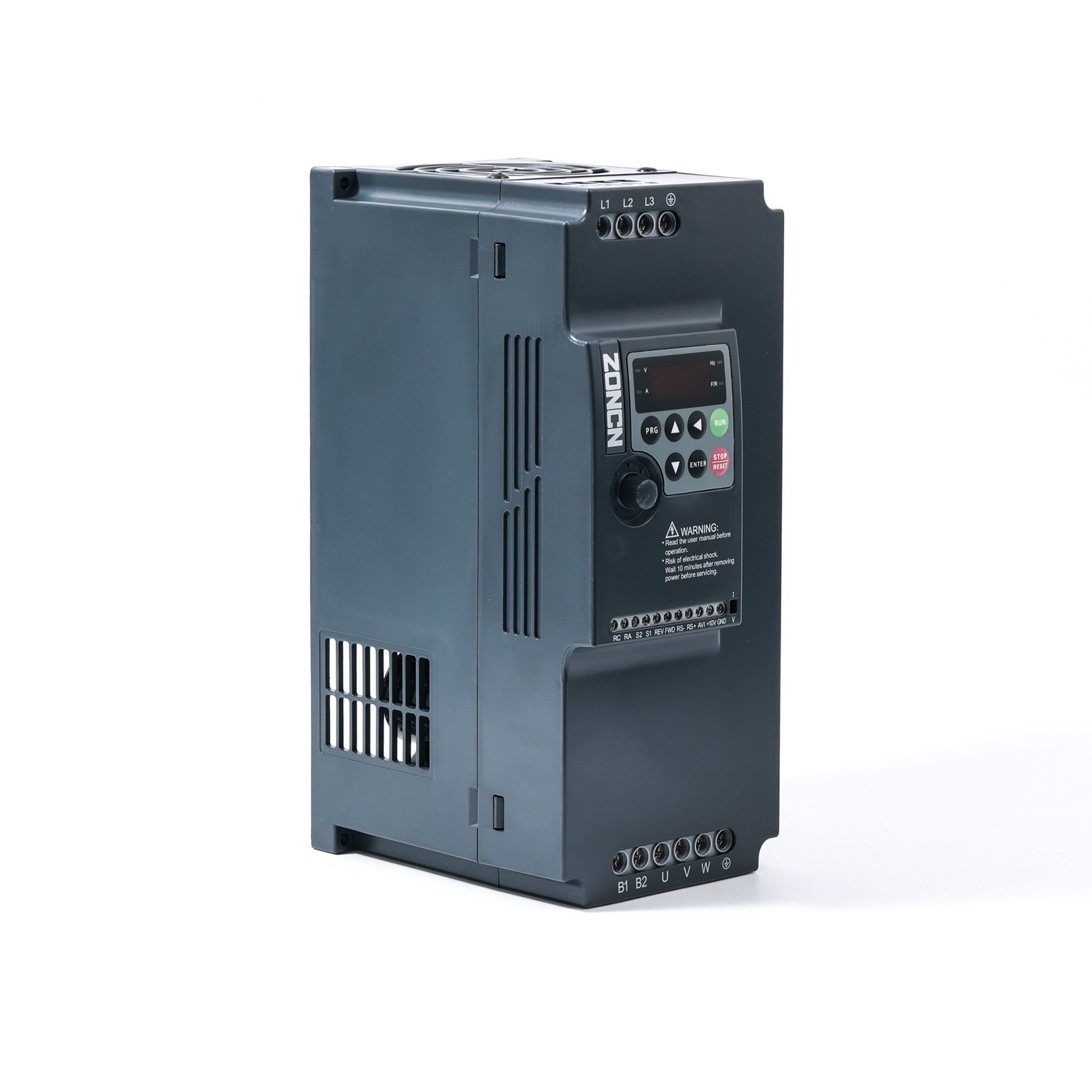

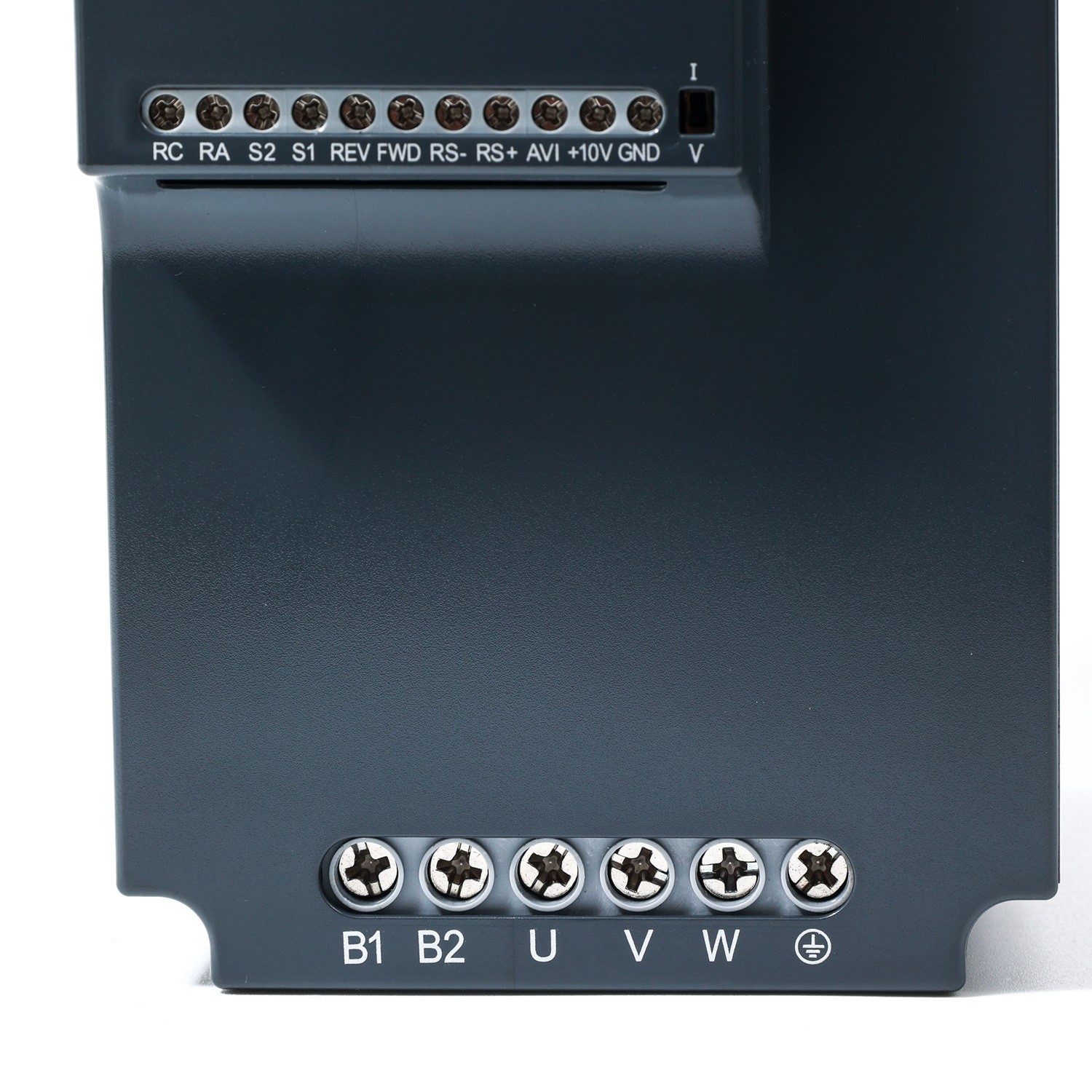

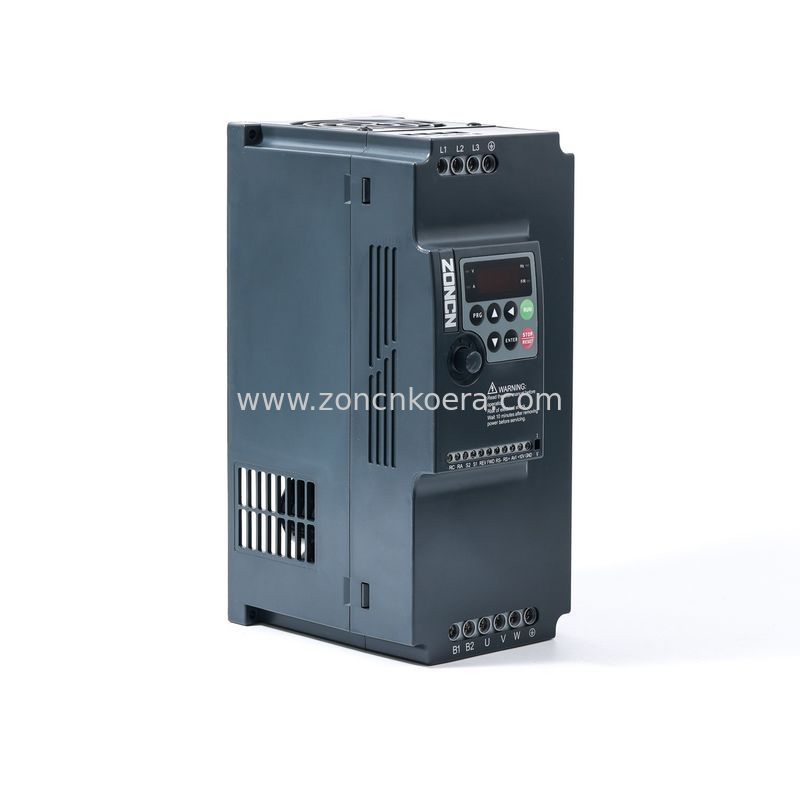

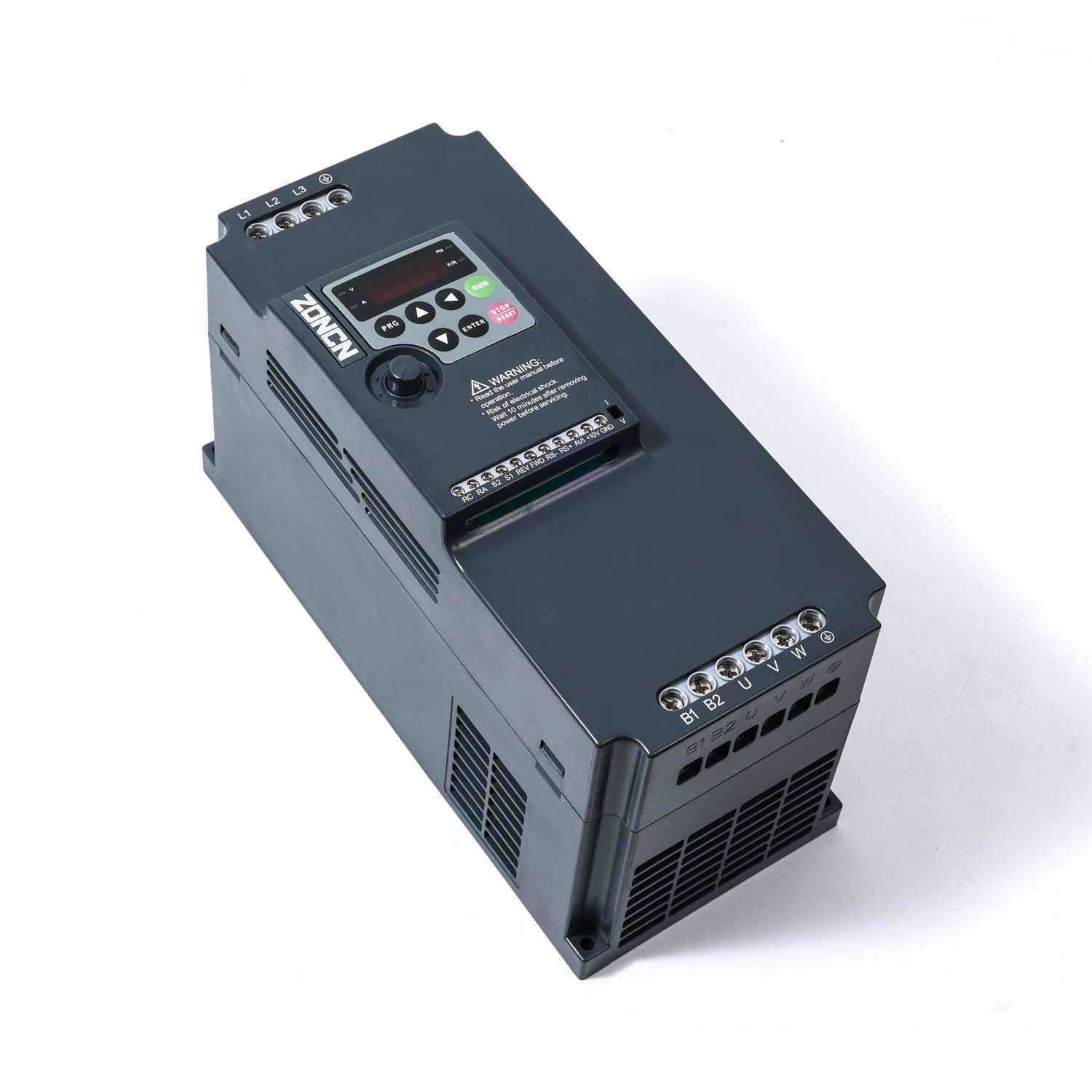

ZONCN 380v VFD Variable Frequency Drivers For Air Compressor 10HP/7.5kw Power Range

ZONCN 380v VFD Variable Frequency Drivers For Air Compressor 10HP/7.5kw Power Range
ZONCN 380v VFD Variable Frequency Drivers For Air Compressor 10HP/7.5kw Power Range
ZONCN 380v VFD Variable Frequency Drivers For Air Compressor 10HP/7.5kw Power Range ZONCN 380v VFD Variable Frequency Drivers For Air Compressor 10HP/7.5kw Power Range ZONCN 380v VFD Variable Frequency Drivers For Air Compressor 10HP/7.5kw Power Range ZONCN 380v VFD Variable Frequency Drivers For Air Compressor 10HP/7.5kw Power Range ZONCN 380v VFD Variable Frequency Drivers For Air Compressor 10HP/7.5kw Power Range ZONCN 380v VFD Variable Frequency Drivers For Air Compressor 10HP/7.5kw Power Range ZONCN 380v VFD Variable Frequency Drivers For Air Compressor 10HP/7.5kw Power Range ZONCN 380v VFD Variable Frequency Drivers For Air Compressor 10HP/7.5kw Power Range ZONCN 380v VFD Variable Frequency Drivers For Air Compressor 10HP/7.5kw Power Range ZONCN 380v VFD Variable Frequency Drivers For Air Compressor 10HP/7.5kw Power Range ZONCN 380v VFD Variable Frequency Drivers For Air Compressor 10HP/7.5kw Power Range ZONCN 380v VFD Variable Frequency Drivers For Air Compressor 10HP/7.5kw Power Range ZONCN 380v VFD Variable Frequency Drivers For Air Compressor 10HP/7.5kw Power Range
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE
Model Number: NZ200T-7R5GY-4
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: VFD Inverters Product Name: Variable Frequency Drive
Brand: ZONCN Power: 10HP/7.5kw
Model: NZ200T-7R5GY-4 Input Voltage: 380v/440v/480v
Power Range: 0.4kw-630kw Braking Unit: Built-in
Communication: RS485 Warranty: 18 Months
OEM: Yes
Highlight:

380v VFD Variable Frequency Drivers

,

7.5kw VFD Variable Frequency Drivers

10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor



NZ200 VFD Features

  1. Open-loop vector control – Ensures precise speed and torque regulation for superior motor performance.

  2. Compact design – Space-saving and easy to install in control cabinets.

  3. Comprehensive protection – Includes output phase-loss protection, overcurrent, overvoltage, overload, and overheating protection for enhanced reliability.

  4. PMSM (Permanent Magnet Synchronous Motor) support – Optimized for high-efficiency permanent magnet motors.

  5. Wide power range (0.4kW–630kW) – Suitable for small to large industrial applications.

  6. Built-in PID controller – Enables automatic process control for pressure, flow, and temperature regulation.

  7. Integrated braking unit – Improves braking performance and reduces external components.

  8. RS485 communication – Supports Modbus protocol for seamless integration with PLCs and SCADA systems.

  9. 24V power supply terminals – Provides convenient auxiliary power for external devices.

  10. Analog input support (0-10V/4-20mA) – Allows flexible speed and control signal input.



NZ200 VFD Specification



VFD Model Input Voltage (V) Rated output power ( KW) Rated input current(A) Rated output current (A) Motor power ( KW)
NZ200-0R4G-2 1PH 220V±15% 0.4 5.4 2.5 0.4
NZ200-0R75G-2 0.75 7.2 5 0.75
NZ200-1R5G-2 1.5 10 7 1.5
NZ200-2R2G-2 2.2 16 11 2.2
NZ200-3R7G-2 3.7 17 16.5 3.7
NZ200-0R4G-4 3PH 380V±15% 0.4 3.4 1.2 0.4
NZ200-0R75G-4 0.75 3.8 2.5 0.75
NZ200-1R5G-4 1.5 5 3.7 1.5
NZ200-2R2G-4 2.2 5.8 5 2.2
NZ200-3R7G/5R5P-4 3.7 10.7 9 3.7
NZ200-5R5G/75R5P-4 5.5 14.6 13 5.5
NZ200-7R5G/11P-4 7.5 20 17 7.5
NZ200-11G/15P-4 11 26 25 11
NZ200-15G/18.5P-4 15 35 32 15
NZ200-18.5G/22P-4 18.5 38 37 18.5
NZ200-22G/30P-4 22 46 45 22
NZ200-30G/37P-4 30 62 60 30
NZ200-37G/45P-4 37 76 75 37
NZ200-45G/55P-4 45 90 90 45
NZ200-55G-4 55 105 110 55
NZ200-75G/90P-4 75 140 150 75
NZ200-90G/110P-4 90 160 176 90
NZ200-110G/132P-4 110 210 210 110
NZ200-132G/160P-4 132 240 253 132
... ... ... ... ...
NZ200-450G/500P-4 450 790 790 450
