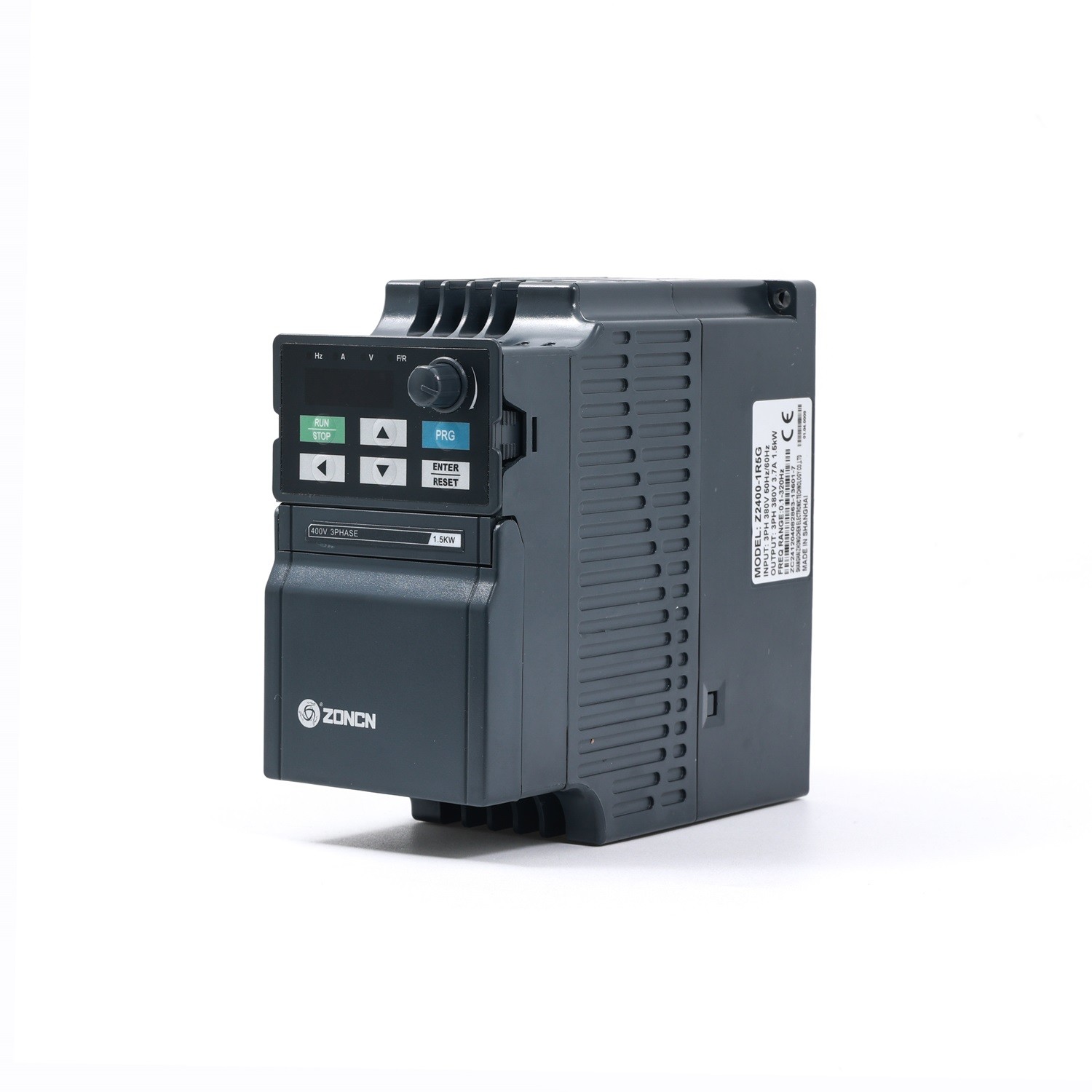

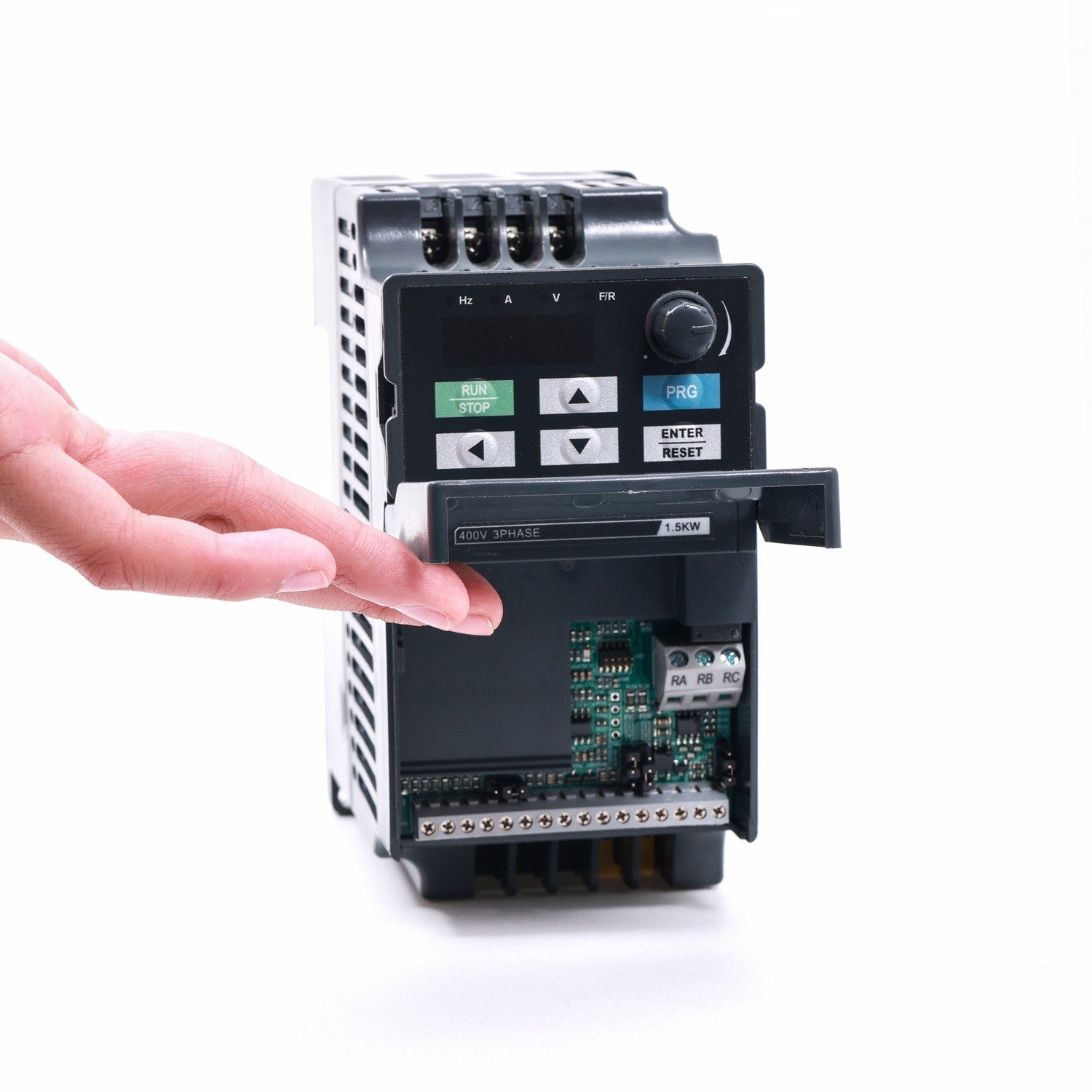

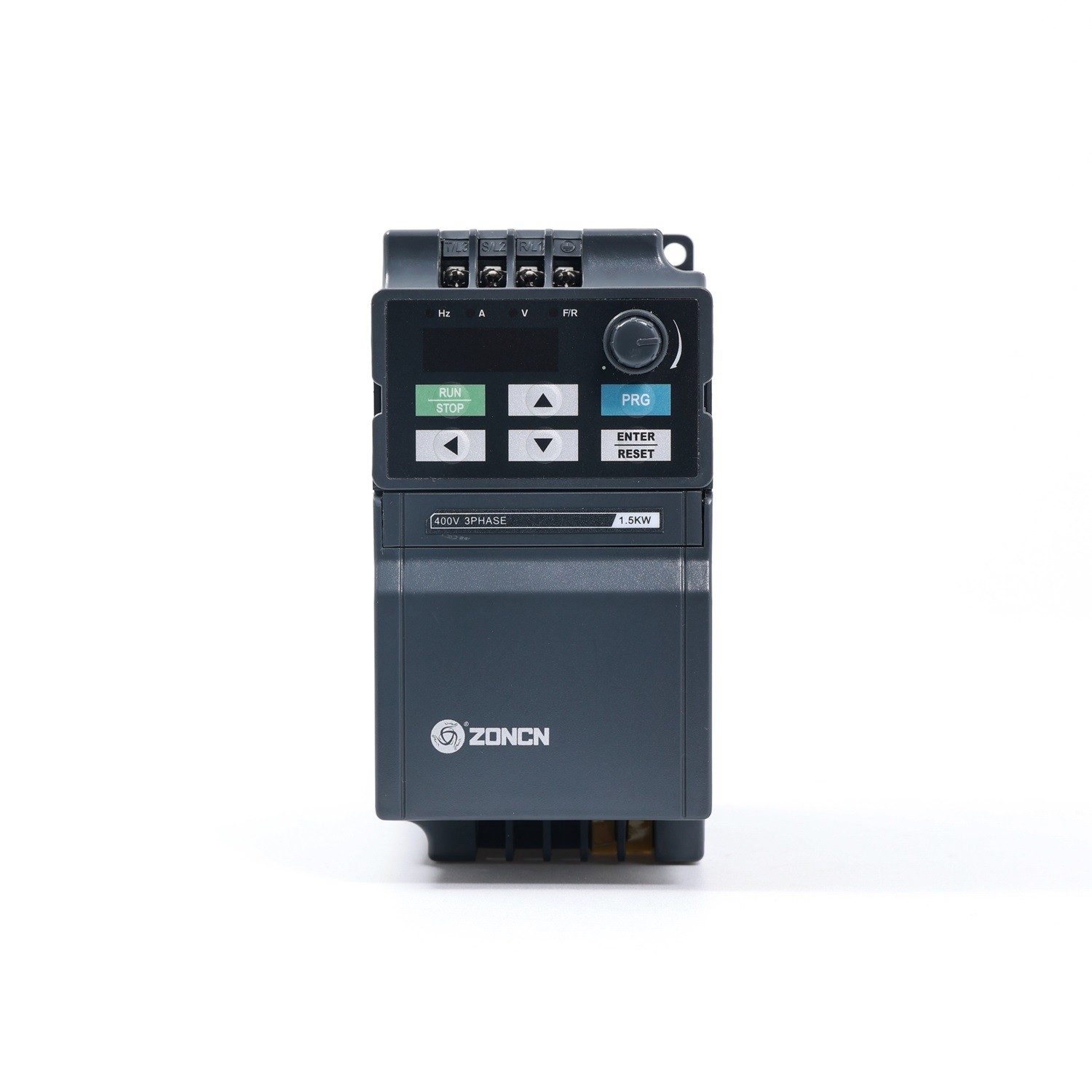

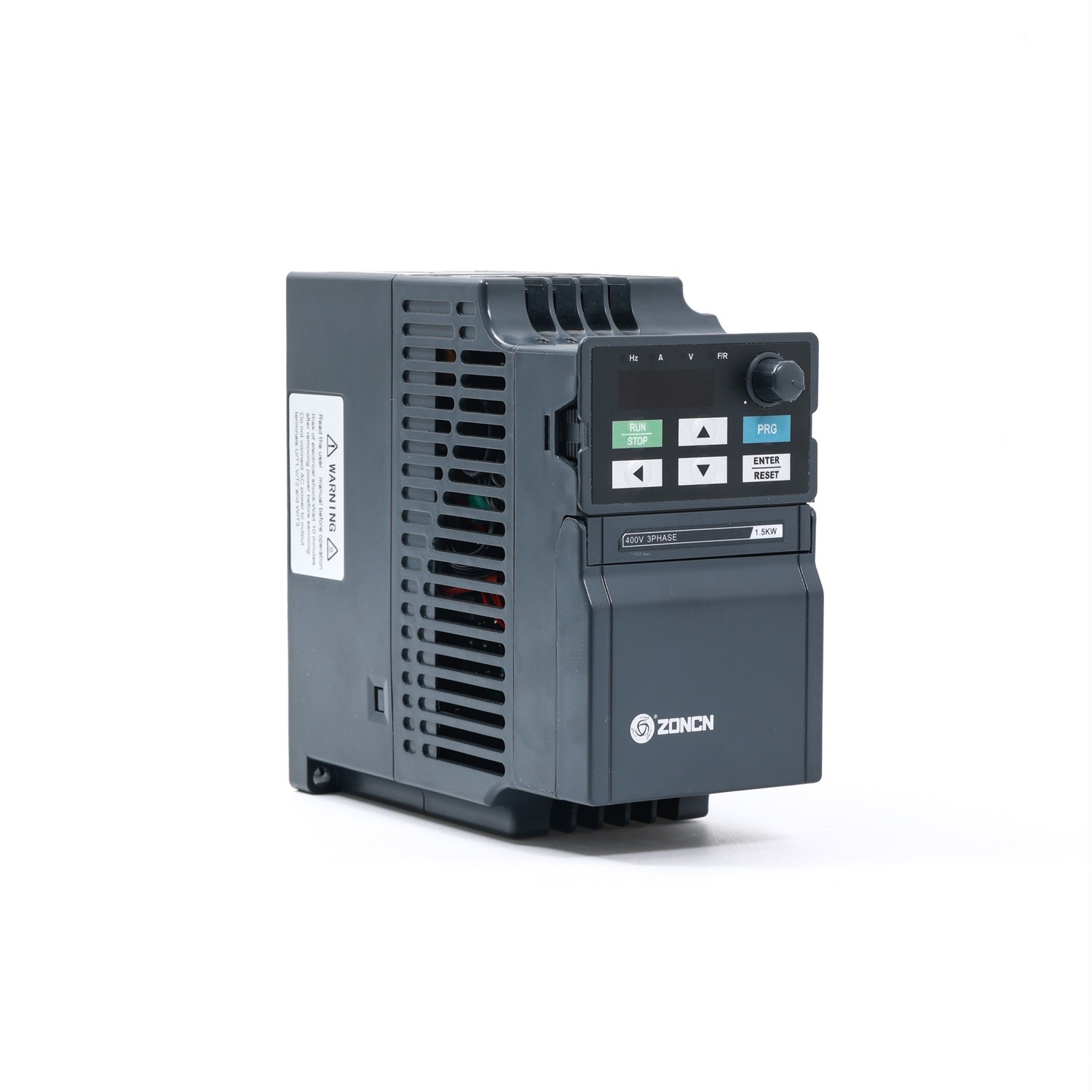

Shanghai Zhongchen Inverter 380v VFD Variable Speed ​​Drives 1.5kw 2hp

Shanghai Zhongchen Inverter 380v VFD Variable Speed ​​Drives 1.5kw 2hp
Shanghai Zhongchen Inverter 380v VFD Variable Speed ​​Drives 1.5kw 2hp
Shanghai Zhongchen Inverter 380v VFD Variable Speed ​​Drives 1.5kw 2hp Shanghai Zhongchen Inverter 380v VFD Variable Speed ​​Drives 1.5kw 2hp Shanghai Zhongchen Inverter 380v VFD Variable Speed ​​Drives 1.5kw 2hp Shanghai Zhongchen Inverter 380v VFD Variable Speed ​​Drives 1.5kw 2hp Shanghai Zhongchen Inverter 380v VFD Variable Speed ​​Drives 1.5kw 2hp Shanghai Zhongchen Inverter 380v VFD Variable Speed ​​Drives 1.5kw 2hp Shanghai Zhongchen Inverter 380v VFD Variable Speed ​​Drives 1.5kw 2hp Shanghai Zhongchen Inverter 380v VFD Variable Speed ​​Drives 1.5kw 2hp Shanghai Zhongchen Inverter 380v VFD Variable Speed ​​Drives 1.5kw 2hp Shanghai Zhongchen Inverter 380v VFD Variable Speed ​​Drives 1.5kw 2hp Shanghai Zhongchen Inverter 380v VFD Variable Speed ​​Drives 1.5kw 2hp Shanghai Zhongchen Inverter 380v VFD Variable Speed ​​Drives 1.5kw 2hp Shanghai Zhongchen Inverter 380v VFD Variable Speed ​​Drives 1.5kw 2hp
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE, KC
Model Number: Z2400-1R5G
Document: Z2000 series-Wuhu ZONCN.pdf
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T,Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: VFD Inverter Application: AC And PM Motor
Brand: ZONCN Control Mode: VF Control Vector Control
Power Range: 0.4KW-450KW Voltage: 380V/440V/480V
Power: 2hp/1.5kw Warranty: 18 Months
Communication: RS485 OEM: Support
Highlight:

2hp Inverter

,

1.5kw Inverter

,

380v Inverter

Shanghai Zhongchen Inverter 380v VFD Variadores De Velocidad 1.5kw 2hp


ZONCN Z2000 series inverter Features:

ZONCN inverters, particularly the Z2000 series, stand out among domestic brands due to their advanced technology, cost efficiency, and reliability. Adtantages are as following:

  1. Superior Vector Control – Delivers higher precision in motor speed/torque regulation, rivaling premium brands at a more competitive price.

  2. Energy Efficiency – Optimizes power consumption, reducing long-term operational costs.

  3. Robust Build Quality – Performs reliably in harsh industrial environments, with stronger anti-interference capabilities.

  4. Ease of Use – Features an intuitive interface and simpler parameter tuning.

  5. Wider Application Range – Widely used in all kinds of industrial applications.


VFD Inverter Specification

VFD inverter Specification



 Inverter Model Rated Output Power(kW) Rated Input Current(A) Rated Output Current(A) Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G 0.4 5.4 2.5 0.4
Z2200-0R75G 0.75 7.2 5 0.75
Z2200-1R5G 1.5 10 7 1.5
Z2200-2R2G 2.2 16 11 2.2
Z2200-3R7G 3.7 23 16.5 3.7
Z2200-5R5G 5.5 21 25 5.5
Z2200-7R5G 7.5 31 32 7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G 0.75 3.8 2.5 0.75
Z2400-1R5G 1.5 5 3.7 1.5
Z2400-2R2G 2.2 5.8 5 2.2
Z2400-3R7G/5R5P 3.7/5.5 10/15.0 9/13 3.7/5.5
Z2400-5R5G 5.5 15 13 5.5
Z2400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
Z2400-11G/15P 11/15 26/35 25/32 11/15
Z2400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
Z2400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
Z2400-22G/30P 22/30 46/62 45/60 22/30
Z2400-30G/37P 30/37 62/76 60/75 30/37
Z2400-37G/45P 37/45 76/90 75/90 37/45
Z2400-45G/55P 45/55 90/105 90/110 45/55
Z2400-55G 55 105 110 55
Z2400-75G/90P 75/90 140/160 150/176 75/90
Z2400-90G/110P 90/110 160/210 176/210 90/110
Z2400-110G/132P 110/132 210/240 210/253 110/132
Z2400-132G/160P 132/160 240/290 253/300 132/160
Z2400-160G/185P 160/185 290/330 300/340 160/185
Z2400-185G/200P 185/200 330/370 340/380 185/200
Z2400-200G/220P 200/220 370/410 380/420 200/220
… 　 　 　 　



*Note: If you have any special requirements for VFD inverter, pls feel free to contact us directly, we can customize for you.



Company Introduction

Shanghai Zhongchen Inverter 380v VFD Variable Speed ​​Drives 1.5kw 2hp 0

Shanghai Zhongchen Inverter 380v VFD Variable Speed ​​Drives 1.5kw 2hp 1


Other Recommendation

Shanghai Zhongchen Inverter 380v VFD Variable Speed ​​Drives 1.5kw 2hp 2



FAQ


1. Can i distribute ZONCN inverter in my coutry?

A. Our pleasure, if we could make agreements on some qualifications


2. Where is your factory located?

A. Our factories are located in Shanghai and Wuhu city.


3. Can you customize for my own logo?

A. Of course, if you can meet with the MOQ.


4. What is your VFD inverter's warranty time?

A. All our VFD inverters have 18 months of warranty after delivery.
