NZ100-3R7G-4 400V Low Voltage Micro Ac Vf Control Inverter Vfd 3.7KW Modbus

NZ100-3R7G-4 400V Low Voltage Micro Ac Vf Control Inverter Vfd 3.7KW Modbus
NZ100-3R7G-4 400V Low Voltage Micro Ac Vf Control Inverter Vfd 3.7KW Modbus
NZ100-3R7G-4 400V Low Voltage Micro Ac Vf Control Inverter Vfd 3.7KW Modbus NZ100-3R7G-4 400V Low Voltage Micro Ac Vf Control Inverter Vfd 3.7KW Modbus NZ100-3R7G-4 400V Low Voltage Micro Ac Vf Control Inverter Vfd 3.7KW Modbus NZ100-3R7G-4 400V Low Voltage Micro Ac Vf Control Inverter Vfd 3.7KW Modbus NZ100-3R7G-4 400V Low Voltage Micro Ac Vf Control Inverter Vfd 3.7KW Modbus NZ100-3R7G-4 400V Low Voltage Micro Ac Vf Control Inverter Vfd 3.7KW Modbus NZ100-3R7G-4 400V Low Voltage Micro Ac Vf Control Inverter Vfd 3.7KW Modbus NZ100-3R7G-4 400V Low Voltage Micro Ac Vf Control Inverter Vfd 3.7KW Modbus NZ100-3R7G-4 400V Low Voltage Micro Ac Vf Control Inverter Vfd 3.7KW Modbus NZ100-3R7G-4 400V Low Voltage Micro Ac Vf Control Inverter Vfd 3.7KW Modbus NZ100-3R7G-4 400V Low Voltage Micro Ac Vf Control Inverter Vfd 3.7KW Modbus NZ100-3R7G-4 400V Low Voltage Micro Ac Vf Control Inverter Vfd 3.7KW Modbus NZ100-3R7G-4 400V Low Voltage Micro Ac Vf Control Inverter Vfd 3.7KW Modbus
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: CE+KC
Model Number: NZ100-3R7G-4
Document: NZ100 English Catalog.pdf
Minimum Order Quantity: 1 unit
Packaging Details: Carton；
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Model: NZ100-3R7G-4 Vfd Type: AC Drive Inverter Vfd
External Keypad: Yes Build-in PID Control: Yes
VF Control: Yes Frequency Range: 0-400Hz
RS485: Standard RS485 Communication Function (MODBUS) OEM/ODM: Yes
Cooling Mode: Forced Air Cooling Input Current: 10.7A
Output Current: 8.6A
Highlight:

400V NZ100-3R7G-4

,

3.7KW NZ100-3R7G-4

,

Micro Ac Vf Control NZ100-3R7G-4

NZ100 series micro ac vfd inverter 380v 3.7kw

Basic product introduction:

NZ100-3R7G-4 400V Low Voltage Micro Ac Vf Control Inverter Vfd 3.7KW Modbus 0

  • Compact size and low cost desgin
  • Terminals uncovered,easy for wiring design
  • DIN-rail mounting(below 5.5kw)
  • Modbus via RS485
  • Maintenance-free function
  • Support MODBUS ASCII communication

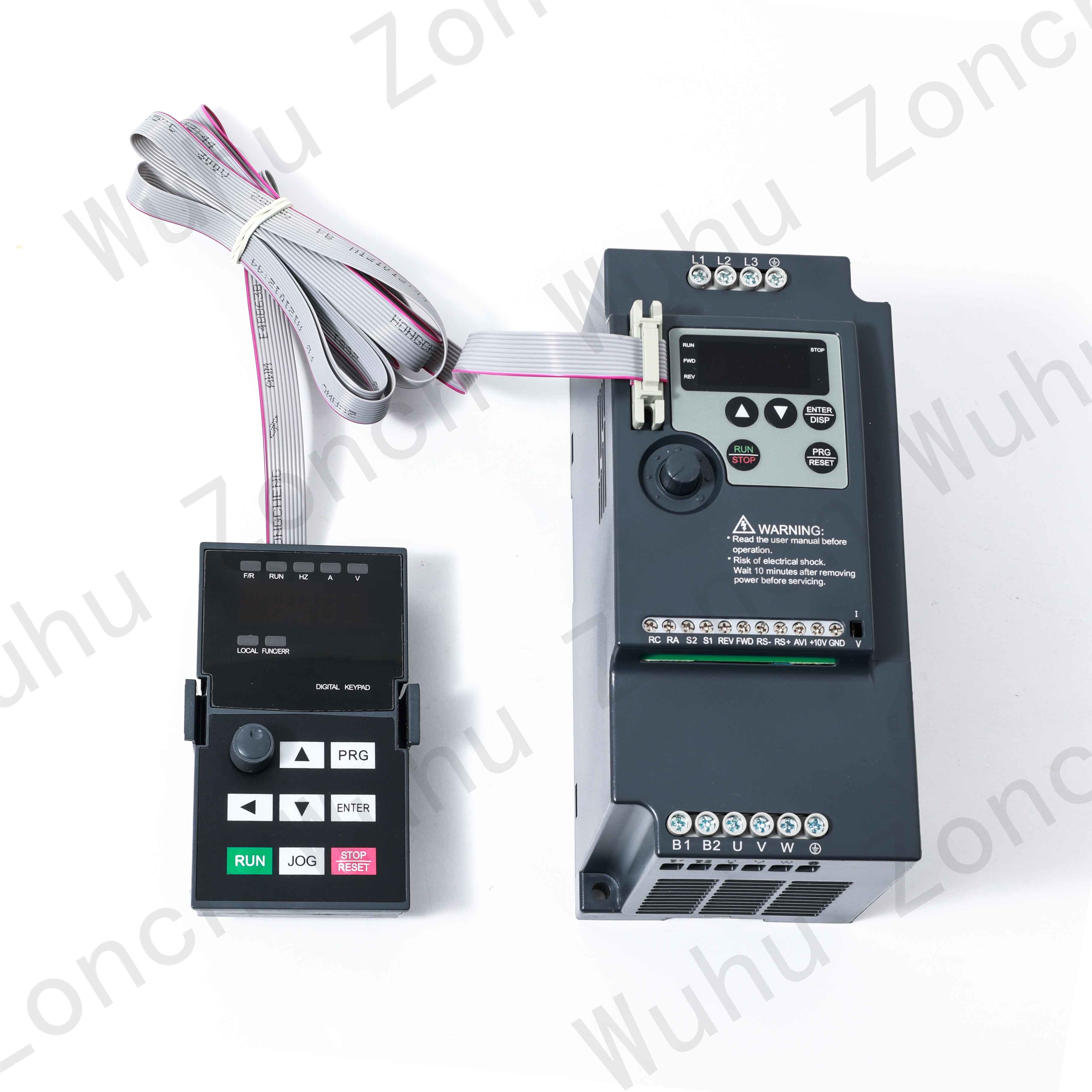

  • Support external digital keypad


Technical Specific:

Items NZ100 series vfd inverter
Input rated voltage,frequency One-phase/Three phase AC 220v/380v 50/60Hz
Input voltage range 170-240v(220v)330-440v(380v)
Output voltage range 0-220v(220v)0-380v(380v)
Output frequency range 0.1~400Hz
Indication Operating status/Alarm definition/interactive guidance: frequency setting,the output frequency/ current, DC bus voltage and so on.
Frequency setting resolution Digital input: 0.10Hz,analog input: 0.1% of maximum output frequency
Output frequency accuracy 0.01Hz
VF control Setting V/F curve to satisfy various load requirements
Torque boost Auto increase: auto raise torque by loading Condition;Manual increase:enable to set 0.0~20.0% of raising torque.
Multifunctional input terminal Four multi-function input terminals, realizing functions including eight sectionspeed control, program running, four-section acceleration/deceleration speedswitch, UP/DOWN function and emergency stop and other functions
Multifunctional output terminal 1 multi-function output terminals for displaying of run, zero speed, extermnalabnormity, program operation and other information and warnings
Acceleration/ Deceleration time setting 0~999.9s acceleration/deceleration time can be set individually
PID control Build-in PID control
RS485 Standard RS485 communication function(MODBUS)
Frequency setting

Analog input: 0~ 10 V, 4~20mA
Digital input: Operation panel or RS485 or UP/DOWN.

Note: AVI terminals can be used to select an analog voltage input(AV) and analog current input (Al) through the switch J2.
Multi-speed Four multifunction input terminals, 15 section speed can be set
Automatic voltage regulation Automatic voltage regulation function can be selected
Counter Built-in 2 group of counters
Protection

IP20


Product model details:

Model Rated output power (kW) Rated input current (A) Rated output current (A) Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
NZ100-0R4G-2 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
Input voltage(v):3PH AC 380V±15%
NZ100-0R75G-4 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5 4 1.5
NZ100-2R2G-4 2.2 5.8 5 2.2
NZ100-3R7G/5R5P-4 3.7 10.7 8.6 3.7
NZ100-5R5G/7R5P-4 5.5 14.6 12.5 5.5
NZ100-7R5G/11P-4 7.5 20 17.5 7.5
NZ100-11G/15P-4 11 26 24 11
NZ100-15G/18.5P-4 15 35 33 15

For models above 380V 15KW, we suggest to find sales staff to replace NZ200 series.




Wiring diagram:

NZ100-3R7G-4 400V Low Voltage Micro Ac Vf Control Inverter Vfd 3.7KW Modbus 1




Product application:

NZ100-3R7G-4 400V Low Voltage Micro Ac Vf Control Inverter Vfd 3.7KW Modbus 2

NZ100 series inverter debugging is simple, using RS485 communication, can be well

used in a variety of small machines, such as food machines, jewelry processing

machines, small conveyor belt, small grinder and so on. And the NZ100 series can be

 mounted by rail.



FAQ:

Q1:What is your MOQ?
A: 1 pc


Q2:What's your terms of payment?
A:T/T 100% before delivery.


Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.


Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
