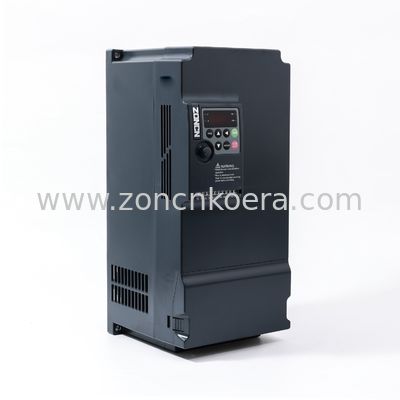

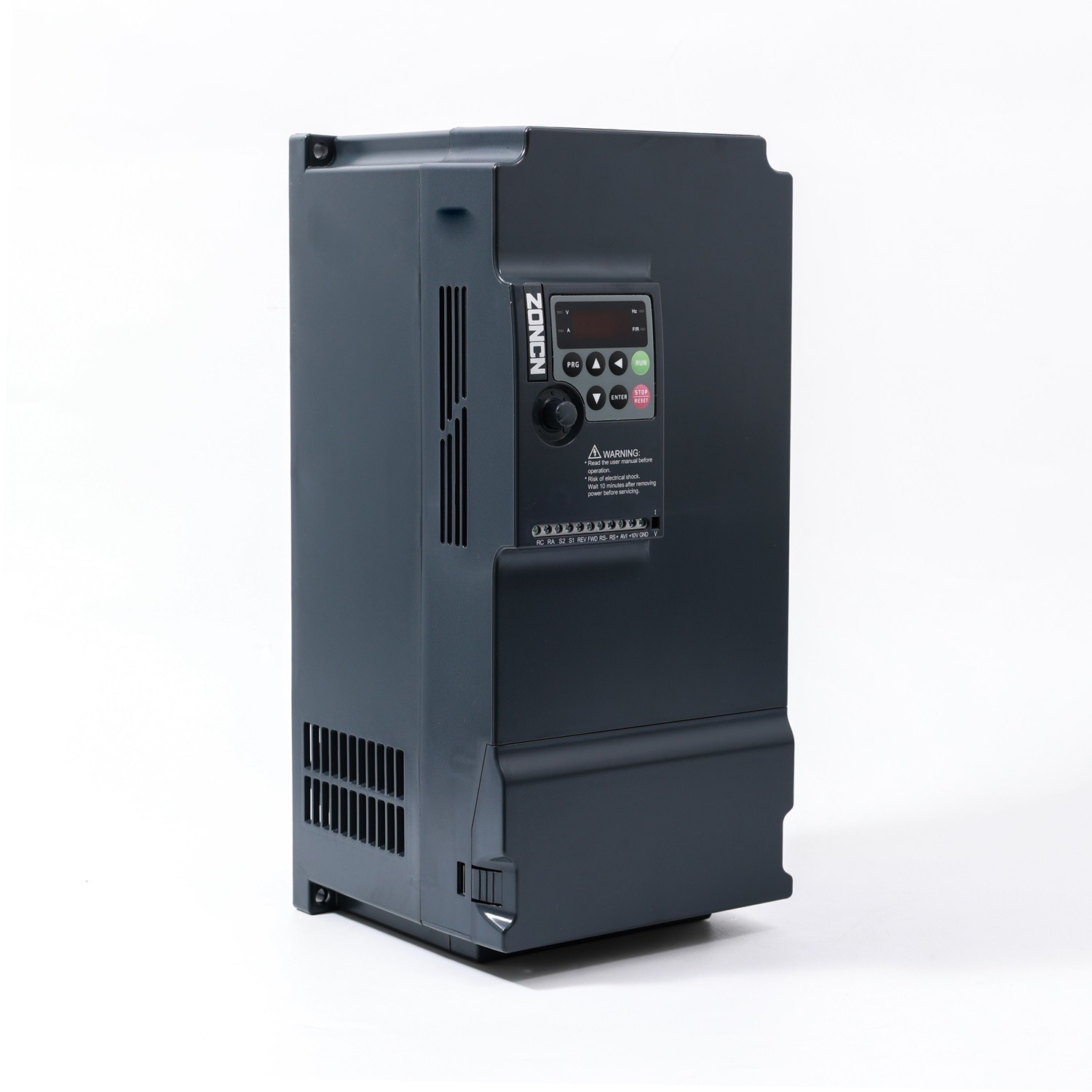

Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP

Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP
Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP
Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE
Model Number: NZ200T-22GY-4
Document: NZ200T parameter list.pdf
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: Inverters Product Name: Variable Frequency Driver
Brand: ZONCN Series: NZ200
Model: NZ200-22G-4 Input Voltage: 380v/440v/480v
Power: 30HP/22KW Application: Industrial Application
Communication: RS485 OEM: Support
Warranty: 18 Months Certificate: CE
Highlight:

480v Frequency Inverter

,

400v Frequency Inverter

,

380v Frequency Inverter

Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP


NZ200 Series Economical Vector Inverter Features:

Control Methods: Supports both open-loop vector control and V/F control.
Overload Capability: Can sustain 150% of the rated current for up to 60 seconds and 180% for 3 seconds.
Exceptional Performance: Demonstrates outstanding adaptability to diverse environmental conditions.
Space-Saving Design: Features a straightforward and compact structure for hassle-free installation.
Robust Torque Performance: Guarantees seamless motor startup even under heavy load conditions.
Innovative Functions: Incorporates momentary power loss ride-through and rapid current limiting, minimizing fault alarm occurrences.
Extensive Safety Features: Includes protections against output phase loss, overcurrent, overvoltage, overload, overheating, and more.
PMSM Compatibility: Designed to support permanent magnet synchronous motor control (Z200T series).
Power Capacity: Available in a wide range from 0.4 kW to 630 kW.


NZ200 Series VFD Features
Series
Economical
Communication
RS485
Input voltage
220v/380v/ 440v/480v
Protection function
over-current/over-voltage/overload/over-heat/output phase loss protection, etc
 Power range
0.4kw-630kw
PM motor
Support
Control mode
Vector control
Certificate
CE
Inverter size
Compact
Warranty
18 months
24V terminal
Have
OEM
Support


Specification

Model
Input Voltage (V)
Rated output power ( KW)
Rated input current(A)
Rated output current (A)
Motor power ( KW)
NZ200-0R4G-2


1PH 220V±15%
0.4
5.4
2.5
0.4
NZ200-0R75G-2
0.75
7.2
5
0.75
NZ200-1R5G-2
1.5
10
7
1.5
NZ200-2R2G-2
2.2
16
11
2.2
NZ200-3R7G-2
3.7
17
16.5
3.7
NZ200-0R4G-4













3PH 380V±15%
0.4
3.4
1.2
0.4
NZ200-0R75G-4
0.75
3.8
2.5
0.75
NZ200-1R5G-4
1.5
5
3.7
1.5
NZ200-2R2G-4
2.2
5.8
5
2.2
NZ200-3R7G/5R5P-4
3.7
10.7
9
3.7
NZ200-5R5G/75R5P-4
5.5
14.6
13
5.5
NZ200-7R5G/11P-4
7.5
20
17
7.5
NZ200-11G/15P-4
11
26
25
11
NZ200-15G/18.5P-4
15
35
32
15
NZ200-18.5G/22P-4
18.5
38
37
18.5
NZ200-22G/30P-4
22
46
45
22
NZ200-30G/37P-4
30
62
60
30
NZ200-37G/45P-4
37
76
75
37
NZ200-45G/55P-4
45
90
90
45
NZ200-55G-4
55
105
110
55
NZ200-75G/90P-4
75
140
150
75
NZ200-90G/110P-4
90
160
176
90
NZ200-110G/132P-4
110
210
210
110
NZ200-132G/160P-4
132
240
253
132
...
...
...
...
...
NZ200-450G/500P-4
450
790
790
450


ZONCN NZ200 Applications

Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP 0

About ZONCN

Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP 1
Frequency Inverter 22kw Three Phase 380v 400v 480v Variadores 30HP 2



Tag:

Variable Frequency Drive Inverter,

vector control inverter,

low power inverter
