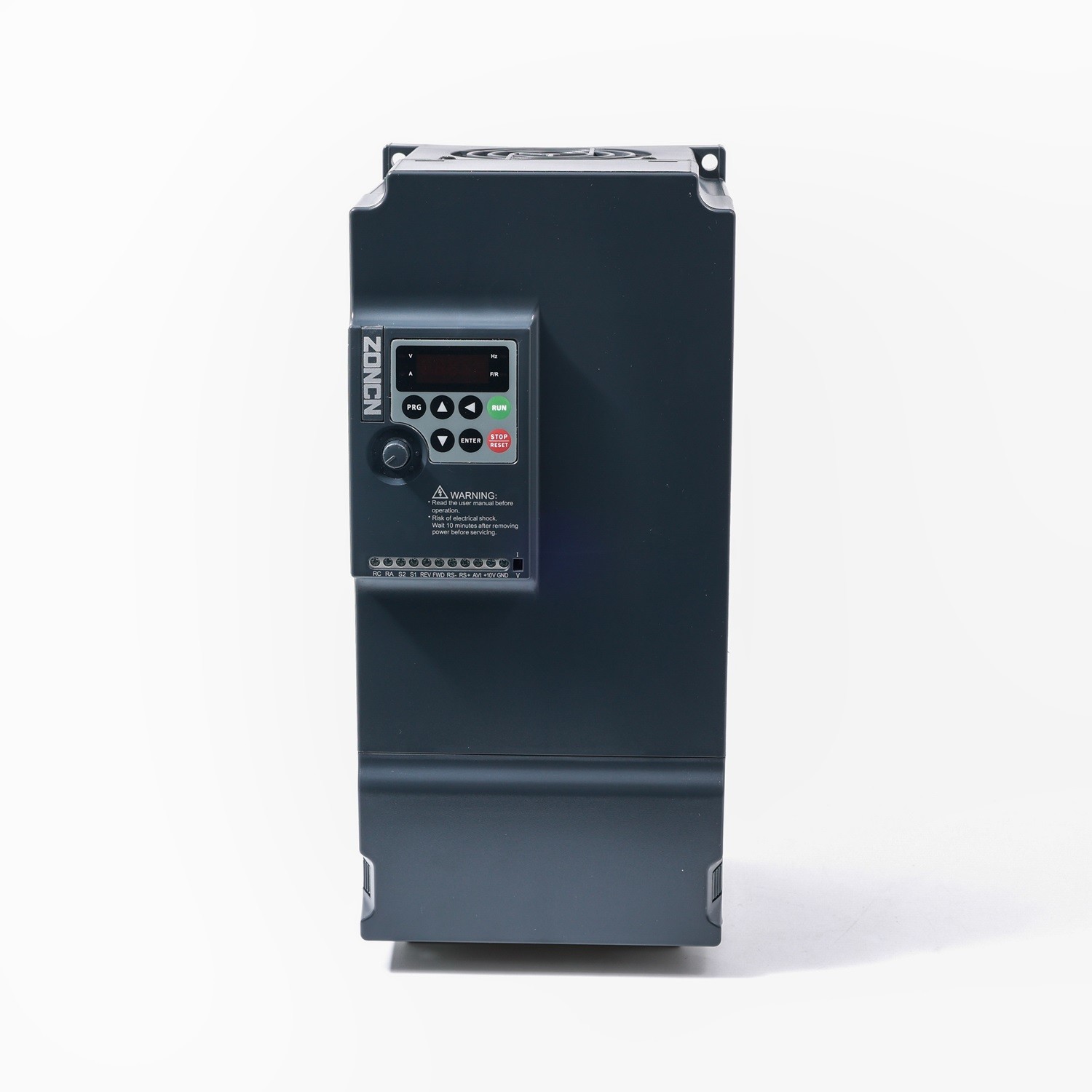

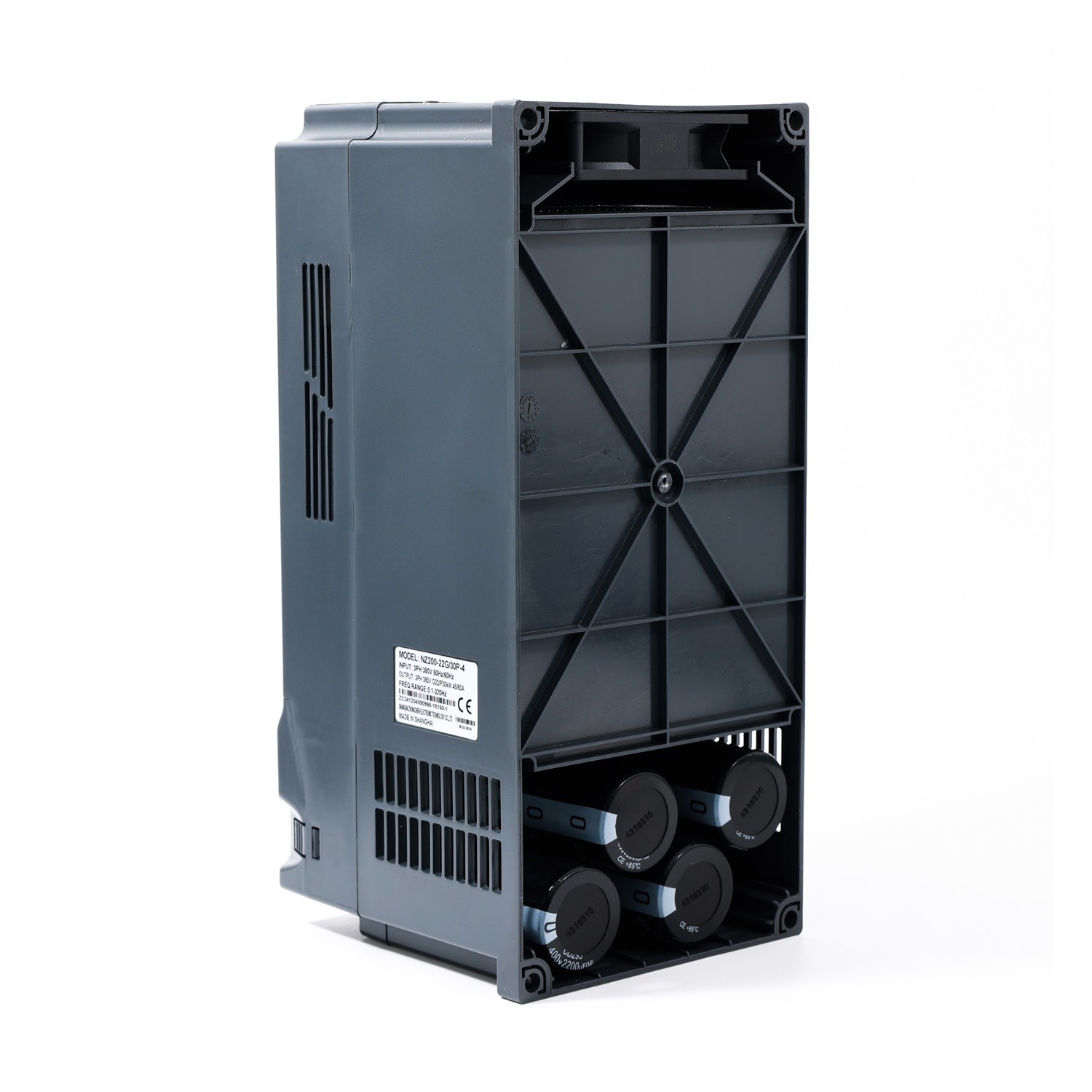

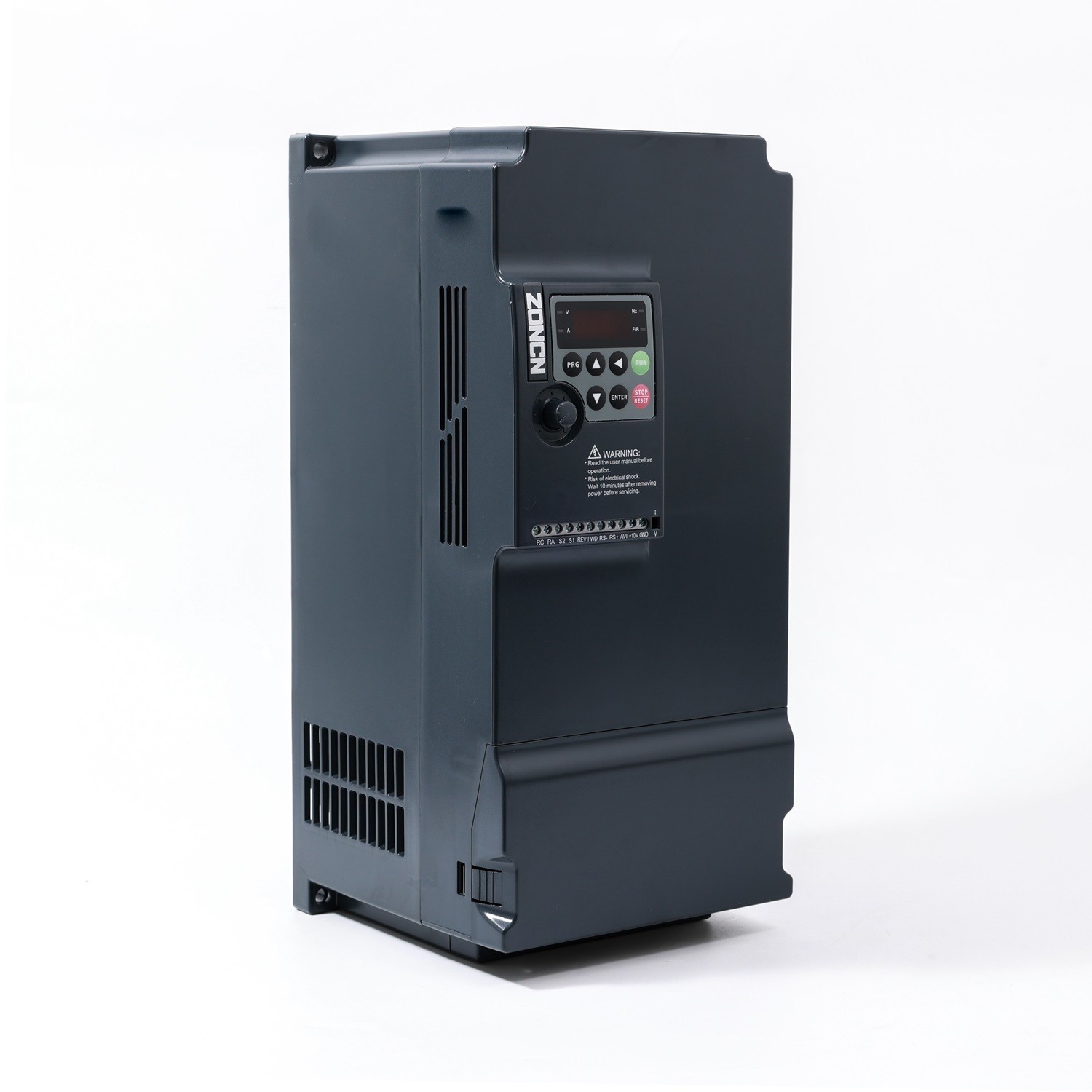

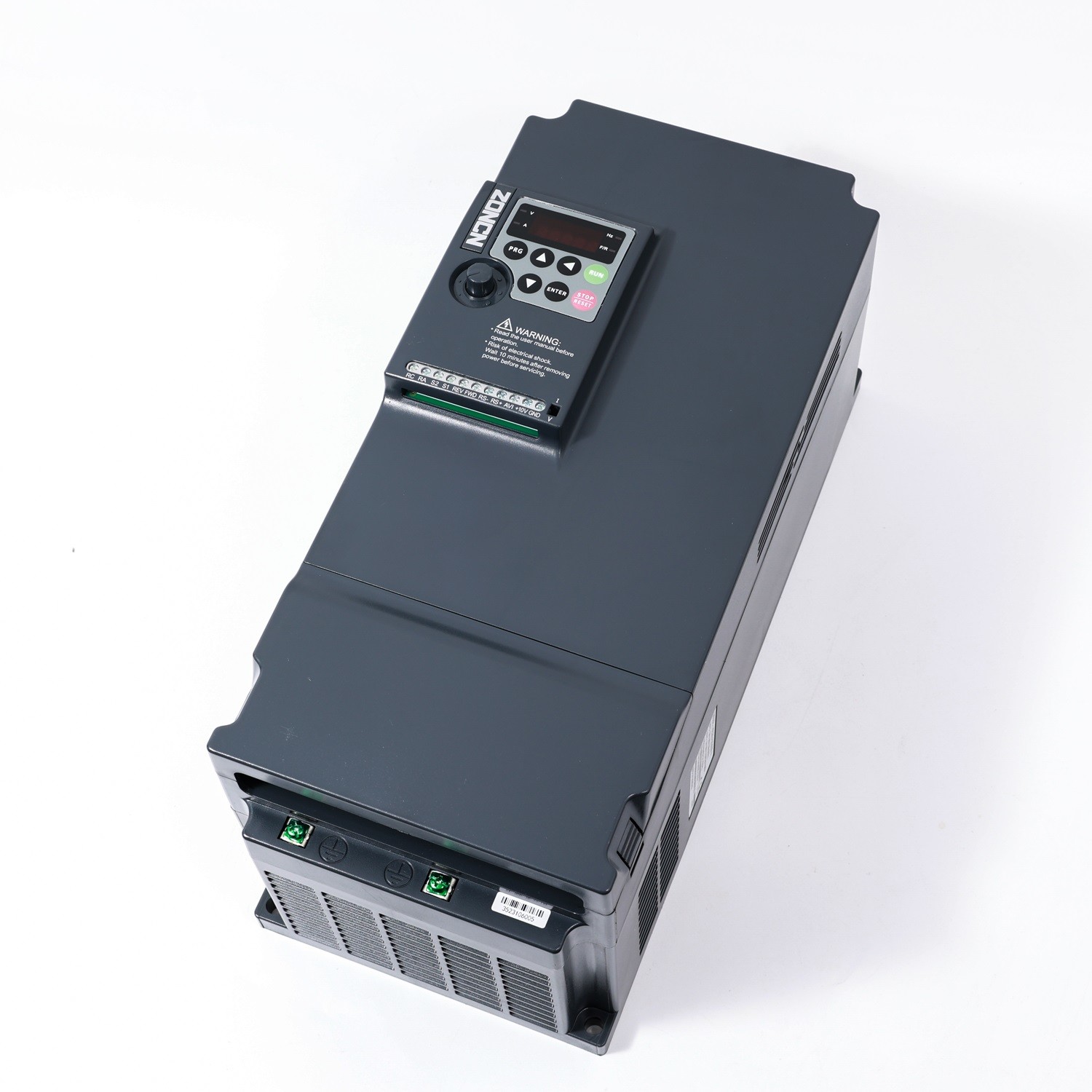

ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw

ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw
ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw
ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE
Model Number: NZ200T-22GY-4
Document: NZ200T parameter list.pdf
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: Inverters Product Name: Variable Frequency Inverter
Brand: ZONCN Model: NZ200-22GY-4
Input Voltage: 380v/440v/480v Power: 22kW/30HP
Application: Air Compressor 24V Terminal: Available
Communication: RS485 OEM: Yes
Warranty: 18 Months
Highlight:

380V NZ200T-22GY-4 Inverter

,

22kw NZ200T-22GY-4 Inverter

,

Three Phase NZ200T-22GY-4 Inverter

ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw


NZ200 Series Economical Vector Inverter Features:

  • Control Modes: Open-loop vector control and V/F control.

  • High Overload Capacity: Capable of handling 150% rated current for 60 seconds and 180% rated current for 3 seconds.

  • Superior Performance: Excellent environmental adaptability.

  • Compact Design: Simple structure and compact size for easy installation.

  • High Torque Output: Ensures smooth motor start-up under heavy loads.

  • Advanced Features: Includes momentary power loss ride-through and fast current limiting, reducing the frequency of fault alarms.

  • Comprehensive Protection: Equipped with output phase loss protection, overcurrent/overvoltage/overload/overheat protection, and more.

  • PMSM Support: Compatible with permanent magnet synchronous motor control (Z200T series).

  • Power Range: 0.4KW to 630kW.


NZ200 Series VFD Features
Series
Economical
Communication
RS485
Input voltage
220v/380v/ 440v/480v
Protection function
over-current/over-voltage/overload/over-heat/output phase loss protection, etc
 Power range
0.4kw-630kw
PM motor
Support
Control mode
Vector control
Certificate
CE
Inverter size
Compact
Warranty
18 months
24V terminal
Have
OEM
Support


Specification

Model
Input Voltage (V)
Rated output power ( KW)
Rated input current(A)
Rated output current (A)
Motor power ( KW)
NZ200-0R4G-2


1PH 220V±15%
0.4
5.4
2.5
0.4
NZ200-0R75G-2
0.75
7.2
5
0.75
NZ200-1R5G-2
1.5
10
7
1.5
NZ200-2R2G-2
2.2
16
11
2.2
NZ200-3R7G-2
3.7
17
16.5
3.7
NZ200-0R4G-4













3PH 380V±15%
0.4
3.4
1.2
0.4
NZ200-0R75G-4
0.75
3.8
2.5
0.75
NZ200-1R5G-4
1.5
5
3.7
1.5
NZ200-2R2G-4
2.2
5.8
5
2.2
NZ200-3R7G/5R5P-4
3.7
10.7
9
3.7
NZ200-5R5G/75R5P-4
5.5
14.6
13
5.5
NZ200-7R5G/11P-4
7.5
20
17
7.5
NZ200-11G/15P-4
11
26
25
11
NZ200-15G/18.5P-4
15
35
32
15
NZ200-18.5G/22P-4
18.5
38
37
18.5
NZ200-22G/30P-4
22
46
45
22
NZ200-30G/37P-4
30
62
60
30
NZ200-37G/45P-4
37
76
75
37
NZ200-45G/55P-4
45
90
90
45
NZ200-55G-4
55
105
110
55
NZ200-75G/90P-4
75
140
150
75
NZ200-90G/110P-4
90
160
176
90
NZ200-110G/132P-4
110
210
210
110
NZ200-132G/160P-4
132
240
253
132
...
...
...
...
...
NZ200-450G/500P-4
450
790
790
450


ZONCN NZ200 Applications

ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw 0

About ZONCN

ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw 1
ZONCN VFD Model NZ200T-22GY-4 Three Phase 380V Inverter 22kw 2
