Ac Variable Frequency Drive Inverter 22kw 380v Low Voltage RS485

Ac Variable Frequency Drive Inverter 22kw 380v Low Voltage RS485
Ac Variable Frequency Drive Inverter 22kw 380v Low Voltage RS485 Ac Variable Frequency Drive Inverter 22kw 380v Low Voltage RS485 Ac Variable Frequency Drive Inverter 22kw 380v Low Voltage RS485 Ac Variable Frequency Drive Inverter 22kw 380v Low Voltage RS485 Ac Variable Frequency Drive Inverter 22kw 380v Low Voltage RS485 Ac Variable Frequency Drive Inverter 22kw 380v Low Voltage RS485 Ac Variable Frequency Drive Inverter 22kw 380v Low Voltage RS485 Ac Variable Frequency Drive Inverter 22kw 380v Low Voltage RS485 Ac Variable Frequency Drive Inverter 22kw 380v Low Voltage RS485 Ac Variable Frequency Drive Inverter 22kw 380v Low Voltage RS485 Ac Variable Frequency Drive Inverter 22kw 380v Low Voltage RS485 Ac Variable Frequency Drive Inverter 22kw 380v Low Voltage RS485
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN Inverter Vfd
Certification: CE
Model Number: T200 series VFD
Document: ZONCN T200 series catalog 2...11.pdf
Minimum Order Quantity: 1 unit
Packaging Details: Carton
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,PayPal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Voltage: 380v±15%； Closed Loop Vector Control: Yes
Open Loop Vector Control: Yes 24VDC: Support
STO Function: Support Interface Type: RJ45
Type: AC Induction PMS Motor: Yes
Profibus DP Communication: Yes I/O Expansion: Yes
Power: 11kw
Highlight:

380v Ac Variable Frequency Drive Inverter

,

22kw Ac Variable Frequency Drive Inverter

,

RS485 Ac Variable Frequency Drive Inverter

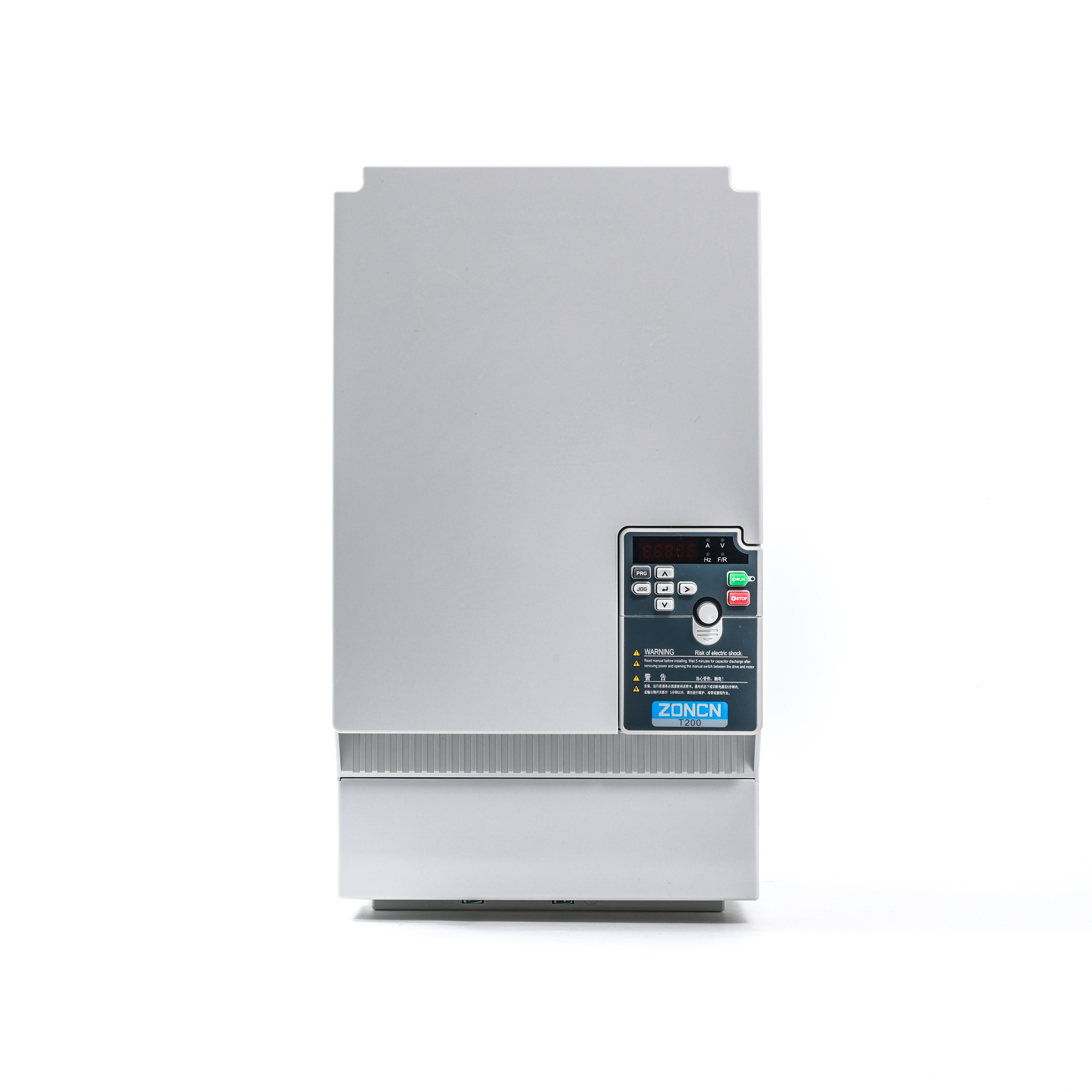

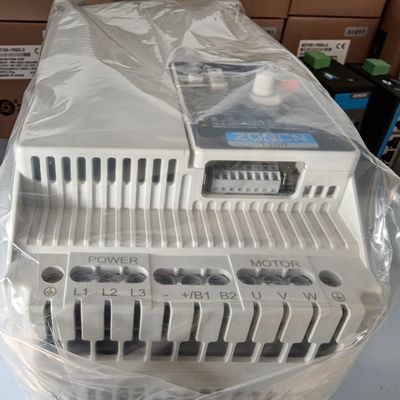

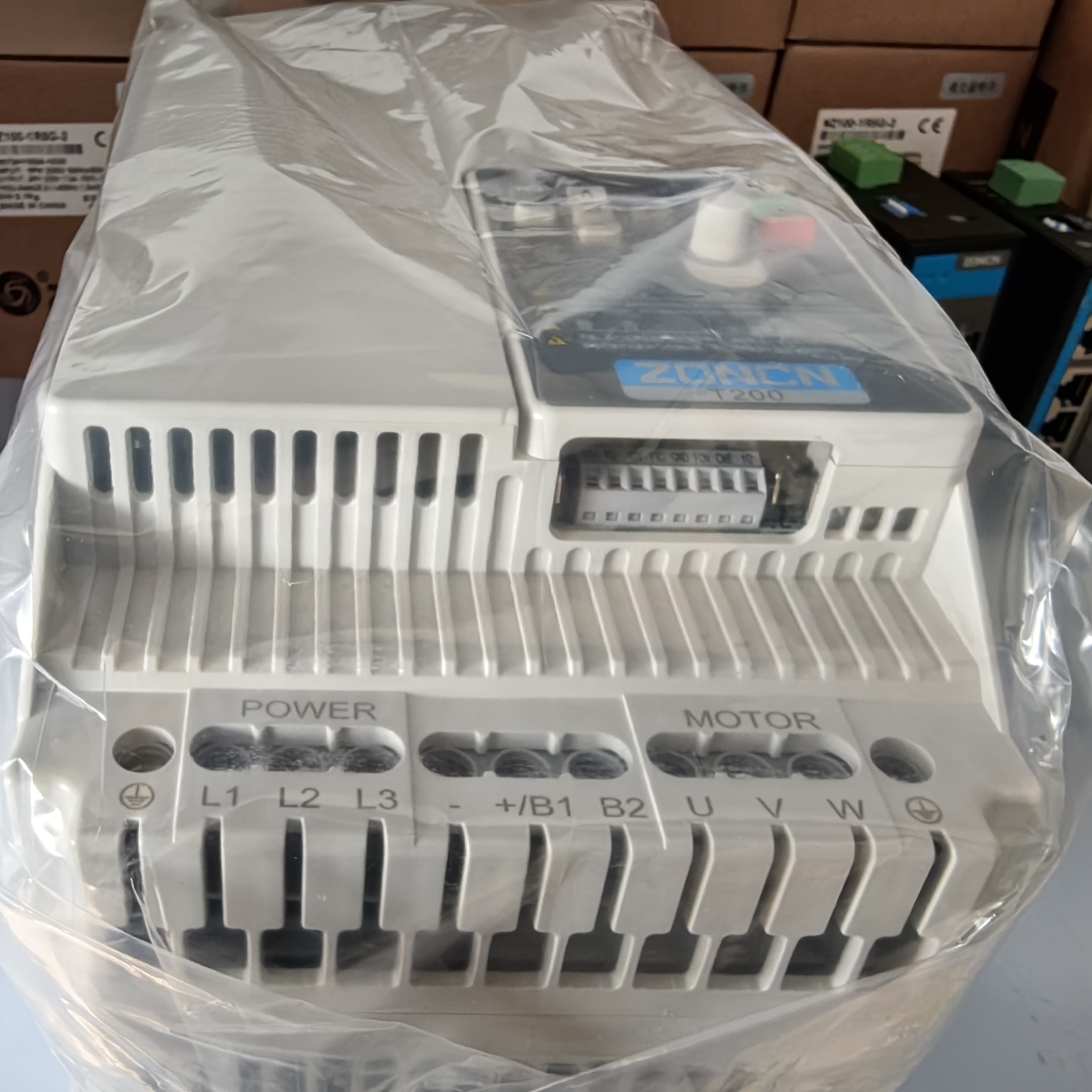

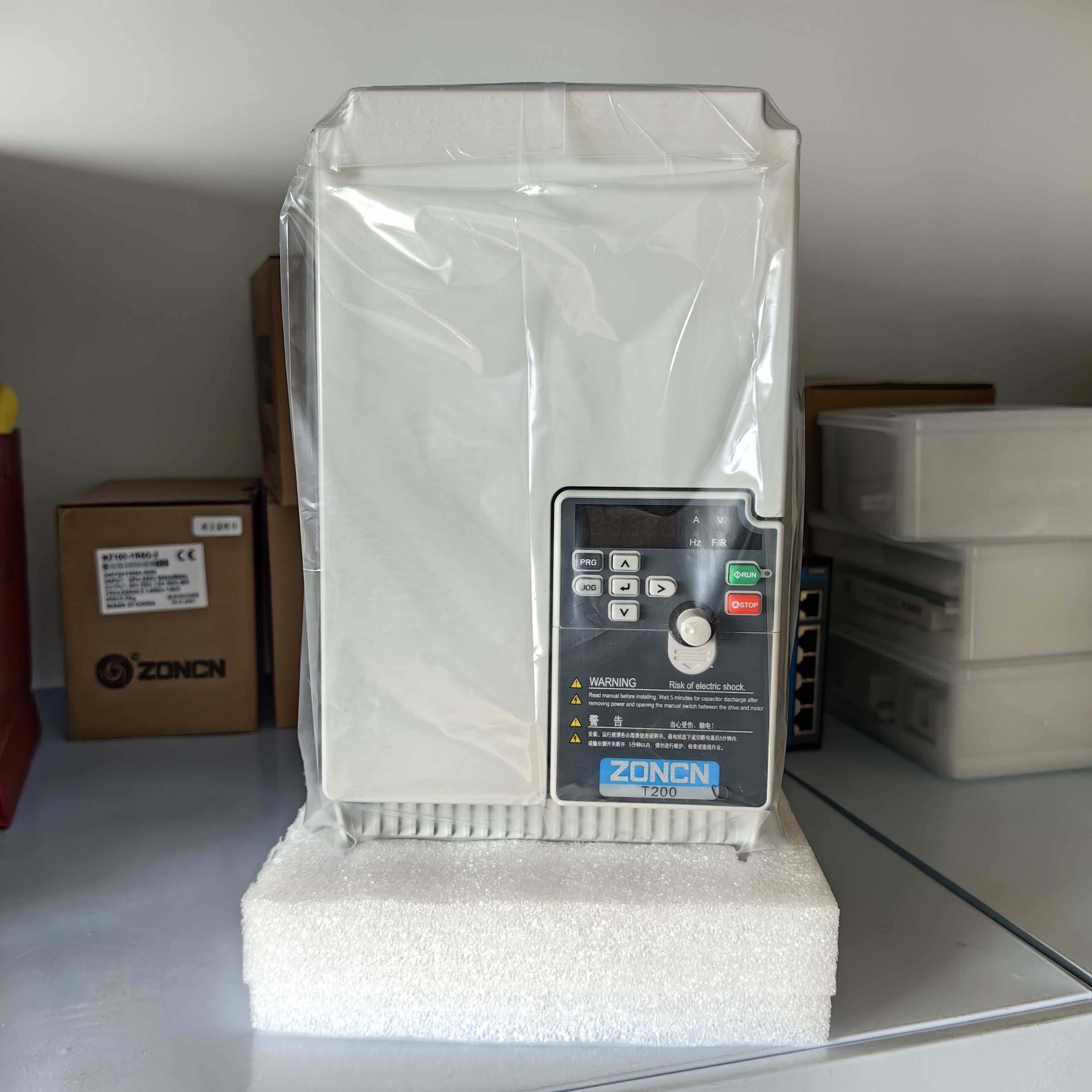

T200 Series VFD Frequency Inverter AC Drives 22KW

Basic product introduction:

Meet the ZONCN T200 Series Inverter—a game-changer engineered to simplify complexity. At its core lies an embedded EMC filter, a self-contained shield against electrical noise that slashes installation costs and guarantees hassle-free compliance. Whether you’re automating a smart factory or retrofitting legacy systems, the T200’s multi-protocol communication suite (Modbus, EtherCAT, CANopen, PROFINET) acts as a universal translator, effortlessly syncing with PLCs, sensors, and IoT platforms.

Safety isn’t an afterthought here. The STO feature provides fail-safe torque termination, protecting both operators and machinery without compromising productivity. Precision? The inverter’s closed-loop vector control adapts to any motor type, enhanced by plug-in PG cards for feedback-driven accuracy in robotics, CNC systems, or precision packaging lines. And when it’s time to tweak settings, the RJ45 keyboard port offers a rugged, interference-resistant connection—configure parameters on the fly, even in dusty or humid environments.

Compact yet mighty, the T200 isn’t just about specs; it’s about empowering engineers to innovate faster, smarter, and safer.


Product technical parameters:

Item T200 technical parameters
Maximum frequency Vector control:0～600Hz
V/F control:0-3200Hz
Control mode V/F control；Senseless flux vector control(SFVC); Closed loop vector control (CLVC)
Carrier frequency 0.5kHz～16kHz
The carrier frequency can be automatically adjusted based on the load feature
Input frequency resolution Digital setting:0.01Hz
Analog setting: maximum frequency×0.025%
Startup torque G Type:0.5Hz/150%(SFVC)；
P Type:0.5Hz/100%
Speed range 1:100(No PG)
Speed stability accuracy ±0.5%(No PG)
Torque control accuracy ±5%(FVC)
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current
P type: 60s for 120% of the rated current, 3s for 150% of the rated current
Torque boost Fixed boost；Customized boost 0.1%-30.0%
V/F curve Straight-line V/F curve；Multi-point V/F curve；
N-power V/F curve (1.2-power, 1.4-power, 1.6- power,1.8-power, square)
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp；S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.00-6500.0s
DC braking DC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0-100.0s
Braking action current value: 0.0%–100.0%
JOG control Jog frequency range:0.00Hz~50.00Hz.
Jog acceleration/deceleration time0.0s~6500.0s
Onboard multiple preset speeds It implements up to 16 speeds via the simple PLC function or by input terminal state
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR) It can keep constant output voltage automatically when the mains voltage changes
Over-voltage/Over-current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current.
Rapid current limit It helps to avoid frequent over-current faults of the inverter
Torque limit and torque control It can limit the torque automatically and prevent frequent over-current tripping during the running process
High performance Control of asynchronous motor is implemented through the high-performance current vector control technology
Instantaneous stop doesn’t stop The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time
Timing control Timing range 0.0Min～6500.0Min
Communication methods RS485；EtherCAT；Profibus-DP；CAN is optional
Protection mode Motor short-circuit detection at power-on, input output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.
Key locking and function selection It can lock the keys partially or completely and define the function range of some keys so as to prevent mis-function.
Running command channel Given by the panel, control terminals, Serial communication port, can be switched by many ways


Frequency inverter specifications:

Model Input voltage Rated output power(kw) Rated input current(A) Rated output current(A) Motor power(kw)
T200-0R4G-2 AC 1PH 220V± 15% 0.4 5.4 2.5 0.4
T200-0R75G-2 0.75 7.2 5.0 0.75
T200-1R5G-2 1.5 10.0 7.0 1.5
T200-2R2G-2 2.2 16.0 11.0 2.2
T200-0R4G-4 AC 3PH 380V±15% 0.4 3.4 1.2 0.4
T200-0R75G-4 0.75 3.8 2.5 0.75
T200-1R5G-4 1.5 5.0 3.7 1.5
T200-2R2G-4 2.2 5.8 5.0 2.2
T200-3R0G-4 3.0 8.5 7.0 3.0
T200-3R7G/5R5P-4 3.7/5.5 10/15 9/13 3.7/5.5
T200-5R5G/7R5P-4 5.5/7.5 15/20 13/17 5.5/7.5
T200-7R5G/11P-4 7.5/11 20/26 17/25 7.5/11
T200-11G/15P-4 11/15 26/35 25/32 11/15
T200-15G/18.5P-4 15/18.5 35/38 32/37 15/18.5
T200-18.5G/22P-4 18.5/22 38/46 37/45 18.5/22
T200-22G/30P-4 22/30 46/62 45/60 22/30
T200-30G/37P-4 30/37 62/76 60/75 30/37
T200-37G/45P-4 37/45 76/90 75/90 37/45
T200-45G/55P-4 45/55 92/113 90/110 45/55
T200-55G/75P-4 55/75 113/157 110/152 55/75



T200 series expansion card selection:

No. Expansion card model PCB internal model number Function description Applicable model
1 PG-T11-01 T11PG01 ABZ_ Differential input PG card _5V T200-0.4-55 kw
2 PG-T11-02 T11PG02 ABZ_OC& Push-pull input PG card _24V
3 ET-T11-01 T11JK01 1 normally open normally closed relay 2 DL_1 FIV_1 FOC
4 ET-T11-02 T11JK02 1 high speed pulse output _2 DI_1 FIV_1 FOC
5 CM-T11-01 T11CM01 ProfibusDP communication card
6 CM-T11-02 T11CM02 Ethercat communication card
7 CM-T11-03 T11CM03 CAN communication card
8 CM-T11-04 T11CM04 Modbus TCP communication card
9 CM-T11-05 T11CM05 Profinet communication card
Note: This model only has 1 multi-function expansion card interface, communication card and PG share this interface Communication card and PG card can only select one extension, not compatible at the same time.



T200 series product circuit diagram:

Ac Variable Frequency Drive Inverter 22kw 380v Low Voltage RS485 0



FAQ:
Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.


Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.


Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
