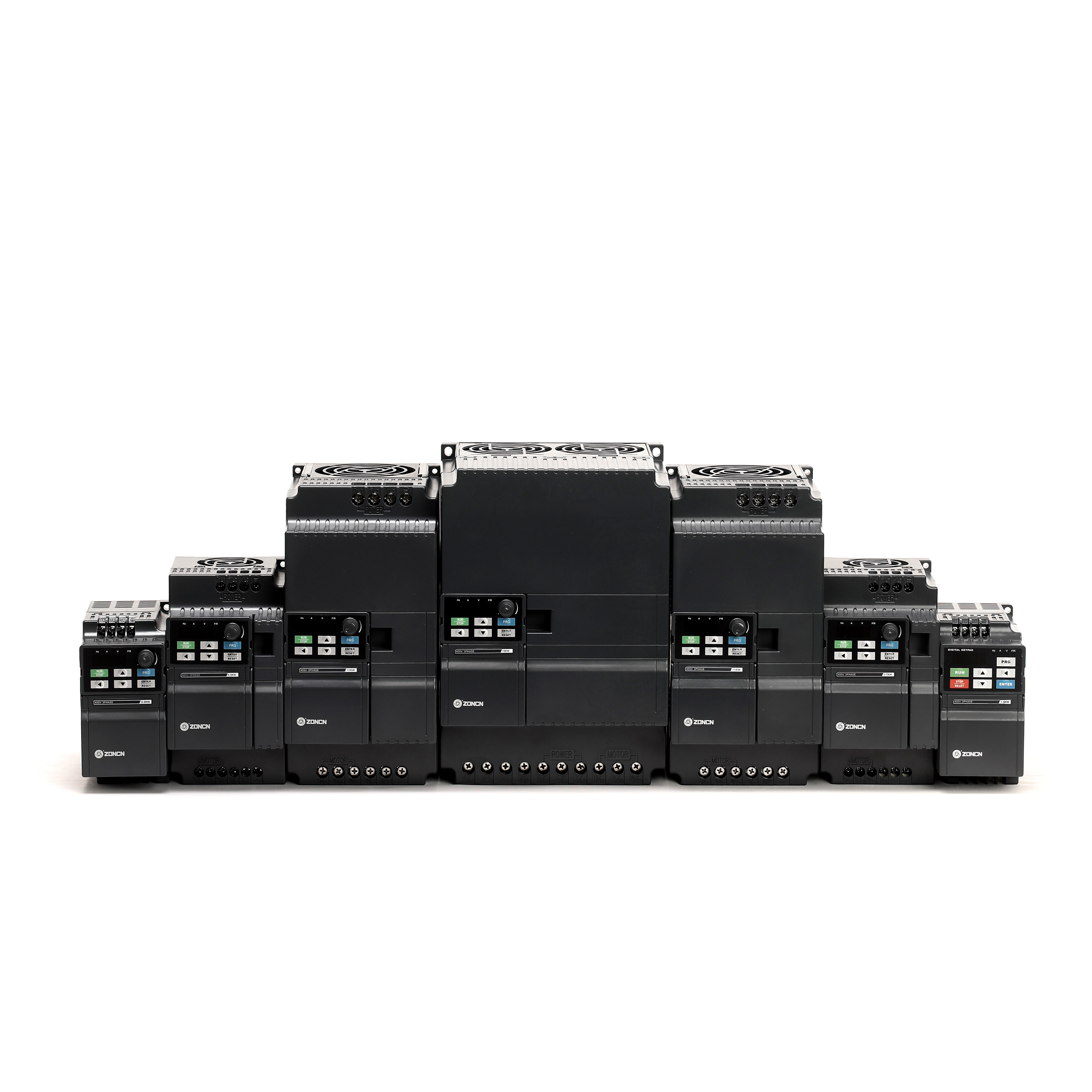

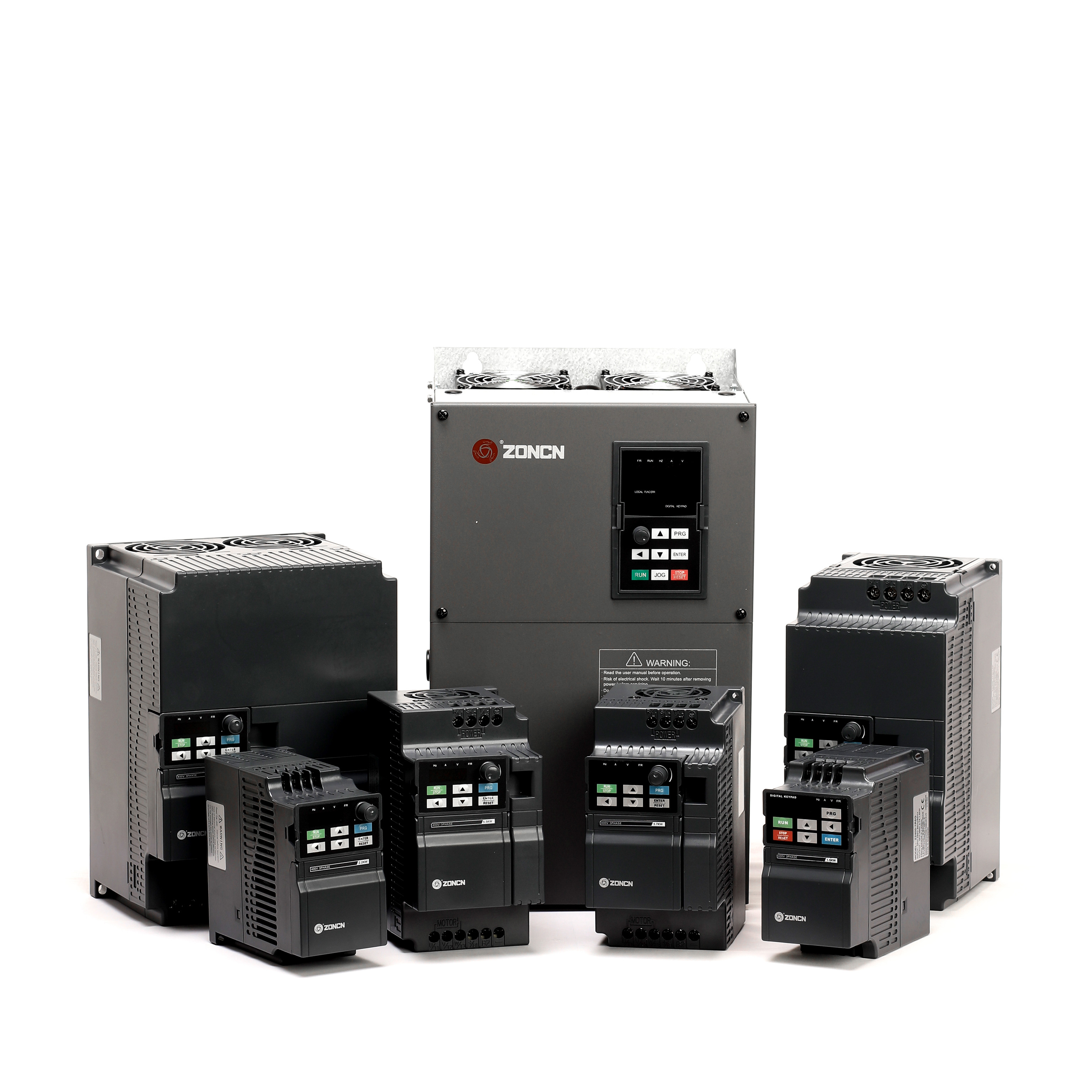

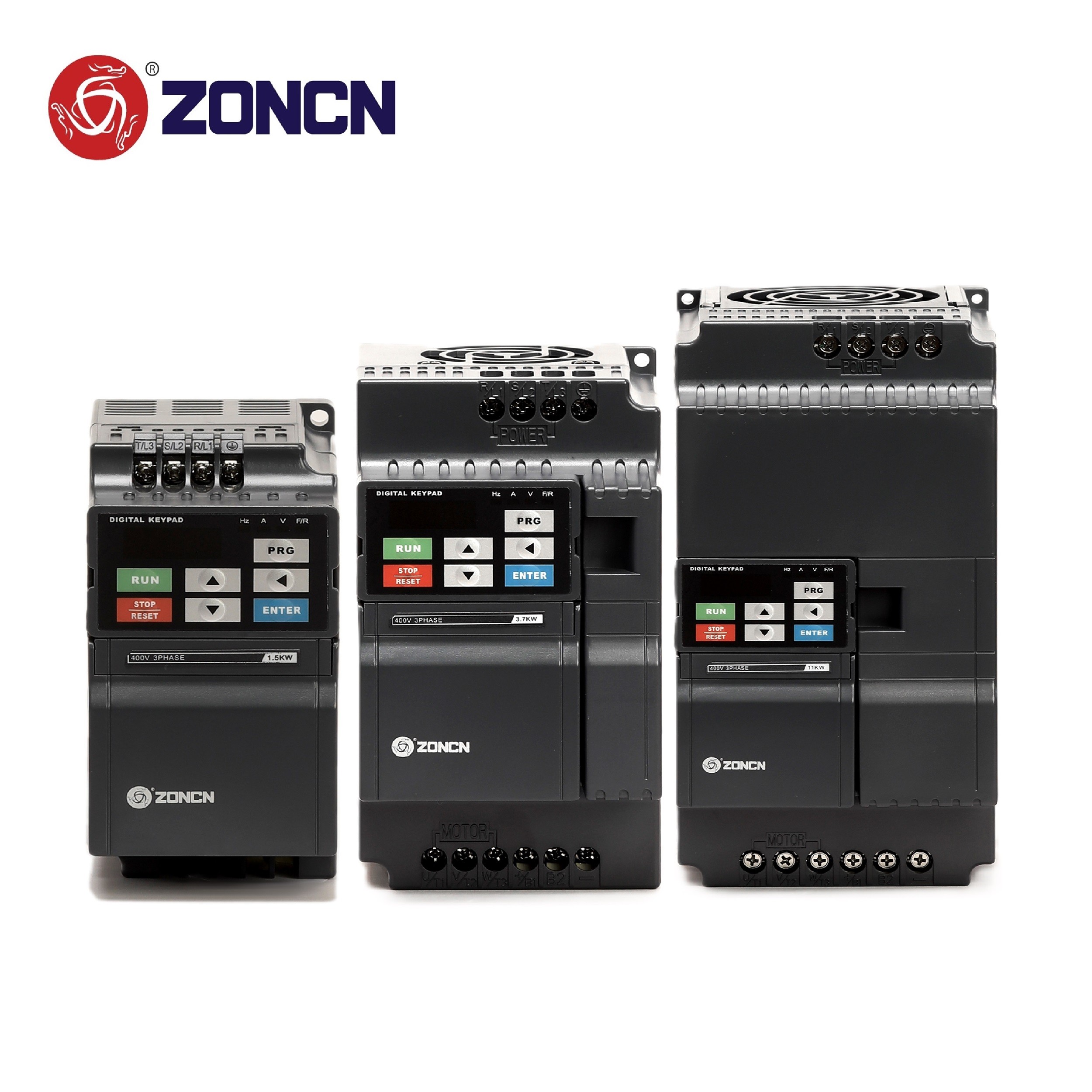

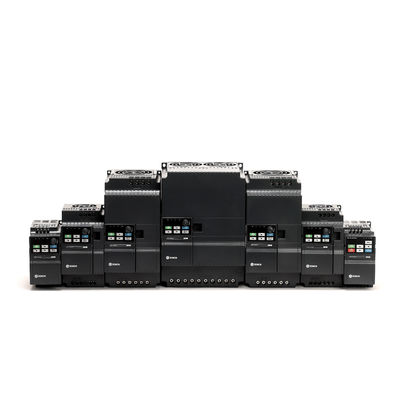

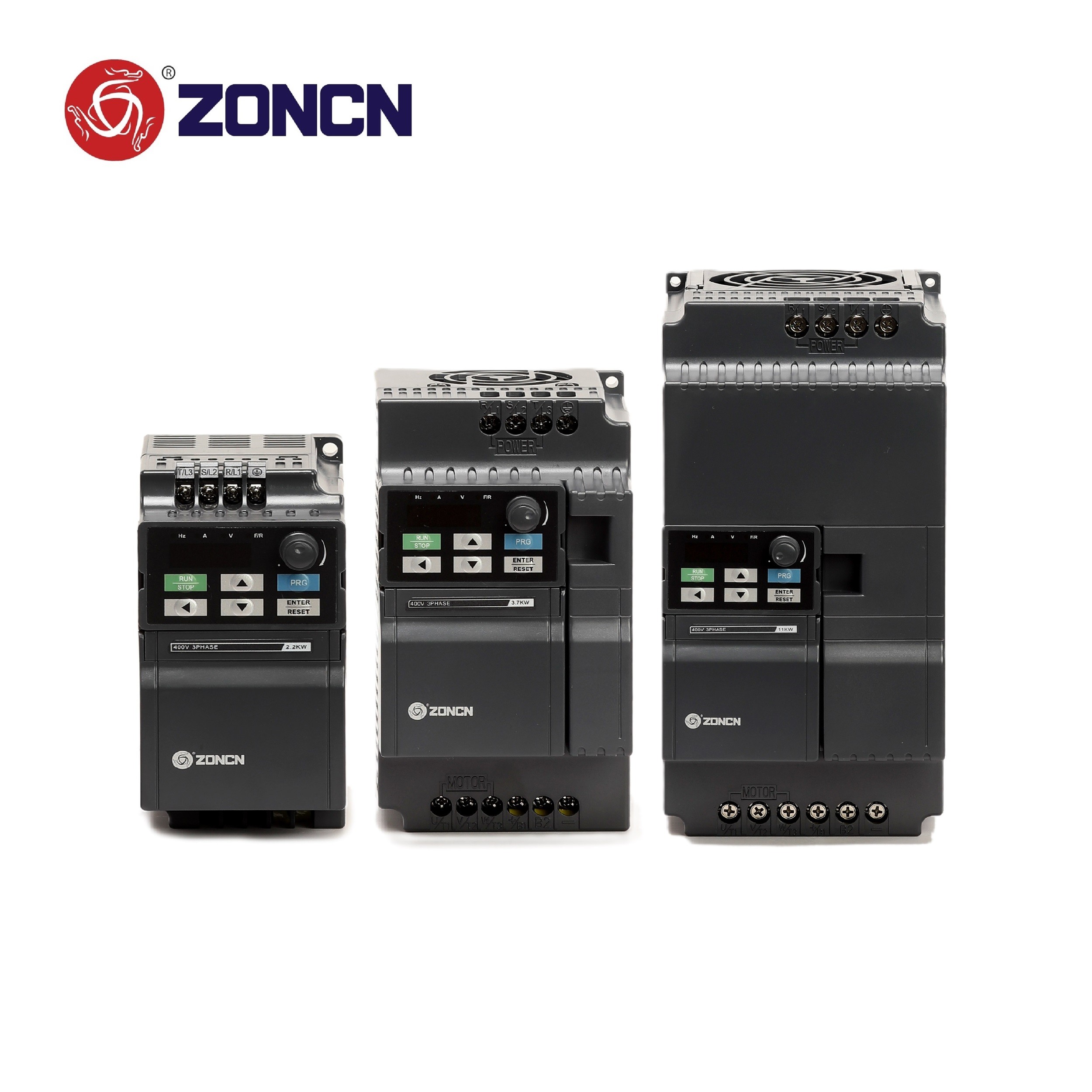

Variable Frequency Drive VFD Inverter 10hp 15hp 380v Frequency Converter

Variable Frequency Drive VFD Inverter 10hp 15hp 380v Frequency Converter
Variable Frequency Drive VFD Inverter 10hp 15hp 380v Frequency Converter
Variable Frequency Drive VFD Inverter 10hp 15hp 380v Frequency Converter Variable Frequency Drive VFD Inverter 10hp 15hp 380v Frequency Converter Variable Frequency Drive VFD Inverter 10hp 15hp 380v Frequency Converter Variable Frequency Drive VFD Inverter 10hp 15hp 380v Frequency Converter Variable Frequency Drive VFD Inverter 10hp 15hp 380v Frequency Converter Variable Frequency Drive VFD Inverter 10hp 15hp 380v Frequency Converter Variable Frequency Drive VFD Inverter 10hp 15hp 380v Frequency Converter Variable Frequency Drive VFD Inverter 10hp 15hp 380v Frequency Converter Variable Frequency Drive VFD Inverter 10hp 15hp 380v Frequency Converter Variable Frequency Drive VFD Inverter 10hp 15hp 380v Frequency Converter Variable Frequency Drive VFD Inverter 10hp 15hp 380v Frequency Converter Variable Frequency Drive VFD Inverter 10hp 15hp 380v Frequency Converter Variable Frequency Drive VFD Inverter 10hp 15hp 380v Frequency Converter
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: Z2400-7R5G
Document: Z2000 series-Wuhu ZONCN.pdf
Minimum Order Quantity: 1 PC
Price: netigotable
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T,Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: VFD Inverter Brand: ZONCN
Series: Z2000 Power Range: 0.4kw-450kw
Communication: Modbus RS485 Analog Input: 0-10V / 4-20mA
Extend Keyboard: Available Lead Time: Within 15 Days Normally
Warranty: 18 Months Certificate: CE
Highlight:

380v Variable Frequency Drive

,

10hp Variable Frequency Drive

,

15hp Variable Frequency Drive

Variable Frequency Drive VFD Inverter 10hp 15hp 380v Frequency Converter


The ZONCN Z2000 VFD is a Variable Frequency Drive designed for controlling AC motors with high efficiency and precision. While specific details may vary depending on the model and firmware version, here are the key features typically associated with the ZONCN Z2000 VFD.

1. Motor Control Features

  • Precise Speed Control: Allows accurate adjustment of motor speed to match application requirements.

  • Torque Control: Provides stable torque output for applications requiring consistent force.

  • Sensorless Vector Control (SVC): Enhances motor performance without the need for an encoder, offering better low-speed torque and speed regulation.

  • V/F Control: Basic voltage-to-frequency control for simpler applications.

2. Energy Efficiency

  • Energy-Saving Mode: Automatically adjusts voltage and frequency to minimize energy consumption under light loads.

  • Dynamic Energy Optimization: Reduces power usage during operation, lowering operational costs.

3. Protection Features

  • Overcurrent Protection: Safeguards the motor and drive from excessive current.

  • Overvoltage/Undervoltage Protection: Protects against voltage fluctuations.

  • Overheating Protection: Monitors temperature and shuts down the drive if it exceeds safe limits.

  • Short Circuit Protection: Prevents damage from electrical faults.

  • Phase Loss Protection: Detects and responds to missing phases in the power supply.

  • Motor Overload Protection: Prevents motor damage due to excessive load.

4. User-Friendly Interface

  • LCD Display: Provides clear and easy-to-read information about operating parameters, faults, and status.

  • Keypad Programming: Allows users to configure and adjust settings directly on the drive.

  • Multi-Functional Inputs/Outputs: Configurable digital and analog I/O for flexible integration with control systems.

5. Advanced Control

  • PID Control: Built-in Proportional-Integral-Derivative control for applications like pressure, flow, or temperature regulation.

  • Multi-Speed Operation: Allows pre-set speeds for different operating conditions.

  • Auto-Tuning: Automatically adjusts motor parameters for optimal performance.

6. Communication

  • Modbus RTU Support: Enables communication with PLCs, SCADA systems, and other industrial devices.

  • RS485 Interface: Facilitates remote monitoring and control.



Z2000 inverter Specification


                    Item                                ZONCN Z2000 Series Inverter
Standard Function Control mode Senseless flux vector control(SFVC) ; Voltage/Frequency (V/F) control
Maximum frequency Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency 1-16kHz ; The carrier frequency is automatically adjusted based on the load features
Input frequency solution Digital setting: 0.01Hz ; Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ; P type: 0.5Hz/100%
Speed range 1:100
Speed stability accuracy ±0.5%
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost ; Customized boost 0.1%-30.0%
V/F curve Line V/F curve; Multi-point V/F curve; N-power V/F curve
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp ; S-curve ramp ; Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking DC braking frequency : 0.0Hz to maximum frequency Braking time: 0.0~100.0s Braking action current value: 0.0%~100.0%
JOG control JOG frequency range: 0.00~50.00Hz JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of X terminal states.
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage changes.
Auto voltage/ Over current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive
Torque limit and control It can keep constant output voltage automatically when the mains voltage changes

Z2000 Inverter Specification

Inverter Model Rated Output Power(kW) Rated Input Current(A) Rated Output Current(A) Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G 0.4 5.4 2.5 0.4
Z2200-0R75G 0.75 7.2 5 0.75
Z2200-1R5G 1.5 10 7 1.5
Z2200-2R2G 2.2 16 11 2.2
Z2200-3R7G 3.7 23 16.5 3.7
Z2200-5R5G 5.5 21 25 5.5
Z2200-7R5G 7.5 31 32 7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G 0.75 3.8 2.5 0.75
Z2400-1R5G 1.5 5 3.7 1.5
Z2400-2R2G 2.2 5.8 5 2.2
Z2400-3R7G/5R5P 3.7/5.5 10/15.0 9/13 3.7/5.5
Z2400-5R5G 5.5 15 13 5.5
Z2400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
Z2400-11G/15P 11/15 26/35 25/32 11/15
Z2400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
Z2400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
Z2400-22G/30P 22/30 46/62 45/60 22/30
Z2400-30G/37P 30/37 62/76 60/75 30/37
Z2400-37G/45P 37/45 76/90 75/90 37/45
Z2400-45G/55P 45/55 90/105 90/110 45/55
Z2400-55G 55 105 110 55
Z2400-75G/90P 75/90 140/160 150/176 75/90
Z2400-90G/110P 90/110 160/210 176/210 90/110
Z2400-110G/132P 110/132 210/240 210/253 110/132
Z2400-132G/160P 132/160 240/290 253/300 132/160
Z2400-160G/185P 160/185 290/330 300/340 160/185
Z2400-185G/200P 185/200 330/370 340/380 185/200
Z2400-200G/220P 200/220 370/410 380/420 200/220
… 　 　 　 　



ZONCN Inverter Applications


Variable Frequency Drive VFD Inverter 10hp 15hp 380v Frequency Converter 0

Variable Frequency Drive VFD Inverter 10hp 15hp 380v Frequency Converter 1
