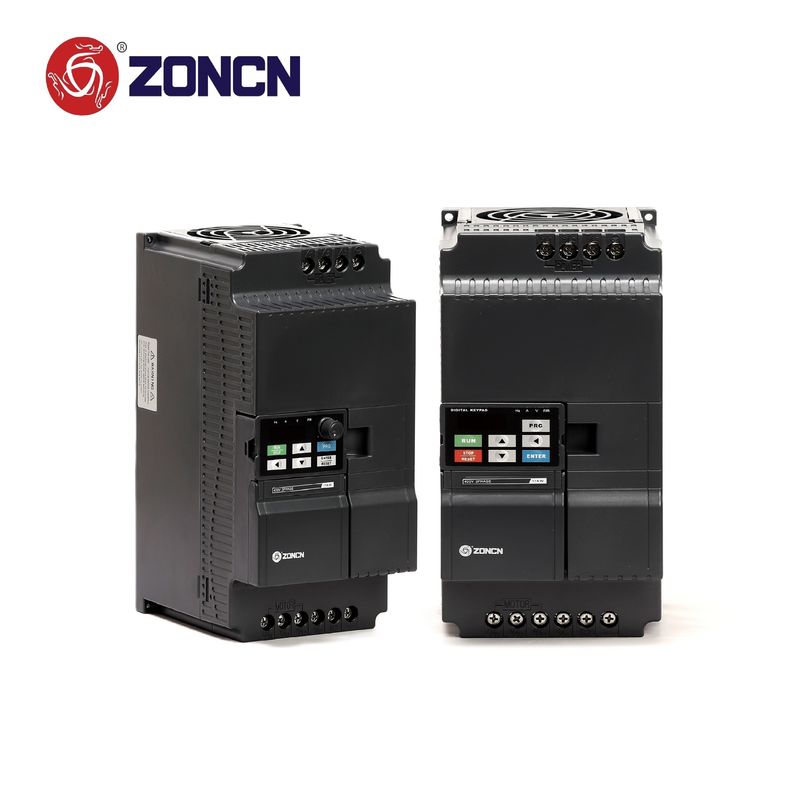

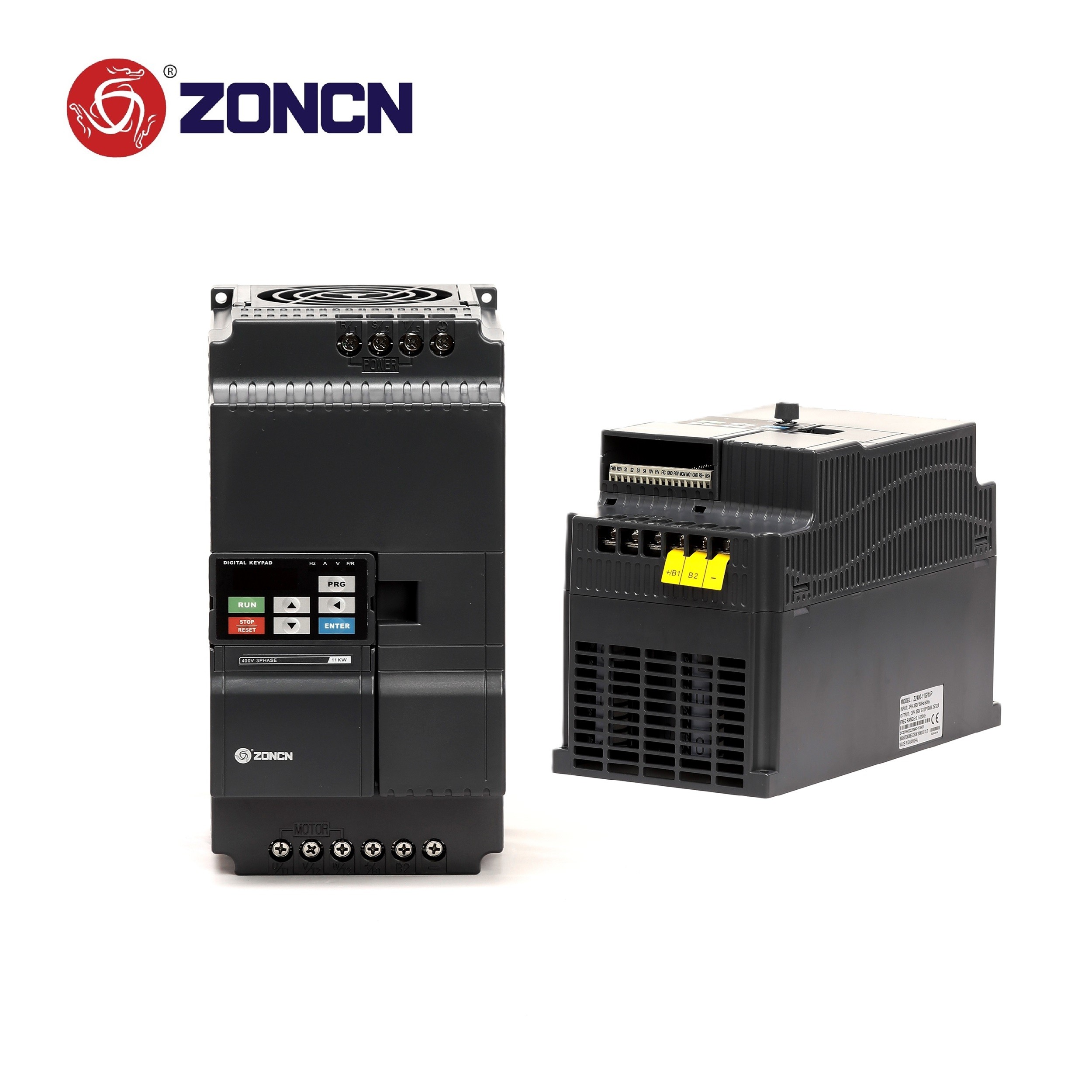

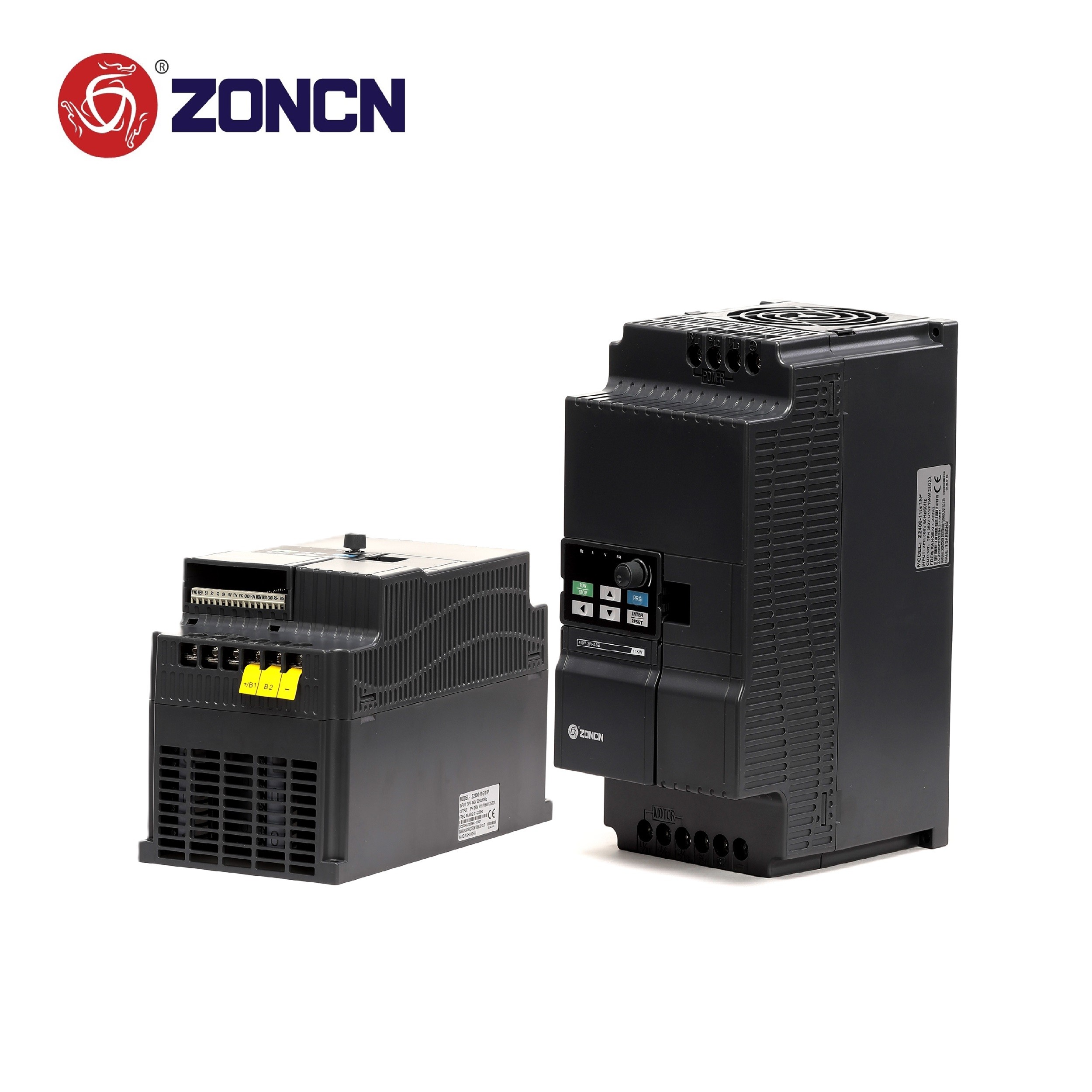

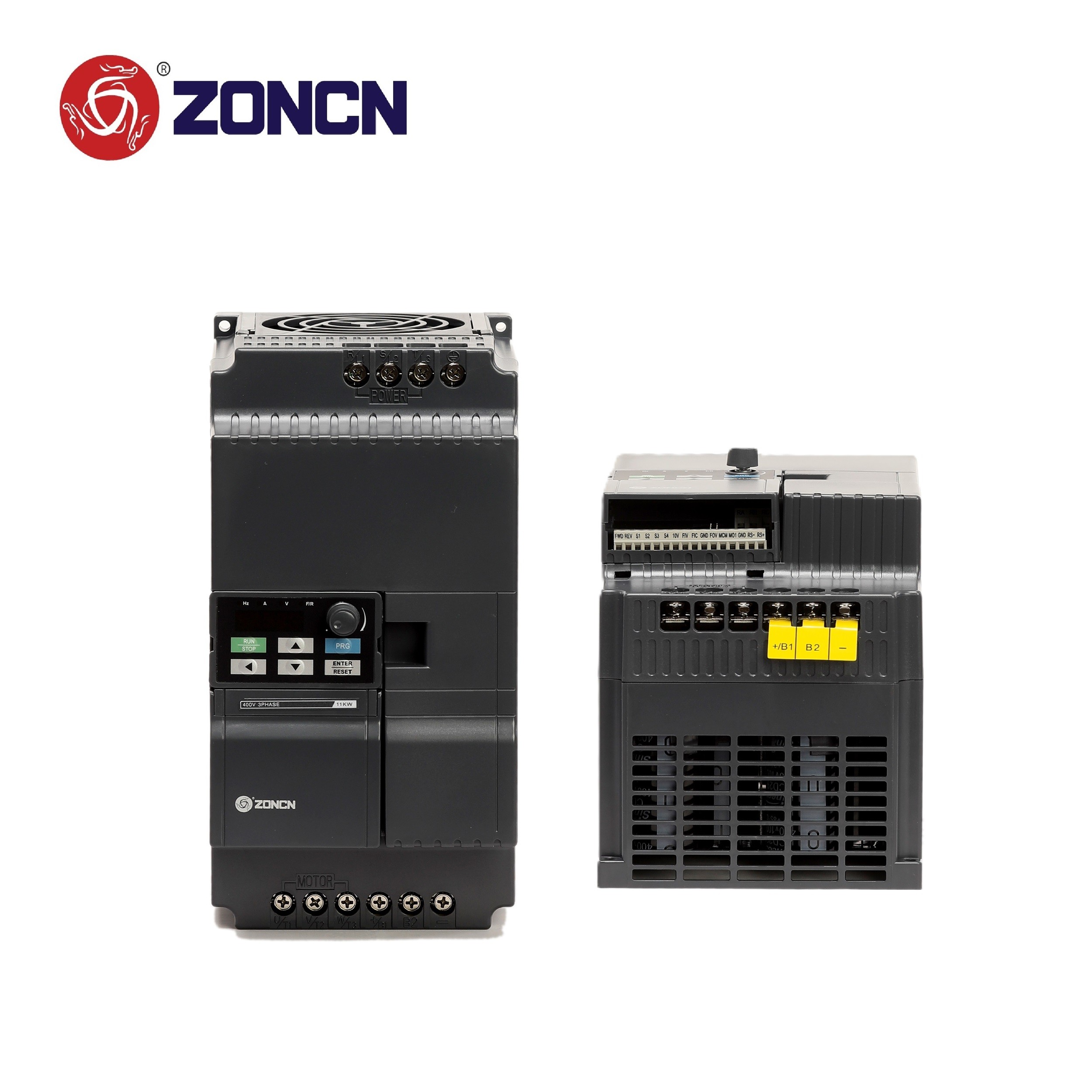

ZONCN VFD Variable Frequency Drive 7.5kw 11kw Vector Control Inverter For Industrial Control

ZONCN VFD Variable Frequency Drive 7.5kw 11kw Vector Control Inverter For Industrial Control
ZONCN VFD Variable Frequency Drive 7.5kw 11kw Vector Control Inverter For Industrial Control
ZONCN VFD Variable Frequency Drive 7.5kw 11kw Vector Control Inverter For Industrial Control ZONCN VFD Variable Frequency Drive 7.5kw 11kw Vector Control Inverter For Industrial Control ZONCN VFD Variable Frequency Drive 7.5kw 11kw Vector Control Inverter For Industrial Control ZONCN VFD Variable Frequency Drive 7.5kw 11kw Vector Control Inverter For Industrial Control ZONCN VFD Variable Frequency Drive 7.5kw 11kw Vector Control Inverter For Industrial Control ZONCN VFD Variable Frequency Drive 7.5kw 11kw Vector Control Inverter For Industrial Control ZONCN VFD Variable Frequency Drive 7.5kw 11kw Vector Control Inverter For Industrial Control ZONCN VFD Variable Frequency Drive 7.5kw 11kw Vector Control Inverter For Industrial Control ZONCN VFD Variable Frequency Drive 7.5kw 11kw Vector Control Inverter For Industrial Control ZONCN VFD Variable Frequency Drive 7.5kw 11kw Vector Control Inverter For Industrial Control ZONCN VFD Variable Frequency Drive 7.5kw 11kw Vector Control Inverter For Industrial Control ZONCN VFD Variable Frequency Drive 7.5kw 11kw Vector Control Inverter For Industrial Control ZONCN VFD Variable Frequency Drive 7.5kw 11kw Vector Control Inverter For Industrial Control
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: Z2400-7R5G
Minimum Order Quantity: 1 PC
Price: netigotable
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T,Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: VFD Inverter Brand: ZONCN Original
Series: Z2000 Power Range: 0.4kw-450kw
Rated Power: 11KW/15HP Communication: Modbus RS485
Analog Input: 0-10V / 4-20mA PMSM: Support
Extend Keyboard: Available Warranty: 18 Months
Highlight:

Industrial Control ZONCN VFD

,

7.5kw ZONCN VFD

,

11kw ZONCN VFD

ZONCN VFD Variable Frequency Drive 7.5kw 11kw Vector Control Inverter For Industrial Control


The ZONCN Z2000 series inverter is a high-performance Variable Frequency Drive (VFD) designed for a wide range of industrial applications. It offers advanced control features, robust performance, and user-friendly operation. Below are the key features of the ZONCN Z2000 series inverter.

1. Wide Input Voltage Range

  • Supports a broad input voltage range (200V to 480V), making it suitable for various power supply conditions and regions.

2. High Overload Capacity

  • Capable of handling up to 150% overload for short durations, making it ideal for applications with heavy starting loads or sudden load changes.

3. Multiple Control Modes

  • V/F Control: Suitable for general-purpose applications.

  • Sensorless Vector Control (SVC): Provides precise speed and torque control without the need for an encoder.

4. Built-in PID Controller

  • Integrated PID control function for closed-loop systems, enabling precise regulation of pressure, flow, temperature, and other process variables.

5. Advanced Energy-Saving Function

  • Optimizes motor operation to reduce energy consumption, particularly in variable torque applications like fans and pumps.

6. Comprehensive Protection Features

  • Protects the inverter and motor with functions such as:

    • Overcurrent protection

    • Overvoltage/undervoltage protection

    • Overheating protection

    • Short-circuit protection

    • Motor overload protection

7. Rich I/O Interfaces

  • Equipped with multiple digital and analog input/output terminals for flexible integration with external devices and control systems.

8. User-Friendly Interface

  • Intuitive keypad with a clear display for easy parameter setting and monitoring.

  • Supports parameter copy function, simplifying setup for multiple units.

9. Multi-Functional Relay Output

  • Provides relay outputs for signaling alarms, faults, or operational status, enhancing system monitoring and control.

10. Communication Capabilities

  • Supports standard communication protocols (e.g., Modbus, RS485) for integration into industrial automation systems.


Z2000 inverter Specification


                    Item                                ZONCN Z2000 Series Inverter
Standard Function Control mode Senseless flux vector control(SFVC) ; Voltage/Frequency (V/F) control
Maximum frequency Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency 1-16kHz ; The carrier frequency is automatically adjusted based on the load features
Input frequency solution Digital setting: 0.01Hz ; Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ; P type: 0.5Hz/100%
Speed range 1:100
Speed stability accuracy ±0.5%
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost ; Customized boost 0.1%-30.0%
V/F curve Line V/F curve; Multi-point V/F curve; N-power V/F curve
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp ; S-curve ramp ; Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking DC braking frequency : 0.0Hz to maximum frequency Braking time: 0.0~100.0s Braking action current value: 0.0%~100.0%
JOG control JOG frequency range: 0.00~50.00Hz JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of X terminal states.
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage changes.
Auto voltage/ Over current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive
Torque limit and control It can keep constant output voltage automatically when the mains voltage changes

Z2000 Inverter Specification

Inverter Model Rated Output Power(kW) Rated Input Current(A) Rated Output Current(A) Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G 0.4 5.4 2.5 0.4
Z2200-0R75G 0.75 7.2 5 0.75
Z2200-1R5G 1.5 10 7 1.5
Z2200-2R2G 2.2 16 11 2.2
Z2200-3R7G 3.7 23 16.5 3.7
Z2200-5R5G 5.5 21 25 5.5
Z2200-7R5G 7.5 31 32 7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G 0.75 3.8 2.5 0.75
Z2400-1R5G 1.5 5 3.7 1.5
Z2400-2R2G 2.2 5.8 5 2.2
Z2400-3R7G/5R5P 3.7/5.5 10/15.0 9/13 3.7/5.5
Z2400-5R5G 5.5 15 13 5.5
Z2400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
Z2400-11G/15P 11/15 26/35 25/32 11/15
Z2400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
Z2400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
Z2400-22G/30P 22/30 46/62 45/60 22/30
Z2400-30G/37P 30/37 62/76 60/75 30/37
Z2400-37G/45P 37/45 76/90 75/90 37/45
Z2400-45G/55P 45/55 90/105 90/110 45/55
Z2400-55G 55 105 110 55
Z2400-75G/90P 75/90 140/160 150/176 75/90
Z2400-90G/110P 90/110 160/210 176/210 90/110
Z2400-110G/132P 110/132 210/240 210/253 110/132
Z2400-132G/160P 132/160 240/290 253/300 132/160
Z2400-160G/185P 160/185 290/330 300/340 160/185
Z2400-185G/200P 185/200 330/370 340/380 185/200
Z2400-200G/220P 200/220 370/410 380/420 200/220
… 　 　 　 　



ZONCN Inverter Applications


ZONCN VFD Variable Frequency Drive 7.5kw 11kw Vector Control Inverter For Industrial Control 0

ZONCN VFD Variable Frequency Drive 7.5kw 11kw Vector Control Inverter For Industrial Control 1
