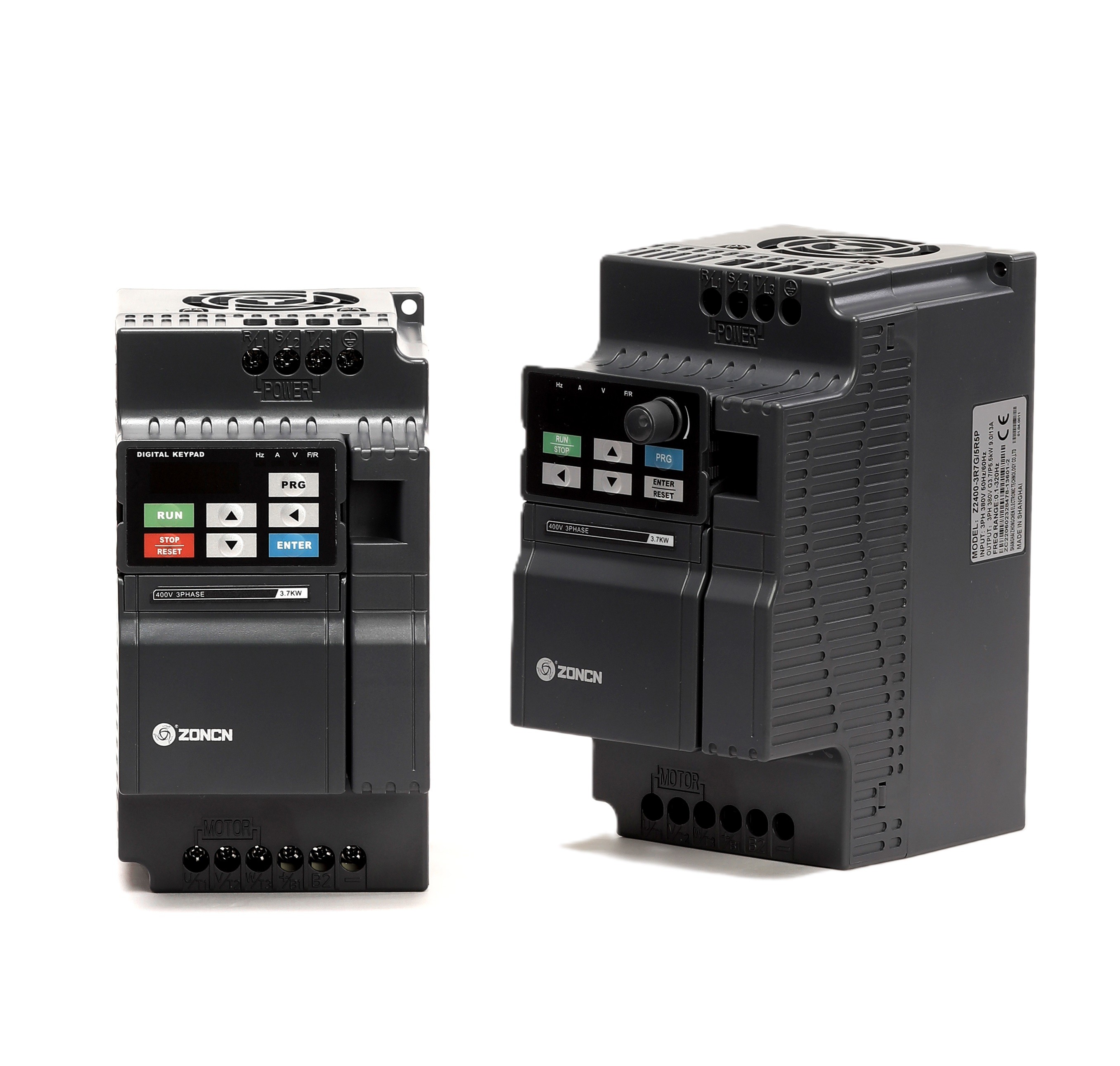

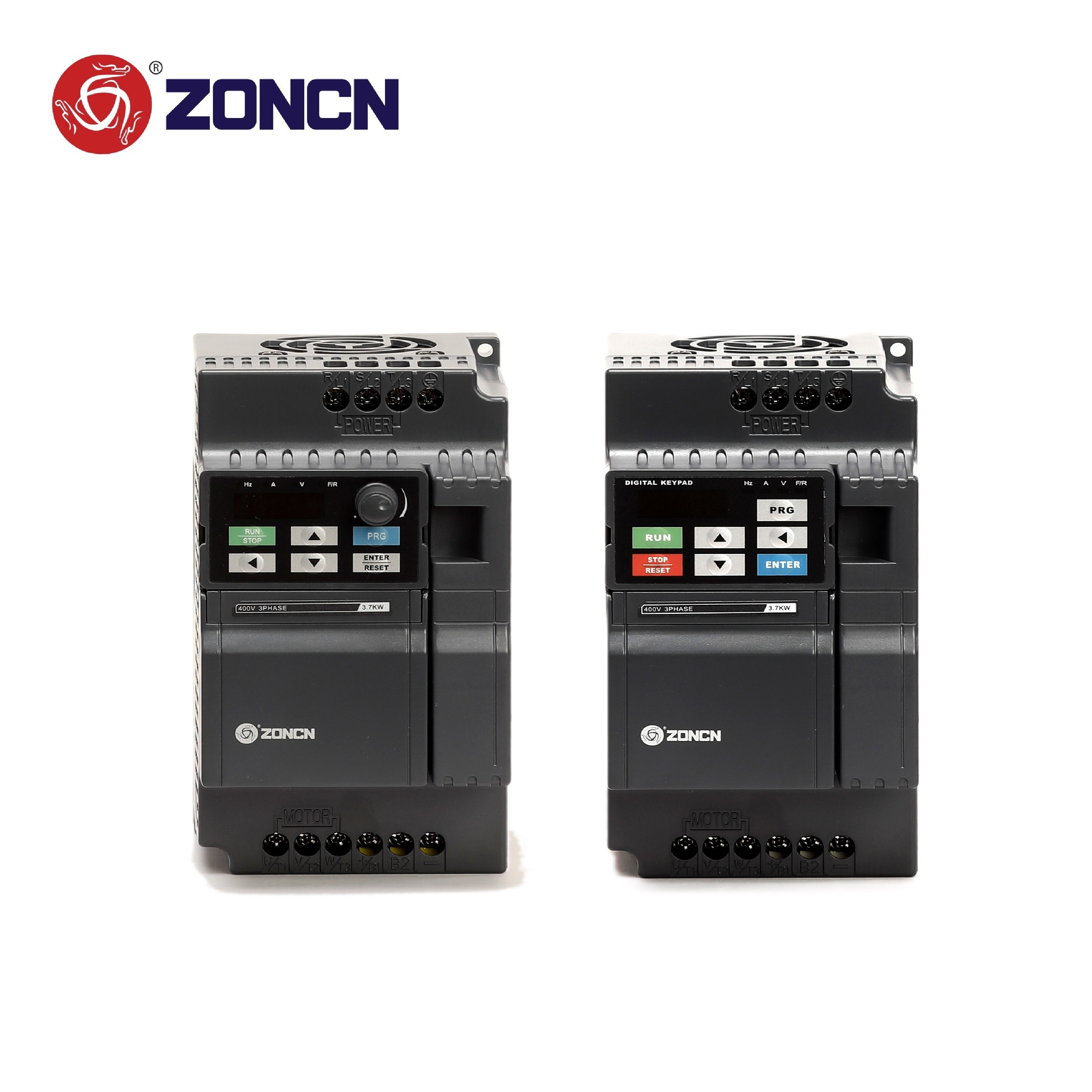

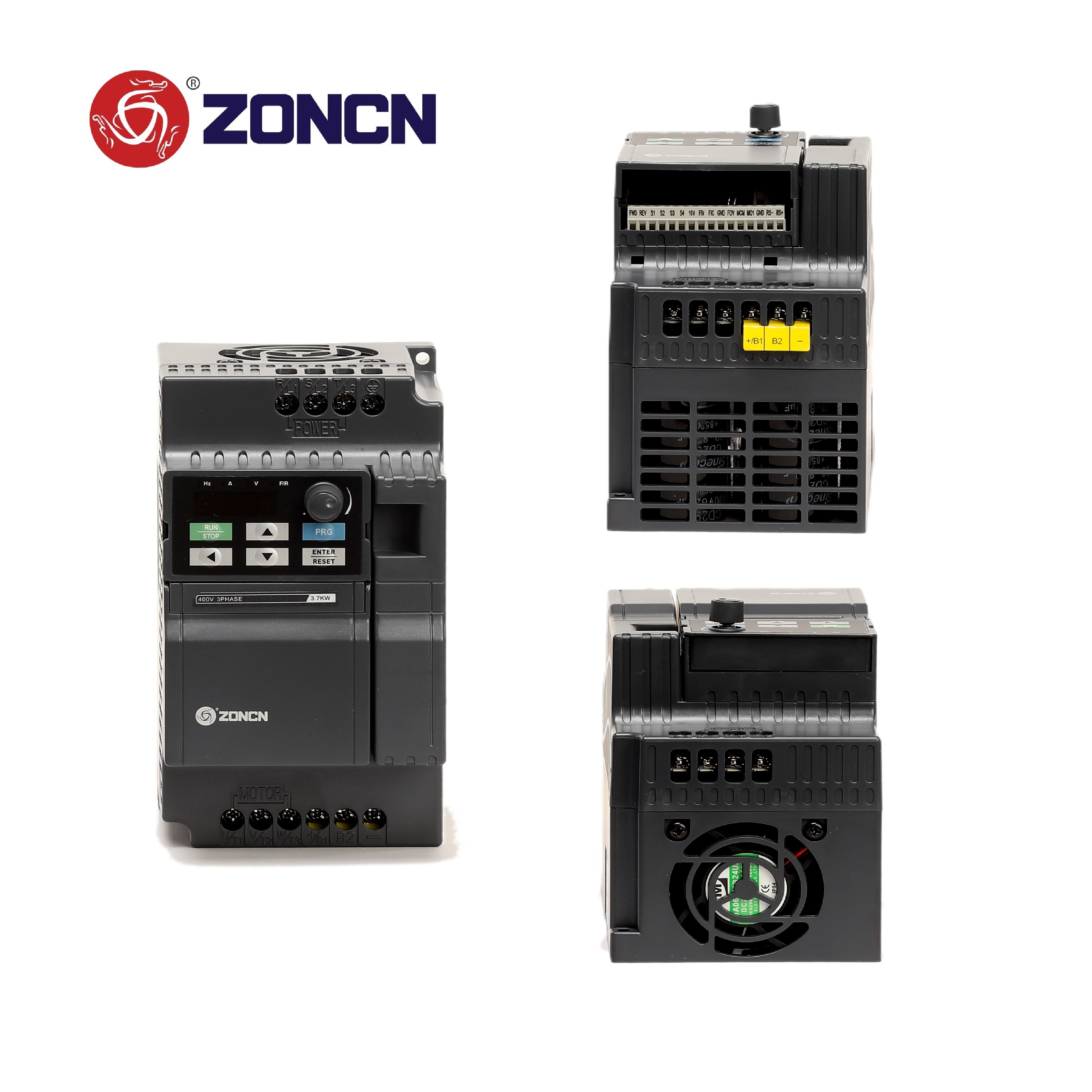

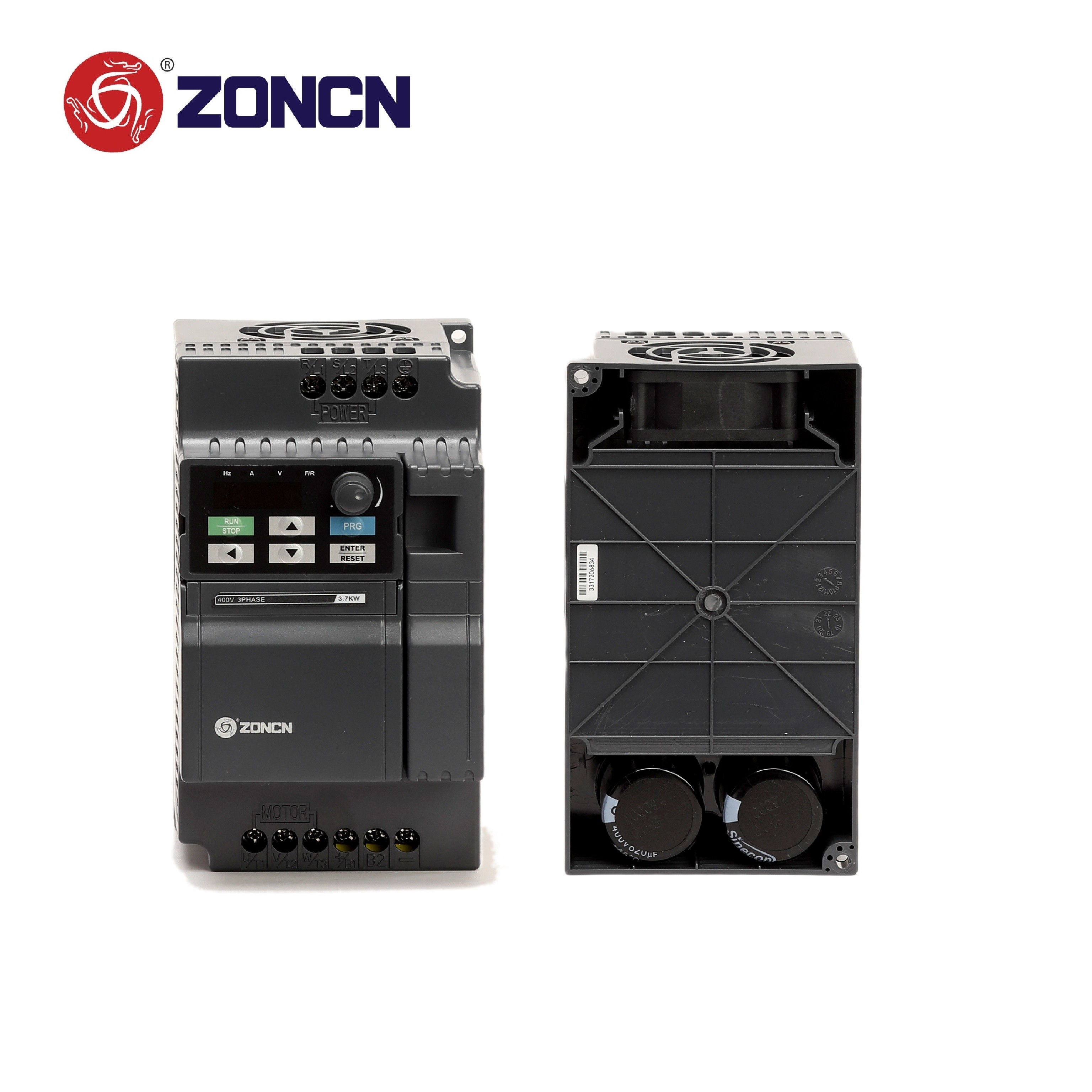

380v 3 Phase Inverter 3hp 5hp 7hp Variable Frequency Drive 2.2kw 3.7kw 5.5kw VFD Drive

380v 3 Phase Inverter 3hp 5hp 7hp Variable Frequency Drive 2.2kw 3.7kw 5.5kw VFD Drive
380v 3 Phase Inverter 3hp 5hp 7hp Variable Frequency Drive 2.2kw 3.7kw 5.5kw VFD Drive
380v 3 Phase Inverter 3hp 5hp 7hp Variable Frequency Drive 2.2kw 3.7kw 5.5kw VFD Drive 380v 3 Phase Inverter 3hp 5hp 7hp Variable Frequency Drive 2.2kw 3.7kw 5.5kw VFD Drive 380v 3 Phase Inverter 3hp 5hp 7hp Variable Frequency Drive 2.2kw 3.7kw 5.5kw VFD Drive 380v 3 Phase Inverter 3hp 5hp 7hp Variable Frequency Drive 2.2kw 3.7kw 5.5kw VFD Drive 380v 3 Phase Inverter 3hp 5hp 7hp Variable Frequency Drive 2.2kw 3.7kw 5.5kw VFD Drive 380v 3 Phase Inverter 3hp 5hp 7hp Variable Frequency Drive 2.2kw 3.7kw 5.5kw VFD Drive 380v 3 Phase Inverter 3hp 5hp 7hp Variable Frequency Drive 2.2kw 3.7kw 5.5kw VFD Drive 380v 3 Phase Inverter 3hp 5hp 7hp Variable Frequency Drive 2.2kw 3.7kw 5.5kw VFD Drive 380v 3 Phase Inverter 3hp 5hp 7hp Variable Frequency Drive 2.2kw 3.7kw 5.5kw VFD Drive 380v 3 Phase Inverter 3hp 5hp 7hp Variable Frequency Drive 2.2kw 3.7kw 5.5kw VFD Drive 380v 3 Phase Inverter 3hp 5hp 7hp Variable Frequency Drive 2.2kw 3.7kw 5.5kw VFD Drive 380v 3 Phase Inverter 3hp 5hp 7hp Variable Frequency Drive 2.2kw 3.7kw 5.5kw VFD Drive 380v 3 Phase Inverter 3hp 5hp 7hp Variable Frequency Drive 2.2kw 3.7kw 5.5kw VFD Drive
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: Z2400-3R7G
Minimum Order Quantity: 1 PC
Price: netigotable
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T,Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: VFD Inverters Brand: ZONCN
Voltage: 380V/440v/480v Power Range: 0.4kw-450kw
Communication: RS485/EtherCAT OEM: Yes
Analog Input: Have Extend Keyboard: Have
Application: Industrial Control Application PM Motor: Support
Warranty: 18 Months
Highlight:

7hp 3phase Inverter

,

5hp 3phase Inverter

,

380v 3phase Inverter

380v 3phase Inverter 3hp 5hp 7hp Variable Frequency Drive 2.2kw 3.7kw 5.5kw VFD Drive



About ZONCN Z2000 inverter

ZONCN Z2000 series inverter is a high-performance, versatile, and energy-efficient drive solution designed for a wide range of industrial applications. Here are some of its key features:

    1. High Performance: The Z2000 series offers precise speed and torque control, ensuring optimal performance for various motor types, including induction and permanent magnet motors.

    2. Energy Efficiency: With advanced energy-saving algorithms, the Z2000 series helps reduce power consumption, making it an environmentally friendly choice.

    3. Compact Design: The inverter features a compact and modular design, allowing for easy installation and space-saving in control cabinets.

    4. User-Friendly Interface: Equipped with an intuitive interface and programmable parameters, the Z2000 series simplifies operation and customization for different applications.

    5. Robust Protection: The inverter includes comprehensive protection features such as overvoltage, undervoltage, overcurrent, and overheating protection, ensuring reliable operation and extending the lifespan of the equipment.

    6. Wide Application Range: Suitable for various industries, including HVAC, water treatment, manufacturing, and more, the Z2000 series can handle diverse operational demands.

    7. Advanced Control Functions: The series supports advanced control functions like PID control, vector control, and multi-speed control, providing flexibility and precision in complex applications.

    8. Communication Capabilities: With built-in communication interfaces such as Modbus,  EtherCAT, etc.

    9. High Reliability: Designed with high-quality components and rigorous testing, the Z2000 series ensures long-term reliability and minimal maintenance requirements.

    10. Customizable Options: The inverter offers various customizable options to meet specific customer needs, including different power ratings, enclosure types, and additional functionalities.

Inverter Description

                    Item                                ZONCN Z2000 Series Inverter
Standard Function Control mode Senseless flux vector control(SFVC) ; Voltage/Frequency (V/F) control
Maximum frequency Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency 1-16kHz ; The carrier frequency is automatically adjusted based on the load features
Input frequency solution Digital setting: 0.01Hz ; Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ; P type: 0.5Hz/100%
Speed range 1:100
Speed stability accuracy ±0.5%
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost ; Customized boost 0.1%-30.0%
V/F curve Line V/F curve; Multi-point V/F curve; N-power V/F curve
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp ; S-curve ramp ; Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking DC braking frequency : 0.0Hz to maximum frequency Braking time: 0.0~100.0s Braking action current value: 0.0%~100.0%
JOG control JOG frequency range: 0.00~50.00Hz JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of X terminal states.
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage changes.
Auto voltage/ Over current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive
Torque limit and control It can keep constant output voltage automatically when the mains voltage changes

Inverter Specification

Inverter Model Rated Output Power(kW) Rated Input Current(A) Rated Output Current(A) Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G 0.4 5.4 2.5 0.4
Z2200-0R75G 0.75 7.2 5 0.75
Z2200-1R5G 1.5 10 7 1.5
Z2200-2R2G 2.2 16 11 2.2
Z2200-3R7G 3.7 23 16.5 3.7
Z2200-5R5G 5.5 21 25 5.5
Z2200-7R5G 7.5 31 32 7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G 0.75 3.8 2.5 0.75
Z2400-1R5G 1.5 5 3.7 1.5
Z2400-2R2G 2.2 5.8 5 2.2
Z2400-3R7G/5R5P 3.7/5.5 10/15.0 9/13 3.7/5.5
Z2400-5R5G 5.5 15 13 5.5
Z2400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
Z2400-11G/15P 11/15 26/35 25/32 11/15
Z2400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
Z2400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
Z2400-22G/30P 22/30 46/62 45/60 22/30
Z2400-30G/37P 30/37 62/76 60/75 30/37
Z2400-37G/45P 37/45 76/90 75/90 37/45
Z2400-45G/55P 45/55 90/105 90/110 45/55
Z2400-55G 55 105 110 55
Z2400-75G/90P 75/90 140/160 150/176 75/90
Z2400-90G/110P 90/110 160/210 176/210 90/110
Z2400-110G/132P 110/132 210/240 210/253 110/132
Z2400-132G/160P 132/160 240/290 253/300 132/160
Z2400-160G/185P 160/185 290/330 300/340 160/185
Z2400-185G/200P 185/200 330/370 340/380 185/200
Z2400-200G/220P 200/220 370/410 380/420 200/220
… 　 　 　 　


380v 3 Phase Inverter 3hp 5hp 7hp Variable Frequency Drive 2.2kw 3.7kw 5.5kw VFD Drive 0
