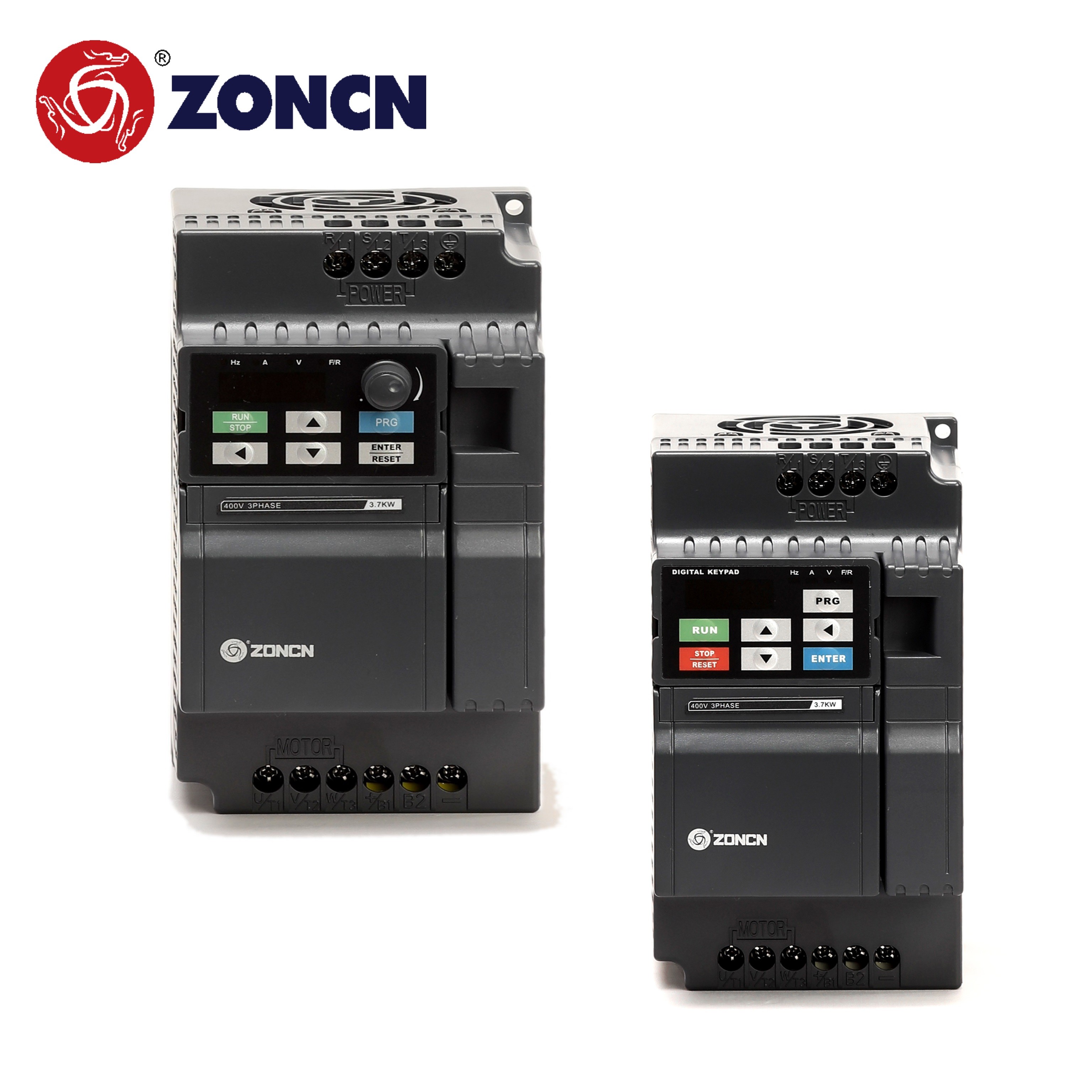

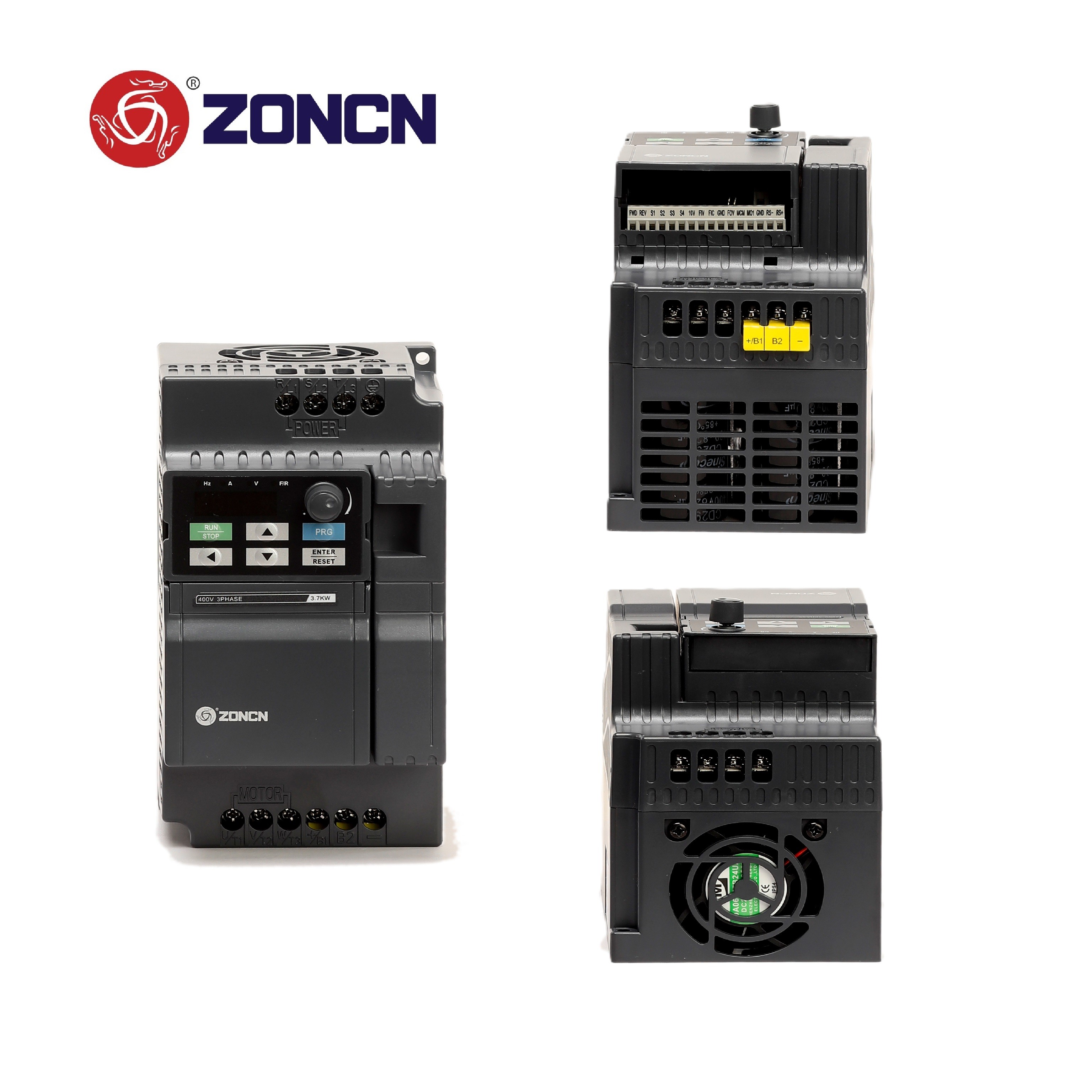

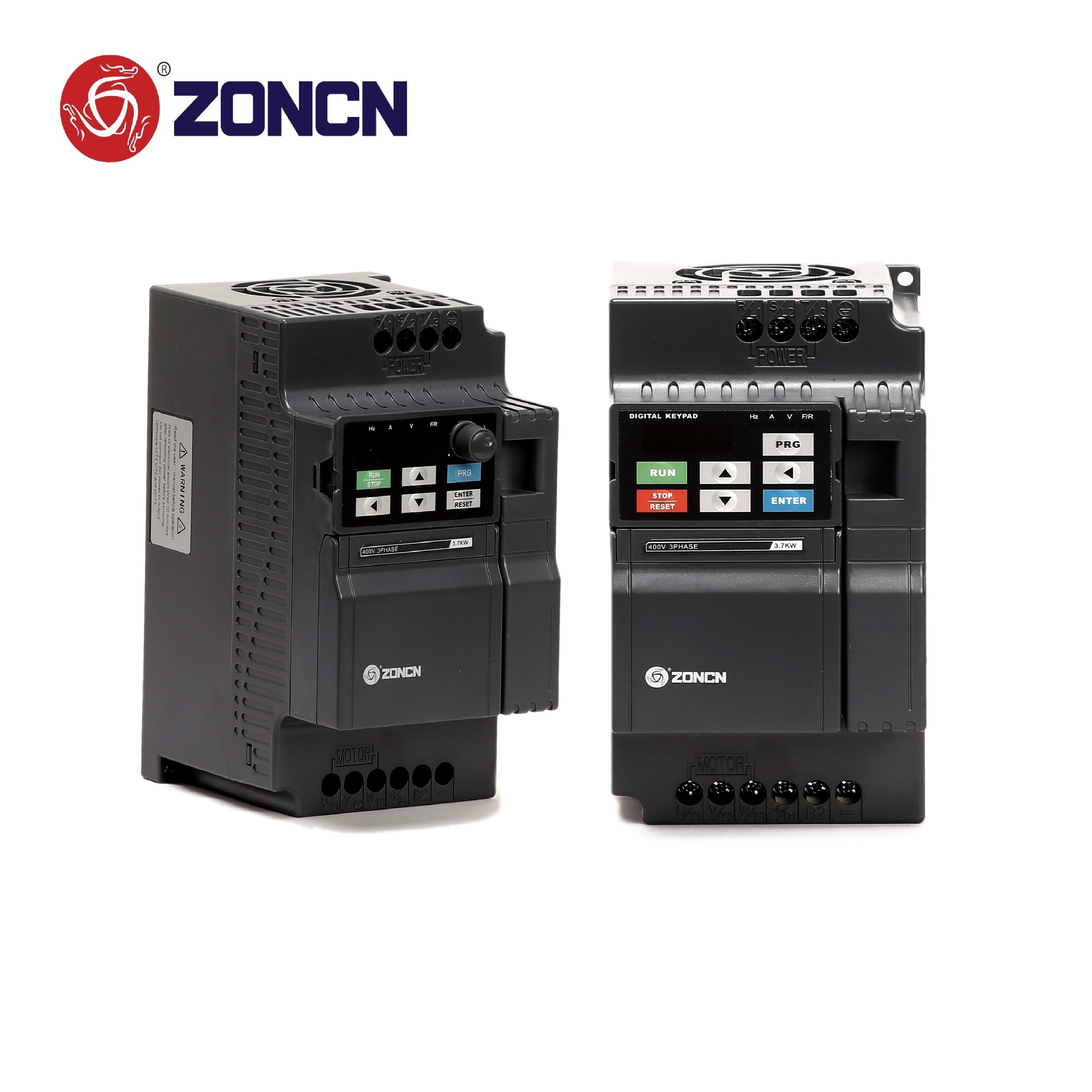

380v 3phase Variable Frequency Drive 1.5kw 2.2kw 3.7kw VFD With Ethercat Communication

380v 3phase Variable Frequency Drive 1.5kw 2.2kw 3.7kw VFD With Ethercat Communication
380v 3phase Variable Frequency Drive 1.5kw 2.2kw 3.7kw VFD With Ethercat Communication 380v 3phase Variable Frequency Drive 1.5kw 2.2kw 3.7kw VFD With Ethercat Communication 380v 3phase Variable Frequency Drive 1.5kw 2.2kw 3.7kw VFD With Ethercat Communication 380v 3phase Variable Frequency Drive 1.5kw 2.2kw 3.7kw VFD With Ethercat Communication 380v 3phase Variable Frequency Drive 1.5kw 2.2kw 3.7kw VFD With Ethercat Communication 380v 3phase Variable Frequency Drive 1.5kw 2.2kw 3.7kw VFD With Ethercat Communication 380v 3phase Variable Frequency Drive 1.5kw 2.2kw 3.7kw VFD With Ethercat Communication 380v 3phase Variable Frequency Drive 1.5kw 2.2kw 3.7kw VFD With Ethercat Communication 380v 3phase Variable Frequency Drive 1.5kw 2.2kw 3.7kw VFD With Ethercat Communication
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: Z2400-3R7G
Minimum Order Quantity: 1 PC
Price: netigotable
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T,Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: VFD Inverters Brand: ZONCN Orignal
Voltage: 3ph 380V/440v/480v Communication: RS485/Ethercat
Rated Power: 3.7KW/5HP Analog Input: Have
Extend Keypad: Have Power Range: 0.4kw-450kw
Highlight:

Ethercat Communication Variable Frequency Drive

,

3phase Variable Frequency Drive

,

380v Variable Frequency Drive


380v 3phase variable frequency drive 1.5kw 2.2kw 3.7kw VFD with Ethercat communication



Company introduction

ZONCN specializes in the production of frequency inverters (also known as variable frequency drives or VFDs), which are widely used in industrial automation for motor speed control and energy efficiency optimization. Below is an overview of our inverter products.


ZONCN Inverters


1. Key Functions


  • Motor Speed Control: Adjusts the speed of AC motors to match specific operational requirements.

  • Energy Saving: Reduces energy consumption by optimizing motor performance, especially in applications like fans, pumps, and compressors.

  • Soft Start/Stop: Minimizes mechanical and electrical stress on motors during startup and shutdown.

  • Precision Control: Provides stable and accurate control for various industrial processes.


2. Applications

  • HVAC Systems: For controlling fans and pumps in heating, ventilation, and air conditioning systems.

  • Water Treatment: Used in pumps and blowers for water supply and wastewater treatment.

  • Manufacturing: Applied in conveyor belts, machine tools, and textile machinery.


3. Product Features

  • High Efficiency: Advanced algorithms ensure optimal motor performance and energy savings.

  • Compact Design: Space-saving and easy to install in various industrial environments.

  • User-Friendly Interface: Intuitive controls and clear displays for easy operation and parameter setting.

  • Robust Protection: Built-in protections against overvoltage, undervoltage, overcurrent, and overheating.

  • Wide Voltage Range: Compatible with different power supply systems, ensuring versatility.


4. Technical Highlights

  • Control Modes: Supports V/F control, vector control, and sensorless vector control for precise motor management.

  • Communication Protocols: Compatible with industry-standard protocols such as Modbus, Profibus, and CANopen for seamless integration into automation systems.

  • Customizable Parameters: Allows users to adjust settings to meet specific application needs.


5. Advantages

  • Reliability: Designed for long-term operation in demanding industrial environments.

  • Cost-Effective: Offers high performance at a competitive price point.

  • Wide Range of Models: Available in various power ratings to suit different motor sizes and applications.

Inverter escription

                    Item                                ZONCN Z2000 Series Inverter
Standard Function Control mode Senseless flux vector control(SFVC) ; Voltage/Frequency (V/F) control
Maximum frequency Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency 1-16kHz ; The carrier frequency is automatically adjusted based on the load features
Input frequency solution Digital setting: 0.01Hz ; Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ; P type: 0.5Hz/100%
Speed range 1:100
Speed stability accuracy ±0.5%
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost ; Customized boost 0.1%-30.0%
V/F curve Line V/F curve; Multi-point V/F curve; N-power V/F curve
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp ; S-curve ramp ; Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking DC braking frequency : 0.0Hz to maximum frequency Braking time: 0.0~100.0s Braking action current value: 0.0%~100.0%
JOG control JOG frequency range: 0.00~50.00Hz JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of X terminal states.
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage changes.
Auto voltage/ Over current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive
Torque limit and control It can keep constant output voltage automatically when the mains voltage changes

Inverter Specification

Inverter Model Rated Output Power(kW) Rated Input Current(A) Rated Output Current(A) Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G 0.4 5.4 2.5 0.4
Z2200-0R75G 0.75 7.2 5 0.75
Z2200-1R5G 1.5 10 7 1.5
Z2200-2R2G 2.2 16 11 2.2
Z2200-3R7G 3.7 23 16.5 3.7
Z2200-5R5G 5.5 21 25 5.5
Z2200-7R5G 7.5 31 32 7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G 0.75 3.8 2.5 0.75
Z2400-1R5G 1.5 5 3.7 1.5
Z2400-2R2G 2.2 5.8 5 2.2
Z2400-3R7G/5R5P 3.7/5.5 10/15.0 9/13 3.7/5.5
Z2400-5R5G 5.5 15 13 5.5
Z2400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
Z2400-11G/15P 11/15 26/35 25/32 11/15
Z2400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
Z2400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
Z2400-22G/30P 22/30 46/62 45/60 22/30
Z2400-30G/37P 30/37 62/76 60/75 30/37
Z2400-37G/45P 37/45 76/90 75/90 37/45
Z2400-45G/55P 45/55 90/105 90/110 45/55
Z2400-55G 55 105 110 55
Z2400-75G/90P 75/90 140/160 150/176 75/90
Z2400-90G/110P 90/110 160/210 176/210 90/110
Z2400-110G/132P 110/132 210/240 210/253 110/132
Z2400-132G/160P 132/160 240/290 253/300 132/160
Z2400-160G/185P 160/185 290/330 300/340 160/185
Z2400-185G/200P 185/200 330/370 340/380 185/200
Z2400-200G/220P 200/220 370/410 380/420 200/220
… 　 　 　 　


Exhibition

380v 3phase Variable Frequency Drive 1.5kw 2.2kw 3.7kw VFD With Ethercat Communication 0



FAQ

Q1. Are you a factory or a trade company?

A: We are ZONCN direct factory

Q2. What kinds of inverter voltage you can do?
A: 1PH/3H AC 220V+/-15%; 3PH AC 380V/440V/480V/690V

Q3. What is your VFD inverter's power rating?
A: We can prodduce from 0.4 kw to 2000 kw.

Q4. What is your terms of payment?
A: T/T 100% in advance.

Q6. What is your VFD inverter's warranty time?
A. All our VFDs have 18 months warranty after delivery.
