T200 Series vfd frequency inverter vfd 3.7kw drives

Basic product introduction:

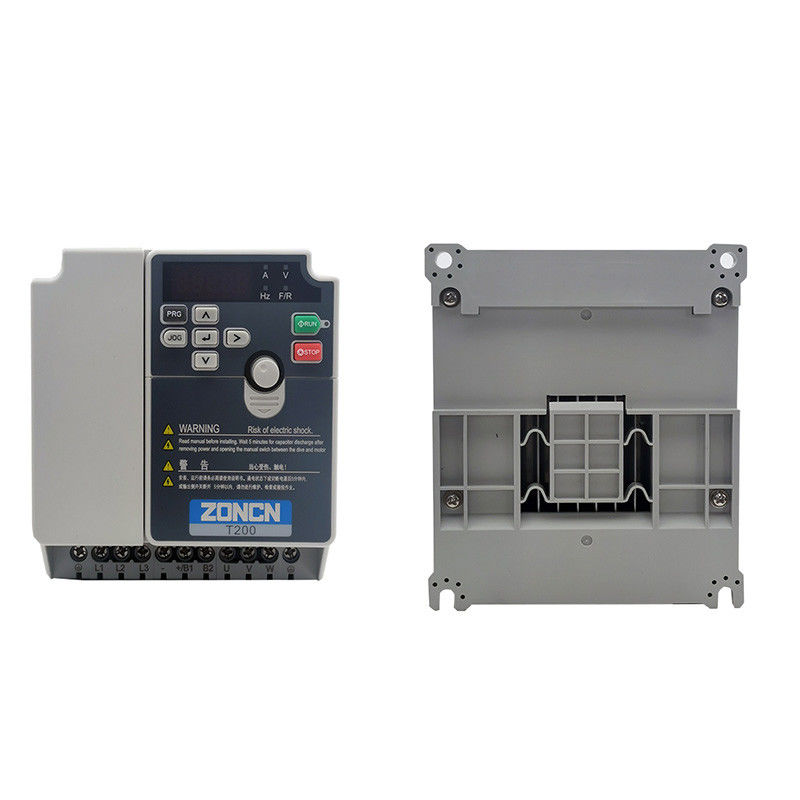

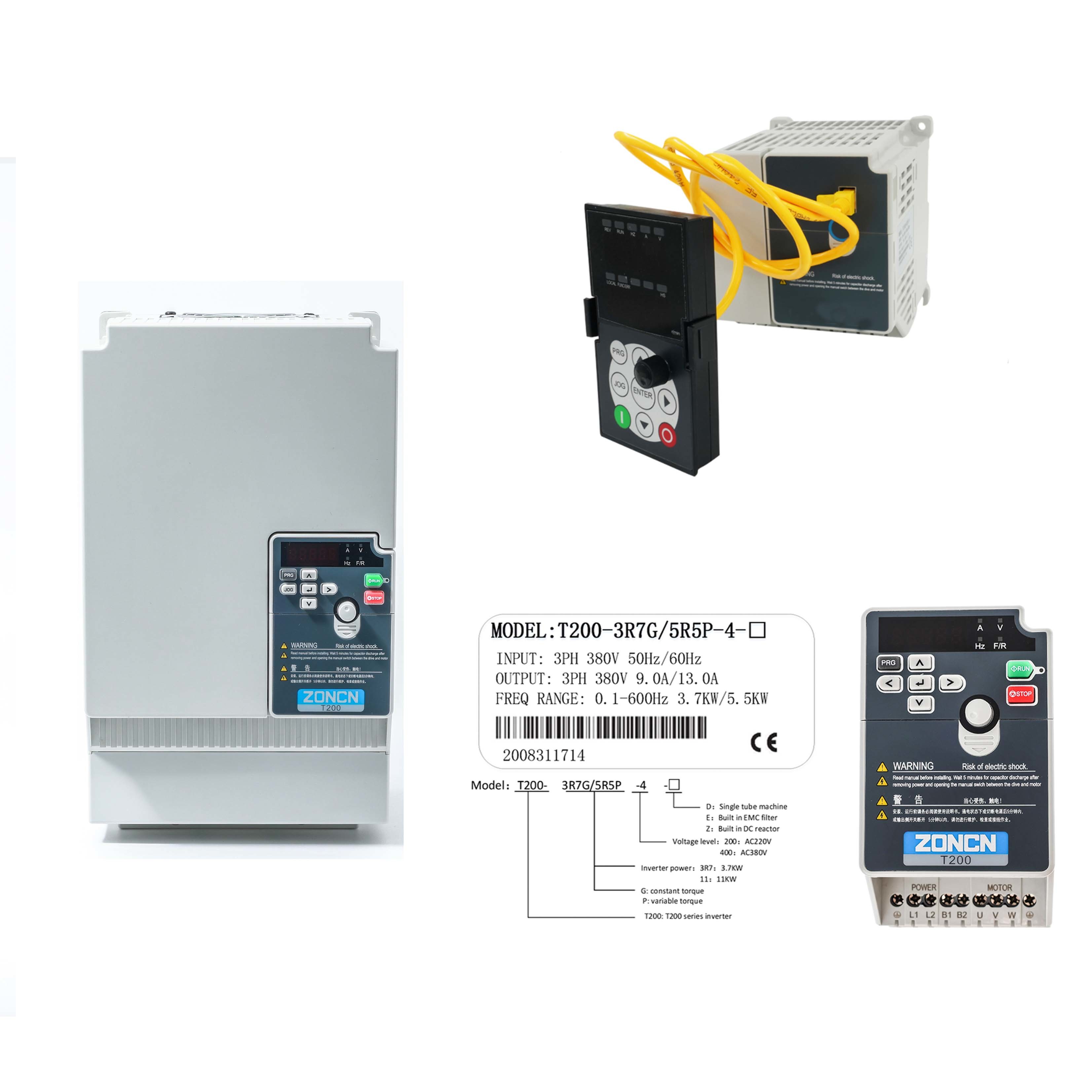

3.7kW Variable Frequency Drives Inversor 380v Low Voltage Inverter for fans Pump 0

· Economically affordable; Micro compact design

· Support built-in EMC filter, full power segment can support built-in IGBT; STO function (380v 15KW or less)

· External keyboard parameter copying function

· V/F control, open-oop vector control, closed-loop vector control mode

· Supporting multiple expansion cards: EtherCAT, Profibus-DP, ProfiNet,ModbusTCP, CAN open, Digital l/O, PG card

· Power range 0.4-55KW(above 75kW under developing)

The ZONCN T200 series drives are highly regarded for their beautiful price and excellent performance. This series of inverter not only has excellent speed regulation performance and stability, but also supports a variety of communication methods, including Modbus, CANopen, etc., which can easily meet customer's networking needs and realize remote monitoring and control of equipment. In addition, the ZONCN T200 series inverter also supports the STO (Safe Torque Off) function to ensure the safety of the equipment during operation. At the same time, this series of inverter has two modes of open loop vector control and closed loop vector control, which can be flexibly selected according to different application scenarios, providing users with more accurate and efficient frequency conversion speed regulation solutions.

Product technical parameters:

Item	T200 technical parameters
Maximum frequency	Vector control:0～600Hz V/F control:0~3200Hz
Control mode	V/F control；Senseless flux vector control(SFVC); Closed loop vector control (CLVC)
Carrier frequency	0.5kHz～16kHz The carrier frequency can be automatically adjusted based on the load feature
Input frequency resolution	Digital setting:0.01Hz Analog setting: maximum frequency×0.025%
Startup torque	G Type:0.5Hz/150%(SFVC)； P Type:0.5Hz/100%
Speed range	1:100(No PG)
Speed stability accuracy	±0.5%(No PG)
Torque control accuracy	±5%(FVC)
Overload capacity	G type: 60s for 150% of the rated current, 3s for 180% of the rated current P type: 60s for 120% of the rated current, 3s for 150% of the rated current
Torque boost	Fixed boost；Customized boost 0.1%-30.0%
V/F curve	Straight-line V/F curve；Multi-point V/F curve； N-power V/F curve (1.2-power, 1.4-power, 1.6- power,1.8-power, square)
V/F separation	Two types: complete separation; half separation
Ramp mode	Straight-line ramp；S-curve ramp Four groups of acceleration/deceleration time with the range of 0.00-6500.0s
DC braking	DC braking frequency: 0.00 Hz to maximum frequency Braking time: 0.0-100.0s Braking action current value: 0.0%–100.0%
JOG control	Jog frequency range:0.00Hz~50.00Hz. Jog acceleration/deceleration time0.0s~6500.0s
Onboard multiple preset speeds	It implements up to 16 speeds via the simple PLC function or by input terminal state
Onboard PID	It realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR)	It can keep constant output voltage automatically when the mains voltage changes
Over-voltage/Over-current stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current.
Rapid current limit	It helps to avoid frequent over-current faults of the inverter
Torque limit and torque control	It can limit the torque automatically and prevent frequent over-current tripping during the running process
High performance	Control of asynchronous motor is implemented through the high-performance current vector control technology
Instantaneous stop doesn’t stop	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time
Timing control	Timing range 0.0Min～6500.0Min
Communication methods	RS485；EtherCAT；Profibus-DP；CAN is optional
Protection mode	Motor short-circuit detection at power-on, input output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.
Key locking and function selection	It can lock the keys partially or completely and define the function range of some keys so as to prevent mis-function.
Running command channel	Given by the panel, control terminals, Serial communication port, can be switched by many ways
Frequency source	10 kinds of frequency source, given by digital analog voltage, analog current, pulse, serial port. can be switched by many ways
Auxiliary frequency source	There are ten auxiliary frequency sources. It can implement fine tuning of auxiliary frequency and frequency synthesis
Input terminals	5 digital input terminals, one of which supports up to 100 kHz high-speed pulse input; 1 analog input terminal, supports 0-10V voltage input or 4–20 mA current input.
Output terminals	1 digital output terminal 1 relay output terminal 1 analog output terminal : that supports 0–20 mA current output or 0–10 V voltage output
Key locking and function selection	It can lock the keys partially or completely and define the function range of some keys so as to prevent mis-function.
Protection mode	Motor short-circuit detection at power-on, input output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.

Frequency inverter specifications:

Model	Input voltage	Rated output power(kw)	Rated input current(A)	Rated output current(A)	Motor power(kw)
T200-0R4G-2	AC 1PH 220V± 15%	0.4	5.4	2.5	0.4
T200-0R75G-2		0.75	7.2	5.0	0.75
T200-1R5G-2		1.5	10.0	7.0	1.5
T200-2R2G-2		2.2	16.0	11.0	2.2
T200-0R4G-4	AC 3PH 380V±15%	0.4	3.4	1.2	0.4
T200-0R75G-4		0.75	3.8	2.5	0.75
T200-1R5G-4		1.5	5.0	3.7	1.5
T200-2R2G-4		2.2	5.8	5.0	2.2
T200-3R0G-4		3.0	8.5	7.0	3.0
T200-3R7G/5R5P-4		3.7/5.5	10/15	9/13	3.7/5.5
T200-5R5G/7R5P-4		5.5/7.5	15/20	13/17	5.5/7.5
T200-7R5G/11P-4		7.5/11	20/26	17/25	7.5/11
T200-11G/15P-4		11/15	26/35	25/32	11/15
T200-15G/18.5P-4		15/18.5	35/38	32/37	15/18.5
T200-18.5G/22P-4		18.5/22	38/46	37/45	18.5/22
T200-22G/30P-4		22/30	46/62	45/60	22/30
T200-30G/37P-4		30/37	62/76	60/75	30/37
T200-37G/45P-4		37/45	76/90	75/90	37/45
T200-45G/55P-4		45/55	92/113	90/110	45/55
T200-55G/75P-4		55/75	113/157	110/152	55/75

T200 series expansion card selection:

No.	Expansion card model	PCB internal model number	Function description	Applicable model
1	PG-T11-01	T11PG01	ABZ_ Differential input PG card _5V	T200-0.4-55 kw
2	PG-T11-02	T11PG02	ABZ_OC& Push-pull input PG card _24V
3	ET-T11-01	T11JK01	1 normally open normally closed relay 2 DL_1 FIV_1 FOC
4	ET-T11-02	T11JK02	1 high speed pulse output _2 DI_1 FIV_1 FOC
5	CM-T11-01	T11CM01	ProfibusDP communication card
6	CM-T11-02	T11CM02	Ethercat communication card
7	CM-T11-03	T11CM03	CAN communication card
8	CM-T11-04	T11CM04	Modbus TCP communication card
9	CM-T11-05	T11CM05	Profinet communication card
Note: This model only has 1 multi-function expansion card interface, communication card and PG share this interface Communication card and PG card can only select one extension, not compatible at the same time.

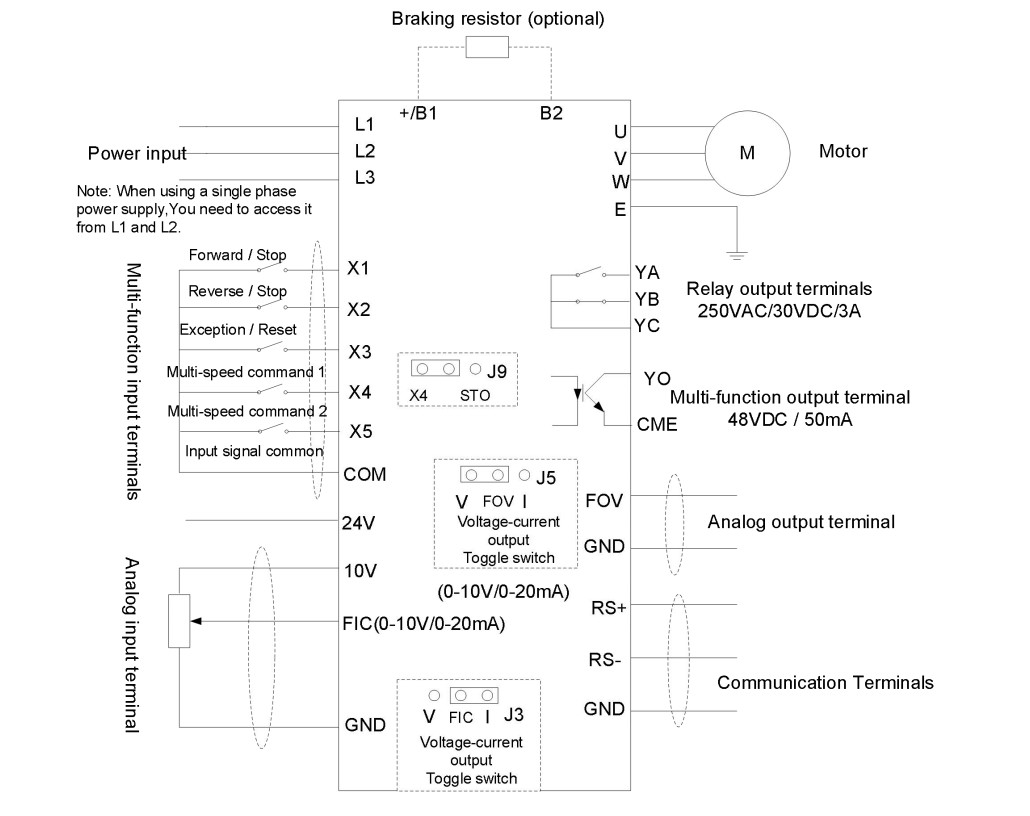

T200 series product circuit diagram:

3.7kW Variable Frequency Drives Inversor 380v Low Voltage Inverter for fans Pump 1

Product size:

About ZONCN:

3.7kW Variable Frequency Drives Inversor 380v Low Voltage Inverter for fans Pump 6

3.7kW Variable Frequency Drives Inversor 380v Low Voltage Inverter for fans Pump 7

Our main products include inverter and servo system.Our company has a widerange of products, with medium and low voltage inverters divided into two categories:general-purpose products and industry-specific products, covering voltage levels from AC 220V to 1140V,power rangefrom 0.4kW-1,200kW, and widely used inindustries such as air compressors, plastic machinery, construction machinery, watersupply equipment, metallurgical equipment,textile machinery, machine tools, chemical machinery, mining machinery, printingand packaging, etc.The servo system isdivided into two categories: synchronous servo driver and asynchronous servo drivercovers voltage range from AC220V to480V, power range from 0.4 kW to 132 kW,suitable for various occasions requiring high-performance precision control.

ZONCN has more than 80 dealers in china and abroad. Now our products are exported to more than 50 countries in Asia, Europe,Africa and America. ZONCN will always dedicate in the field of electrical drive and warmly welcome you to be our partner.
