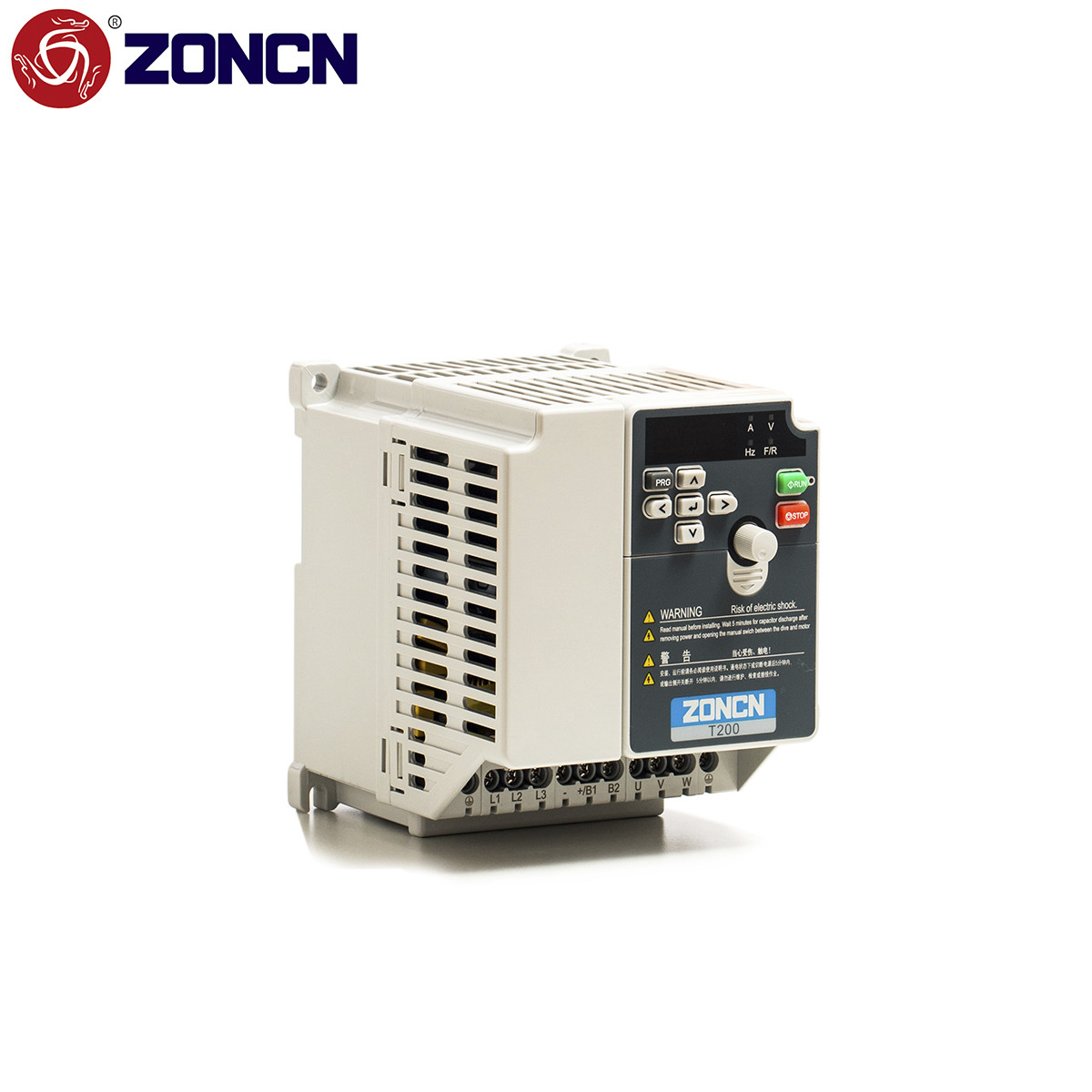

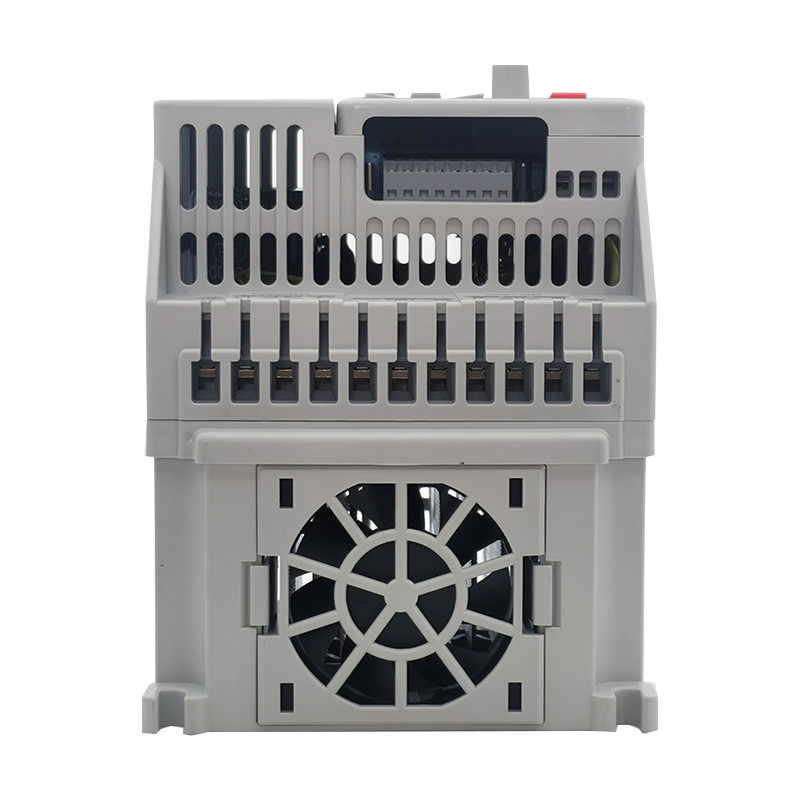

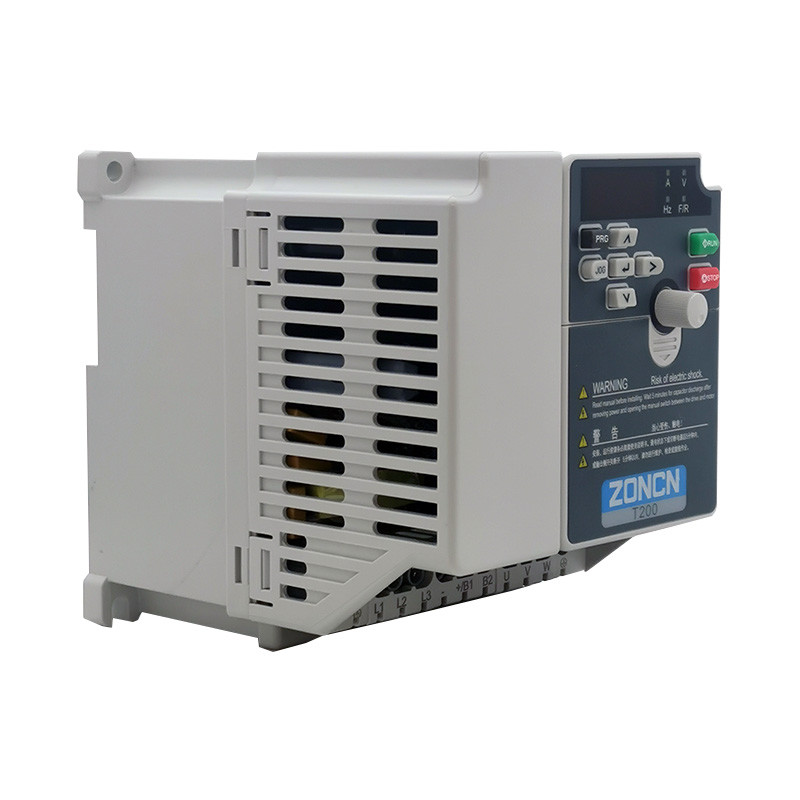

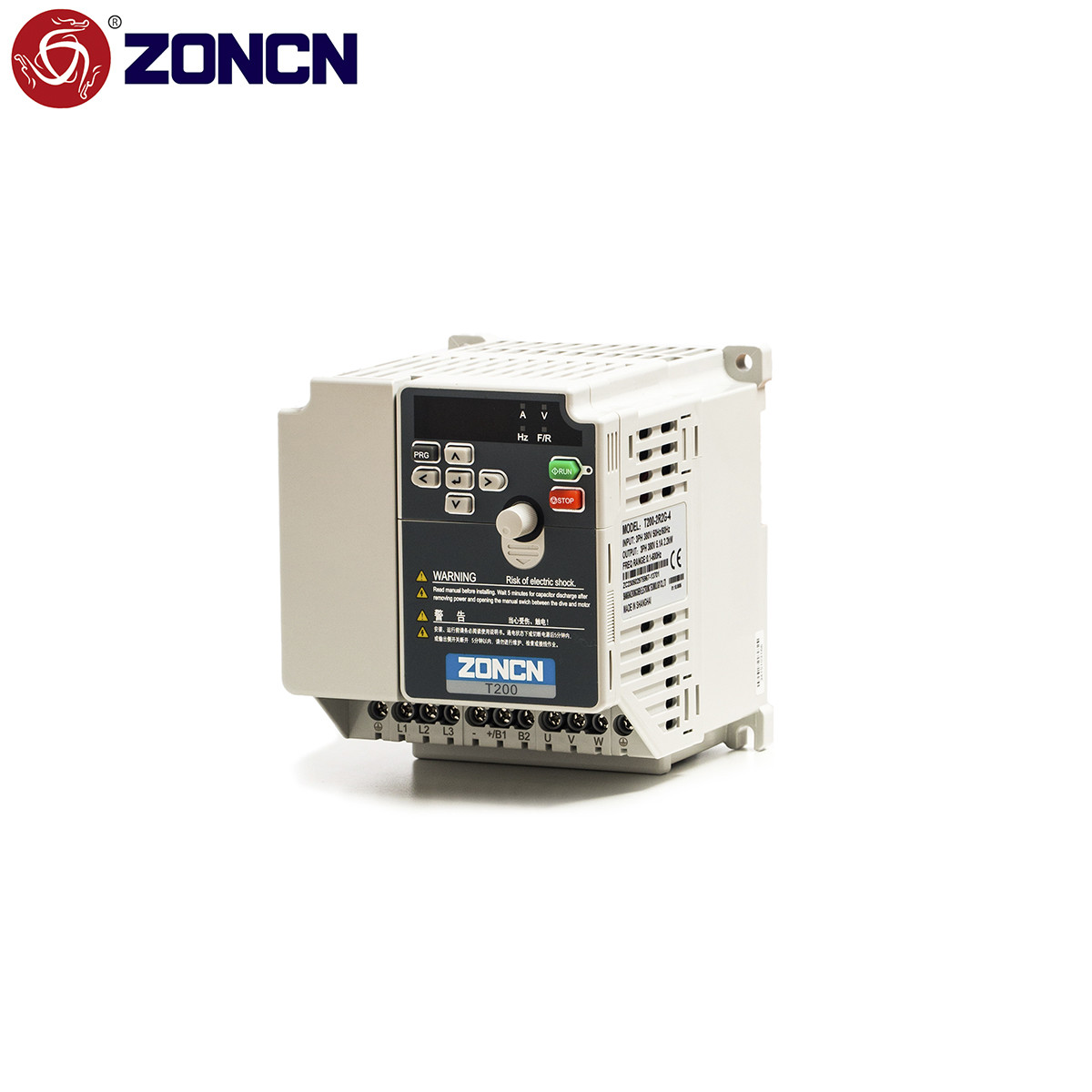

T200 Series Inverter Low Voltage 220V 1.5KW Frequency Conversion Governor Vfd

T200 Series Inverter Low Voltage 220V 1.5KW Frequency Conversion Governor Vfd
T200 Series Inverter Low Voltage 220V 1.5KW Frequency Conversion Governor Vfd T200 Series Inverter Low Voltage 220V 1.5KW Frequency Conversion Governor Vfd T200 Series Inverter Low Voltage 220V 1.5KW Frequency Conversion Governor Vfd T200 Series Inverter Low Voltage 220V 1.5KW Frequency Conversion Governor Vfd T200 Series Inverter Low Voltage 220V 1.5KW Frequency Conversion Governor Vfd T200 Series Inverter Low Voltage 220V 1.5KW Frequency Conversion Governor Vfd T200 Series Inverter Low Voltage 220V 1.5KW Frequency Conversion Governor Vfd T200 Series Inverter Low Voltage 220V 1.5KW Frequency Conversion Governor Vfd T200 Series Inverter Low Voltage 220V 1.5KW Frequency Conversion Governor Vfd T200 Series Inverter Low Voltage 220V 1.5KW Frequency Conversion Governor Vfd T200 Series Inverter Low Voltage 220V 1.5KW Frequency Conversion Governor Vfd T200 Series Inverter Low Voltage 220V 1.5KW Frequency Conversion Governor Vfd
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN Inverter Vfd
Certification: CE
Model Number: T200 series VFD T200-1R5G-2
Minimum Order Quantity: 1 unit
Packaging Details: Carton
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Application Type: Variable Frequency Drives （vfd） Usage Scenario: Industrial Speed Control/Energy Saving
Frequency Range: 0.1-600HZ Input Type: AC 220V 1PH
Output Type: AC 220V 1PH Output Current: 7.2A
Input Current: 10A Instruction Manual Equipment: English/Chinese
Customized Service: OEM/ODM Material: Plastic
Highlight:

Low Voltage T200 Series Inverter

,

220V T200 Series Inverter

,

1.5KW T200 Series Inverter

T200 Series vfd Variador De Velocidad Vfd 1.5kw

Basic product introduction:

T200 Series Inverter Low Voltage 220V 1.5KW Frequency Conversion Governor Vfd 0

The T200 series vfd inverter is the latest high-performance vector control vfd inverter from ZONCN Technology, which is regarded as an upgraded version of the Z2000 series vfd inverter.For this product, we have developed 55KW at present, and more power is under development. This inverter features an RJ45 keyboard interface. The keyboard can be detachable, and it can also accept a separate external keyboard. And we also welcome ODM OEM custom service.

T200 series inverter has excellent performance and comprehensive functions. With its excellent stability and high efficiency, it has been exported to countries all over the world and has been widely praised by customers. It has perfect applications in various industrial fields such as fans, pumps, textile equipment, and provides reliable solutions for various industrial automation systems, becoming the leader in the industry.



Product technical parameters:

Item T200 technical parameters
Maximum frequency Vector control:0～600Hz
V/F control:0~3200Hz
Control mode V/F control；Senseless flux vector control(SFVC); Closed loop vector control (CLVC)
Carrier frequency 0.5kHz～16kHz
The carrier frequency can be automatically adjusted based on the load feature
Input frequency resolution Digital setting:0.01Hz
Analog setting: maximum frequency×0.025%
Startup torque G Type:0.5Hz/150%(SFVC)；
P Type:0.5Hz/100%
Speed range 1:100(No PG)
Speed stability accuracy ±0.5%(No PG)
Torque control accuracy ±5%(FVC)
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current
P type: 60s for 120% of the rated current, 3s for 150% of the rated current
Torque boost Fixed boost；Customized boost 0.1%-30.0%
V/F curve Straight-line V/F curve；Multi-point V/F curve；
N-power V/F curve (1.2-power, 1.4-power, 1.6- power,1.8-power, square)
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp；S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.00-6500.0s
DC braking DC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0-100.0s
Braking action current value: 0.0%–100.0%
JOG control Jog frequency range:0.00Hz~50.00Hz.
Jog acceleration/deceleration time0.0s~6500.0s
Onboard multiple preset speeds It implements up to 16 speeds via the simple PLC function or by input terminal state
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR) It can keep constant output voltage automatically when the mains voltage changes
Over-voltage/Over-current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current.
Rapid current limit It helps to avoid frequent over-current faults of the inverter
Torque limit and torque control It can limit the torque automatically and prevent frequent over-current tripping during the running process
High performance Control of asynchronous motor is implemented through the high-performance current vector control technology
Instantaneous stop doesn’t stop The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time
Timing control Timing range 0.0Min～6500.0Min
Communication methods RS485；EtherCAT；Profibus-DP；CAN is optional
Protection mode Motor short-circuit detection at power-on, input output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.
Key locking and function selection It can lock the keys partially or completely and define the function range of some keys so as to prevent mis-function.
Running command channel Given by the panel, control terminals, Serial communication port, can be switched by many ways
Frequency source 10 kinds of frequency source, given by digital analog voltage, analog current, pulse, serial port. can be switched by many ways
Auxiliary frequency source There are ten auxiliary frequency sources. It can implement fine tuning of auxiliary frequency and frequency synthesis
Input terminals 5 digital input terminals, one of which supports up to 100 kHz high-speed pulse input;
1 analog input terminal, supports 0-10V voltage input or 4–20 mA current input.
Output terminals 1 digital output terminal
1 relay output terminal
1 analog output terminal : that supports 0–20 mA current output or 0–10 V voltage output
Key locking and function selection It can lock the keys partially or completely and define the function range of some keys so as to prevent mis-function.
Protection mode Motor short-circuit detection at power-on, input output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.





Frequency inverter specifications:

Model Input voltage Rated output power(kw) Rated input current(A) Rated output current(A) Motor power(kw)
T200-0R4G-2 AC 1PH 220V± 15% 0.4 5.4 2.5 0.4
T200-0R75G-2 0.75 7.2 5.0 0.75
T200-1R5G-2 1.5 10.0 7.0 1.5
T200-2R2G-2 2.2 16.0 11.0 2.2
T200-0R4G-4 AC 3PH 380V±15% 0.4 3.4 1.2 0.4
T200-0R75G-4 0.75 3.8 2.5 0.75
T200-1R5G-4 1.5 5.0 3.7 1.5
T200-2R2G-4 2.2 5.8 5.0 2.2
T200-3R0G-4 3.0 8.5 7.0 3.0
T200-3R7G/5R5P-4 3.7/5.5 10/15 9/13 3.7/5.5
T200-5R5G/7R5P-4 5.5/7.5 15/20 13/17 5.5/7.5
T200-7R5G/11P-4 7.5/11 20/26 17/25 7.5/11
T200-11G/15P-4 11/15 26/35 25/32 11/15
T200-15G/18.5P-4 15/18.5 35/38 32/37 15/18.5
T200-18.5G/22P-4 18.5/22 38/46 37/45 18.5/22
T200-22G/30P-4 22/30 46/62 45/60 22/30
T200-30G/37P-4 30/37 62/76 60/75 30/37
T200-37G/45P-4 37/45 76/90 75/90 37/45
T200-45G/55P-4 45/55 92/113 90/110 45/55
T200-55G/75P-4 55/75 113/157 110/152 55/75





T200 series expansion card selection:

No. Expansion card model PCB internal model number Function description Applicable model
1 PG-T11-01 T11PG01 ABZ_ Differential input PG card _5V T200-0.4-55 kw
2 PG-T11-02 T11PG02 ABZ_OC& Push-pull input PG card _24V
3 ET-T11-01 T11JK01 1 normally open normally closed relay 2 DL_1 FIV_1 FOC
4 ET-T11-02 T11JK02 1 high speed pulse output _2 DI_1 FIV_1 FOC
5 CM-T11-01 T11CM01 ProfibusDP communication card
6 CM-T11-02 T11CM02 Ethercat communication card
7 CM-T11-03 T11CM03 CAN communication card
8 CM-T11-04 T11CM04 Modbus TCP communication card
9 CM-T11-05 T11CM05 Profinet communication card
Note: This model only has 1 multi-function expansion card interface, communication card and PG share this interface Communication card and PG card can only select one extension, not compatible at the same time.





T200 series product circuit diagram:

T200 Series Inverter Low Voltage 220V 1.5KW Frequency Conversion Governor Vfd 1





Product size:

T200 Series Inverter Low Voltage 220V 1.5KW Frequency Conversion Governor Vfd 2





FAQ:
Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.



Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
