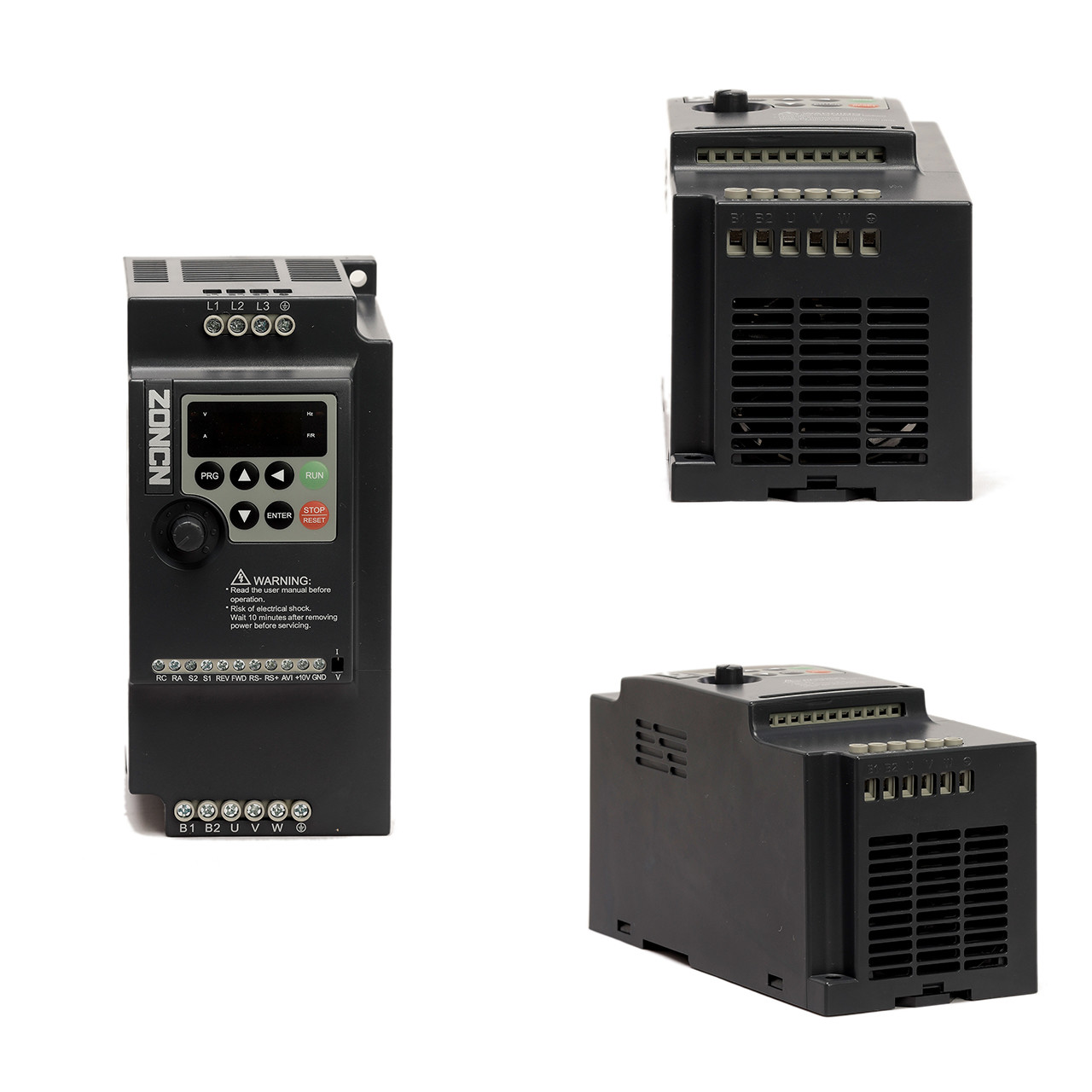

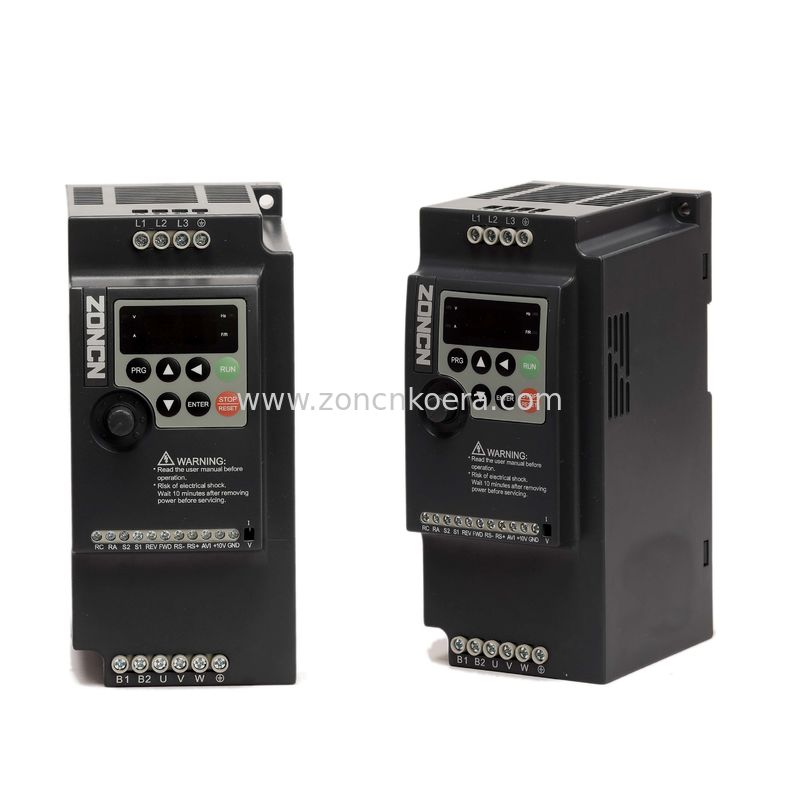

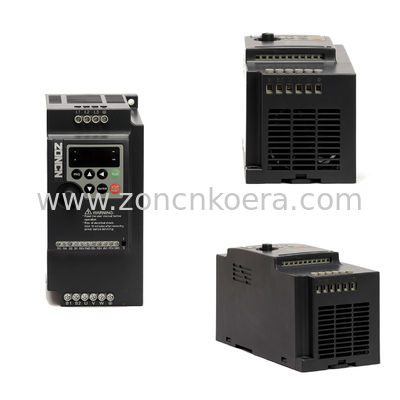

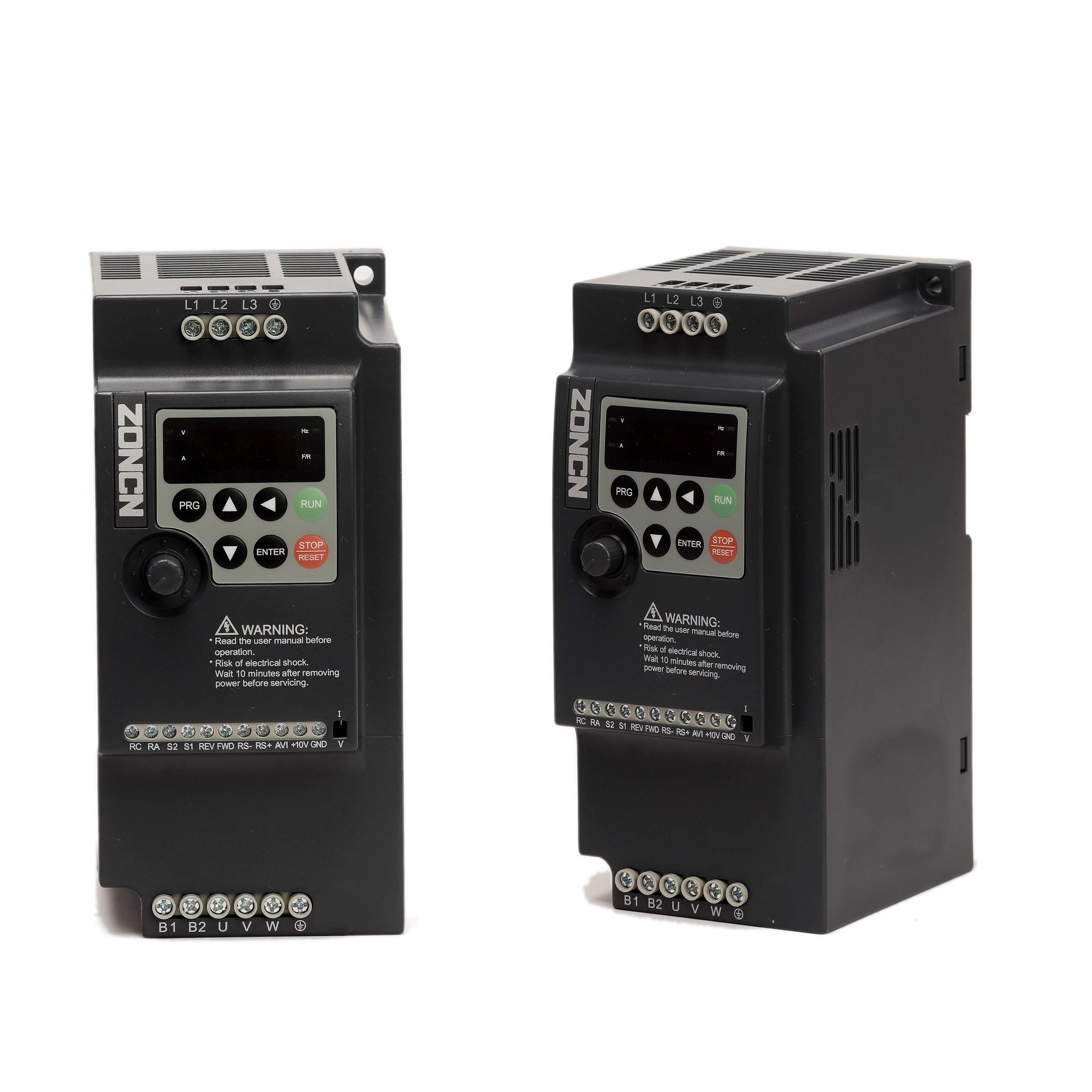

NZ200 Series Inverter VFD Motor Speed Controller Low Voltage 380v Manufacturer 3.7KW

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	ZONCN Vfd
Certification:	CE
Model Number:	NZ200-3R7G/5R5P-4

Minimum Order Quantity:	1 unit
Packaging Details:	Carton packing；
Delivery Time:	7-30 work days
Payment Terms:	T/T, Western Union，Paypal
Supply Ability:	100000 units a month

Get Best Price Contact Now

Model:	NZ200-3R7G/5R5P-4 VFD	Warranty:	18 Months Warranty
Power:	3.7kw Vfd	Input:	380v Three Phase Vfd
Output:	380v Three Phase Vfd	Type:	AC Frequency Inverter Vfd
Manufacturer:	ZONCN Vfd	Voltage Range:	380v±15%
Storage Temperature:	-20~60℃	LED/LCD:	Standard LED, LCD Optional
Highlight:	3.7KW NZ200 Series Inverter , 380v NZ200 Series Inverter , Low Voltage NZ200 Series Inverter

NZ200 user manual.pdf

NZ200 3.7kW Inverter Vfd Low Voltage 400v NZ200-3R7G/11P-4

Product Brief Introduction:

Control mode	Open loop vector control, VF control
Super overload capacity	Strong overload capacity, 150% rated current 60S, 180% rated current 3S
High performance	Superior performance, good environment adaptation
Simple structure	Simple structure, compact volume, easy to install
High torque	Universal vector inverter, large torque output, can ensure the smooth start of the motor under heavy load
Fast current limiting function	It has the function of instant stop and fast current limiting, which can reduce the probability of frequent fault alarm of frequency inverter.
Various protection functions	Complete protection function, with output phase loss protection, over current, over voltage, overload, overheating protection and other functions.
Type	Support permanent magnet synchronous motor control NZ200T series
Customized service	OEM/ODM
Power range	Maximum 630KW vfd

NZ200 VFD Technical Specification:

Item		ZONCN NZ200 Series
Control Mode	Sensorless flux vector control(SFVC) Voltage/Frequency (V/F) Control
Maximum frequency	Vector control:0-320Hz V/F control:0-3200Hz
Carrier frequency	1kHz~16kHz The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution	Digital setting:0.01Hz Analog setting: Maximum frequency 0.025%
Start torque	G: Type:0.5Hz/150%(SVC) P: Type:0.5Hz/100%
Speed range	1:100(SVC)
Speed stability accuracy	±0.5%(SVC)
Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost	Auto-boost ; Customized boost:0.1%~30.0%
VF curve	Straight-line VF curve; Multi-point VF curve; N-power VF curve(1.2-power,1.4-power,1.6-power,1.8-power, 2-power)
VF separation	2 types: complete separation；half separation
Ramp Mode	Straight-line ramp；S-curve ramp；Four groups of acceleration/deceleration time:0~6500.0s
Simple PLC, Multiple preset speeds	It implements up to 16 speeds via the simple PLC function or combination of terminal states
Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage changes
Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
Torque limit and control	It can limit the torque automatically and prevent frequent over-current tripping during the running process.
Onboard PID	It realizes process-controlled closed loop control system easily
Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
JOG control	JOG frequency range: 0.00–50.00 Hz JOG acceleration/deceleration time: 0.0–6500.0s
DC braking	DC braking frequency:0.00Hz to maximum frequency Braking time:0.0-100.0s Braking action current value:0.0%-100.0%
Instantaneous blackout doesn’t stop	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Timing control	Timing range:0.0Min~6500.0Min
Communication	RS485
Run instruction channel	Keyboard given, control terminal given, serial communication port given. It can be switched in a variety of ways.
Frequency source	10 kinds: digital given, analog voltage given, analog current given, pulse given, serial port given. It can be switched in a variety of ways.
Auxiliary frequency source	10 auxiliary frequency sources. It can flexibly realize auxiliary frequency fine-tuning and frequency synthesis.
Input terminals	6 digital input terminals, one of which supports up to 100 kHz high-speed pulse input (S3 optional). 2 analog input terminal, one of which only supports 0-10v voltage input(FIV) and the other supports 0-10 voltage input or 4-20 mA current input(FIC).
Output terminals	1 digital output terminal(MO1) 1 relay output terminal(RA,RB,RC) 1 analog output terminal :that supports 0-20 mA current output or 0-10v voltage output(FOV)
Remark	X terminal is NPN type by default. If PNP type is required, contact customer service for customization.
LED display	Not removable. More than 45kw is acceptable.
Keystroke locking and function selection	Realize partial or full lock of keys, and define the scope of action of some keys to prevent false touch
Multiple protection modes	Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.

Model Description:

Model	Rated output power (kW)	Rated input current (A)	Rated output current (A)	Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
NZ200-0R4G-2	0.4	5.4	2.5	0.4
NZ200-0R75G-2	0.75	7.2	5	0.75
NZ200-1R5G-2	1.5	10	7	1.5
NZ200-2R2G-2	2.2	16	11	2.2
NZ200-3R7G-2	3.7	17	16.5	3.7
Input voltage(v):3PH AC 380V±15%
NZ200-0R4G-4	0.4	3.4	1.2	0.4
NZ200-0R75G-4	0.75	3.8	2.5	0.75
NZ200-1R5G-4	1.5	5	3.7	1.5
NZ200-2R2G-4	2.2	5.8	5	2.2
NZ200-3R7G/5R5P-4	3.7	10.7	9	3.7
NZ200-5R5G/7R5P-4	5.5	14.6	13	5.5
NZ200-7R5G/11P-4	7.5	20	17	7.5
NZ200-11G/15P-4	11	26	25	11
NZ200-15G/18.5P-4	15	35	32	15
NZ200-18.5G/22P-4	18.5	38	37	18.5
NZ200-22G/30P-4	22	46	45	22
NZ200-30G/37P-4	30	62	60	30
NZ200-37G/45P-4	37	76	75	37
NZ200-45G/55P-4	45	92	90	45
NZ200-55G/75P-4	55	113	110	55
NZ200-75G/90P-4	75	157	150	75
NZ200-90G/110P-4	90	180	176	90

NZ200 Wiring:

Product Application:

The ZONCN NZ200 inverter is widely utilized in common industrial sectors such as compressors, packaging machines, engraving machines, textile machinery, and conveyor belts. Its versatility and reliability make it an ideal choice for these applications. The NZ200 inverter provides precise control and efficient operation, ensuring optimal performance in various industrial processes. With its advanced technology and user-friendly interface, the NZ200 inverter offers seamless integration and ease of operation. Its compact design and robust construction make it suitable for installation in different industrial environments. Whether it's controlling the speed of a compressor, regulating the packaging process, or powering an engraving machine, the NZ200 inverter delivers exceptional performance and enhances productivity in these industrial fields.

FAQ:

1:What is your MOQ?
1 PC.

2:What is terms of payment?
T/T 100% before delivery.

3:What is your delivery time?
Fast delivery is our advantage. Usually within ten days.

4:How can we do OEM/ODM?
We do OEM for more than 40 brands. If your order reaches a certain quantity, we can do it for you.
